◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#2866) — 180 parça

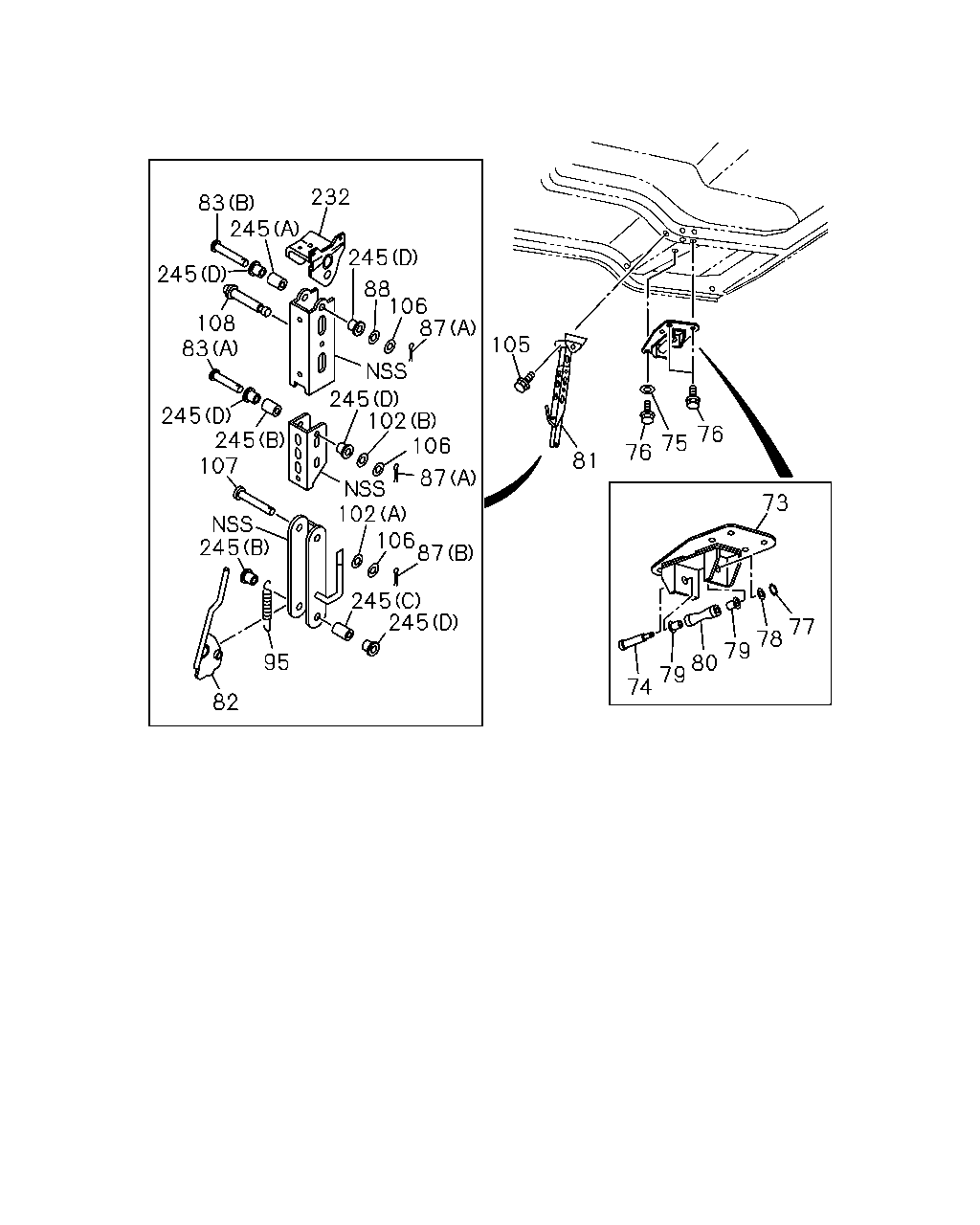

çizim 28406
73 77 78 79 80 79 74 76 75 76 81 105 87 106 88 245 232 245 83 245 83 108 245 245 107 245 82 95 102 245 106 87 245 87 106 102 245
BalonParca AdiParca NoAdetTipApplied Date A B
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 9002- ● ●
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 9002- ● ●
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 9002- ● ●
75 WASHER; PL,PAD 1-09985-111-0 02 1 9002- ● ●
76 BOLT; PAD
M10X25 		9-01971-025-0 06 1 9002-9002 ● ●
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9003- ● ●
77 RING; SNAP 1-09588-032-0 02 1 9002- ● ●
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 9002- ● ●
79 BUSHING; ROLLER 5-33659-053-0 04 1 9002- ● ●
80 ROLLER 1-53459-357-2 02 1 9002- ● ●
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 9002- ● ●
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 9002- ● ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 9002- ● ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 9002- ● ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) L=30 L=30 		1-09987-080-0 02 1 9002- ● ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (B) OD=2.8 L=18 		9-08113-018-0 01 1 9002- ● ●
88 WASHER; PL,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9002- ● ●
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 9002- ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ● ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 9002- ● ●
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 9002- ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=11.3 OD=14.5 		5-09550-001-0 01 1 9002- ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 02 1 9002- ● ●
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 9002- ● ●
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 9002- ● ●
232 BRACKET; SUPPORT,CAB TILT STAY
EXC. AUTO CAB TILT<WV2> 		1-65570-215-1 01 1 9002- ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (A) L=41.0 		1-53459-626-0 01 1 9002- ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (B) L=31.5 		1-53459-627-0 01 1 9002- ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=27.5 		1-53459-628-0 01 1 9002- ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=12.0 		1-53459-971-0 06 1 9002- ● ●

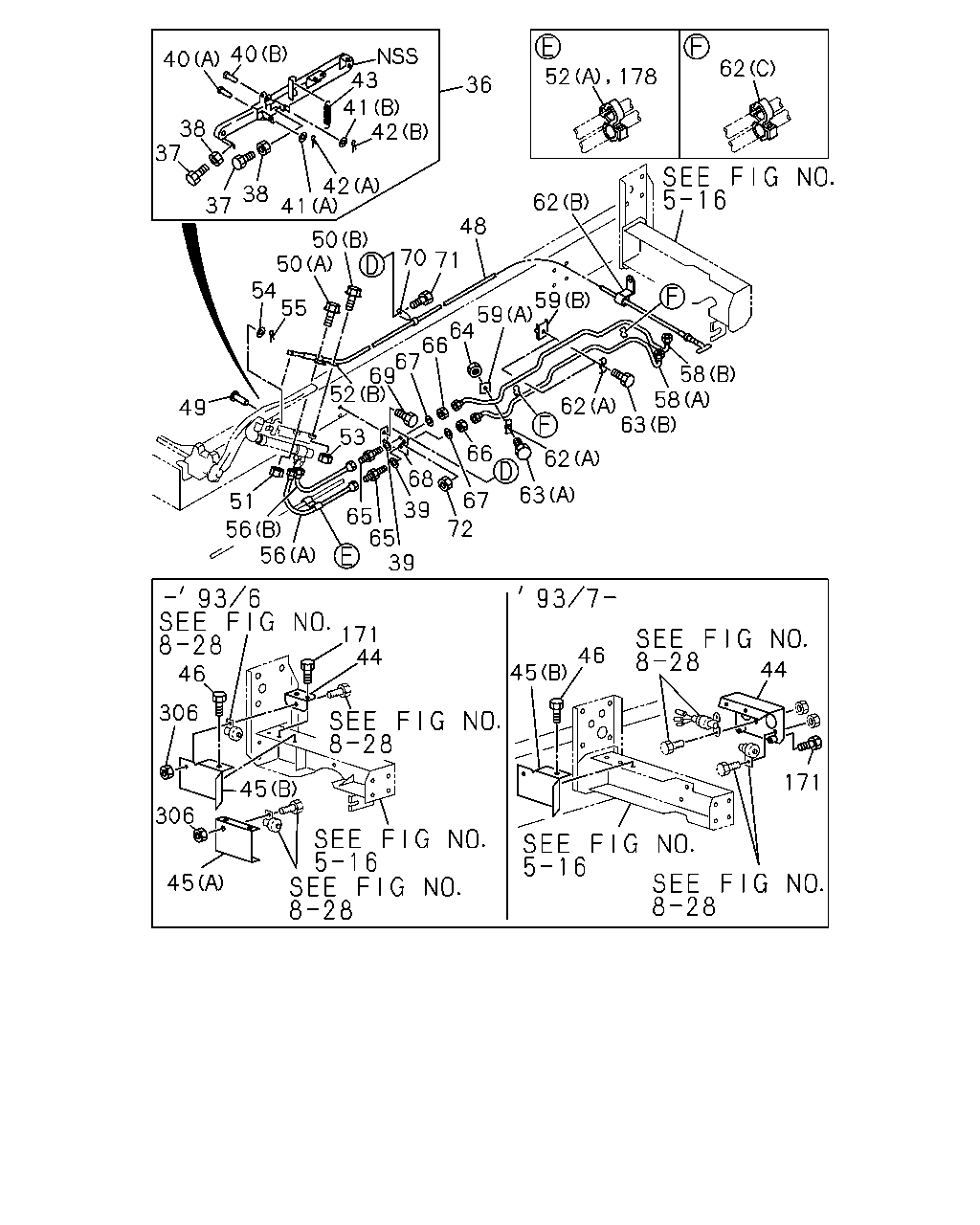

çizim 28731
171 44 46 45 44 171 46 306 45 306 45 56 51 56 65 65 39 39 68 66 67 72 63 62 62 58 58 63 59 59 64 66 67 69 52 53 49 55 54 50 50 48 62 71 70 42 41 38 37 37 38 40 40 43 41 42 36 52 178 62
BalonParca AdiParca NoAdetTipApplied Date A B
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002- ● ●
37 BOLT; STOP SW ADJ
AUTO CAB TILT<WV2> 		1-09000-330-0 02 1 9002- ● ●
38 NUT; LK
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9002- ● ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=26 		9-09160-514-0 01 1 9002- ● ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=30 		9-09160-614-0 01 1 9002- ● ●
40 PIN; LK
AUTO CAB TILT<WV2> (B) OD=14 L=52 		1-09744-062-0 01 1 9002- ● ●
40 PIN; LK
AUTO CAB TILT<WV2> (A) OD=10 L=42 		9-08234-042-0 01 1 9002- ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 9002- ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 9002- ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (B) OD=3.7 L=25 		9-08114-025-0 02 1 9002- ● ●
43 SPRING; RETURN,LEVER
AUTO CAB TILT<WV2> 		9-09942-604-0 01 1 9002- ● ●
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53459-902-0 01 1 9205-9306 ● ●
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53458-232-1 01 1 9307- ● ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> (A) 		1-53459-869-1 01 1 9002-9206 ● ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> (B) 		1-53458-445-0 01 1 9207-9501 ● ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) 		1-53458-445-0 01 1 9502- ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204 ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9206 ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9207-9501 ● ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 02 1 9502- ● ●
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> L=2250 		1-53459-720-2 01 1 9002- ● ●
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-828-0 01 1 9002- ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (B) M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (A) M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (A) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003- ● ●
51 NUT; CONT CABLE
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002- ● ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 9002- ● ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (B) ID=11 L=28 		9-09525-055-0 01 1 9002- ● ●
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002- ● ●
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 9002- ● ●
55 PIN; SPLIT
AUTO CAB TILT<WV2> OD=1.8 L=15 		9-08112-015-0 01 1 9002- ● ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (A) DOWN L=650 		1-09364-432-3 01 1 9002- ● ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (B) UP L=600 		1-09364-437-2 01 1 9002- ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1566 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306 ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1571 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306 ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1566 SERVICED BY L=1700 		1-47426-391-0 01 1 9307- ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1571 SERVICED BY L=1700 		1-47426-391-0 01 1 9307- ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) L=50 		1-47475-299-2 01 1 9002- ● ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) 		1-47475-427-1 02 1 9002- ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) ID=9 & 9 L=17 & 17 		1-09700-651-0 03 1 9002- ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) ID=10 		1-09700-868-0 02 1 9002- ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=8 & 10 		8-94252-372-0 04 1 9002-9006 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-0 04 1 9007-9102 ● ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-1 01 1 9103- ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9204 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9302 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9303- ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X45 W/LK WASHER 		9-01900-845-0 02 1 9002-9204 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-9302 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X50 FLANGE 		0-28080-850-0 02 1 9303-9306 ● ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X50 FLANGE 		0-28080-850-0 03 1 9307- ● ●
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002- ● ●
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> M14 		9-09223-308-1 02 1 9002- ● ●
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 9002- ● ●
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002- ● ●
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47475-998-0 01 1 9002- ● ●
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9205- ● ●
70 CLIP; UNION BRKT
AUTO CAB TILT<WV2> 		1-09700-098-0 01 1 9002- ● ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 		9-01910-620-0 01 1 9002-9005 ● ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9006-9210 ● ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9211- ● ●
72 NUT
AUTO CAB TILT<WV2> M6 		9-09110-406-0 01 1 9002- ● ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ●
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=6-10 & 10-14 		1-09709-201-1 01 1 9103-9409 ● ●
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=12-16 & 12-16 		1-09709-191-0 01 1 9410- ● ●
306 NUT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8 FLANGE 		5-09440-005-0 01 1 9207-9306 ● ●

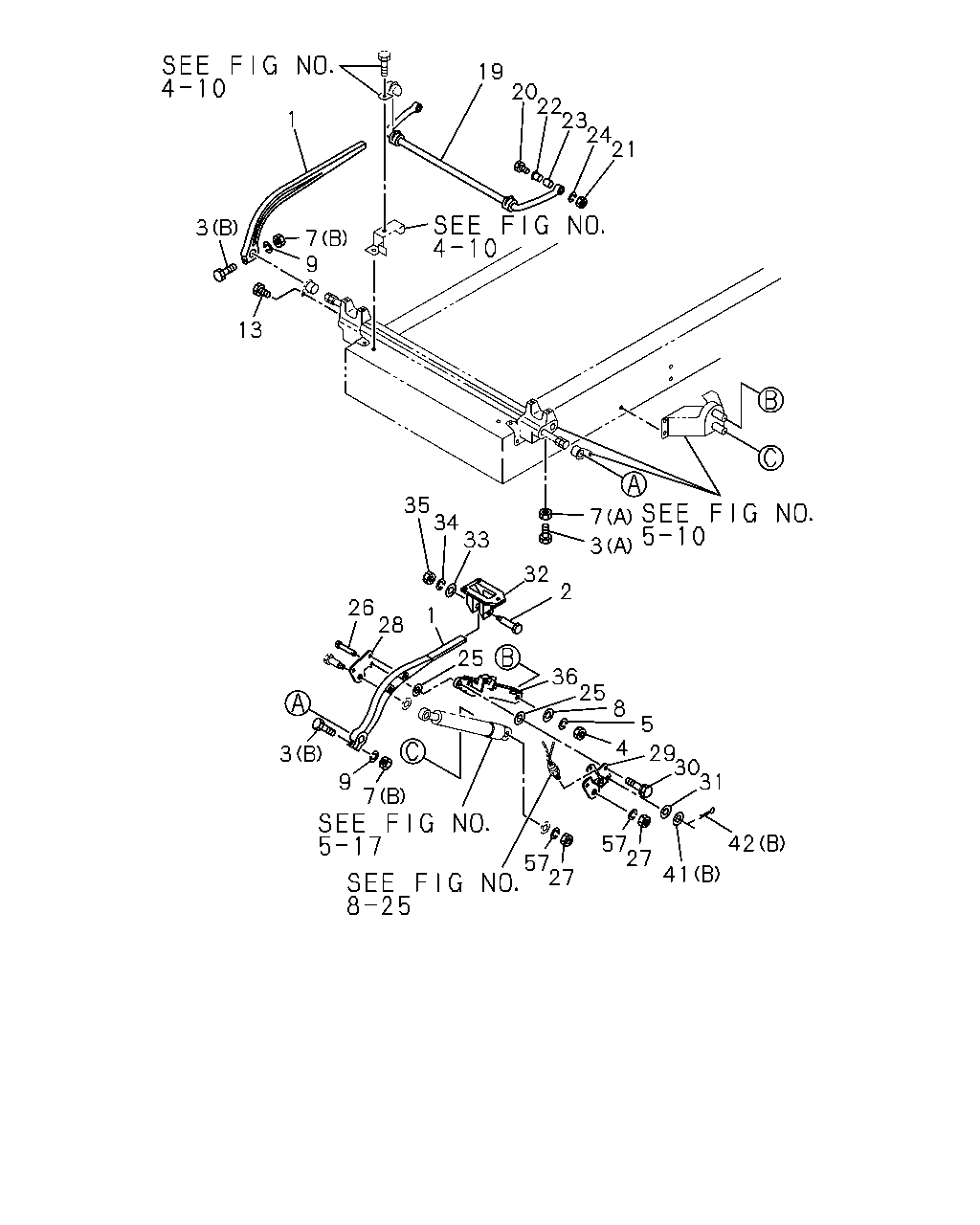

çizim 28801
42 41 27 57 27 57 7 9 3 26 1 28 35 34 33 7 32 3 2 25 36 25 8 5 4 29 30 31 9 13 3 19 21 24 23 22 20 7 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR 1-53459-341-4 01 1 9002- ●
1 LEVER; TORSION BAR
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-341-4 01 1 9002- ●
1 LEVER; TORSION BAR 1-53459-342-4 01 1 9002- ●
1 LEVER; TORSION BAR
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-342-4 01 1 9002- ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID(W71) 		1-53459-571-2 01 1 9002- ●
1 LEVER; TORSION BAR
CAB SUSPENSION RIGID(W71) 		1-53459-572-2 01 1 9002- ●
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 9002- ● ●
3 BOLT; LEVER
(A) M10X30 		1-09000-283-0 02 1 9002- ● ●
3 BOLT; LEVER
(B) M12X65 		9-91061-265-0 02 1 9002- ● ●
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002- ● ●
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 9002- ● ●
7 NUT; LK,LEVER
(A) M10 		9-09110-510-0 02 1 9002- ● ●
7 NUT; LK,LEVER
(B) M12 		9-99110-512-0 02 1 9002- ● ●
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 9002- ● ●
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 9002- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 9002-9005 ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006- ● ●
19 BAR; STAB,CAB SUSP 1-53459-788-1 01 1 9002- ●
19 BAR; STAB,CAB SUSP
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-788-1 01 1 9002- ●
20 BOLT 1-09000-353-0 02 1 9002- ●
20 BOLT
EXC. CAB SUSPENSION RIGID(W71) 		1-09000-353-0 02 1 9002- ●
21 NUT
M10 		9-09111-410-0 02 1 9002- ●
21 NUT
EXC. CAB SUSPENSION RIGID(W71) M10 		9-09111-410-0 02 1 9002- ●
22 BUSHING; STABILIZER 1-53459-786-1 01 1 9002- ●
22 BUSHING; STABILIZER
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-786-1 01 1 9002- ●
23 TUBE; DIST 1-53459-787-3 02 1 9002- ●
23 TUBE; DIST
EXC. CAB SUSPENSION RIGID(W71) 		1-53459-787-3 02 1 9002- ●
24 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9002- ●
24 WASHER; LK
EXC. CAB SUSPENSION RIGID(W71) ID=10.2 		9-09150-510-0 02 1 9002- ●
25 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 OD=30 		9-09160-614-0 02 1 9002- ● ●
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 9002- ● ●
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 9002- ● ●
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-362-3 01 1 9002- ● ●
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-361-2 01 1 9002- ● ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 		9-01911-245-0 02 1 9002-9005 ● ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006- ● ●
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9002- ● ●
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 9002- ● ●
33 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 01 1 9002- ● ●
34 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 9002- ● ●
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9002- ● ●
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002- ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ● ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 9002- ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 9002- ● ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (B) OD=3.7 L=25 		9-08114-025-0 02 1 9002- ● ●
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002- ● ●

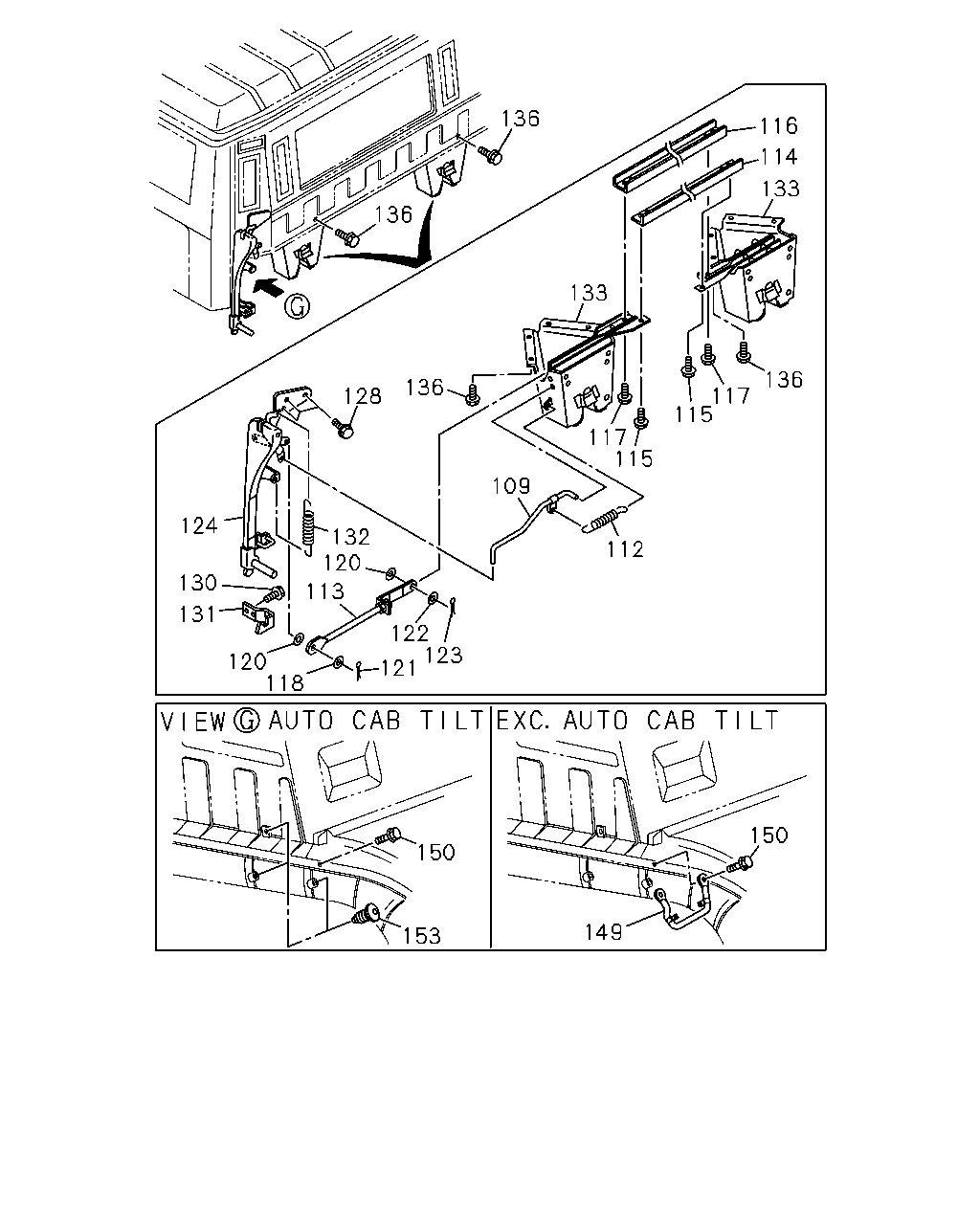

çizim 95061
150 149 153 150 123 122 121 118 120 131 130 124 113 120 132 128 136 109 112 115 117 115 117 136 133 114 116 133 136 136
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 9002- ● ●
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 9002- ● ●
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9002- ● ●
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 9002- ● ●
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002- ● ●
116 ARM ASM; CONN 1-79717-435-1 01 1 9002- ● ●
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ●
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 9002- ● ●
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 9002- ● ●
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 9002- ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 9002- ● ●
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 9002- ● ●
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> CAB UP 110MM(W60) 		1-79717-600-2 01 1 9103- ● ●
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> EXC. CAB UP 110MM(W60) 		1-79717-595-2 01 1 9103- ● ●
124 LEVER ASM; HAND,CAB LK
CAB UP 110MM(W60) 		1-79717-502-6 01 1 9002-9102 ● ●
124 LEVER ASM; HAND,CAB LK
CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2> 		1-79717-502-9 01 1 9103- ● ●
124 LEVER ASM; HAND,CAB LK
EXC. CAB UP 110MM(W60) 		1-79717-494-6 01 1 9002-9102 ● ●
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2>,CAB UP 110MM(W60) 		1-79717-494-9 01 1 9103- ● ●
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ●
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9002- ● ●
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 9002- ● ●
132 SPRING; HAND LEVER 1-09985-148-0 01 1 9002- ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-508-6 01 1 9002- ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-507-6 01 1 9002- ● ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-506-6 01 1 9002- ● ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-505-6 01 1 9002- ● ●
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 9002- ● ●
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2>,CAB UP 110MM(W60) 		1-71997-490-1 01 1 9002- ● ●
149 HANDLE; TILT
CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2> 		1-71997-630-0 01 1 9002- ● ●
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9002- ● ●
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 9002- ● ●
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 01 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
