Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#2865) — 368 parça

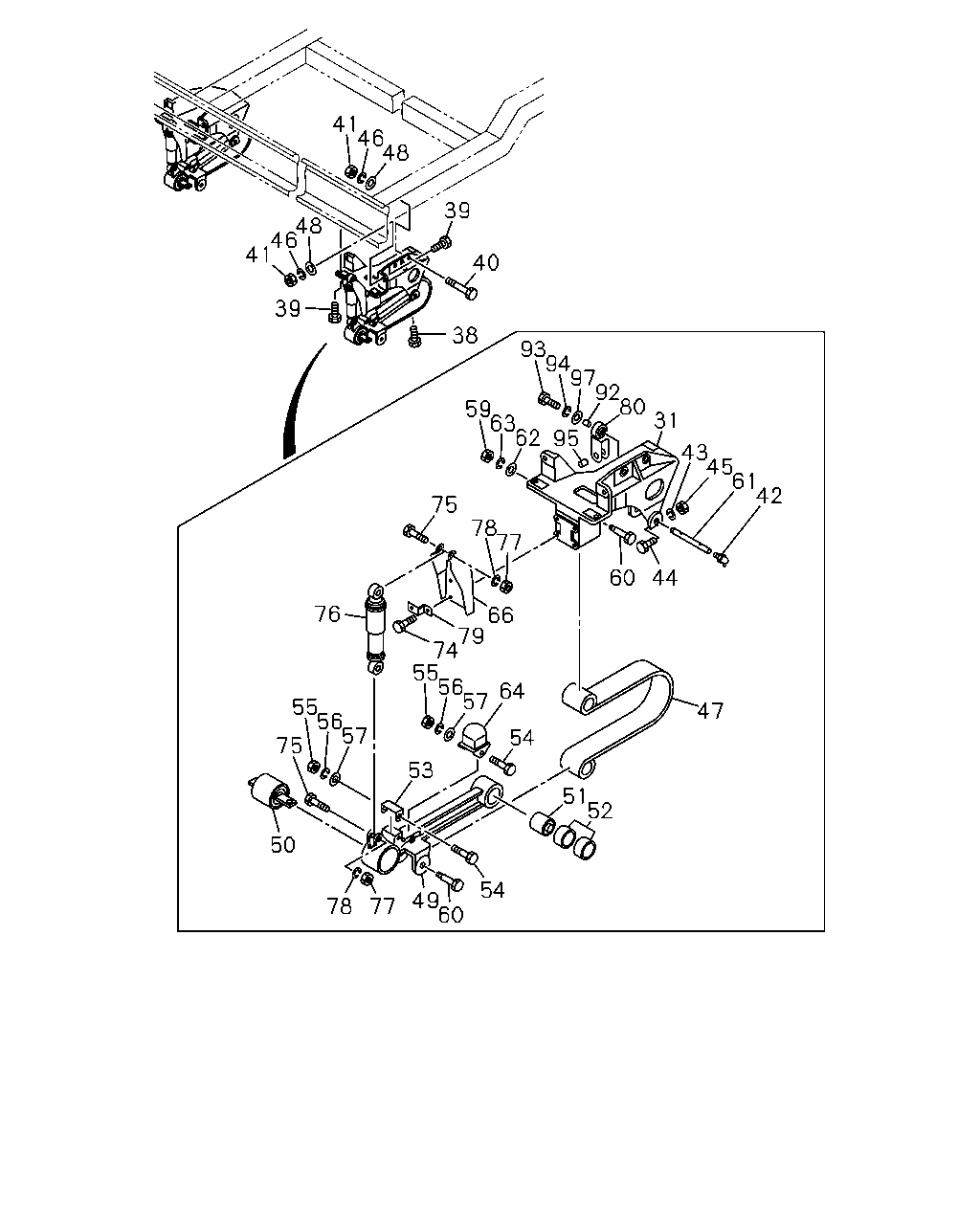

41 46 48 48 46 41 39 39 40 38 93 59 94 97 92 80 31 43 45 61 42 44 60 77 78 75 95 62 63 66 79 76 74 55 56 57 64 54 47 51 52 54 60 49 53 77 78 50 75 55 56 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB	1-53453-033-4	01	1	9002-	●
31	BRACKET; CAB EXC. CAB SUSPENSION RIGID(W71)	1-53453-033-4	01	1	9002-		●
31	BRACKET; CAB	1-53453-032-4	01	1	9002-	●
31	BRACKET; CAB EXC. CAB SUSPENSION RIGID(W71)	1-53453-032-4	01	1	9002-		●
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002	●
38	BOLT; CAB TO BRKT,RR EXC. CAB SUSPENSION RIGID(W71) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002		●
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-	●
38	BOLT; CAB TO BRKT,RR EXC. CAB SUSPENSION RIGID(W71) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-		●
39	BOLT; CAB TO BRKT M10X30	1-09980-546-0	08	1	9002-	●
39	BOLT; CAB TO BRKT EXC. CAB SUSPENSION RIGID(W71) M10X30	1-09980-546-0	08	1	9002-		●
40	BOLT; CAB TO BRKT M10X100	1-09980-547-0	04	1	9002-	●
40	BOLT; CAB TO BRKT EXC. CAB SUSPENSION RIGID(W71) M10X100	1-09980-547-0	04	1	9002-		●
41	NUT M10	9-09110-410-0	08	1	9002-	●
41	NUT EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-410-0	08	1	9002-		●
42	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●
42	NIPPLE; GREASE EXC. CAB SUSPENSION RIGID(W71) PT1/8 ELBOW	9-09031-210-0	02	1	9002-		●
43	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-	●
43	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=8.2	9-09150-508-0	02	1	9002-		●
44	BOLT; PIN LOCK M8X50	9-01050-850-0	02	1	9002-9005	●
44	BOLT; PIN LOCK EXC. CAB SUSPENSION RIGID(W71) M8X50	9-01050-850-0	02	1	9002-9005		●
44	BOLT; PIN LOCK M8X50	0-10810-850-0	02	1	9006-	●
44	BOLT; PIN LOCK EXC. CAB SUSPENSION RIGID(W71) M8X50	0-10810-850-0	02	1	9006-		●
45	NUT M8	9-09110-408-0	02	1	9002-	●
45	NUT EXC. CAB SUSPENSION RIGID(W71) M8	9-09110-408-0	02	1	9002-		●
46	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●
46	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=10.2	9-09150-510-0	04	1	9002-		●
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9002-9305	●
47	SPRING; LEAF,"U" HONG KONG EQUIPMENT(PQ1) EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9002-9305		●
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9306-9306	●
47	SPRING; LEAF,"U" NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9306-9306		●
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9307-	●
47	SPRING; LEAF,"U" EXC. CAB SUSPENSION RIGID(W71)	1-53459-387-4	02	1	9307-		●
47	SPRING; LEAF,"U" EXC. HONG KONG EQUIPMENT(PQ1),CAB SUSPENSION RIGID(W71)	1-53459-395-4	02	1	9002-9305		●
47	SPRING; LEAF,"U" EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CAB SUSPENSION RIGID(W71)	1-53459-395-4	02	1	9306-9306		●
48	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9002-	●
48	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=26	9-09160-710-0	04	1	9002-		●
49	ARM; LINK	1-53459-297-2	02	1	9002-	●
49	ARM; LINK EXC. CAB SUSPENSION RIGID(W71)	1-53459-297-2	02	1	9002-		●
50	BUSHING; RUBBER	1-53459-308-2	02	1	9002-9004	●
50	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-308-2	02	1	9002-9004		●
50	BUSHING; RUBBER	1-53459-974-0	02	1	9005-9108	●
50	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-974-0	02	1	9005-9108		●
50	BUSHING; RUBBER	1-53458-293-1	02	1	9109-	●
50	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53458-293-1	02	1	9109-		●
51	BUSHING; RUBBER	1-53459-315-2	02	1	9002-	●
51	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-315-2	02	1	9002-		●
52	BUSHING; RUBBER	1-09330-068-0	04	1	9002-	●
52	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-09330-068-0	04	1	9002-		●
53	RUBBER; STOPPER	1-53459-314-0	02	1	9002-	●
53	RUBBER; STOPPER EXC. CAB SUSPENSION RIGID(W71)	1-53459-314-0	02	1	9002-		●
54	BOLT; RUBBER M8X70	9-01055-870-0	04	1	9002-9005	●
54	BOLT; RUBBER EXC. CAB SUSPENSION RIGID(W71) M8X70	9-01055-870-0	04	1	9002-9005		●
54	BOLT; RUBBER M8X70	0-10805-870-0	04	1	9006-	●
54	BOLT; RUBBER EXC. CAB SUSPENSION RIGID(W71) M8X70	0-10805-870-0	04	1	9006-		●
55	NUT; RUBBER M8	9-09110-408-0	04	1	9002-	●
55	NUT; RUBBER EXC. CAB SUSPENSION RIGID(W71) M8	9-09110-408-0	04	1	9002-		●
56	WASHER; LK ID=8.2	9-09150-508-0	04	1	9002-	●
56	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=8.2	9-09150-508-0	04	1	9002-		●
57	WASHER; PL ID=8.4	9-09160-508-0	08	1	9002-	●
57	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=8.4	9-09160-508-0	08	1	9002-		●
59	NUT M10	9-09110-410-0	04	1	9002-	●
59	NUT EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-410-0	04	1	9002-		●
60	PIN; "U" LEAF SPRING	1-53459-307-3	04	1	9002-	●
60	PIN; "U" LEAF SPRING EXC. CAB SUSPENSION RIGID(W71)	1-53459-307-3	04	1	9002-		●
61	PIN; BRKT TO LINK ARM	1-53459-540-0	02	1	9002-	●
61	PIN; BRKT TO LINK ARM EXC. CAB SUSPENSION RIGID(W71)	1-53459-540-0	02	1	9002-		●
62	WASHER; PL ID=10.5 OD=18	9-09160-510-0	04	1	9002-	●
62	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	04	1	9002-		●
63	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●
63	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=10.2	9-09150-510-0	04	1	9002-		●
64	RUBBER; CUSHION	1-53366-089-0	02	1	9002-9010	●
64	RUBBER; CUSHION EXC. CAB SUSPENSION RIGID(W71)	1-53366-089-0	02	1	9002-9010		●
64	RUBBER; CUSHION	1-53366-122-0	02	1	9011-9404	●
64	RUBBER; CUSHION EXC. CAB SUSPENSION RIGID(W71)	1-53366-122-0	02	1	9011-9404		●
64	RUBBER; CUSHION	1-53366-110-0	02	1	9405-	●
64	RUBBER; CUSHION EXC. CAB SUSPENSION RIGID(W71)	1-53366-110-0	02	1	9405-		●
66	BRACKET; S/ABS	1-53459-305-2	02	1	9002-	●
66	BRACKET; S/ABS EXC. CAB SUSPENSION RIGID(W71)	1-53459-305-2	02	1	9002-		●
74	BOLT; BRKT FIX M8X22	9-01910-822-0	08	1	9002-9005	●
74	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M8X22	9-01910-822-0	08	1	9002-9005		●
74	BOLT; BRKT FIX M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-	●
74	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-		●
75	BOLT; S/ABS M12X60	9-91056-260-0	04	1	9002-9005	●
75	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X60	9-91056-260-0	04	1	9002-9005		●
75	BOLT; S/ABS M12X60	0-10806-260-0	04	1	9006-	●
75	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X60	0-10806-260-0	04	1	9006-		●
76	ABSORBER ASM; SHOCK	1-51630-151-0	02	1	9002-9404	●
76	ABSORBER ASM; SHOCK EXC. CAB SUSPENSION RIGID(W71)	1-51630-151-0	02	1	9002-9404		●
76	ABSORBER ASM; SHOCK	1-51630-449-1	02	1	9405-	●
76	ABSORBER ASM; SHOCK EXC. CAB SUSPENSION RIGID(W71)	1-51630-449-1	02	1	9405-		●
77	NUT M12	9-99110-412-0	04	1	9002-	●
77	NUT EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	04	1	9002-		●
78	WASHER; LK ID=12.2	9-09150-512-0	04	1	9002-	●
78	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	04	1	9002-		●
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	9002-	●
79	BRACKET; FLEX SHAFT EXC. CAB SUSPENSION RIGID(W71)	1-83129-033-1	02	1	9002-		●
80	LINK ASM; STABILIZER W/BUSHING	1-53459-608-0	02	1	9002-	●
80	LINK ASM; STABILIZER EXC. CAB SUSPENSION RIGID(W71) W/BUSHING	1-53459-608-0	02	1	9002-		●
92	BUSHING; RUBBER	1-53459-417-2	02	1	9002-	●
92	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-417-2	02	1	9002-		●
93	BOLT; PIN	1-09000-354-0	02	1	9002-	●
93	BOLT; PIN EXC. CAB SUSPENSION RIGID(W71)	1-09000-354-0	02	1	9002-		●
94	WASHER; DISH	1-09500-007-0	02	1	9002-9105	●
94	WASHER; DISH EXC. CAB SUSPENSION RIGID(W71)	1-09500-007-0	02	1	9002-9105		●
94	WASHER; DISH	1-09500-028-0	02	1	9106-	●
94	WASHER; DISH EXC. CAB SUSPENSION RIGID(W71)	1-09500-028-0	02	1	9106-		●
95	BUSHING; RUBBER	1-09330-069-0	04	1	9002-	●
95	BUSHING; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-09330-069-0	04	1	9002-		●
97	WASHER; PL ID=17	9-09160-516-0	02	1	9002-	●
97	WASHER; PL EXC. CAB SUSPENSION RIGID(W71) ID=17	9-09160-516-0	02	1	9002-		●

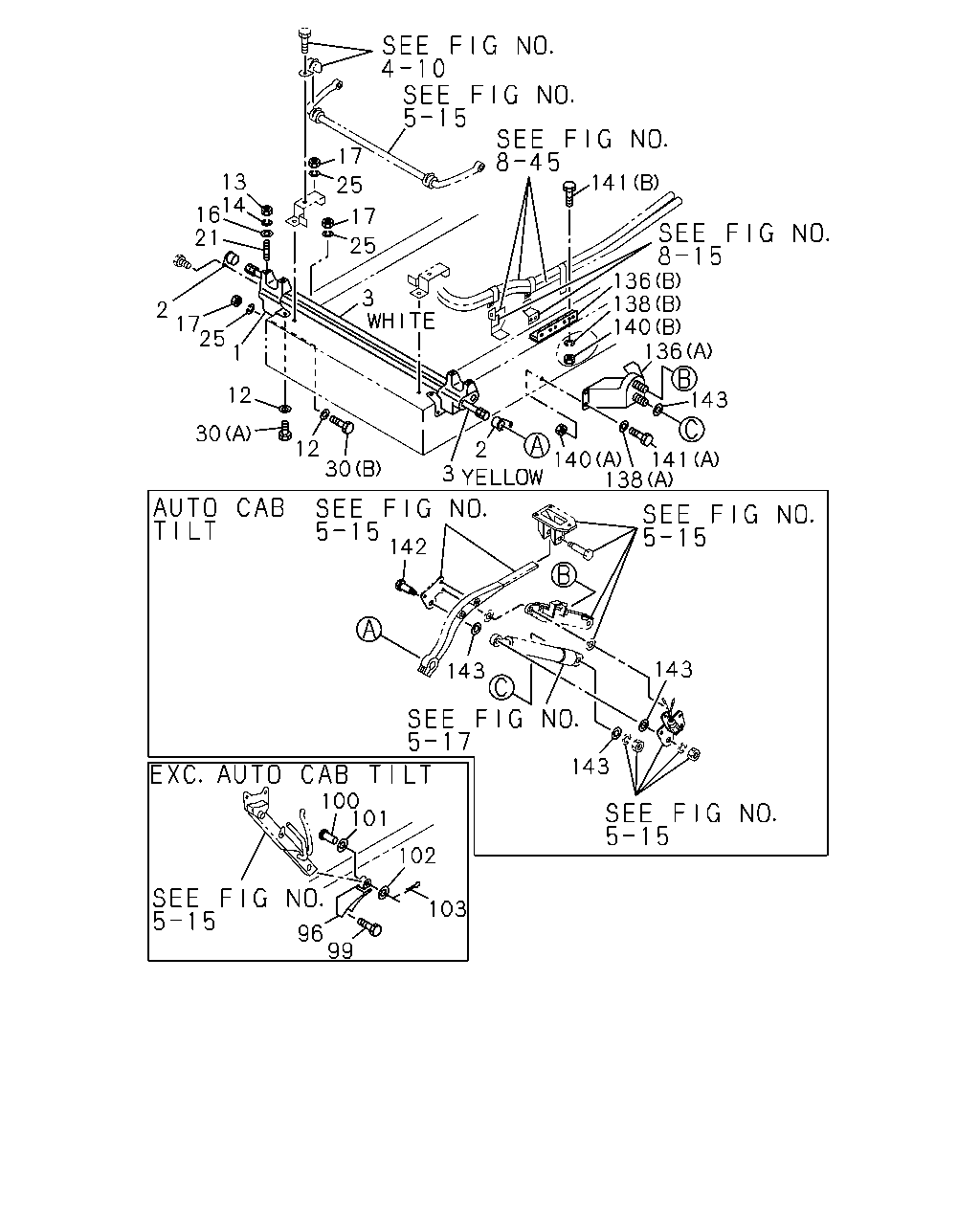

17 25 17 25 3 13 16 14 21 2 12 1 25 17 30 12 30 3 2 140 141 138 136 141 138 140 136 143 143 143 143 142 100 101 102 103 99 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB UP 110MM(W60)	1-53453-092-0	02	1	9002-	●	●
1	BRACKET; CAB MTG EXC. CAB UP 110MM(W60)	1-53453-036-4	02	1	9002-	●	●
2	BUSHING; TORSION BAR	1-53459-837-0	02	1	9002-	●	●
3	TORSION BAR YELLOW	1-09585-089-1	01	1	9002-	●	●
3	TORSION BAR WHITE	1-09585-090-1	01	1	9002-	●	●
12	WASHER; LK,BRKT CAB UP 110MM(W60) ID=15	9-09651-069-0	12	1	9002-	●	●
12	WASHER; LK,BRKT EXC. CAB UP 110MM(W60) ID=15	9-09651-069-0	10	1	9002-	●	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9002-	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	04	1	9002-		●
13	NUT; BUSHING TO STUD CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	08	1	9002-		●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9002-	●
14	WASHER; LK,STUD EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-612-0	04	1	9002-		●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9002-	●	●
17	NUT; BRKT,CAB TILT CAB UP 110MM(W60) M14	9-99110-514-0	12	1	9002-	●	●
17	NUT; BRKT,CAB TILT EXC. CAB UP 110MM(W60) M14	9-99110-514-0	10	1	9002-	●	●
21	STUD; BRKT,CAB TILT	9-94321-235-0	04	1	9002-	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION RIGID(W71)	9-94321-235-0	04	1	9002-		●
21	STUD; BRKT,CAB TILT CAB SUSPENSION RIGID(W71)	1-09302-113-0	04	1	9002-		●
25	WASHER; LK,BRKT,CAB TILT CAB UP 110MM(W60) ID=14.2	9-09150-614-0	12	1	9002-	●	●
25	WASHER; LK,BRKT,CAB TILT EXC. CAB UP 110MM(W60) ID=14.2	9-09150-614-0	10	1	9002-	●	●
30	BOLT; CAB FRT FOOT CAB UP 110MM(W60) (B) M14X63	1-09000-348-0	02	1	9002-	●	●
30	BOLT; CAB FRT FOOT CAB UP 110MM(W60) (A) M14X50	9-91066-450-0	10	1	9002-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP 110MM(W60) (A) M14X50	9-91066-450-0	06	1	9002-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP 110MM(W60),CAB SUSPENSION RIGID(W71) (B) M14X75	1-09000-292-0	02	1	9002-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP 110MM(W60),CAB SUSPENSION RIGID(W71) (B) M14X55	9-91066-455-0	02	1	9002-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION RIGID(W71) (B) M14X55	9-91066-455-0	04	1	9002-		●
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>,CAB UP 110MM(W60)	1-53459-622-0	01	1	9002-	●	●
96	BRACKET; CAB STAY CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29>	1-53459-629-0	01	1	9002-9009		●
96	BRACKET; CAB STAY CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. AUTO CAB TILT<WV2>	1-53459-743-0	01	1	9002-9009		●
96	BRACKET; CAB STAY CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2>	1-53459-743-0	01	1	9010-	●	●
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35	9-01911-235-0	04	1	9002-9005	●	●
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-	●	●
100	PIN; JOINT EXC. AUTO CAB TILT<WV2>	9-08234-455-0	01	1	9002-	●	●
101	WASHER; WAVE EXC. AUTO CAB TILT<WV2> ID=15 OD=25	8-11053-111-0	01	1	9002-	●	●
102	WASHER; PL,CAB STAY EXC. AUTO CAB TILT<WV2> ID=15	9-09160-514-0	01	1	9002-	●	●
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=3.7 L=25	9-08114-025-0	01	1	9002-	●	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> (A)	1-53459-378-3	01	1	9002-	●	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> CAB UP 110MM(W60) (B)	1-53459-446-2	01	1	9002-9306	●	●
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> (A) ID=12.2	9-09150-612-0	04	1	9002-	●	●
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> CAB UP 110MM(W60) (B) ID=14.2	9-09150-514-0	04	1	9002-9306	●	●
140	NUT; BRKT AUTO CAB TILT<WV2> CAB UP 110MM(W60) (B) M14	9-99110-414-0	04	1	9002-9306	●	●
140	NUT; BRKT AUTO CAB TILT<WV2> CAB UP 110MM(W60) (A) M12	9-99110-512-0	02	1	9002-9306	●	●
141	BOLT; BRKT AUTO CAB TILT<WV2> (A) M12X45	9-91066-245-0	04	1	9002-	●	●
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP 110MM(W60) (B) M14X40	9-92051-440-0	04	1	9002-9005	●	●
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP 110MM(W60) (B) M14X40	0-20801-440-0	04	1	9006-9306	●	●
142	PIN; OIL CYL,UPR AUTO CAB TILT<WV2>	1-53459-352-0	01	1	9002-	●	●
143	SPACER; OIL CYL,LWR AUTO CAB TILT<WV2>	1-53459-463-0	04	1	9002-	●	●

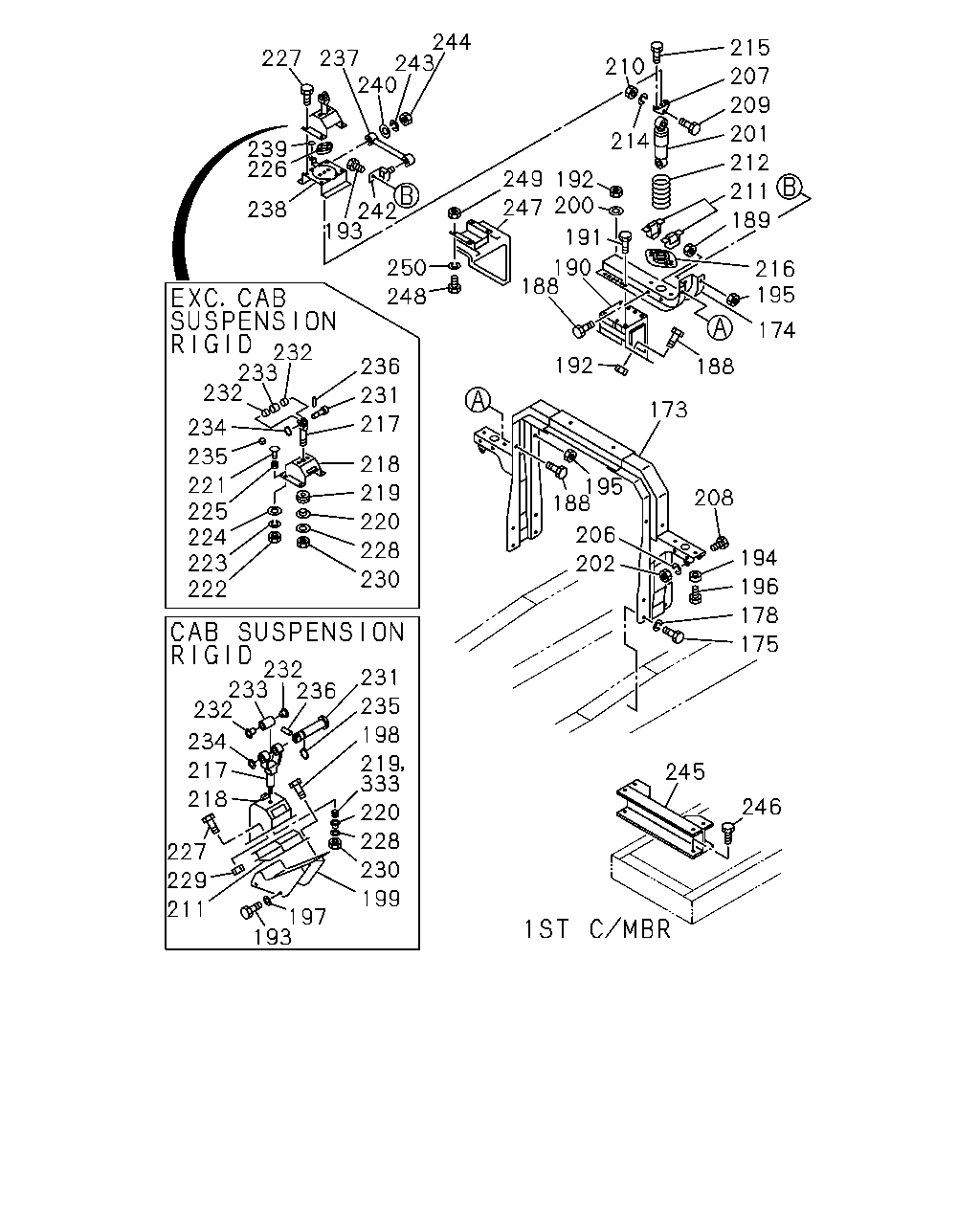

246 245 202 206 195 188 175 178 196 194 173 188 192 188 190 191 200 192 214 174 195 216 189 211 212 201 209 207 215 210 249 247 250 248 242 193 244 243 240 237 227 239 226 238 232 236 231 217 218 219 220 228 230 233 232 234 235 221 225 224 223 222 232 233 232 234 217 218 227 229 211 193 197 199 230 228 220 333 219 198 236 231 235 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>	1-53450-510-4	01	1	9411-9502	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP 110MM(W60)	1-53450-510-4	01	1	9411-9502		●
173	MEMBER; CAB MTG RR CAB UP 110MM(W60)	1-53450-428-7	01	1	9002-9410	●	●
173	MEMBER; CAB MTG RR CAB UP 110MM(W60) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-428-7	01	1	9411-		●
173	MEMBER; CAB MTG RR EXC. CAB UP 110MM(W60)	1-53450-485-3	01	1	9002-9410	●	●
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-485-3	01	1	9411-9502	●
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP 110MM(W60)	1-53450-485-3	01	1	9411-9502		●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP 110MM(W60)	1-53450-485-3	01	1	9503-	●	●
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP 110MM(W60)	1-53450-485-3	01	1	9503-	●	●
174	OUTRIGGER	1-53456-153-6	02	1	9002-9210	●	●
174	OUTRIGGER	1-53456-242-1	02	1	9211-	●	●
175	BOLT; MEMBER TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. CAB UP 110MM(W60) M14X40	9-92061-440-0	08	1	9002-	●	●
175	BOLT; MEMBER TO FRAME CAB UP 110MM(W60) M14X40	9-92061-440-0	08	1	9002-	●	●
175	BOLT; MEMBER TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP 110MM(W60) M14X35	9-92061-435-0	08	1	9002-	●	●
178	WASHER; LK,MEMBER ID=14.2	9-09150-614-0	08	1	9002-	●	●
188	BOLT; OUTRIGGER M10X25	9-01911-025-0	08	1	9002-9002	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M10X25	9-01911-025-0	08	1	9002-9002		●
188	BOLT; OUTRIGGER M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-		●
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005		●
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●
188	BOLT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-		●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M10X25	9-01911-025-0	02	1	9002-9002		●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-		●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005		●
188	BOLT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-		●
189	NUT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	02	1	9002-9304	●	●
189	NUT; OUTRIGGER EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	02	1	9305-	●	●
189	NUT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	04	1	9002-9304		●
189	NUT; OUTRIGGER CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	04	1	9305-		●
190	BRACKET; MUD GUARD	1-79930-477-3	02	1	9002-	●	●
191	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●
191	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●
191	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●	●
191	BOLT; BRKT FIX M10X25	9-01911-025-0	04	1	9002-9002	●	●
191	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●	●
192	NUT; BRKT FIX M10	9-09110-410-0	08	1	9002-9009	●	●
192	NUT; BRKT FIX M10	9-09110-410-0	01	1	9010-9304	●	●
192	NUT; BRKT FIX M10	9-09110-510-0	03	1	9305-	●	●
193	BOLT; BRKT M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002		●
193	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-		●
193	BOLT; BRKT M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005		●
193	BOLT; BRKT M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●
193	BOLT; BRKT EXC. CAB SUSPENSION RIGID(W71) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-		●
193	BOLT; BRKT CAB SUSPENSION RIGID(W71) M10X30 W/LK WASHER	9-01911-030-0	08	1	9002-9002		●
193	BOLT; BRKT CAB SUSPENSION RIGID(W71) M10X30 W/LK WASHER	0-50041-030-0	08	1	9003-		●
194	SEAT; RUBBER	1-53459-320-0	04	1	9002-	●
194	SEAT; RUBBER EXC. CAB SUSPENSION RIGID(W71)	1-53459-320-0	04	1	9002-		●
195	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-	●
195	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-		●
196	BOLT; CAB SUSP MTG	1-09009-090-0	04	1	9002-	●
196	BOLT; CAB SUSP MTG EXC. CAB SUSPENSION RIGID(W71)	1-09009-090-0	04	1	9002-		●
197	WASHER; PL CAB SUSPENSION RIGID(W71) ID=10.5	9-09164-510-0	08	1	9002-		●
198	BOLT; RUBBER TO BRKT CAB SUSPENSION RIGID(W71) M10X25	9-01911-025-0	08	1	9002-9002		●
198	BOLT; RUBBER TO BRKT CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID(W71)	1-53459-289-1	02	1	9002-		●
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	08	1	9002-9101	●	●
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	04	1	9102-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-152-0	02	1	9002-9404	●
201	ABSORBER ASM; SHOCK,RR MTG EXC. CAB SUSPENSION RIGID(W71)	1-51630-152-0	02	1	9002-9404		●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-450-1	02	1	9405-	●
201	ABSORBER ASM; SHOCK,RR MTG EXC. CAB SUSPENSION RIGID(W71)	1-51630-450-1	02	1	9405-		●
202	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	02	1	9002-9304	●	●
202	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	02	1	9305-	●	●
206	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-	●
206	WASHER; LK,S/ABS EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	02	1	9002-		●
207	BRACKET; S/ABS	1-51681-299-0	02	1	9002-	●
207	BRACKET; S/ABS EXC. CAB SUSPENSION RIGID(W71)	1-51681-299-0	02	1	9002-		●
208	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005	●
208	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	9-91056-255-0	02	1	9002-9005		●
208	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-	●
208	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	0-10806-255-0	02	1	9006-		●
209	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005	●
209	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	9-91056-255-0	02	1	9002-9005		●
209	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-	●
209	BOLT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12X55	0-10806-255-0	02	1	9006-		●
210	NUT; S/ABS M12	9-99110-412-0	02	1	9002-9304	●
210	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	02	1	9002-9304		●
210	NUT; S/ABS M12	9-99110-512-0	02	1	9305-	●
210	NUT; S/ABS EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	02	1	9305-		●
211	RUBBER; CUSHION,S/ABS	1-53366-050-1	04	1	9002-	●
211	RUBBER; CUSHION,S/ABS EXC. CAB SUSPENSION RIGID(W71)	1-53366-050-1	04	1	9002-		●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION RIGID(W71)	1-53459-406-1	02	1	9002-		●
212	SPRING; COIL	1-09580-351-0	02	1	9002-9305	●
212	SPRING; COIL HONG KONG EQUIPMENT(PQ1) EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9002-9305		●
212	SPRING; COIL	1-09580-351-0	02	1	9306-9306	●
212	SPRING; COIL NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9306-9306		●
212	SPRING; COIL	1-09580-351-0	02	1	9307-	●
212	SPRING; COIL EXC. CAB SUSPENSION RIGID(W71)	1-09580-351-0	02	1	9307-		●
212	SPRING; COIL EXC. HONG KONG EQUIPMENT(PQ1),CAB SUSPENSION RIGID(W71)	1-09580-353-0	02	1	9002-9305		●
212	SPRING; COIL EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CAB SUSPENSION RIGID(W71)	1-09580-353-0	02	1	9306-9306		●
214	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-	●
214	WASHER; LK,S/ABS EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	02	1	9002-		●
215	BOLT; BRKT TO HOLDER M10X25	9-01911-025-0	04	1	9002-9002	●
215	BOLT; BRKT TO HOLDER EXC. CAB SUSPENSION RIGID(W71) M10X25	9-01911-025-0	04	1	9002-9002		●
215	BOLT; BRKT TO HOLDER M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●
215	BOLT; BRKT TO HOLDER EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-		●
216	HOLDER; COIL SPR,CAB BACK	1-53459-319-0	02	1	9002-	●
216	HOLDER; COIL SPR,CAB BACK EXC. CAB SUSPENSION RIGID(W71)	1-53459-319-0	02	1	9002-		●
217	JAW; CAB HOOK	1-53459-373-1	02	1	9002-	●	●
218	HOLDER	1-53459-838-0	02	1	9002-9106	●
218	HOLDER EXC. CAB SUSPENSION RIGID(W71)	1-53459-838-0	02	1	9002-9106		●
218	HOLDER	1-53458-290-0	02	1	9107-	●
218	HOLDER EXC. CAB SUSPENSION RIGID(W71)	1-53458-290-0	02	1	9107-		●
218	HOLDER CAB SUSPENSION RIGID(W71)	1-53459-745-3	02	1	9002-		●
219	SPRING; COIL,CAB HOOK	1-09580-350-1	02	1	9002-	●
219	SPRING; COIL,CAB HOOK EXC. CAB SUSPENSION RIGID(W71)	1-09580-350-1	02	1	9002-		●
219	SPRING; COIL,CAB HOOK CAB SUSPENSION RIGID(W71)	1-09580-350-1	01	1	9002-		●
220	GUIDE; SPR	1-53459-374-0	02	1	9002-	●	●
221	PLATE AUTO CAB TILT<WV2>	1-53459-546-1	01	1	9002-	●	●
222	NUT; PLATE FIX AUTO CAB TILT<WV2> M10	9-09110-510-0	01	1	9002-	●	●
223	WASHER; LK AUTO CAB TILT<WV2> ID=10.2	9-09150-510-0	01	1	9002-	●	●
224	WASHER; PL AUTO CAB TILT<WV2> ID=10.5 OD=22	9-09160-610-0	01	1	9002-	●	●
225	SPRING AUTO CAB TILT<WV2>	1-09580-400-0	01	1	9002-	●	●
226	RUBBER; BUFFER	1-53459-539-0	02	1	9002-	●
226	RUBBER; BUFFER EXC. CAB SUSPENSION RIGID(W71)	1-53459-539-0	02	1	9002-		●
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	9002-9005	●
227	BOLT; BUFFER RUBBER ROD EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	9002-9005		●
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-9306	●
227	BOLT; BUFFER RUBBER ROD EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-9306		●
227	BOLT; BUFFER RUBBER ROD M8X25 FLANGE	0-28080-825-0	08	1	9307-	●
227	BOLT; BUFFER RUBBER ROD EXC. CAB SUSPENSION RIGID(W71) M8X25 FLANGE	0-28080-825-0	08	1	9307-		●
227	BOLT; BUFFER RUBBER ROD CAB SUSPENSION RIGID(W71) M10X25	9-01911-025-0	08	1	9002-9002		●
227	BOLT; BUFFER RUBBER ROD CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-		●
228	WASHER; PL	1-09503-152-0	02	1	9002-	●	●
229	NUT CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	08	1	9002-		●
230	NUT M14	9-99110-514-0	02	1	9002-	●	●
231	PIN; CAB HOOK	1-53459-375-0	02	1	9002-	●	●
232	BUSHING; COLLAR	5-33659-053-0	04	1	9002-	●	●
233	COLLAR; CAB HOOK	1-53459-376-0	02	1	9002-	●	●
234	RING; SNAP	1-09588-032-0	02	1	9002-	●	●
235	ROLLER; GUIDE	1-53459-377-0	02	1	9002-	●	●
236	PIN; SPR,ROLLER	1-09748-018-0	02	1	9002-	●	●
237	ROD ASM; LATERAL	1-53459-337-5	02	1	9002-9012	●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION RIGID(W71)	1-53459-337-5	02	1	9002-9012		●
237	ROD ASM; LATERAL	1-53459-730-1	02	1	9101-9207	●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION RIGID(W71)	1-53459-730-1	02	1	9101-9207		●
237	ROD ASM; LATERAL	1-53458-288-0	02	1	9208-	●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION RIGID(W71)	1-53458-288-0	02	1	9208-		●
238	BRACKET; BUFFER,RH	1-53459-329-4	01	1	9002-9108	●
238	BRACKET; BUFFER,RH EXC. CAB SUSPENSION RIGID(W71)	1-53459-329-4	01	1	9002-9108		●
238	BRACKET; BUFFER,RH	1-53458-291-0	01	1	9109-	●
238	BRACKET; BUFFER,RH EXC. CAB SUSPENSION RIGID(W71)	1-53458-291-0	01	1	9109-		●
238	BRACKET; BUFFER,RH AUTO CAB TILT<WV2>	1-53459-545-1	01	1	9002-	●	●
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>,CAB SUSPENSION RIGID(W71)	1-53459-330-4	01	1	9002-9108	●	●
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>,CAB SUSPENSION RIGID(W71)	1-53458-292-0	01	1	9109-	●	●
239	BUSHING; BRKT,BUFFER AUTO CAB TILT<WV2>	1-09330-055-0	01	1	9002-	●	●
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	04	1	9002-	●
240	WASHER; PL,BRKT EXC. CAB SUSPENSION RIGID(W71) ID=12.5	9-09160-512-0	04	1	9002-		●
242	BRACKET; LATERAL ROD	1-53454-224-2	01	1	9002-	●
242	BRACKET; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71)	1-53454-224-2	01	1	9002-		●
242	BRACKET; LATERAL ROD	1-53454-223-2	01	1	9002-	●
242	BRACKET; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71)	1-53454-223-2	01	1	9002-		●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	04	1	9002-	●
243	WASHER; LK,LATERAL ROD EXC. CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-512-0	04	1	9002-		●
244	NUT; LATERAL ROD M12	9-99110-412-0	04	1	9002-9304	●
244	NUT; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-412-0	04	1	9002-9304		●
244	NUT; LATERAL ROD M12	9-99110-512-0	04	1	9305-	●
244	NUT; LATERAL ROD EXC. CAB SUSPENSION RIGID(W71) M12	9-99110-512-0	04	1	9305-		●
245	MEMBER; CROSS,CAB MTG CAB UP 110MM(W60)	8-94300-477-6	01	1	9002-	●	●
246	BOLT; C/MBR FIX CAB UP 110MM(W60) M14X50	9-91066-450-0	04	1	9002-	●	●
247	PROTECTOR ASM; HEAT	1-79930-378-6	01	1	9002-	●
247	PROTECTOR ASM; HEAT EXC. CAB SUSPENSION RIGID(W71)	1-79930-378-6	01	1	9002-		●
247	PROTECTOR ASM; HEAT V TYPE ENG<91L>	1-79930-379-6	01	1	9002-	●	●
248	BOLT; HEAT PROTECTOR M10X25	9-01911-025-0	04	1	9002-9002	●
248	BOLT; HEAT PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10X25	9-01911-025-0	04	1	9002-9002		●
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-9009	●
248	BOLT; HEAT PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-9009		●
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25	9-01911-025-0	02	1	9002-9002	●	●
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9009	●	●
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-9306	●	●
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-9306	●
248	BOLT; HEAT PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-9306		●
248	BOLT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-	●
248	BOLT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-		●
249	NUT; PROTECTOR EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-9306	●	●
249	NUT; PROTECTOR V TYPE ENG<91L> EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-9306	●	●
249	NUT; PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9307-	●
249	NUT; PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9307-		●
250	WASHER; LK EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●	●
250	WASHER; LK V TYPE ENG<91L> EXC. CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●	●
250	WASHER; LK EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●
250	WASHER; LK EXC. ANTI NOISE EQUIPMENT<SV9>,CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	9-09160-510-0	02	1	9307-		●
333	SPRING CAB SUSPENSION RIGID(W71)	1-09580-350-1	01	1	9002-		●

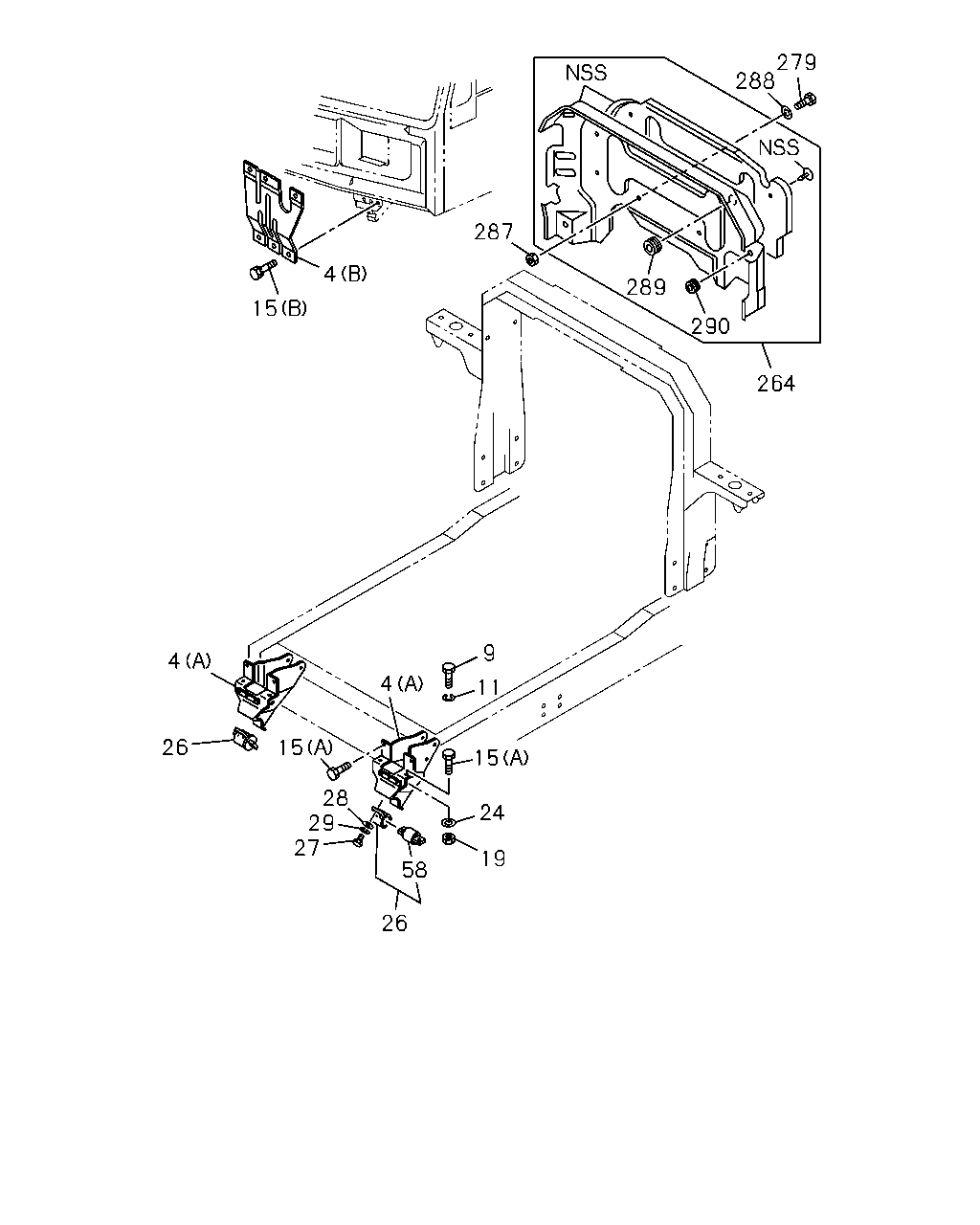

19 15 24 11 9 4 15 28 29 27 58 26 26 4 15 4 287 289 288 279 290 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (A)	1-62570-829-7	01	1	9002-		●
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (B)	1-62570-845-2	01	1	9002-		●
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (A)	1-62570-828-8	01	1	9002-		●
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) (B)	1-62570-844-2	01	1	9002-		●
9	BOLT CAB SUSPENSION RIGID(W71) M10X100	1-09980-547-0	02	1	9002-		●
11	WASHER; LK CAB SUSPENSION RIGID(W71) ID=10	1-09985-180-0	02	1	9002-		●
15	BOLT; SET CAB SUSPENSION RIGID(W71) (A) M10X25 W/LK&PL WASHER	1-09980-488-0	10	1	9002-		●
15	BOLT; SET CAB SUSPENSION RIGID(W71) (B) M8X20 W/LK&PL WASHER	1-09980-512-0	12	1	9002-		●
19	NUT CAB SUSPENSION RIGID(W71) M10	1-09984-121-0	02	1	9002-		●
24	WASHER; PL CAB SUSPENSION RIGID(W71) ID=10.5 OD=18	1-09985-173-0	02	1	9002-		●
26	BUSHING; RUBBER CAB SUSPENSION RIGID(W71)	1-53459-455-1	01	1	9002-		●
26	BUSHING; RUBBER CAB SUSPENSION RIGID(W71)	1-53459-454-1	01	1	9002-		●
27	BOLT; BUSHING CAB SUSPENSION RIGID(W71) M12X30	1-09000-470-0	04	1	9002-		●
28	WASHER; BUSHING CAB SUSPENSION RIGID(W71) ID=12.2	1-09503-224-0	04	1	9002-		●
29	WASHER; LK,BUSHING CAB SUSPENSION RIGID(W71) ID=12.2	9-09150-812-0	04	1	9002-		●
58	BUSHING; RUBBER CAB SUSPENSION RIGID(W71)	1-53459-537-0	02	1	9002-		●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-314-1	01	1	9411-9501	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9>	0-28280-822-0	02	1	9411-9501	●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	5-09440-005-0	02	1	9411-9412	●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9501-9501	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	9411-9501	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9411-9501	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9411-9501	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
