Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#28649) — 45 parça
◀

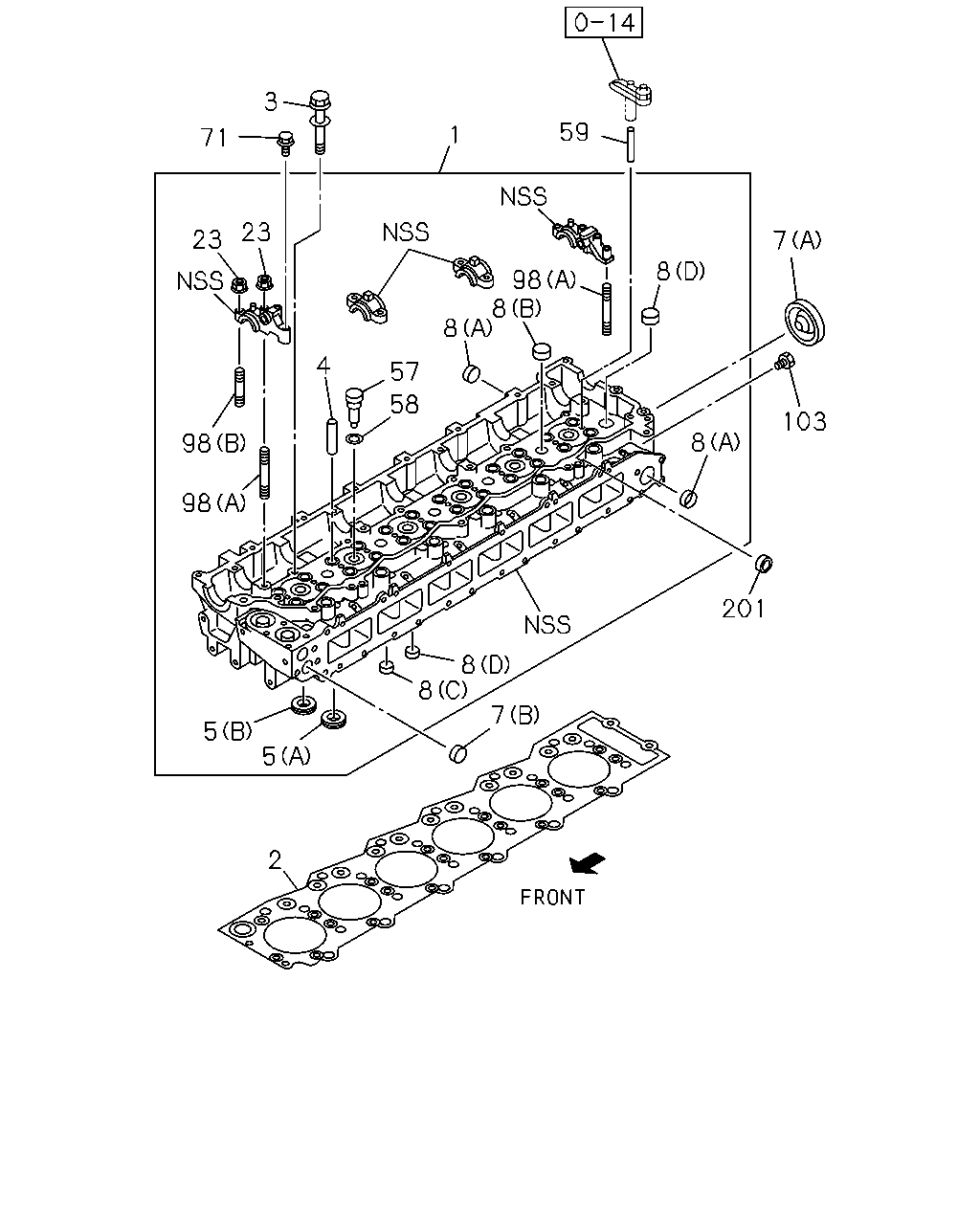

[011A] NO.1 (30 parça)

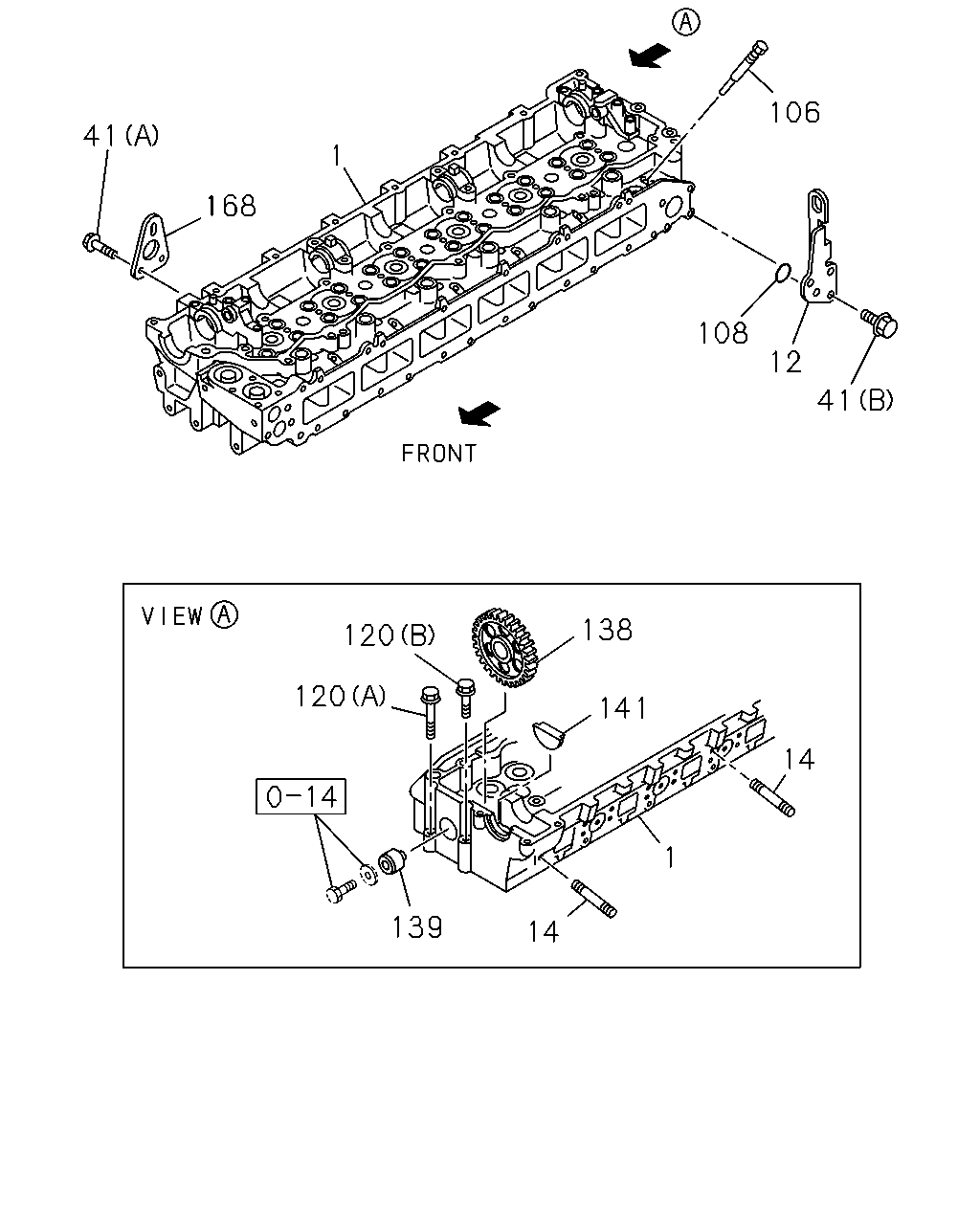

[011A] NO.2 (15 parça)
▶
3
59
1
71
23
23
7
8
98
8
8
4
57
58
103
8
98
98
201
8
8
7
5
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97605-007-2
01
1
0407-0507
1
HEAD ASM; CYL
8-97606-994-5
01
1
0508-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-787-4
01
1
0407-0407
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97605-228-0
01
1
0408-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-94396-207-3
26
1
0407-
4
GUIDE; VLV
8-94390-780-0
24
1
0407-0707
4
GUIDE; VLV
8-97376-719-2
24
1
0708-
5
SEAT; VLV INSERT
(B) INLET OD=40
8-97216-510-0
12
1
0407-
5
SEAT; VLV INSERT
(A) EXHAUST OD=38
8-97216-511-0
12
1
0407-0703
5
SEAT; VLV INSERT
(A) EXHAUST ID=31 OD=38
8-98028-875-0
12
1
0704-
7
CUP; SEALING,CYL HEAD
(B) OD=30
8-94393-509-0
01
1
0407-
7
CUP; SEALING,CYL HEAD
(A) OD=51
8-97096-826-0
01
1
0407-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
06
1
0407-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
06
1
0407-
8
CUP; SEALING,WATER JACKET
(C) OD=16
5-11129-006-0
07
1
0407-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
11
1
0407-
23
NUT; CAM BRKT
M8 FLANGE
0-91150-208-0
08
1
0407-0602
23
NUT; CAM BRKT
M8 FLANGE THA
0-91180-208-0
08
1
0603-
57
SLEEVE; NOZZLE HOLDER
8-97602-301-1
06
1
0407-0507
57
SLEEVE; NOZZLE HOLDER
8-97606-661-0
06
1
0508-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.2
8-98004-187-0
06
1
0508-
59
GUIDE; BRIDGE
8-94395-889-1
12
1
0407-0409
59
GUIDE; BRIDGE
8-97381-603-0
12
1
0410-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28080-835-0
02
1
0407-0512
71
BOLT; CAM BRKT
M8X35 FLANGE THA
0-28050-835-0
02
1
0601-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
0407-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
0407-
103
PLUG; HD
M8X6
8-94399-421-0
01
1
0407-0501
103
PLUG; HD
M8X10
8-98003-416-0
01
1
0502-
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-034-0
06
1
0407-
106
41
1
168
108
12
41
138
120
120
141
14
1
139
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97605-007-2
01
1
0407-0507
1
HEAD ASM; CYL
8-97606-994-5
01
1
0508-
12
HANGER; ENG,RR
8-94392-080-0
01
1
0407-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
0407-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28181-020-0
02
1
0407-0512
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28151-020-0
02
1
0601-
41
BOLT; ENG HANGER
(B) M12X22 FLANGE
0-28181-222-0
03
1
0407-
106
PLUG; GLOW PLUG HOLE
8-94392-236-0
06
1
0407-
108
GASKET; HANGER,RR
ID=35.2
1-09623-375-0
01
1
0407-
120
BOLT; CYL HD TO HSG
(A) M10X73
8-94399-554-0
01
1
0407-
120
BOLT; CYL HD TO HSG
(B) M10X43
8-94399-555-0
01
1
0407-
138
GEAR; IDLE
Z=41
8-97112-607-1
01
1
0407-
139
SHAFT; IDLE GEAR
8-97186-398-1
01
1
0407-
141
PLUG; RUBBER,CYL HD
8-94399-605-0
02
1
0407-
168
HANGER; ENG,FRT
8-94399-403-1
01
1
0407-
