Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

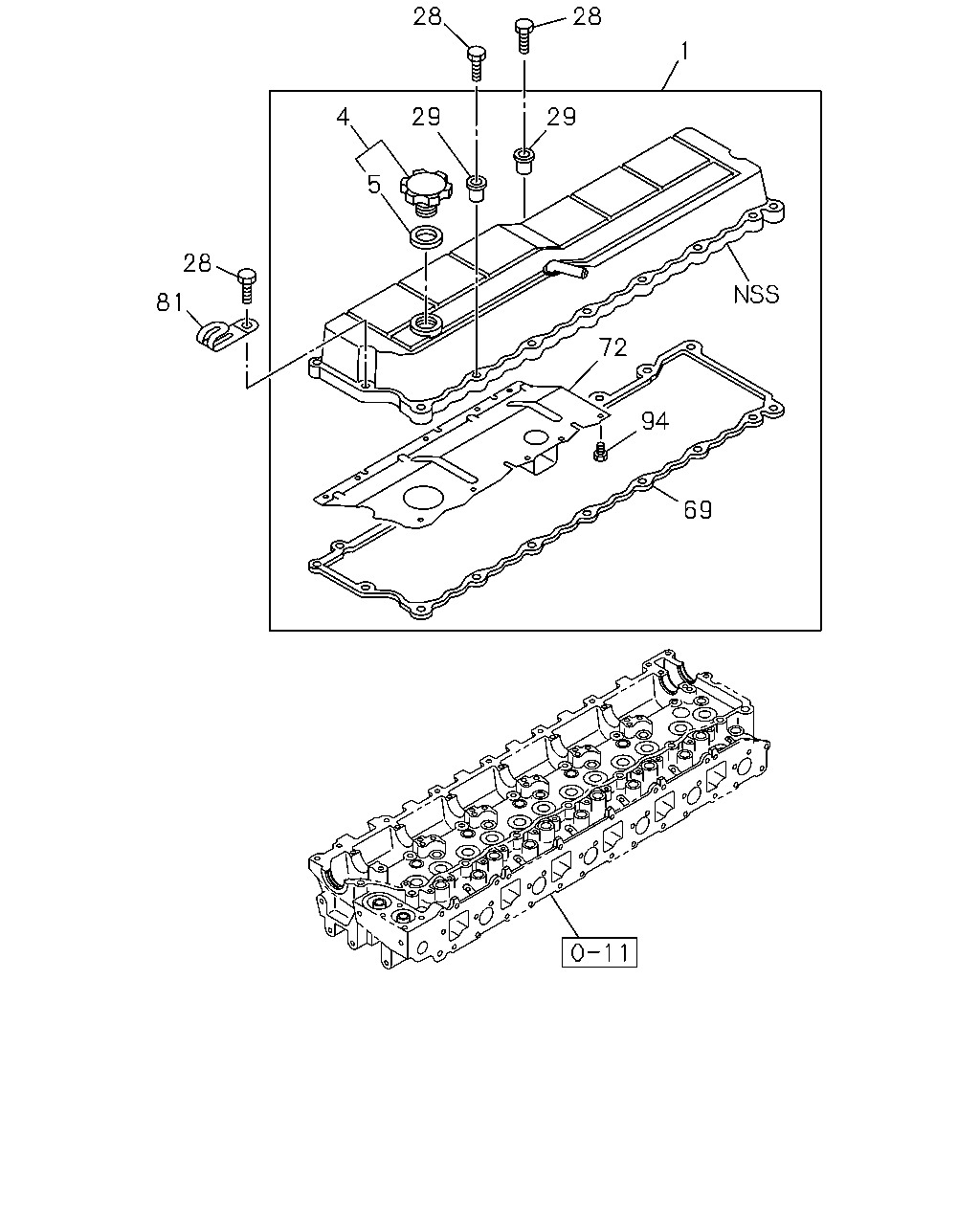

0-10 — CYLINDER HEAD COVER
(#28648) — 12 parça
28
28
1
29
29
4
5
28
81
72
94
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-94392-656-3
01
1
0407-
4
CAP; OIL FILLER
8-94399-723-0
01
1
0407-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0407-
28
BOLT; HD COVER
M8X35 FLANGE
0-28680-835-0
11
1
0407-0512
28
BOLT; HD COVER
M8X35 FLANGE THA
0-28650-835-0
11
1
0601-
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
0407-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94391-379-0
01
1
0407-
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0407-
81
CLIP; HARNESS
ID=18 L=44 THA
8-94225-185-0
01
1
0407-0801
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0802-
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
9-03800-408-0
06
1
0407-0604
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
0605-
