◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#28644) — 41 parça

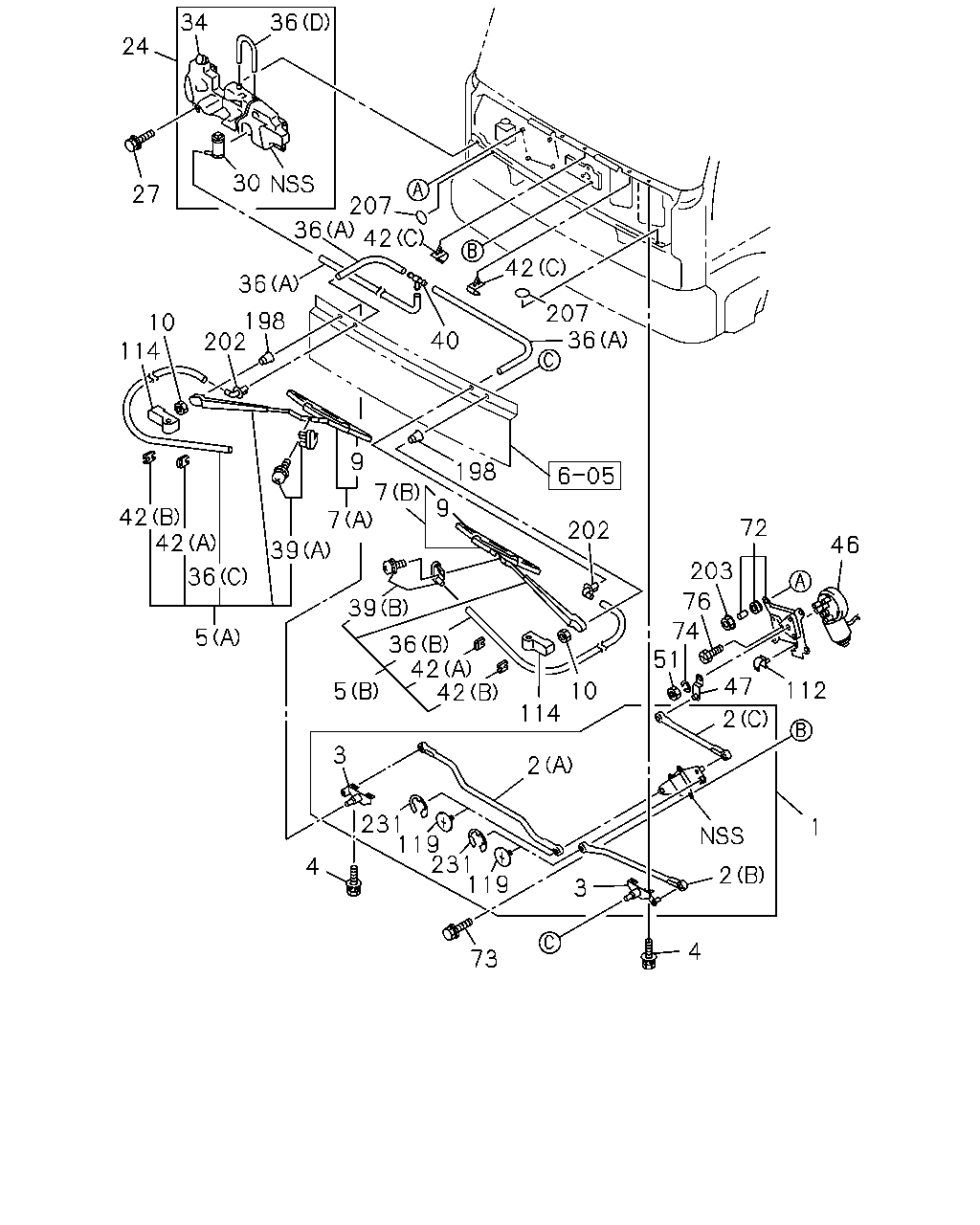

çizim 24069
34 36 24 27 207 42 36 42 36 207 36 198 202 10 114 40 198 9 7 9 42 42 7 72 202 46 39 203 36 76 39 74 51 5 36 42 42 47 112 10 5 114 2 3 2 231 119 231 119 1 4 2 3 4 73 30
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-137-2 01 1 0407-
2 LINK; FRT WIPER
(B) 		1-83312-142-1 01 1 0407-
2 LINK; FRT WIPER
(A) 		1-83312-143-1 01 1 0407-
2 LINK; FRT WIPER
(C) 		1-86810-066-1 01 1 0407-
3 PIVOT ASM; FRT WIPER 1-86810-067-1 02 1 0407-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0407-
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0407-
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 0407-
7 BLADE; WIPER
(B) 		1-83315-046-2 01 1 0407-
9 RUBBER; FRT WIPER BLADE 1-83355-014-0 02 1 0407-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 0407-
24 TANK ASM; WASHER 1-86815-013-7 01 1 0407-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0407-
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0407-
34 CAP; WASHER TANK 1-86815-018-0 01 1 0407-
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 0407-
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0407-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0407-
36 HOSE; WASHER
(A) SERVICED BY L=10000 THA 		8-94389-303-0 01 1 0407-
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0407-
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0407-
40 JOINT; WASHER HOSE
3WAY THA 		1-83338-005-0 01 1 0407-
42 CLIP; WASHER HOSE
(C) THA 		1-09987-247-0 05 1 0407-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 0407-
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 0407-
46 MOTOR ASM; FRT WINDSHIELD WIPER
THA 		1-86810-059-0 01 1 0407-
47 ARM; CRANK,WIPER MOTOR
THA 		1-86810-060-0 01 1 0407-
51 NUT; WIPER MOTOR LINK
THA 		1-83319-012-0 01 1 0407-
72 BRACKET; WIPER MOTOR
THA 		1-86810-056-0 01 1 0407-
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407-
74 WASHER; ARM TO MOTOR
THA 		1-83319-011-0 01 1 0407-
76 SCREW; BRKT TO WIPER MOTOR
THA 		1-86810-062-0 03 1 0407-
112 CLIP; HARNESS,WIPER MOTOR
THA 		1-86810-061-0 01 1 0407-
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 0407-
119 STOPPER; WIPER LINK
THA 		1-86810-074-0 02 1 0407-0805
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 0407-
202 GROMMET; WIPER 1-86815-003-2 02 1 0407-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0407-
207 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 03 1 0407-
231 RING; STOPPER 8-98120-195-0 02 1 0806-
