Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#2864) — 213 parça

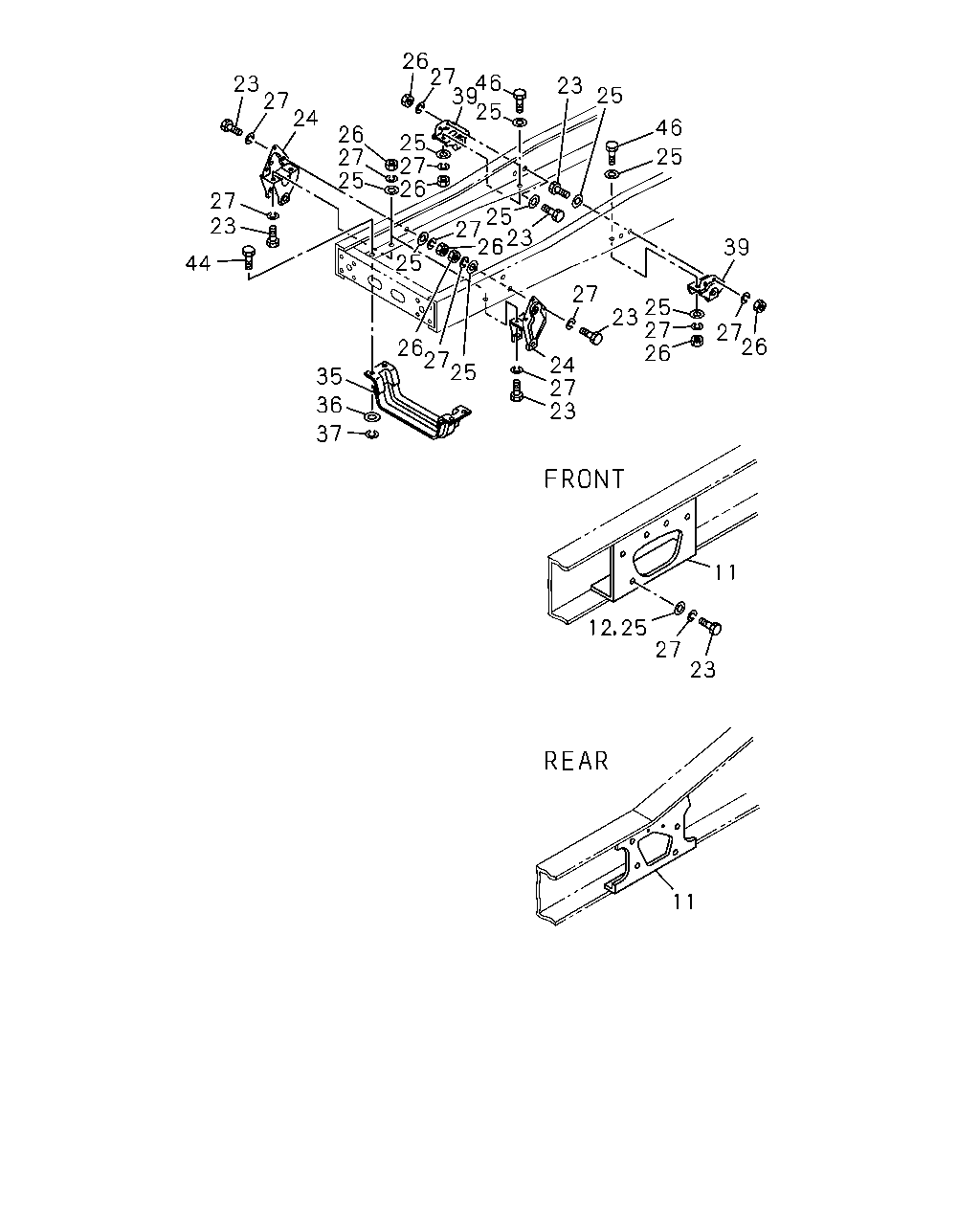

11 23 27 25 12 11 23 27 24 27 39 26 27 25 23 27 26 25 27 26 35 36 37 25 26 27 25 23 25 46 25 23 25 46 39 27 26 25 26 27 27 26 25 24 27 23 27 23 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	BRACKET; ENG MTG NYLON TUBE AIR PIPING<Z29> REAR	1-53219-158-3	01	1	9002-9306	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REAR	1-53219-158-3	01	1	9002-9306		●
11	BRACKET; ENG MTG NYLON TUBE AIR PIPING<Z29> FRONT	1-53219-162-2	01	1	9002-9306	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY<F03> FRONT	1-53219-162-2	01	1	9002-9306		●
11	BRACKET; ENG MTG NYLON TUBE AIR PIPING<Z29> REAR	1-53219-159-2	01	1	9002-9306	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REAR	1-53219-159-2	01	1	9002-9306		●
11	BRACKET; ENG MTG NYLON TUBE AIR PIPING<Z29> FRONT	1-53219-163-3	01	1	9002-9306	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY<F03> FRONT	1-53219-163-3	01	1	9002-9306		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> REAR	1-53219-211-2	01	1	9002-9306	●		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> REAR	1-53219-210-3	01	1	9002-9306	●		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRONT	1-53219-321-1	01	1	9307-	●	●	●	●	●
11	BRACKET; ENG MTG NYLON TUBE AIR PIPING<Z29> FRONT	1-53219-321-1	01	1	9307-		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRONT	1-53219-320-1	01	1	9307-	●	●	●	●	●
11	BRACKET; ENG MTG NYLON TUBE AIR PIPING<Z29> FRONT	1-53219-320-1	01	1	9307-		●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> REAR	1-53219-209-1	01	1	9307-	●	●	●	●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> REAR	1-53219-208-1	01	1	9307-	●	●	●	●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L),6RB1TC ENG(30L) FRAME EQUIPMENT HEAVY DUTY<F03> FRONT	1-53219-321-1	01	1	9002-9306	●	●	●	●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L),6RB1TC ENG(30L) FRAME EQUIPMENT HEAVY DUTY<F03> FRONT	1-53219-320-1	01	1	9002-9306	●	●	●	●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L),6RB1TC ENG(30L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> REAR	1-53219-209-1	01	1	9002-9306	●	●	●	●	●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L),6RB1TC ENG(30L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> REAR	1-53219-208-1	01	1	9002-9306	●	●	●	●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-282-0	01	1	9002-9306	●	●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-428-0	01	1	9307-	●	●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-281-0	01	1	9002-9306	●	●	●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) FRONT	1-53219-427-0	01	1	9307-	●	●	●
11	BRACKET; ENG MTG 8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> REAR	1-53219-494-1	01	1	9002-	●	●	●
11	BRACKET; ENG MTG 8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> REAR	1-53219-493-2	01	1	9002-	●	●	●
11	BRACKET; ENG MTG 8PD1 STD ENG(38L) FRONT	1-53219-187-1	01	1	9307-	●					●
11	BRACKET; ENG MTG 8PD1 STD ENG(38L) FRONT	1-53219-138-3	01	1	9307-	●					●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) MIXER TRUCK<RA2> REAR	1-53219-211-2	01	1	9307-			●
11	BRACKET; ENG MTG 6RB1 STD ENG(07L) MIXER TRUCK<RA2> REAR	1-53219-210-3	01	1	9307-			●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REAR	1-53219-361-1	01	1	9002-		●
11	BRACKET; ENG MTG 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REAR	1-53219-360-1	01	1	9002-		●
11	BRACKET; ENG MTG 6RB1TC ENG(30L) REAR	1-53219-158-3	01	1	9307-		●
11	BRACKET; ENG MTG 6RB1TC ENG(30L) REAR	1-53219-159-2	01	1	9307-		●
11	BRACKET; ENG MTG REAR	1-53219-555-0	01	1	9307-9404						●
11	BRACKET; ENG MTG REAR	1-53219-414-3	01	1	9405-						●
11	BRACKET; ENG MTG REAR	1-53219-554-0	01	1	9307-9404						●
11	BRACKET; ENG MTG REAR	1-53219-413-1	01	1	9405-						●
12	WASHER; PL,BRKT,ENG MTG 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	08	1	9002-	●	●	●	●	●
12	WASHER; PL,BRKT,ENG MTG 8PD1 STD ENG(38L) ID=15	9-09651-069-0	04	1	9307-	●					●
23	BOLT; BRKT,SPR L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-91066-450-0	02	1	9002-9105	●		●
23	BOLT; BRKT,SPR L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40	9-92061-440-0	06	1	9002-9105	●		●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	06	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14X55	9-91066-455-0	04	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14X45	9-92061-445-0	04	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	06	1	9106-9306	●	●	●	●	●
23	BOLT; BRKT,SPR L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,MIXER TRUCK<RA2> M14X50	9-91066-450-0	04	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,MIXER TRUCK<RA2> M14X40	9-92061-440-0	04	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-91066-450-0	06	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-91066-460-0	02	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) M14X45	9-92061-445-0	08	1	9307-	●	●	●	●	●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	9002-	●	●	●	●	●	●
23	BOLT; BRKT,SPR L TYPE ENG<90L> MIXER TRUCK<RA2> FRAME EQUIPMENT HEAVY DUTY<F03> M14X55	9-91066-455-0	02	1	9002-9105	●	●	●	●	●	●
23	BOLT; BRKT,SPR 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X55	9-91066-455-0	02	1	9002-9105	●	●	●	●	●
23	BOLT; BRKT,SPR 6RB1TC ENG(30L),8PD1 STD ENG(38L) M14X50	9-91066-450-0	08	1	9307-		●				●
24	BRACKET; FRT SPR,FRT	1-53351-123-5	01	1	9002-9306	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-202-0	01	1	9307-9407	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9408-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-122-5	01	1	9002-9306	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-201-0	01	1	9307-9407	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9408-	●	●	●	●	●	●
25	WASHER; PL,BRKT 8PD1 STD ENG(38L) ID=15	9-09651-069-0	32	1	9307-	●
25	WASHER; PL,BRKT L TYPE ENG<90L> ID=16.2 OD=26	1-09503-223-0	08	1	9002-9306	●	●	●	●	●
25	WASHER; PL,BRKT L TYPE ENG<90L> ID=15	9-09651-069-0	12	1	9002-9105	●	●	●	●	●
25	WASHER; PL,BRKT L TYPE ENG<90L> ID=15	9-09651-069-0	20	1	9106-9204	●	●	●	●	●
25	WASHER; PL,BRKT L TYPE ENG<90L> ID=15	9-09651-069-0	20	1	9205-9306	●	●	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	20	1	9205-9306		●
25	WASHER; PL,BRKT L TYPE ENG<90L> ID=15	9-09651-069-0	08	1	9002-9105	●	●	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	16	1	9106-9205		●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> ID=16.2 OD=26	1-09503-223-0	08	1	9307-	●	●	●	●	●
25	WASHER; PL,BRKT 6RB1TC ENG(30L),8PD1 STD ENG(38L) ID=16.2 OD=26	1-09503-223-0	08	1	9307-	●	●				●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	24	1	9307-	●	●	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	24	1	9307-	●	●
25	WASHER; PL,BRKT 8PD1 STD ENG(38L) ID=15	9-09651-069-0	24	1	9307-						●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=16.2 OD=26	1-09503-223-0	04	1	9002-9306	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	16	1	9002-9105	●	●	●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> ID=15	9-09651-069-0	22	1	9106-9106	●		●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	22	1	9107-9306	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	06	1	9002-9105	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	18	1	9106-9106	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=16.2 OD=26	1-09503-223-0	04	1	9307-	●	●	●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	16	1	9307-			●
25	WASHER; PL,BRKT 6RB1 STD ENG(07L) MIXER TRUCK<RA2> ID=15	9-09651-069-0	26	1	9307-			●
25	WASHER; PL,BRKT 10PD1 STD ENG(40L) ID=15	9-09651-069-0	22	1	9307-		●
26	NUT; BRKT,SPR L TYPE ENG<90L> M14	9-99110-514-0	06	1	9002-9306	●	●	●	●	●
26	NUT; BRKT,SPR L TYPE ENG<90L> M16	9-99110-516-0	04	1	9002-9306	●	●	●	●	●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M14	9-99110-514-0	08	1	9002-9205	●	●	●	●	●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	08	1	9002-9205	●	●	●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M14	9-99110-514-0	08	1	9206-9306	●		●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M16	9-99110-516-0	04	1	9307-	●	●	●	●	●
26	NUT; BRKT,SPR 6RB1TC ENG(30L),8PD1 STD ENG(38L) M16	9-99110-516-0	04	1	9307-	●	●				●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M16	9-99110-516-0	02	1	9002-	●	●	●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	10	1	9106-9106	●	●	●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	14	1	9107-9306	●	●	●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	12	1	9206-9306		●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14	9-99110-514-0	08	1	9307-	●	●	●	●	●
26	NUT; BRKT,SPR 6RB1TC ENG(30L),8PD1 STD ENG(38L) M14	9-99110-514-0	08	1	9307-		●				●
26	NUT; BRKT,SPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	16	1	9307-	●	●	●
26	NUT; BRKT,SPR 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14	9-99110-514-0	10	1	9307-			●
26	NUT; BRKT,SPR 10PD1 STD ENG(40L) M14	9-99110-514-0	14	1	9307-		●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	14	1	9002-9306	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> ID=14.2	9-09150-614-0	16	1	9307-	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR 6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> ID=14.2	9-09150-614-0	16	1	9307-	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9002-	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR 8PD1 STD ENG(38L) ID=14.2	9-09150-614-0	19	1	9307-						●
35	MEMBER; UNDER 6RB1 STD ENG(07L)	1-53174-174-2	01	1	9002-	●	●	●	●	●
35	MEMBER; UNDER 10PD1 STD ENG(40L)	1-53174-173-1	01	1	9002-9306	●	●
35	MEMBER; UNDER 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-53174-194-1	01	1	9307-	●	●				●
35	MEMBER; UNDER 6RA1TC ENG(19L),6RB1TC ENG(30L)	1-53174-164-2	01	1	9002-9310		●
35	MEMBER; UNDER 6RB1TC ENG(30L)	1-53174-188-2	01	1	9311-		●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9002-	●	●	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9002-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-072-5	01	1	9002-9407	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9408-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-071-5	01	1	9002-9407	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9408-	●	●	●	●	●	●
44	BOLT; UNDER MBR M16X50	9-92061-650-0	04	1	9002-	●	●	●	●	●	●
46	BOLT; BRKT FIX NYLON TUBE AIR PIPING<Z29> M14X50	9-91066-450-0	04	1	9106-9306	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> M14X50	9-91066-450-0	04	1	9106-9306		●
46	BOLT; BRKT FIX NYLON TUBE AIR PIPING<Z29> M14X40	9-92061-440-0	04	1	9106-9106	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> M14X40	9-92061-440-0	04	1	9106-9106		●
46	BOLT; BRKT FIX 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> M14X40	9-92061-440-0	04	1	9107-9306		●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M14X55	9-91066-455-0	02	1	9106-9306	●	●	●	●	●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X55	9-91066-455-0	02	1	9106-9306	●	●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M14X45	9-92061-445-0	06	1	9106-9306	●	●	●	●	●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X45	9-92061-445-0	06	1	9106-9306	●	●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14X55	9-91066-455-0	04	1	9307-	●	●	●	●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14X45	9-92061-445-0	04	1	9307-	●	●	●	●	●
46	BOLT; BRKT FIX 6RB1TC ENG(30L) M14X45	9-92061-445-0	04	1	9307-		●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L),6RB1TC ENG(30L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14X55	9-91066-455-0	04	1	9106-9306	●	●	●	●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L),6RB1TC ENG(30L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> M14X45	9-92061-445-0	04	1	9106-9106	●	●	●	●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L),6RA1TC ENG(19L) M14X45	9-92061-445-0	04	1	9107-9306	●	●	●	●	●
46	BOLT; BRKT FIX 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> M14X45	9-92061-445-0	04	1	9107-9306		●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-91066-450-0	06	1	9106-9306	●	●	●
46	BOLT; BRKT FIX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-91066-460-0	02	1	9106-9306	●	●	●
46	BOLT; BRKT FIX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-91066-450-0	06	1	9307-	●	●	●
46	BOLT; BRKT FIX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-91066-460-0	02	1	9307-	●	●	●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X55	9-91066-455-0	02	1	9307-			●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X55	9-91066-455-0	02	1	9307-		●
46	BOLT; BRKT FIX 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X45	9-92061-445-0	06	1	9307-			●
46	BOLT; BRKT FIX 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X45	9-92061-445-0	06	1	9307-		●
46	BOLT; BRKT FIX 6RB1TC ENG(30L),8PD1 STD ENG(38L) M14X50	9-91066-450-0	04	1	9307-		●				●
46	BOLT; BRKT FIX 8PD1 STD ENG(38L) M14X60	9-91066-460-0	04	1	9307-						●

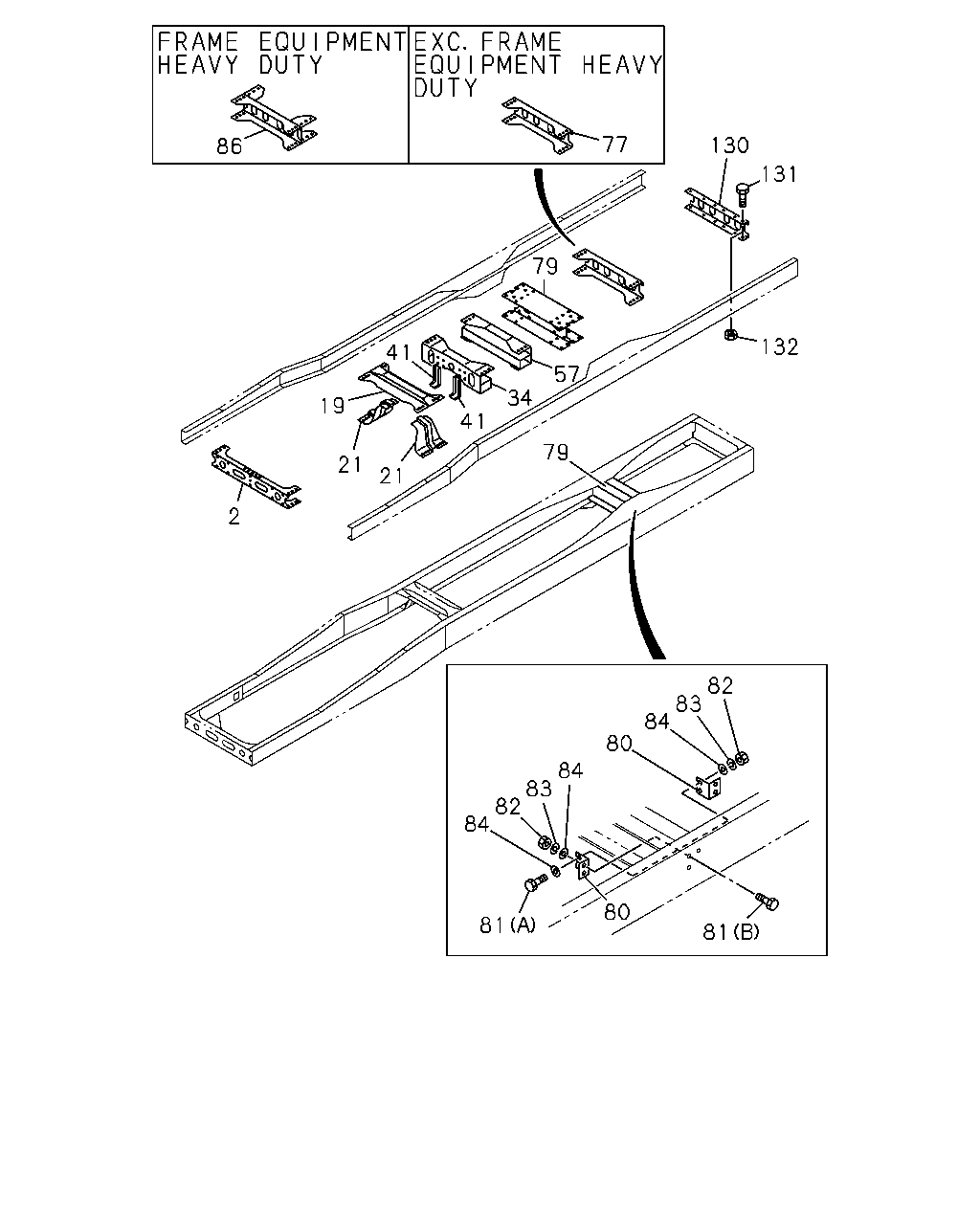

86 77 130 131 132 79 57 34 41 19 41 79 21 21 2 84 81 80 81 82 83 84 80 82 83 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST 6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L)	1-53181-350-0	01	1	9002-9302	●	●	●	●	●
2	MEMBER; CROSS,1ST 6RB1 STD ENG(07L),6RA1TC ENG(19L),8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-53181-517-2	01	1	9303-9404	●	●	●	●	●	●
2	MEMBER; CROSS,1ST 6RB1 STD ENG(07L),6RA1TC ENG(19L),8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-53181-694-0	01	1	9405-	●	●	●	●	●	●
2	MEMBER; CROSS,1ST 6RB1TC ENG(30L)	1-53171-899-2	01	1	9002-9404	●	●
2	MEMBER; CROSS,1ST 6RB1TC ENG(30L)	1-53181-695-0	01	1	9405-	●	●
19	MEMBER; CROSS,2ND	1-53174-155-0	01	1	9002-9404	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	9405-	●	●	●	●	●	●
21	GUSSET; 2ND CROSS NYLON TUBE AIR PIPING<Z29>	1-53164-183-0	02	1	9002-9306	●
21	GUSSET; 2ND CROSS EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53164-183-0	02	1	9002-9306		●
21	GUSSET; 2ND CROSS 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53164-198-0	01	1	9307-	●	●	●	●	●
21	GUSSET; 2ND CROSS 8PD1 STD ENG(38L)	1-53164-198-0	01	1	9307-	●					●
21	GUSSET; 2ND CROSS 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53164-197-0	01	1	9307-	●	●	●	●	●
21	GUSSET; 2ND CROSS 8PD1 STD ENG(38L)	1-53164-197-0	01	1	9307-	●					●
21	GUSSET; 2ND CROSS 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53164-198-0	01	1	9002-9306	●	●	●	●	●
21	GUSSET; 2ND CROSS 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53164-197-0	01	1	9002-9306	●	●	●	●	●
21	GUSSET; 2ND CROSS 6RB1TC ENG(30L)	1-53164-183-0	02	1	9307-		●
21	GUSSET; 2ND CROSS 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53164-183-0	02	1	9307-		●
34	MEMBER; CROSS,3RD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-875-1	01	1	9307-9404	●		●	●
34	MEMBER; CROSS,3RD 8PD1 STD ENG(38L)	1-53171-875-1	01	1	9307-9404						●
34	MEMBER; CROSS,3RD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-645-1	01	1	9405-	●		●	●
34	MEMBER; CROSS,3RD 8PD1 STD ENG(38L)	1-53181-645-1	01	1	9405-						●
34	MEMBER; CROSS,3RD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-875-1	01	1	9002-9306		●		●	●
34	MEMBER; CROSS,3RD EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-673-2	01	1	9002-9306		●
34	MEMBER; CROSS,3RD 6RB1TC ENG(30L)	1-53171-673-3	01	1	9307-9404		●
34	MEMBER; CROSS,3RD 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-673-3	01	1	9307-9404		●
34	MEMBER; CROSS,3RD 6RB1TC ENG(30L)	1-53181-640-1	01	1	9405-		●
34	MEMBER; CROSS,3RD 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-640-1	01	1	9405-		●
41	BRACKET; CENTER BRG,FRAME SIDE 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> L=290	1-53271-322-1	02	1	9002-		●		●	●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=285	1-53271-261-2	02	1	9002-9306		●
41	BRACKET; CENTER BRG,FRAME SIDE 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=265	1-53271-287-1	02	1	9002-		●
41	BRACKET; CENTER BRG,FRAME SIDE 6RB1TC ENG(30L) L=285	1-53271-261-2	02	1	9307-		●
41	BRACKET; CENTER BRG,FRAME SIDE 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=285	1-53271-261-2	02	1	9307-		●
41	BRACKET; CENTER BRG,FRAME SIDE 8PD1 STD ENG(38L) L=310	1-53271-305-1	02	1	9307-						●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-2	01	1	9002-	●	●	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR NYLON TUBE AIR PIPING<Z29>	1-53171-866-3	01	1	9002-9306	●
77	MEMBER; CROSS,TRUNNION RR EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-866-3	01	1	9002-9306		●
77	MEMBER; CROSS,TRUNNION RR 6RB1TC ENG(30L)	1-53171-866-3	01	1	9307-9404		●
77	MEMBER; CROSS,TRUNNION RR 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-866-3	01	1	9307-9404		●
77	MEMBER; CROSS,TRUNNION RR 6RB1TC ENG(30L)	1-53181-689-0	01	1	9405-		●
77	MEMBER; CROSS,TRUNNION RR 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-689-0	01	1	9405-		●
79	MEMBER; CROSS,TRUNNION ASM NYLON TUBE AIR PIPING<Z29>	1-53171-860-3	01	1	9002-9306	●
79	MEMBER; CROSS,TRUNNION ASM EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-860-3	01	1	9002-9306		●
79	MEMBER; CROSS,TRUNNION ASM 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2>	1-53181-374-0	01	1	9307-	●	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-374-0	01	1	9002-9306	●	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM 8PD1 STD ENG(38L)	1-53181-504-1	01	1	9307-	●					●
79	MEMBER; CROSS,TRUNNION ASM 6RB1TC ENG(30L)	1-53171-860-3	01	1	9307-9406		●
79	MEMBER; CROSS,TRUNNION ASM 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-860-3	01	1	9307-9406		●
79	MEMBER; CROSS,TRUNNION ASM 6RB1TC ENG(30L)	1-53181-685-0	01	1	9407-		●
79	MEMBER; CROSS,TRUNNION ASM 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-685-0	01	1	9407-		●
80	BRACKET; C/MBR FRAME EQUIPMENT HEAVY DUTY<F03>	1-53167-288-0	04	1	9002-	●	●	●	●	●	●
81	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X55	9-91066-455-0	04	1	9002-	●	●	●	●	●	●
81	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (B) M14X45	9-92061-445-0	08	1	9002-	●	●	●	●	●	●
82	NUT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	12	1	9002-	●	●	●	●	●	●
83	WASHER; LK,BRKT FRAME EQUIPMENT HEAVY DUTY<F03> ID=14.2	9-09150-614-0	12	1	9002-	●	●	●	●	●	●
84	WASHER; PL,BRKT FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 OD=26	9-09164-514-0	16	1	9002-	●	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-134-0	01	1	9002-9306	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-134-0	01	1	9307-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR 8PD1 STD ENG(38L)	1-53181-134-0	01	1	9307-	●					●
130	MEMBER; CROSS,END 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-876-2	01	1	9307-	●		●	●
130	MEMBER; CROSS,END 8PD1 STD ENG(38L)	1-53171-876-2	01	1	9307-						●
130	MEMBER; CROSS,END 6RB1 STD ENG(07L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-876-1	01	1	9002-9306		●		●	●
130	MEMBER; CROSS,END EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53171-638-3	01	1	9002-9204		●
130	MEMBER; CROSS,END EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-391-1	01	1	9205-9306		●
130	MEMBER; CROSS,END 10PD1 STD ENG(40L)	1-53181-391-2	01	1	9307-9404		●
130	MEMBER; CROSS,END 6RB1TC ENG(30L)	1-53171-638-3	01	1	9307-9404		●
130	MEMBER; CROSS,END 6RB1TC ENG(30L)	1-53181-537-0	01	1	9405-		●
130	MEMBER; CROSS,END 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53181-537-0	01	1	9405-		●
131	BOLT; END C/MBR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40	9-92061-440-0	02	1	9002-				●	●
131	BOLT; END C/MBR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-92061-460-0	02	1	9002-				●	●
132	NUT; END C/MBR 6RB1 STD ENG(07L) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	04	1	9002-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
