◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#28633) — 201 parça
çizim 83125
217 148 235 148 168 171 223 470 16 116 224 224 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6HH1 STD ENG<65L> (G) ID=24 L=32 THA 		1-09700-766-1 01 1 0407-
16 CLIP; HARNESS
6HH1 STD ENG<65L> (I) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407-
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 01 1 0407-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
16 CLIP; HARNESS
(K) ID=25 L=50 		1-09701-019-0 01 1 0407-
16 CLIP; HARNESS
(L) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0407-
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0407-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0407-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 THA 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 03 1 0407-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0407-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0407-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0407-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0407-
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0407-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0407-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (C) ID=19 L=28 		9-09525-856-0 01 1 0407-0606
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (C) ID=19 L=28 		0-95235-856-0 01 1 0607-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 02 1 0407-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0407-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0407-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0407-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0407-
224 SLEEVE; RUBBER,HARNESS
6HH1 STD ENG<65L> (A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0407-
224 SLEEVE; RUBBER,HARNESS
(B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0407-
çizim 83219
14 81 206 305 16 48 217 235 305 178 178 154 312 16 237 53 530 59 335
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0407-
16 CLIP; HARNESS
6HH1 STD ENG<65L> (G) ID=24 L=32 THA 		1-09700-766-1 01 1 0407-
16 CLIP; HARNESS
6HH1 STD ENG<65L> (I) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407-
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 01 1 0407-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
16 CLIP; HARNESS
(K) ID=25 L=50 		1-09701-019-0 01 1 0407-
16 CLIP; HARNESS
(L) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0407-
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0407-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0407-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 THA 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 03 1 0407-
48 CLIP; FRAME HARNESS
(A) ID=25 L=75 		1-09701-275-0 06 1 0407-
48 CLIP; FRAME HARNESS
6HE1 TC ENG<57L> (L) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0407-
48 CLIP; FRAME HARNESS
(B) ID=25 L=50 		1-09700-976-0 01 1 0407-
48 CLIP; FRAME HARNESS
6HE1 TC ENG<57L> (B) ID=25 L=50 		1-09700-976-0 01 1 0407-
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 THA 		1-09700-484-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 03 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 04 1 0407-
48 CLIP; FRAME HARNESS
(K) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
48 CLIP; FRAME HARNESS
(G) L=180 THA 		1-09707-162-1 01 1 0407-
48 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 02 1 0407-
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		9-09525-856-0 01 1 0407-0606
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 THA 		9-09917-427-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 THA 		9-09917-427-0 01 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W> (J) ID=20 L=50 THA 		8-97916-115-0 03 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W>,WHEEL BASE 5800MM<58W> (J) ID=20 L=50 THA 		8-97916-115-0 15 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W> (J) ID=20 L=50 THA 		8-97916-115-0 04 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W>,WHEEL BASE 6300MM<63W> (J) ID=20 L=50 THA 		8-97916-115-0 16 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> (J) ID=20 L=50 THA 		8-97916-115-0 05 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM<63W> (J) ID=20 L=50 THA 		8-97916-115-0 07 1 0407-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 THA 		8-97916-115-0 02 1 0407-0407
53 BRACKET; HARNESS 1-47476-812-1 01 1 0407-
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0407-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0407-
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG<65L> 		1-47465-518-0 01 1 0407-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0407-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0407-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0407-
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0407-
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0407-
305 CLIP; ENG HARNESS
6HH1 STD ENG<65L> (B) L=250 		5-09707-030-1 04 1 0407-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0407-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0407-
312 BRACKET; CLIP HARNESS 1-47478-981-0 01 1 0407-
335 BRACKET; CONNECTOR
THA 		1-82698-167-0 01 1 0407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0407-

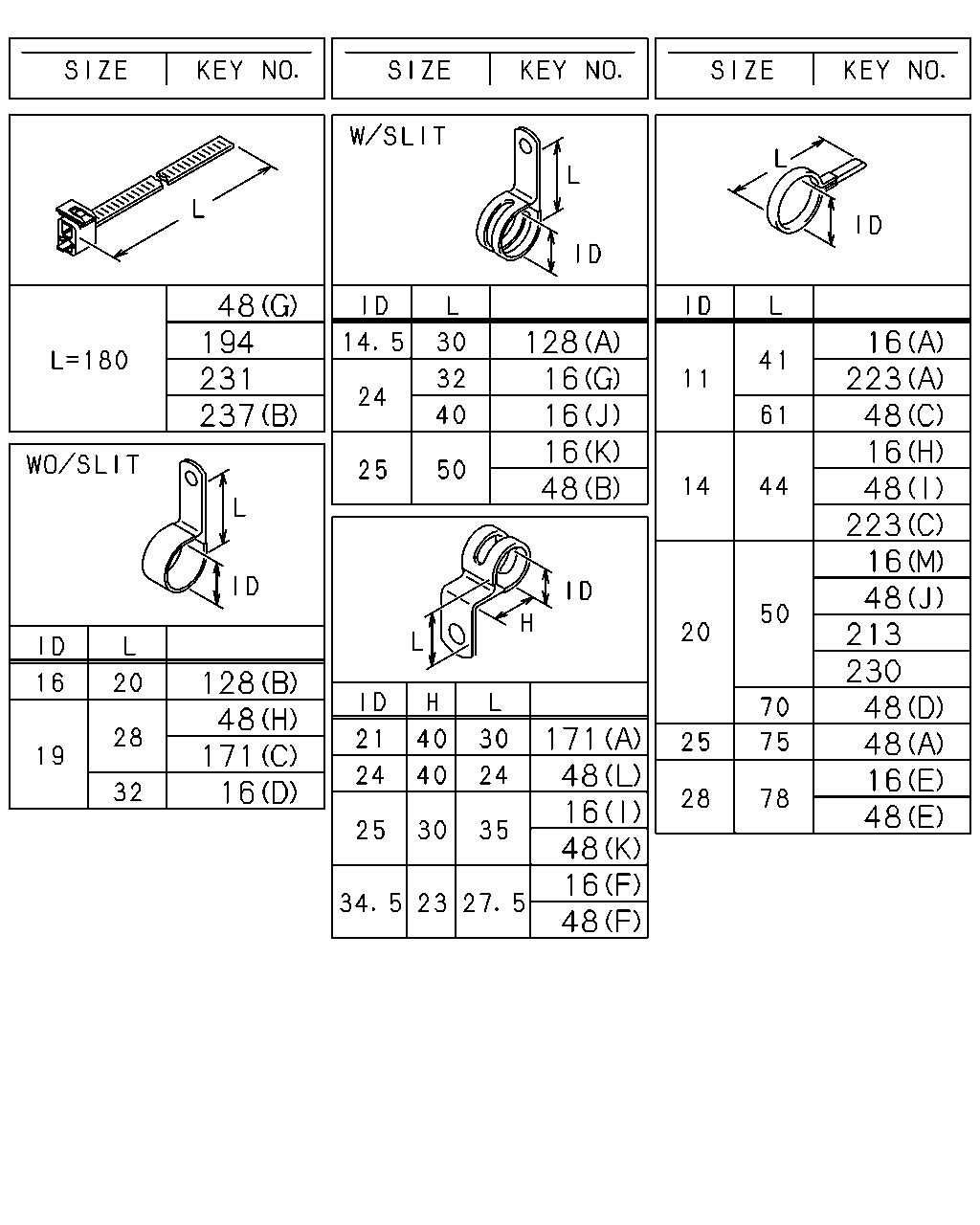

çizim 84047
48 194 231 237 128 16 16 16 48 16 223 48 16 48 223 16 48 213 230 48 48 16 48 128 48 171 16 171 48 16 48 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6HH1 STD ENG<65L> (G) ID=24 L=32 THA 		1-09700-766-1 01 1 0407-
16 CLIP; HARNESS
6HH1 STD ENG<65L> (I) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407-
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 01 1 0407-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
16 CLIP; HARNESS
(K) ID=25 L=50 		1-09701-019-0 01 1 0407-
16 CLIP; HARNESS
(L) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0407-
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0407-
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0407-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0407-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 THA 		9-09917-427-0 03 1 0407-
16 CLIP; HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 03 1 0407-
48 CLIP; FRAME HARNESS
(A) ID=25 L=75 		1-09701-275-0 06 1 0407-
48 CLIP; FRAME HARNESS
6HE1 TC ENG<57L> (L) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0407-
48 CLIP; FRAME HARNESS
(B) ID=25 L=50 		1-09700-976-0 01 1 0407-
48 CLIP; FRAME HARNESS
6HE1 TC ENG<57L> (B) ID=25 L=50 		1-09700-976-0 01 1 0407-
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 THA 		1-09700-484-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 03 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 04 1 0407-
48 CLIP; FRAME HARNESS
(K) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
48 CLIP; FRAME HARNESS
(G) L=180 THA 		1-09707-162-1 01 1 0407-
48 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 02 1 0407-
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		9-09525-856-0 01 1 0407-0606
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 THA 		9-09917-427-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 THA 		9-09917-427-0 01 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W> (J) ID=20 L=50 THA 		8-97916-115-0 03 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W>,WHEEL BASE 5800MM<58W> (J) ID=20 L=50 THA 		8-97916-115-0 15 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W> (J) ID=20 L=50 THA 		8-97916-115-0 04 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W>,WHEEL BASE 6300MM<63W> (J) ID=20 L=50 THA 		8-97916-115-0 16 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> (J) ID=20 L=50 THA 		8-97916-115-0 05 1 0407-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM<63W> (J) ID=20 L=50 THA 		8-97916-115-0 07 1 0407-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 THA 		8-97916-115-0 02 1 0407-0407
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0407-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0407-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0407-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (C) ID=19 L=28 		9-09525-856-0 01 1 0407-0606
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (C) ID=19 L=28 		0-95235-856-0 01 1 0607-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 02 1 0407-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0407-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0407-
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0407-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0407-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0407-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0407-
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0407-
231 CLIP; BAND,OIL PRESS
L=180 THA 		1-09707-162-1 01 1 0407-
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0407-
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0407-
çizim 84416
38 313 38 38 38 139 38 38 516 239 239 239 38 88 173 209 133 524 219 294 210 520 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG<57L> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512
38 BOLT; CLIP,HARNESS
6HE1 TC ENG<57L> (B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 0407-0512
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0407-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG<57L> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611
38 BOLT; CLIP,HARNESS
6HE1 TC ENG<57L> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0612-
38 BOLT; CLIP,HARNESS
6HH1 STD ENG<65L> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0611
38 BOLT; CLIP,HARNESS
6HH1 STD ENG<65L> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0611
38 BOLT; CLIP,HARNESS
6HH1 STD ENG<65L> (A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0612-
38 BOLT; CLIP,HARNESS
6HH1 STD ENG<65L> (A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0612-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0611
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE THA 		0-28050-816-0 04 1 0612-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0611
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0612-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0611
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE THA 		0-28650-825-0 01 1 0612-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0611
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612-
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0407-0701
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0702-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407-
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611
139 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612-
139 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0407-
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0407-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0407-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0407-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
219 NUT
M8 FLANGE THA 		0-91180-108-0 03 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0407-0602
219 NUT
M8 FLANGE THA 		0-91180-108-0 05 1 0603-
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0407-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0512
313 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0407-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0602
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
