Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

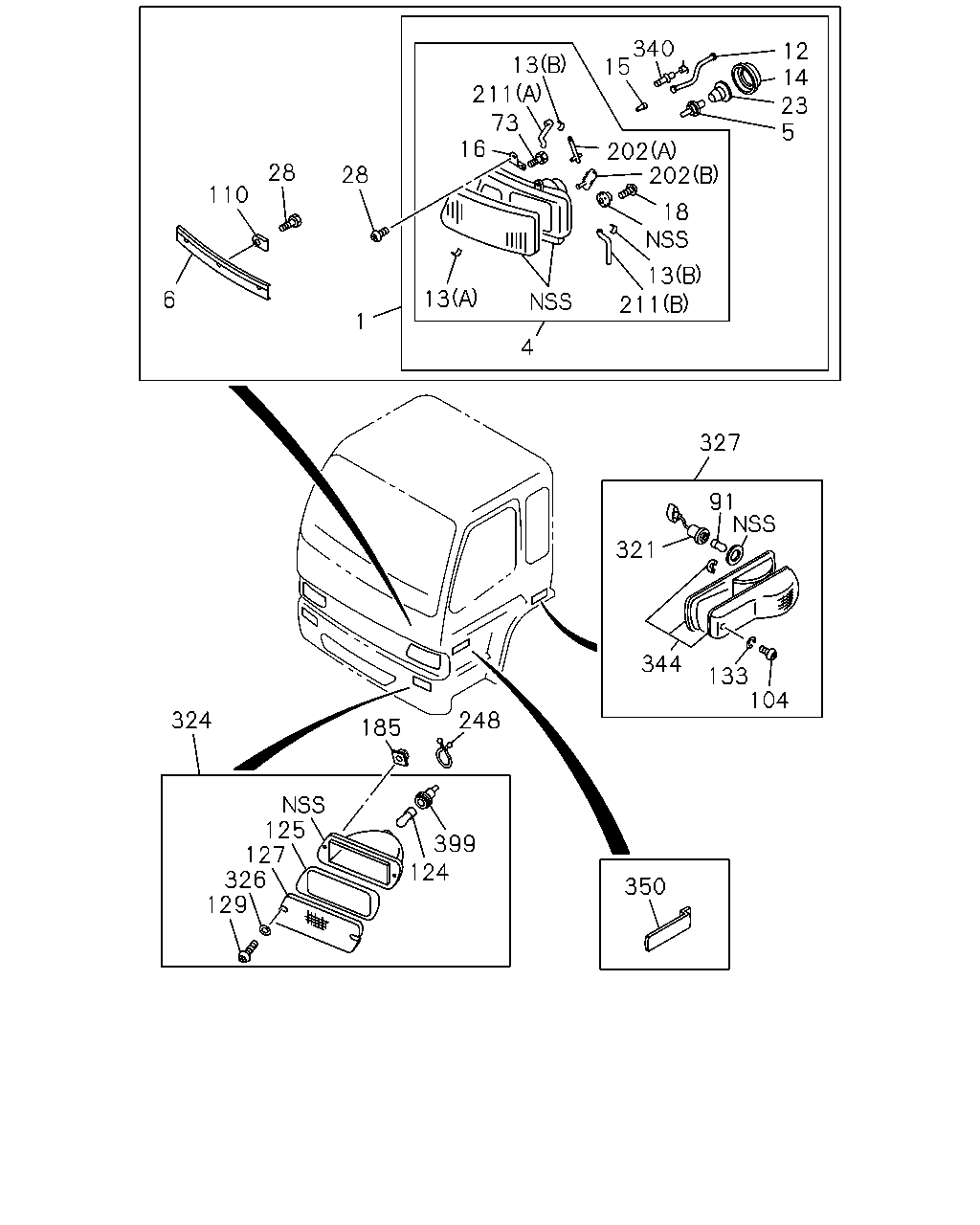

8-01 — LAMP; FRONT AND FRONT SIDE
(#28629) — 51 parça
340
15
12
14
23
5
13
211
73
16
202
202
28
28
110
18
13
13
6
211
1
4
327
91
321
344
133
104
324
248
185
125
127
326
129
399
124
350
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
THA
8-97916-468-0
01
1
0407-0407
1
LAMP ASM; HEAD
THA
8-97922-730-0
01
1
0407-
1
LAMP ASM; HEAD
THA
8-97916-469-0
01
1
0407-0407
1
LAMP ASM; HEAD
THA
8-97922-731-0
01
1
0407-
4
HEADLAMP UNIT
THA
8-97921-641-0
01
1
0407-
4
HEADLAMP UNIT
THA
8-97921-642-0
01
1
0407-
5
BULB; HEADLAMP
24V 75/70W THA
8-97921-643-0
02
1
0407-
6
RIM; HEADLAMP
THA
1-86830-005-5
01
1
0407-
6
RIM; HEADLAMP
THA
1-86830-006-5
01
1
0407-
12
HARNESS; HEADLAMP
THA
1-86830-145-0
02
1
0407-
13
CLIP; HEADLAMP
(B) THA
1-82119-084-0
04
1
0407-
13
CLIP; HEADLAMP
(A) THA
8-94381-588-0
14
1
0407-
14
CAP; BULB,LAMP
THA
1-86830-148-0
02
1
0407-
15
BULB; FOG LAMP
24V 55W THA
8-97921-644-0
02
1
0407-
16
BRACKET; HEADLAMP
THA
1-86830-075-0
01
1
0407-
16
BRACKET; HEADLAMP
THA
1-86830-076-0
01
1
0407-
18
SCREW; GEAR CASE
M4X16 TAPPING THA
1-82119-067-0
08
1
0407-
23
COVER; BULB,HEADLAMP
THA
1-86830-147-0
02
1
0407-
28
BOLT; HEADLAMP
M6X16 FLANGE THA
0-28650-616-0
04
1
0709-
28
BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
14
1
0407-0708
28
BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
10
1
0709-
73
BOLT; BRKT,HEADLAMP
THA
8-94332-050-0
04
1
0407-
91
BULB; SIDE TURN SIGNAL
24V 12W THA
8-97922-545-0
02
1
0407-
104
SCREW; SIDE TURN SIGNAL
THA
1-86830-149-0
02
1
0407-
110
CLIP; RIM,HEADLAMP
1-86830-213-1
04
1
0407-
124
BULB; FRT TURN SIGNAL
THA
8-97922-544-0
02
1
0407-
125
GASKET; FRT TURN SIGNAL
THA
1-82216-033-0
02
1
0407-
127
LENS; FRT TURN SIGNAL
CLEAR THA
8-97922-547-0
01
1
0407-
127
LENS; FRT TURN SIGNAL
CLEAR THA
8-97922-548-0
01
1
0407-
129
SCREW; FRT TURN SIGNAL
THA
1-82219-026-0
04
1
0407-
133
WASHER; PL,SIDE FLASHER LAMP
THA
1-86830-150-0
02
1
0407-
185
GROMMET; SCREW
D=9.7X9.7 L=8 THA
8-94222-314-0
04
1
0407-
202
GEAR UNIT; HEADLAMP
(A) OUTER THA
1-86830-139-0
02
1
0407-
202
GEAR UNIT; HEADLAMP
(B) INNER THA
1-86830-140-0
02
1
0407-
211
TUBE; HEADLAMP
(A) THA
1-86830-141-0
01
1
0407-
211
TUBE; HEADLAMP
(A) THA
1-86830-142-0
01
1
0407-
211
TUBE; HEADLAMP
(B) THA
1-86830-143-0
01
1
0407-
211
TUBE; HEADLAMP
(B) THA
1-86830-144-0
01
1
0407-
248
CLIP; HARNESS
ID=11.5
1-09709-083-0
01
1
0407-
321
HARNESS; SIDE FLASHER LAMP
THA
1-86830-253-0
02
1
0407-
324
LAMP; FRT FLASHER
THA
8-97922-540-0
01
1
0407-
324
LAMP; FRT FLASHER
THA
8-97922-541-0
01
1
0407-
326
WASHER; PL,FRT TURN SIGNAL
THA
1-82216-032-0
04
1
0407-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97922-542-1
01
1
0407-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97922-543-1
01
1
0407-
340
BULB; POSITION
24V 5W THA
1-82194-042-0
02
1
0407-
344
LAMP UNIT; SIDE TURN SIGNAL
THA
8-97922-550-0
01
1
0407-
344
LAMP UNIT; SIDE TURN SIGNAL
THA
8-97922-551-0
01
1
0407-
350
COVER; SIDE TURN HOLE
THA
1-79996-606-0
01
1
0407-
350
COVER; SIDE TURN HOLE
THA
1-79996-607-0
01
1
0407-
399
SOCKET; TURN SIGNAL
THA
1-82219-034-0
02
1
0407-
