◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#28625) — 14 parça
çizim 23249
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 0407-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0407-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0407-

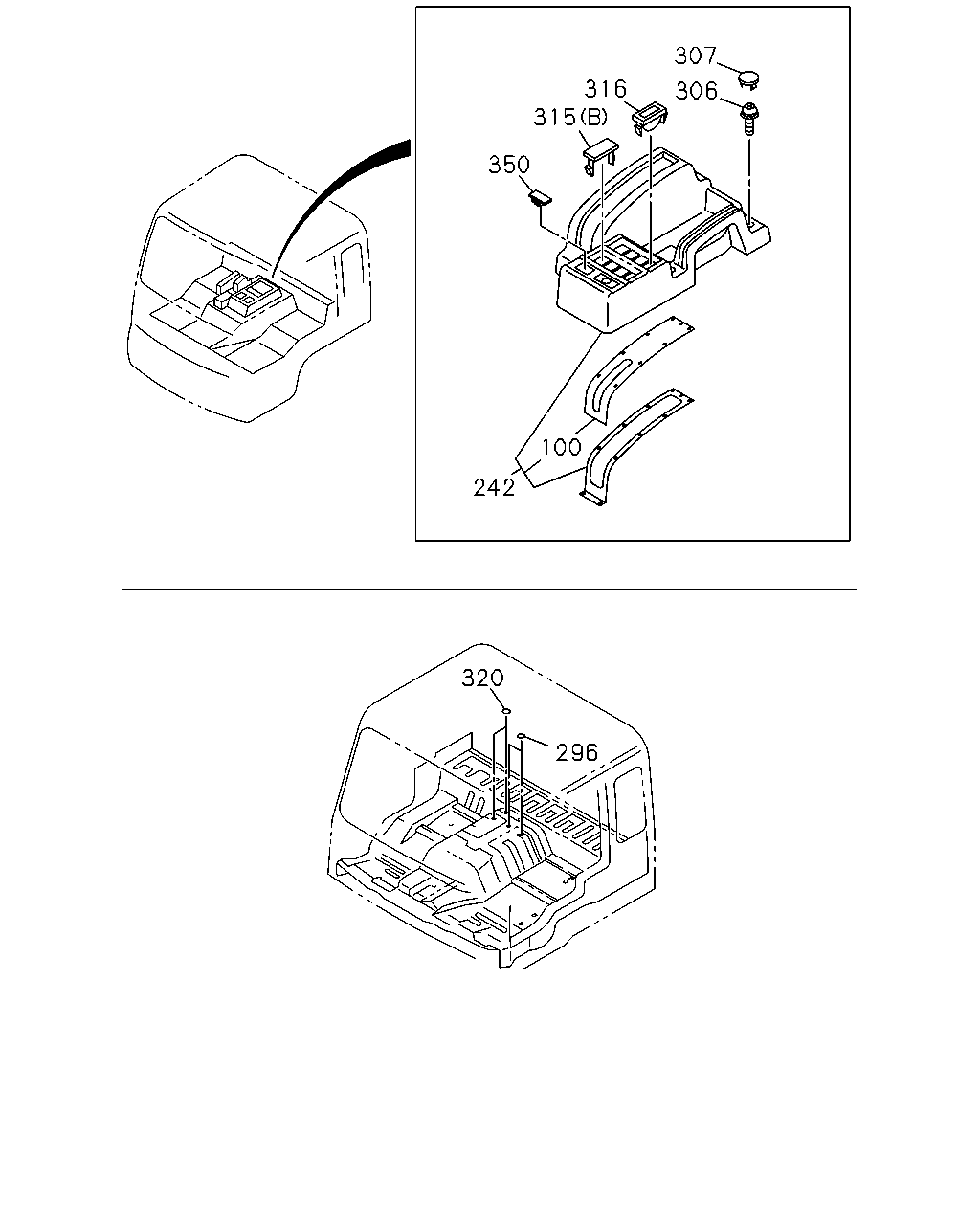

çizim 84334
307 316 315 306 350 100 242 320 296
BalonParca AdiParca NoAdetTipApplied Date
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 0407-
242 TRAY ASM; CTR CONSOLE 1-72538-245-0 01 1 0407-
296 SEAL
OD=25 BLACK THA 		1-76798-019-0 02 1 0407-
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0407-
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 04 1 0407-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 0407-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0407-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0407-
316 BOX; COIN 8-94482-280-2 02 1 0407-
320 SEAL; HOLE,TRAY
OD=25 BLACK THA 		1-76798-019-0 02 1 0407-
350 COVER; CONSOLE 8-97535-037-0 01 1 0407-
