Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#28624) — 61 parça
◀
[743A] BOARD;HEADER SHELF (25 parça)
[743A] ROOF PANEL GRIP (14 parça)
[743A] GRIP;ASSIST (22 parça)
▶

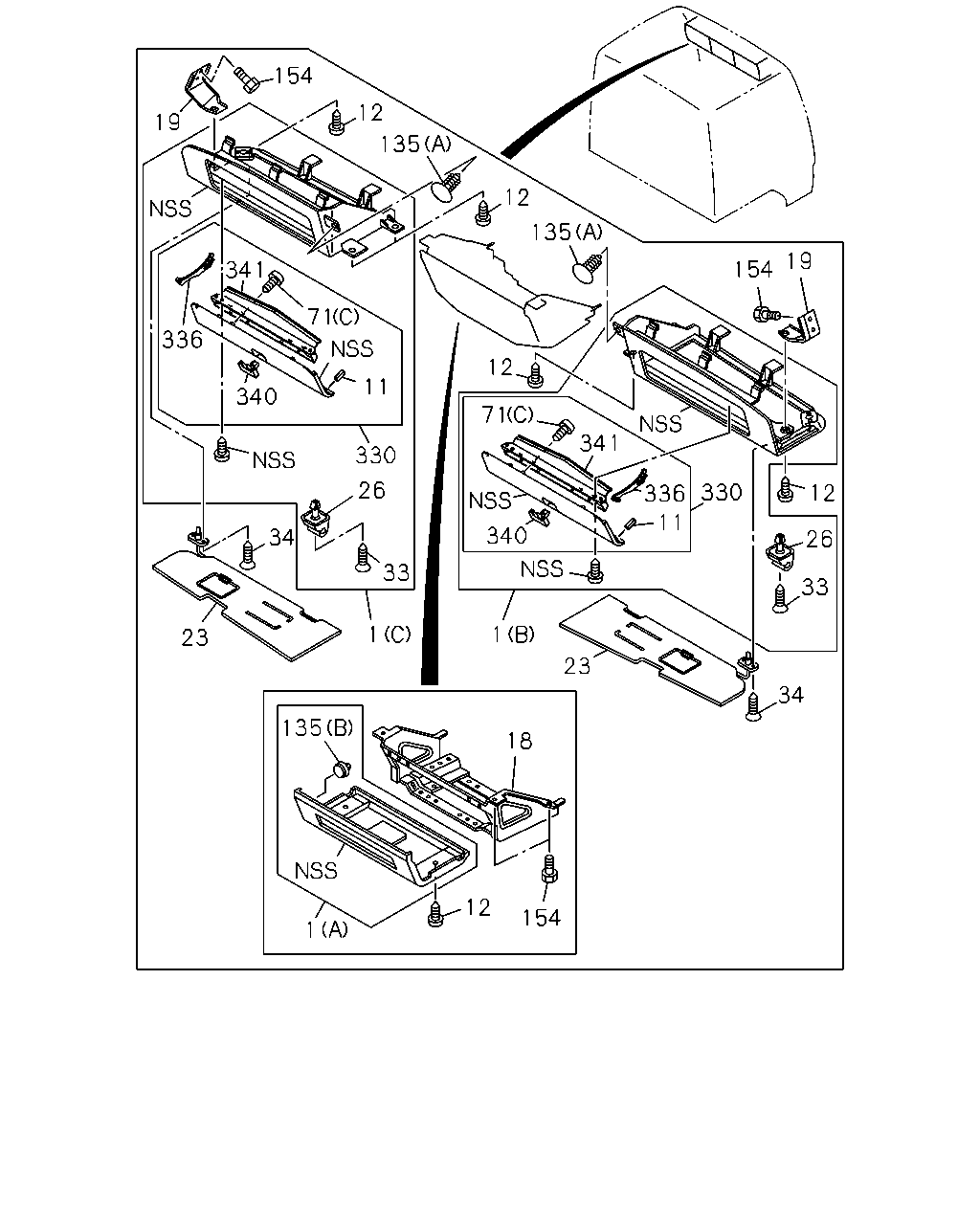

154
12
19
135
12
135
19
154
341
71
336
12
11
340
71
341
330
26
330
12
336
11
340
34
26
33
33
1
1
23
23
34
135
18
12
154
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(A)
1-72448-663-0
01
1
0407-
1
BOARD; HEADER SHELF
(B)
1-73318-690-0
01
1
0407-
1
BOARD; HEADER SHELF
(C)
1-73318-691-0
01
1
0407-
11
CAP; HEADER SHELF
THA
8-94270-538-0
04
1
0407-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
0407-
18
SUPPORT; HEADER SHELF CENTER
THA
8-97913-541-1
01
1
0407-
19
SUPPORT ASM; HEADER SHELF
1-72448-323-1
01
1
0407-
19
SUPPORT ASM; HEADER SHELF
1-72448-324-1
01
1
0407-
23
SUN VISOR
THA
8-97917-690-0
01
1
0407-
23
SUN VISOR
THA
8-97917-691-0
01
1
0407-
26
HOLDER; SUN VISOR
1-73137-175-0
02
1
0407-
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
02
1
0407-0603
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70540-416-0
02
1
0604-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
0407-
71
SCREW
(C) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0407-
71
SCREW
(B) M5X14 W/PL WASHER THA
5-09981-050-0
06
1
0407-
71
SCREW
(A) M6X30 W/LK WASHER
5-09981-064-0
02
1
0407-
71
SCREW
(D) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0407-
135
CLIP; HEADER SHELF
(A) D6X23 BLACK
1-09987-114-0
02
1
0407-
135
CLIP; HEADER SHELF
(B) OD=7.9 BLACK THA
8-94279-974-1
06
1
0407-
154
BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
08
1
0407-
330
LID; HEADER SHELF
1-72448-679-0
02
1
0407-
336
STAY; LID
THA
1-72448-379-3
04
1
0407-
340
LOCK; HEADER SHELF
THA
1-72448-376-0
02
1
0407-
341
HINGE; LID,HEADER SHELF
THA
1-72448-403-1
02
1
0407-

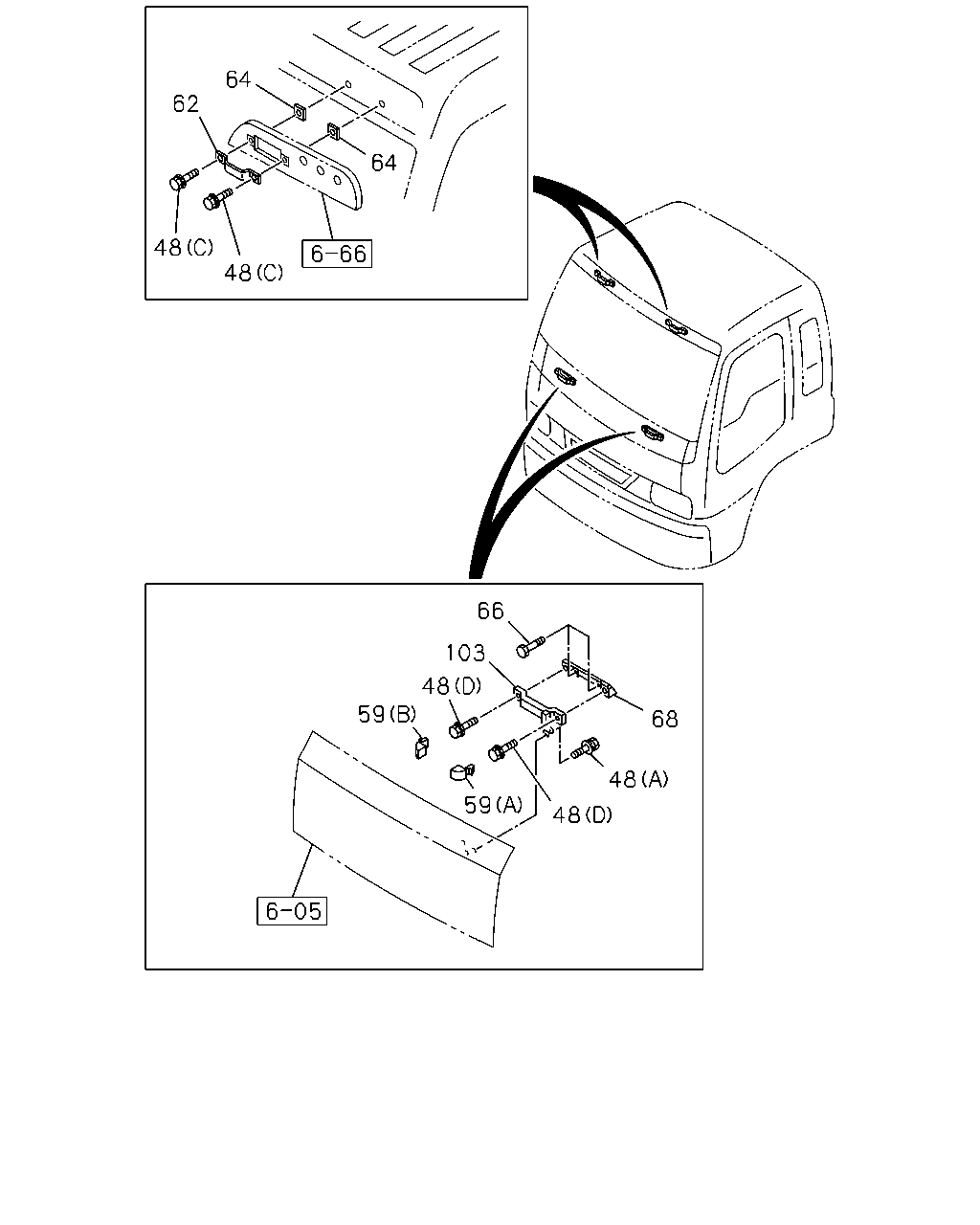

64
62
64
48
48
66
103
48
59
68
48
59
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0407-
48
BOLT; ASSIST GRIP
(B) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0407-
48
BOLT; ASSIST GRIP
(C) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0407-
48
BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0407-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0407-
59
COVER; ASSIST GRIP
(A) OUTER
1-71998-789-2
02
1
0407-
59
COVER; ASSIST GRIP
(B) INNER
1-71998-790-2
02
1
0407-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0407-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
0407-
64
SHEET; ASSIST GRIP
25X25 THA
8-94272-533-0
04
1
0407-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0407-
68
BRACKET; ASSIST GRIP,FRT PANEL
THA
1-65580-203-0
02
1
0407-
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
0407-
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
0407-

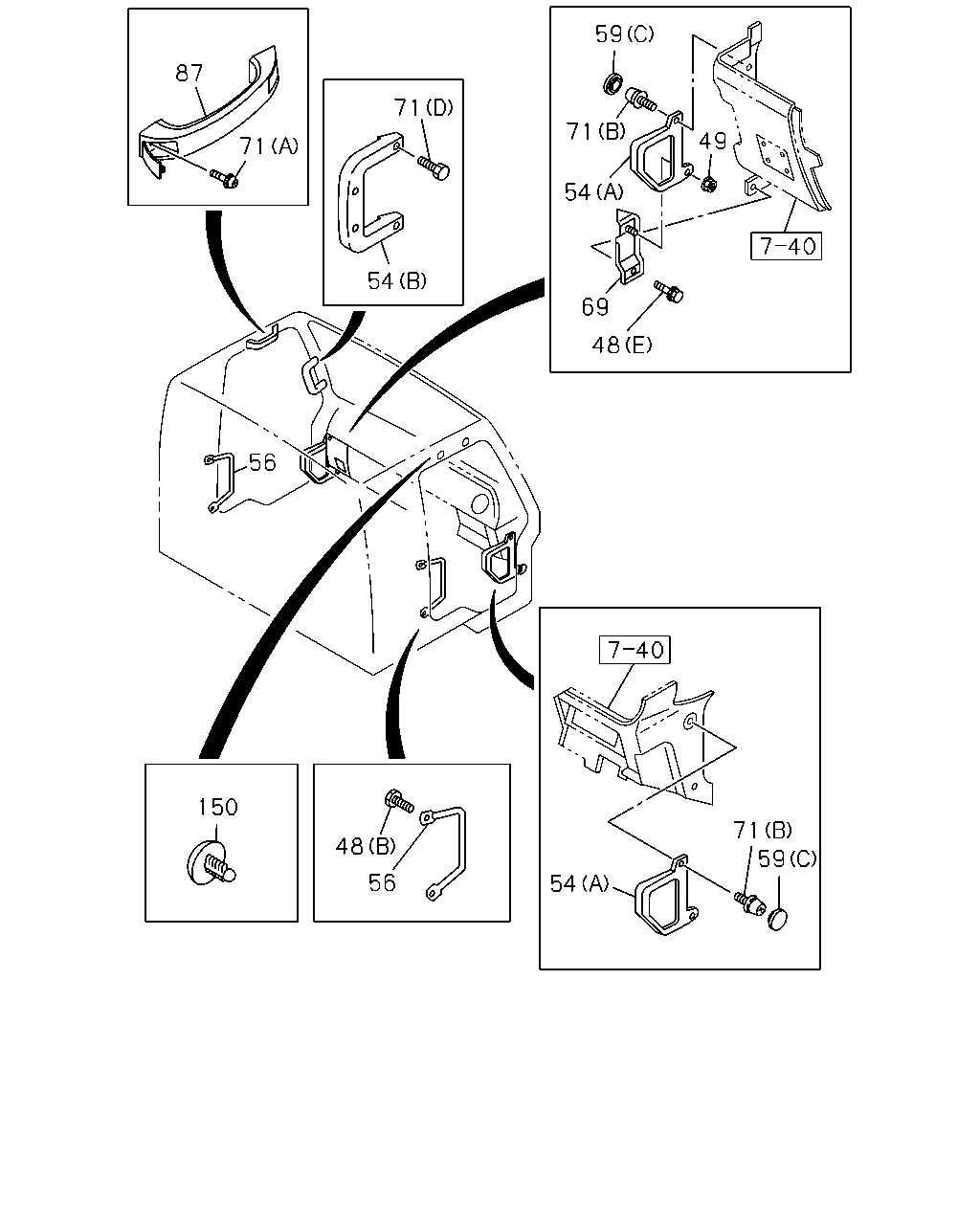

59
87
71
71
49
71
54
54
69
48
56
150
71
59
48
56
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0407-
48
BOLT; ASSIST GRIP
(B) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0407-
48
BOLT; ASSIST GRIP
(C) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0407-
48
BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0407-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0407-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
01
1
0407-0605
49
NUT; ASSIST GRIP
M6 FLANGE THA
0-91180-106-0
01
1
0606-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-563-1
01
1
0407-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-564-1
01
1
0407-
54
GRIP; ASSIST,QUARTER SIDE
(B)
1-73618-185-1
02
1
0407-
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0407-0804
56
GRIP; ASSIST,SIDE SILL
8-98081-700-0
02
1
0805-
59
COVER; ASSIST GRIP
(A) OUTER
1-71998-789-2
02
1
0407-
59
COVER; ASSIST GRIP
(B) INNER
1-71998-790-2
02
1
0407-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0407-
69
BRACKET; ASSIST GRIP
1-73618-178-2
01
1
0407-
71
SCREW
(C) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0407-
71
SCREW
(B) M5X14 W/PL WASHER THA
5-09981-050-0
06
1
0407-
71
SCREW
(A) M6X30 W/LK WASHER
5-09981-064-0
02
1
0407-
71
SCREW
(D) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0407-
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
01
1
0407-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0407-
