6-47 — MUD GUARD AND INSULATOR (#28608) — 65 parça

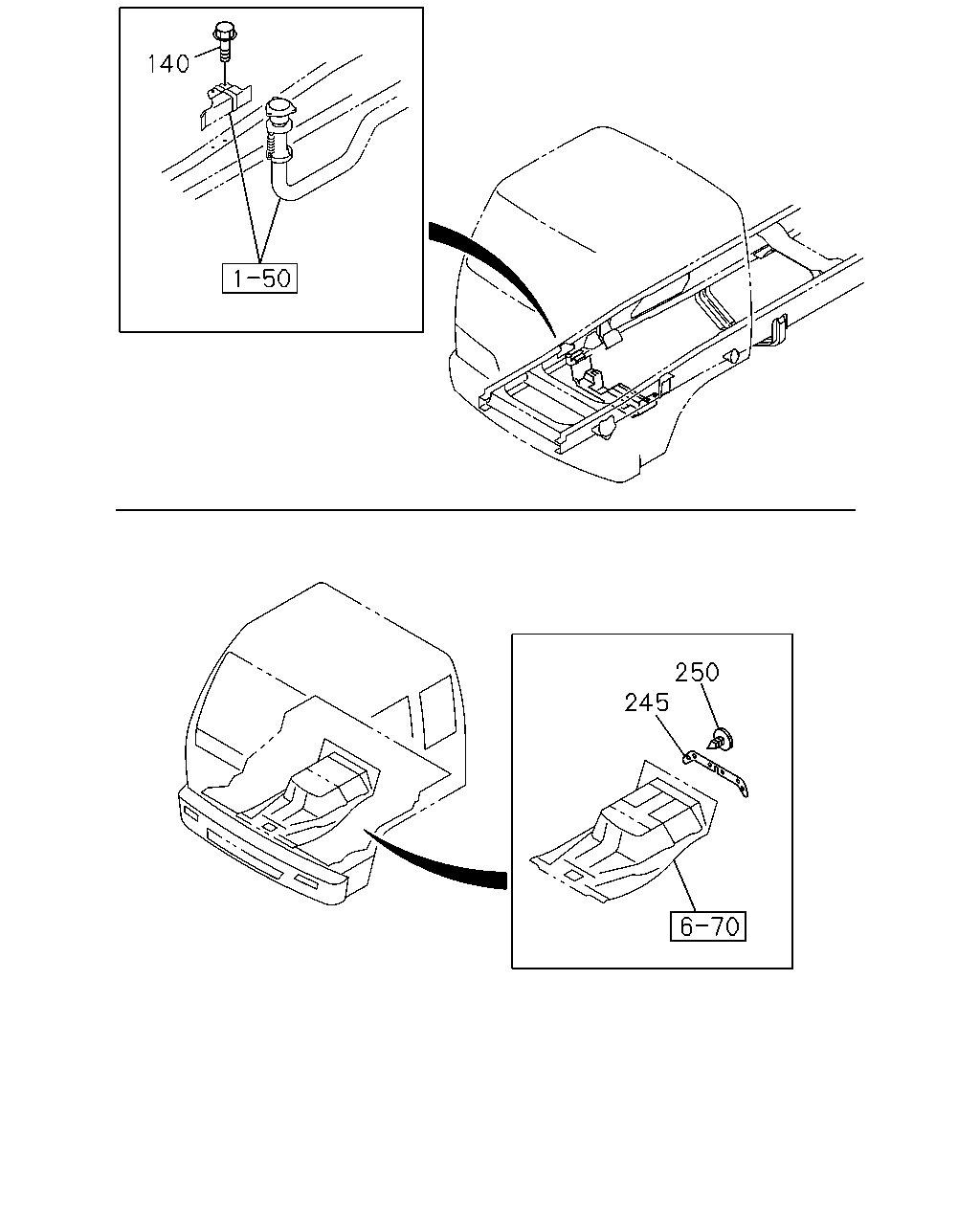

çizim 23148
140 250 245
BalonParca AdiParca NoAdetTipApplied Date
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
140 BOLT; SIDE PANEL
M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
245 RUBBER; SHUTTER,RAD 1-79938-927-0 01 1 0407-
250 FASTENER; SHUTTER 1-09987-189-0 06 1 0407-

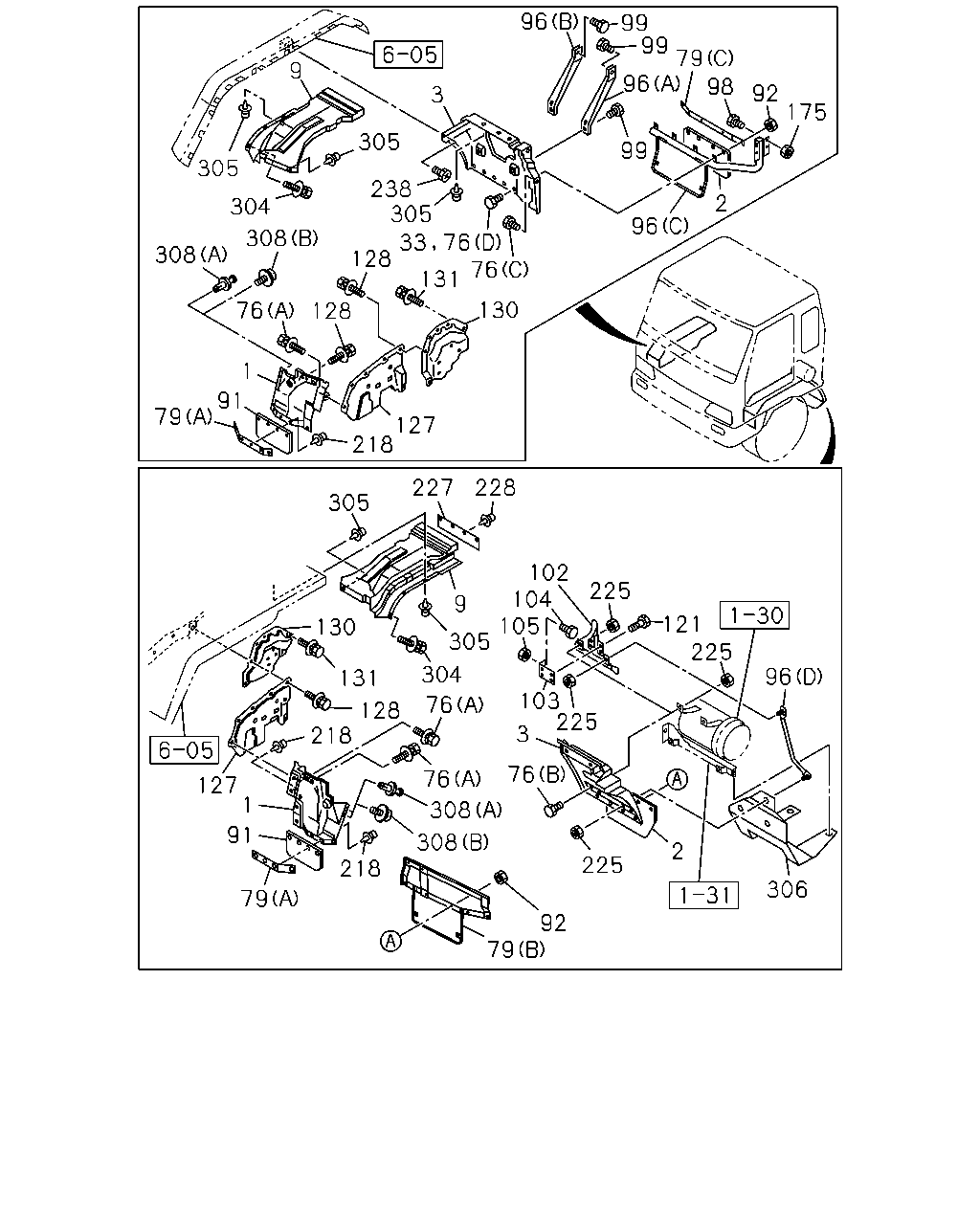

çizim 25910
96 99 99 79 9 96 98 92 3 175 305 99 305 238 305 128 76 2 304 96 308 308 131 76 130 128 1 91 79 127 218 227 228 305 102 104 105 225 9 121 225 130 305 103 225 304 96 131 76 128 3 218 76 76 127 1 308 91 308 2 225 218 306 79 92 79 33 76
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT
THA 		1-79938-810-8 01 1 0407-
1 GUARD; MUD,FRT
THA 		1-79938-812-8 01 1 0407-
2 COVER; MUD,TIRE RR 1-79931-270-0 01 1 0407-
2 COVER; MUD,TIRE RR 1-79938-972-2 01 1 0407-
3 GUARD; MUD,RR
6HE1 TC ENG<57L> THA 		1-79938-962-2 01 1 0407-
3 GUARD; MUD,RR
6HH1 STD ENG<65L> THA 		1-79938-999-0 01 1 0407-
3 GUARD; MUD,RR
THA 		1-79938-971-1 01 1 0407-
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-007-2 01 1 0407-
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-3 01 1 0407-
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 13 1 0407-
76 BOLT; MUD GUARD
6HE1 TC ENG<57L> (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0407-0805
76 BOLT; MUD GUARD
6HE1 TC ENG<57L> (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0806-
76 BOLT; MUD GUARD
6HH1 STD ENG<65L> (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0407-0805
76 BOLT; MUD GUARD
6HH1 STD ENG<65L> (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0806-
76 BOLT; MUD GUARD
6HH1 STD ENG<65L> (D) M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0407-
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0407-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER THA 		8-94331-747-1 08 1 0407-
79 RETAINER; MUD COVER
6HE1 TC ENG<57L> (B) 		1-79931-288-0 01 1 0407-
79 RETAINER; MUD COVER
6HH1 STD ENG<65L> (B) THA 		1-79931-304-0 01 1 0407-
79 RETAINER; MUD COVER
(A) THA 		1-79931-044-0 02 1 0407-
79 RETAINER; MUD COVER
(C) 		1-79931-269-0 01 1 0407-
91 COVER; MUD,FRT
THA 		1-79931-214-1 02 1 0407-
92 NUT; MUD COVER
6HE1 TC ENG<57L> M6 FLANGE 		0-91150-106-0 03 1 0407-0605
92 NUT; MUD COVER
6HE1 TC ENG<57L> M6 FLANGE THA 		0-91180-106-0 03 1 0606-
92 NUT; MUD COVER
6HH1 STD ENG<65L> M6 FLANGE 		0-91150-106-0 05 1 0407-0605
92 NUT; MUD COVER
6HH1 STD ENG<65L> M6 FLANGE THA 		0-91180-106-0 05 1 0606-
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 04 1 0407-0605
92 NUT; MUD COVER
M6 FLANGE THA 		0-91180-106-0 04 1 0606-
96 STAY; MUD GUARD
(C) 		1-53497-577-2 01 1 0407-
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 0407-
96 STAY; MUD GUARD
(B) 		1-79938-738-1 01 1 0407-
96 STAY; MUD GUARD
6HE1 TC ENG<57L> (D) THA 		8-97913-963-2 01 1 0407-
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0407-0611
98 BOLT; STAY TO BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 0612-
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0407-
102 STAY; LWR,MUD GUARD
6HE1 TC ENG<57L> 		1-53497-535-0 01 1 0407-
103 BRACKET ASM; RR MUD FLAP
6HE1 TC ENG<57L> 		1-53497-486-2 01 1 0407-
104 BOLT; BRKT
6HE1 TC ENG<57L> M8X25 FLANGE 		0-28680-825-0 01 1 0407-0611
104 BOLT; BRKT
6HE1 TC ENG<57L> M8X25 FLANGE THA 		0-28650-825-0 01 1 0612-
105 NUT; BRKT
6HE1 TC ENG<57L> M8 FLANGE 		0-91150-108-0 01 1 0407-
121 BOLT
6HE1 TC ENG<57L> M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
121 BOLT
6HE1 TC ENG<57L> M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
127 APRON; FRT
THA 		1-53192-301-3 01 1 0407-
127 APRON; FRT
THA 		1-53193-223-1 01 1 0407-
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER THA 		8-94331-747-1 10 1 0407-
130 PANEL; SHUTTER NOISE
THA 		1-53192-305-2 01 1 0407-
130 PANEL; SHUTTER NOISE
THA 		1-53192-308-3 01 1 0407-
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0407-
175 NUT; STAY FIX
M8 FLANGE 		0-91150-108-0 04 1 0407-
218 FASTENER; RUBBER
THA 		1-09470-001-0 08 1 0407-
225 NUT; MUD GUARD
6HE1 TC ENG<57L> M8 FLANGE 		0-91150-108-0 03 1 0407-
225 NUT; MUD GUARD
6HH1 STD ENG<65L> M8 FLANGE 		0-91150-108-0 02 1 0407-
227 SEAL; MUD GUARD
THA 		8-97913-540-1 01 1 0407-
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 0407-
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0407-
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0407-
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 05 1 0407-
306 BRACKET; MUD GUARD
6HE1 TC ENG<57L> THA 		8-97912-890-1 01 1 0407-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 0407-0601
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 0407-0601
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 04 1 0602-
