◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#28599) — 138 parça

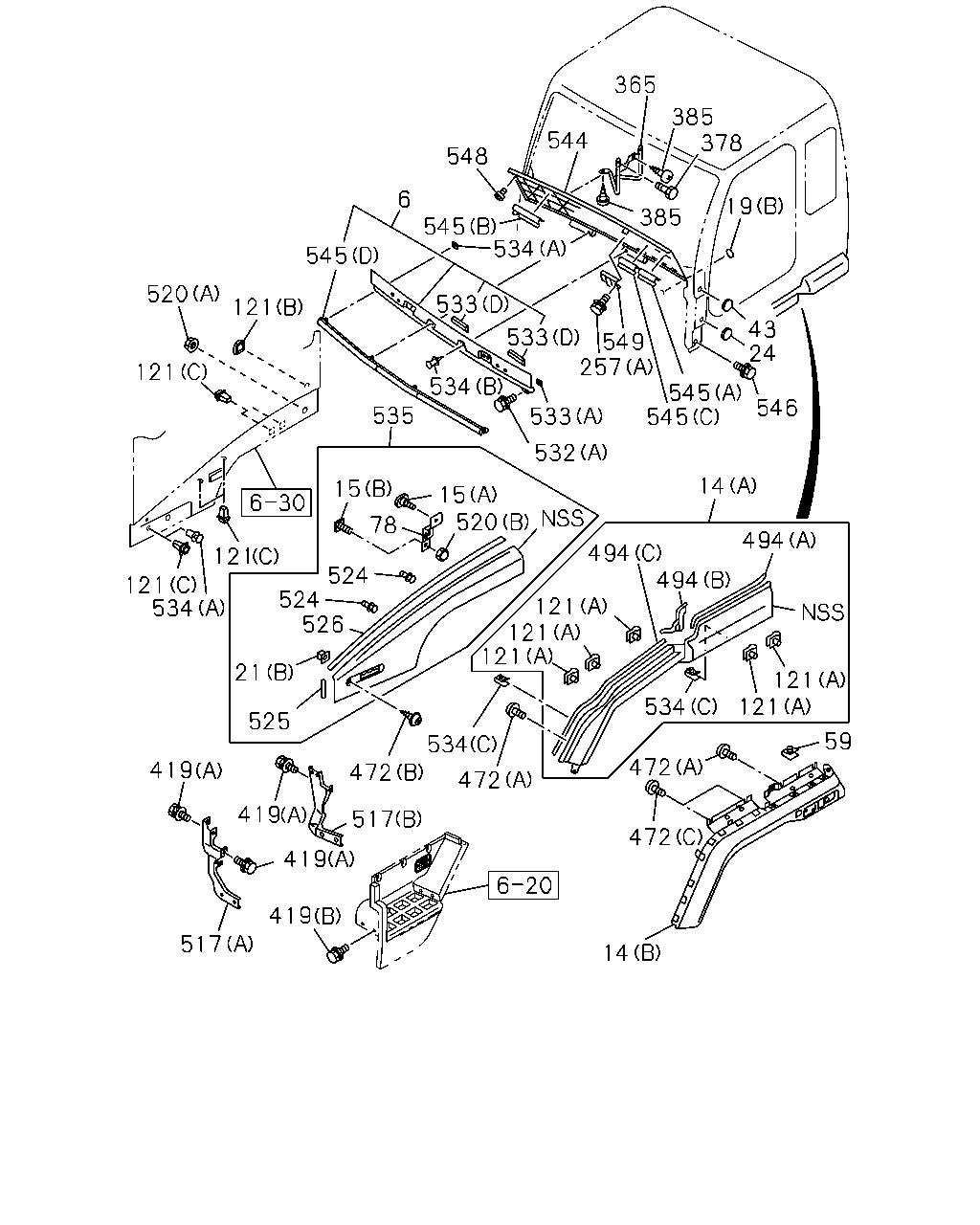

çizim 24771
365 385 378 544 548 6 19 385 545 534 545 520 533 121 43 24 533 549 257 121 534 545 545 533 546 535 532 14 15 15 520 494 494 494 121 524 524 526 121 534 121 121 121 21 121 121 534 525 59 534 472 472 472 517 472 419 517 14 419 419 419 78
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0407-
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0407-
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0407-
14 FENDER; FRT
(B) 		1-71996-237-1 01 1 0407-
14 FENDER; FRT
(B) 		1-71996-238-1 01 1 0407-
15 BOLT; FENDER
(A) M6X7 THA 		1-71268-294-0 02 1 0407-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD THA 		1-71268-300-1 02 1 0407-
19 SEAL; FRT SIDE PANEL
(C) THA 		1-71996-101-1 01 1 0407-
19 SEAL; FRT SIDE PANEL
(C) THA 		1-71996-102-1 01 1 0407-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0407-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0407-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0407-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0407-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 THA 		8-94279-078-0 02 1 0407-
24 SEAL; FRT PANEL LWR
OD=25 BLACK THA 		1-76798-019-0 08 1 0407-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0407-
59 GROMMET; SCREW
THA 		8-94279-723-0 02 1 0407-
78 BRACKET; FENDER
THA 		1-71268-322-0 01 1 0407-
78 BRACKET; FENDER
THA 		1-71268-323-0 01 1 0407-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0407-
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0407-
121 GROMMET; FENDER
(A) THA 		8-94279-723-0 16 1 0407-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0407-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0407-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0407-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0407-
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0407-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0407-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0407-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0407-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0407-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0407-
494 FINISHER; FENDER
(B) THA 		1-71907-180-4 01 1 0407-
494 FINISHER; FENDER
(B) THA 		1-71907-181-4 01 1 0407-
494 FINISHER; FENDER
(C) THA 		1-71998-900-3 02 1 0407-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) THA 		1-71998-999-0 02 1 0407-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0407-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0407-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0407-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0407-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407-
520 NUT; FENDER
(B) M6 THA 		1-09984-189-0 02 1 0407-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0407-
525 SEAL; FENDER
10X145 THA 		1-71268-281-1 02 1 0407-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
THA 		1-71268-275-1 02 1 0407-
532 BOLT; FRT PANEL
(A) M8X20 THA 		1-79198-002-0 02 1 0407-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0407-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0407-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK THA 		5-76777-035-0 09 1 0407-
533 SEAL; FRT PANEL
(A) 25X25 THA 		8-94272-533-0 02 1 0407-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0407-
534 FASTENER
(C) 		1-71996-035-1 24 1 0407-0609
534 FASTENER
(C) 		1-71996-035-1 26 1 0610-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0407-
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0407-
535 FENDER; BLISTER
WHITE THA 		1-71268-429-1 01 1 0407-
544 LID; FRT
MITRAS THA 		1-71108-116-0 01 1 0407-0411
544 LID; FRT
HITACHI KASEI THA 		1-71108-152-0 01 1 0407-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0407-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0407-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0407-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0407-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0407-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0407-
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0407-

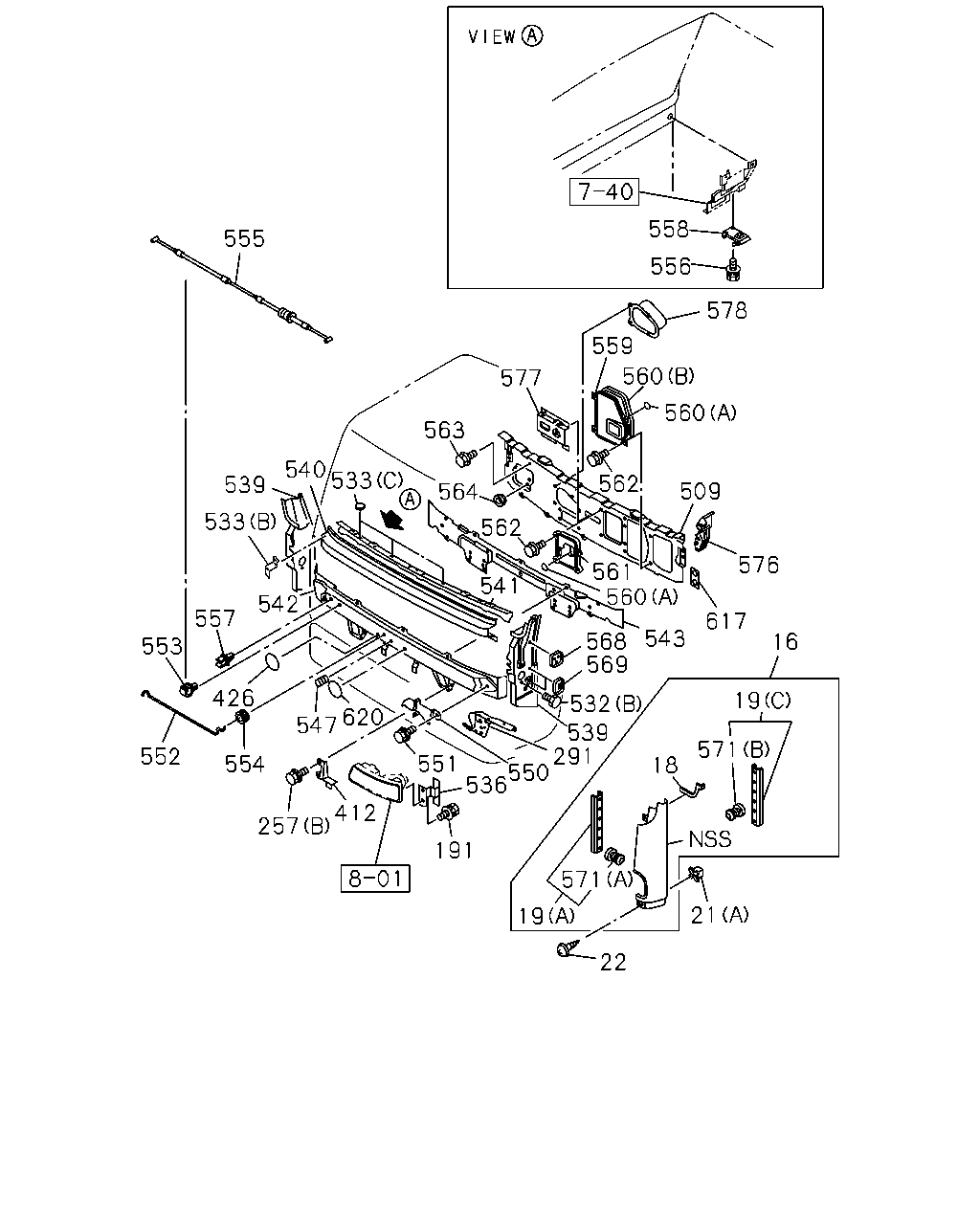

çizim 84814
558 555 556 578 559 560 577 560 563 540 533 562 539 509 564 533 562 561 560 541 576 542 557 617 543 568 569 16 553 426 19 532 539 291 550 536 620 547 571 552 551 554 18 412 257 191 571 21 19 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0407-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0407-
18 SEAL; A-POST UPR,FRT SIDE PANEL
THA 		1-71998-898-2 01 1 0407-
18 SEAL; A-POST UPR,FRT SIDE PANEL
THA 		1-71998-899-2 01 1 0407-
19 SEAL; FRT SIDE PANEL
(C) THA 		1-71996-101-1 01 1 0407-
19 SEAL; FRT SIDE PANEL
(C) THA 		1-71996-102-1 01 1 0407-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0407-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0407-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0407-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0407-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 THA 		8-94279-078-0 02 1 0407-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0407-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 04 1 0407-0708
191 BOLT; HINGE
M6X16 FLANGE THA 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0407-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-
291 PATCH ASM
THA 		8-97913-987-0 01 1 0407-
291 PATCH ASM
THA 		8-97913-988-0 01 1 0407-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0407-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0407-
426 GASKET
OD=25 BLACK THA 		1-76798-019-0 04 1 0407-
509 PANEL; DASH
THA 		8-97917-741-0 01 1 0407-
532 BOLT; FRT PANEL
(A) M8X20 THA 		1-79198-002-0 02 1 0407-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0407-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0407-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK THA 		5-76777-035-0 09 1 0407-
533 SEAL; FRT PANEL
(A) 25X25 THA 		8-94272-533-0 02 1 0407-
536 HINGE 1-86830-003-5 01 1 0407-
536 HINGE 1-86830-004-5 01 1 0407-
539 CLOSING; PILLAR
THA 		8-97916-001-0 01 1 0407-
539 CLOSING; PILLAR
THA 		8-97916-002-0 01 1 0407-
540 PANEL; FRONT,OUTER
THA 		8-97915-985-0 01 1 0407-
541 PANEL; FRONT,INNER
THA 		8-97910-520-0 01 1 0407-
542 RAIL; FRT MOUNTING
THA 		8-97910-518-3 01 1 0407-
543 CLOSING; FRT MTG RAIL
THA 		8-97910-519-0 01 1 0407-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0407-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0407-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0407-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0407-
552 STAY; FRT LID 1-71996-310-0 01 1 0407-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0407-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0407-
555 CABLE; FRT LID
THA 		8-97914-778-1 01 1 0407-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0407-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0407-
558 LEVER; FRT LID 1-79338-007-0 01 1 0407-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0407-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0407-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK THA 		5-76777-035-0 03 1 0407-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0407-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 08 1 0407-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0407-
563 BOLT; DASH PANEL
M8X20 FLANGE 		0-28680-820-0 12 1 0407-0611
563 BOLT; DASH PANEL
M8X20 FLANGE THA 		0-28650-820-0 12 1 0612-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0407-
568 PATCH; INST REINF
THA 		8-97916-037-0 02 1 0407-
569 PATCH; LWR GRIP
THA 		8-97910-523-0 01 1 0407-
569 PATCH; LWR GRIP
THA 		8-97910-526-0 01 1 0407-
571 CLIP; SEAL
(A) THA 		1-09987-228-0 12 1 0407-
571 CLIP; SEAL
(B) NATURAL THA 		1-09987-257-0 07 1 0407-
571 CLIP; SEAL
(B) NATURAL THA 		1-09987-257-0 07 1 0407-
576 FRAME; INST SIDE
THA 		1-62280-176-6 01 1 0407-
576 FRAME; INST SIDE
THA 		1-62280-177-7 01 1 0407-
577 BRACKET; IDLER
THA 		1-62280-195-0 01 1 0407-
578 COVER; WIPER MOTOR
THA 		1-62280-173-3 01 1 0407-
617 SEAL; DASH 1-61281-497-0 02 1 0407-
620 SEAL; FRT MTG
OD=25 BLACK THA 		1-76798-019-0 02 1 0407-
