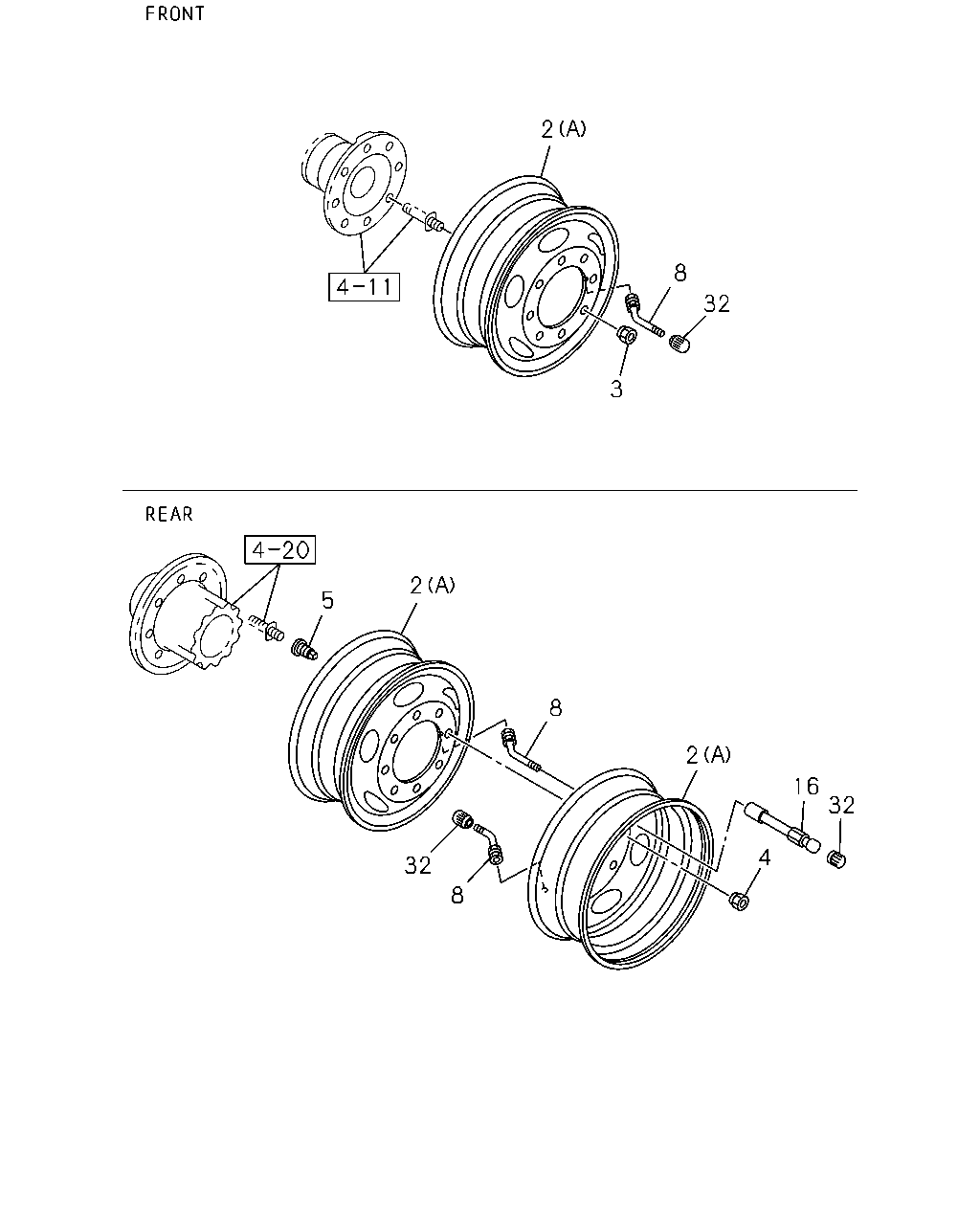

4-80 — ROAD WHEEL (#28591) — 74 parça

2 8 32 3 2 5 8 2 16 32 4 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) FRONT	1-42350-268-2	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) REAR	1-42350-268-2	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) FRONT	1-42350-478-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) REAR	1-42350-478-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT	1-42350-362-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR	1-42350-362-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT	1-42350-667-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR	1-42350-667-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0407-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	0407-
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	0407-
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	0407-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0407-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0407-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0407-

2 31 32 3 2 2 31 31 5 4 16 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) FRONT	1-42350-268-2	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) REAR	1-42350-268-2	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) FRONT	1-42350-478-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) REAR	1-42350-478-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT	1-42350-362-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR	1-42350-362-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT	1-42350-667-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR	1-42350-667-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0407-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE	1-42355-003-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-003-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> FRONT	1-42355-003-1	02	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> REAR	1-42355-003-1	08	1	0407-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE	1-42355-012-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	0407-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE	1-42355-004-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-004-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> FRONT	1-42355-012-1	02	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> REAR	1-42355-012-1	08	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT	1-42355-004-1	02	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR	1-42355-004-1	08	1	0407-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0407-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
