◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#2859) — 61 parça

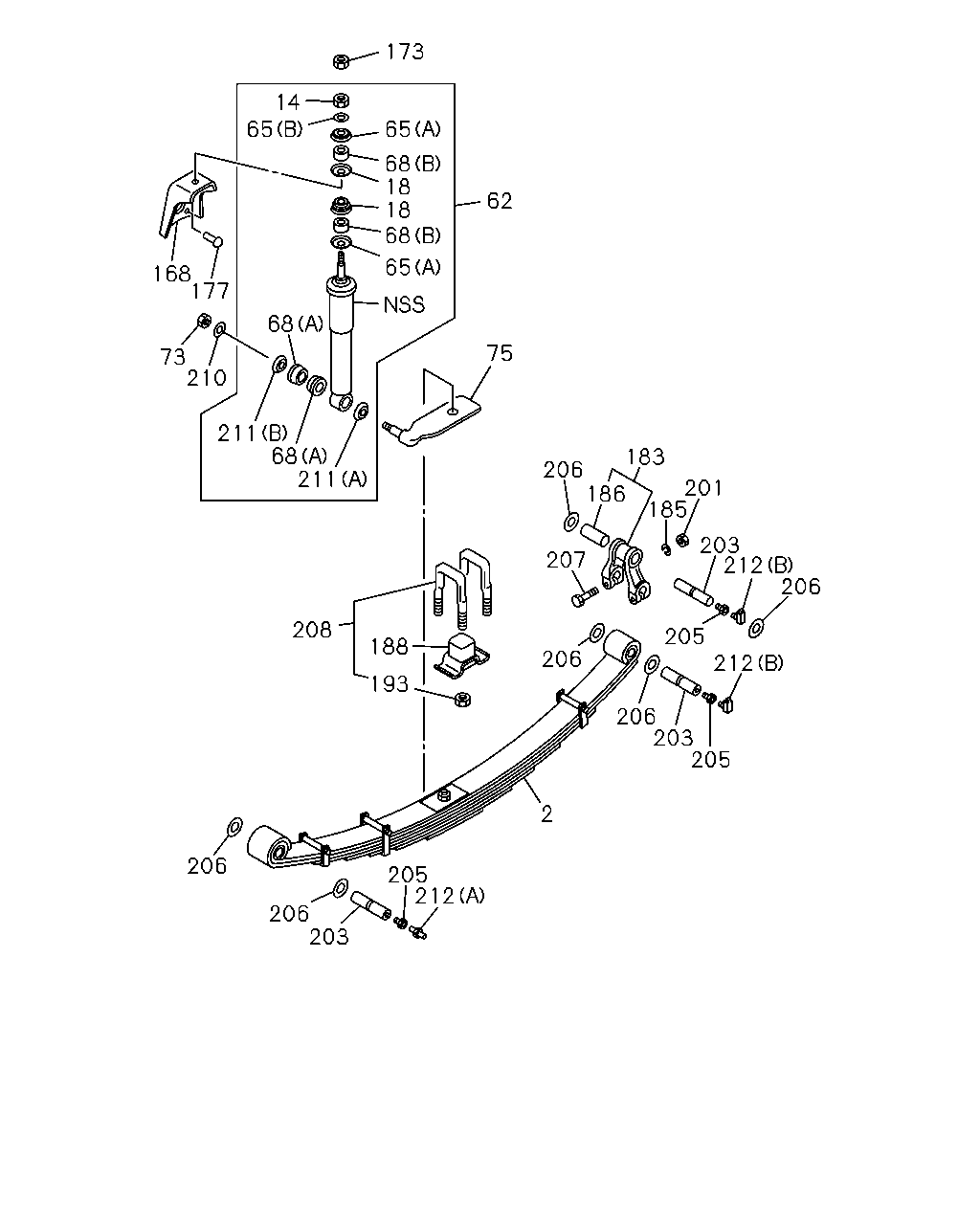

çizim 28871
2 212 205 203 206 206 193 208 188 206 206 203 205 212 205 212 203 206 201 185 186 183 206 207 75 62 173 14 65 168 65 68 18 18 68 65 68 177 73 210 68 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-245-0 02 1 9307- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-245-0 02 1 9307- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-514-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51110-514-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51110-513-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-207-0 02 1 9307- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9002- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9002- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-228-0 02 1 9002-9011 ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51630-228-1 02 1 9012-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-228-1 02 1 9012-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-378-0 02 1 9307- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-053-3 02 1 9012-9306 ● ●
65 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 04 1 9002- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9307- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-026-0 04 1 9002- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-039-0 04 1 9002- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9002- ● ●
75 BRACKET; FRT S/ABS 1-51681-551-0 01 1 9002-9306 ● ●
75 BRACKET; FRT S/ABS 1-51681-550-0 01 1 9002-9306 ● ●
75 BRACKET; FRT S/ABS 1-51681-598-1 01 1 9307- ● ●
75 BRACKET; FRT S/ABS 1-51681-597-1 01 1 9307- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9002-9306 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9307- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9002- ● ●
177 RIVET; BRKT,S/ABS
FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 		1-09730-107-0 04 1 9002-9212 ● ●
177 RIVET; BRKT,S/ABS
FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 PLATED TAPER END 		1-09730-087-0 04 1 9301- ● ●
177 RIVET; BRKT,S/ABS
FRAME EQUIPMENT HEAVY DUTY<F03> D13X45 		1-09730-111-0 04 1 9002-9212 ● ●
177 RIVET; BRKT,S/ABS
FRAME EQUIPMENT HEAVY DUTY<F03> L=45 		1-09730-091-0 04 1 9301- ● ●
177 RIVET; BRKT,S/ABS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 		1-09730-107-0 08 1 9002-9212 ● ●
177 RIVET; BRKT,S/ABS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9301-9306 ● ●
177 RIVET; BRKT,S/ABS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9307- ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9002- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9002-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-9306 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9307-9512 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9002- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-033-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-033-1 02 1 9002-9306 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-025-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9307- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9002- ● ●
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9002-9304 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9305- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9002- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9002- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9002- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		9-91056-280-0 12 1 9002-9005 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9307- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-118-3 04 1 9002-9306 ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-118-3 04 1 9002-9306 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) L=190 		1-87870-163-2 04 1 9002-9306 ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9002- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9002- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9002- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 9002- ● ●
