Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

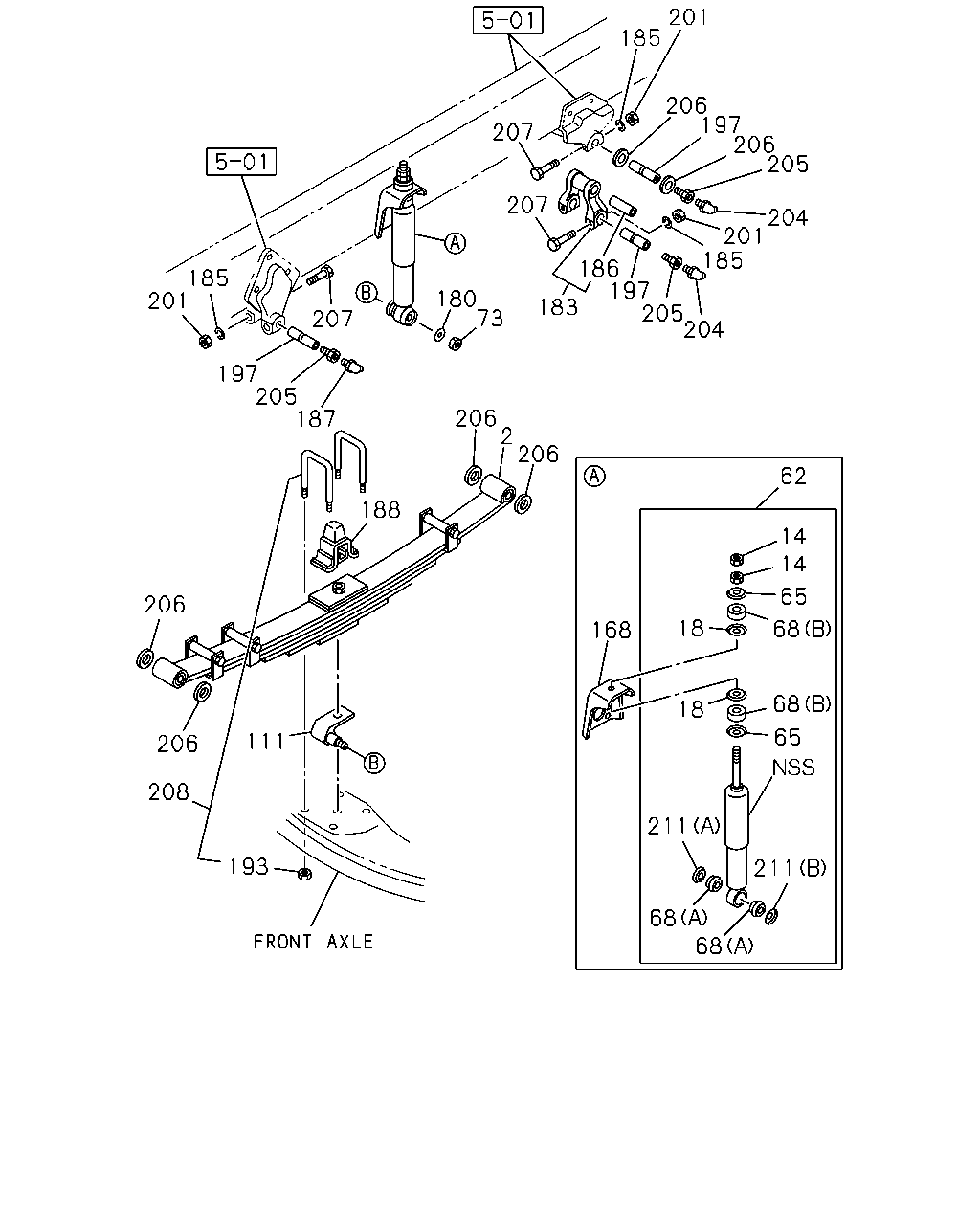

4-50 — FRONT SUSPENSION
(#28587) — 36 parça
201
18
206
197
206
205
207
207
204
201
185
186
197
205
204
185
201
207
180
73
183
197
205
187
206
2
206
62
188
14
14
65
206
18
68
168
18
68
65
111
206
208
211
193
211
68
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-97913-795-0
01
1
0407-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-97922-658-0
01
1
0407-
14
NUT; S/ABS,UPR
THA
8-97914-922-0
04
1
0407-
18
WASHER; CENTERING,S/ABS
THA
8-97914-919-0
04
1
0407-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97914-854-0
02
1
0407-
65
WASHER; S/ABS
THA
8-97914-918-0
04
1
0407-
68
BUSHING; S/ABS
(A) THA
8-97914-915-0
04
1
0407-
68
BUSHING; S/ABS
(B) THA
8-97914-917-0
04
1
0407-
73
NUT; BRKT,SHOCK
M16
9-99110-416-0
02
1
0407-0512
73
NUT; BRKT,SHOCK
M16 THA
0-91110-516-0
02
1
0601-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-720-1
01
1
0407-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-721-1
01
1
0407-
168
BRACKET; S/ABS,FRT SUSP
1-51681-306-0
02
1
0407-
180
WASHER; PL,PIN
ID=17
9-09160-516-0
02
1
0407-0605
180
WASHER; PL,PIN
ID=17 OD=30
0-91610-516-0
02
1
0606-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
0407-
185
WASHER; LK,PIN
ID=12.2
9-09150-612-0
12
1
0407-0603
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0604-
186
BUSHING; SHACKLE
OD=38 THA
1-51351-009-0
02
1
0407-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
9-09031-210-0
02
1
0407-0512
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0601-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97916-007-0
02
1
0407-
193
NUT; U BOLT
M22
9-09112-822-0
08
1
0407-0512
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0601-
197
PIN; FRT SPR,FRT
1-51161-031-0
06
1
0407-
201
NUT; PIN LK
M12
9-99110-512-0
12
1
0407-0512
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0601-
204
NIPPLE; GREASE,RR
PT1/8 ELBOW
9-09031-210-0
04
1
0407-0512
204
NIPPLE; GREASE,RR
PT1/8 ELBOW
0-90301-610-0
04
1
0601-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0407-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0407-
207
BOLT; SPR TO SHACKLE
M12X80
0-10806-280-0
12
1
0407-0512
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0601-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0407-
211
WASHER; BRKT,SHOCK
(A) THA
8-97915-706-0
02
1
0407-
211
WASHER; BRKT,SHOCK
(B) THA
8-97915-707-0
02
1
0407-
