◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#28585) — 56 parça

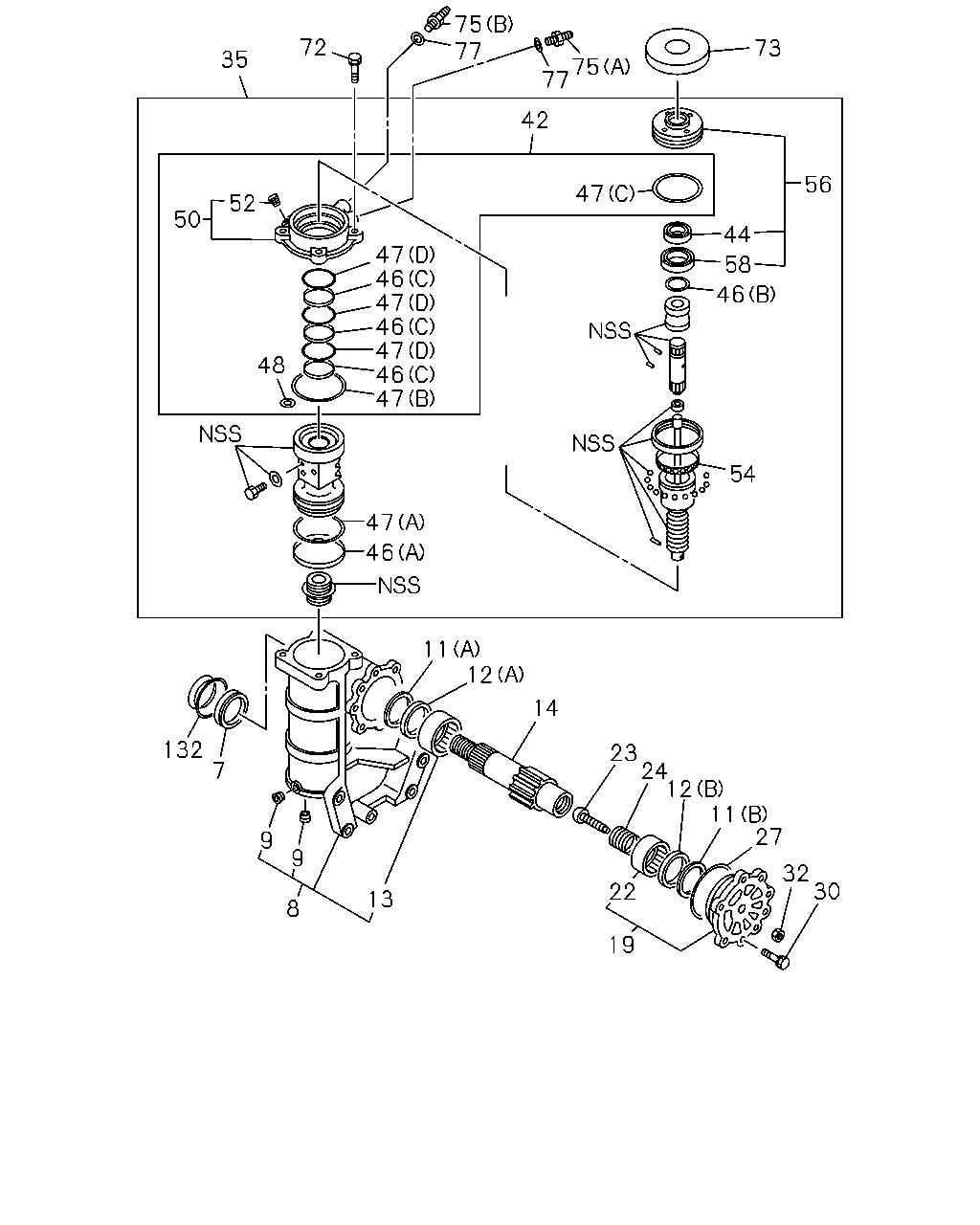

çizim 24770
75 77 72 73 35 75 77 42 56 47 52 50 44 47 46 47 46 47 46 47 58 46 48 54 47 46 11 12 14 132 7 23 24 12 11 27 9 9 32 30 22 13 8 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44240-110-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44260-019-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44279-012-0 08 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-834-2 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-834-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-834-2 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-834-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-834-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-834-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-227-0 01 1 -

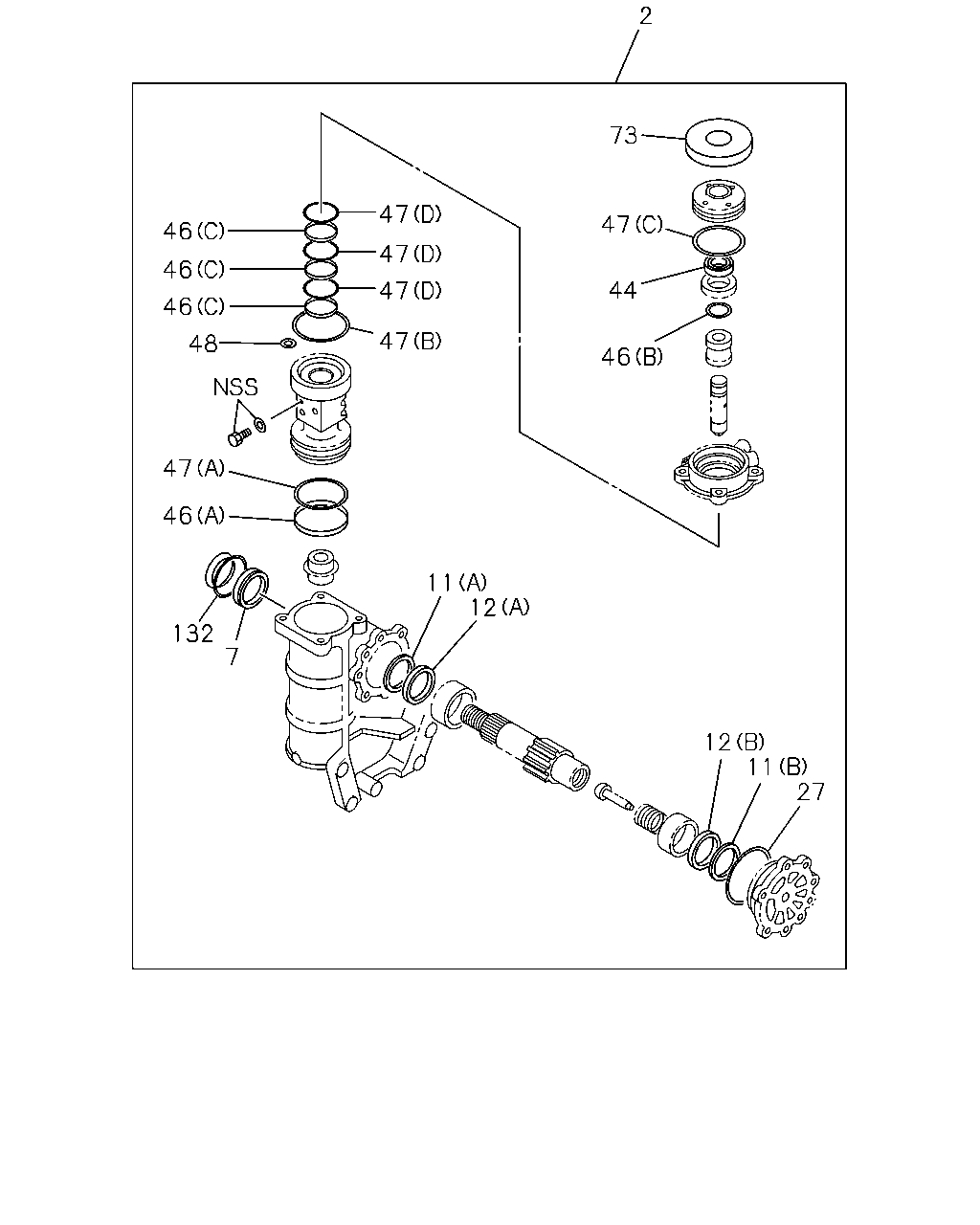

çizim 83760
2 73 47 47 46 47 46 44 47 46 47 48 46 47 46 11 12 132 7 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-834-2 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-834-2 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-834-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-834-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-834-2 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-834-2 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-2 		1-44519-227-0 01 1 -
