4-36 — POWER STEERING CONTROL; ENGINE SIDE (#28584) — 13 parça

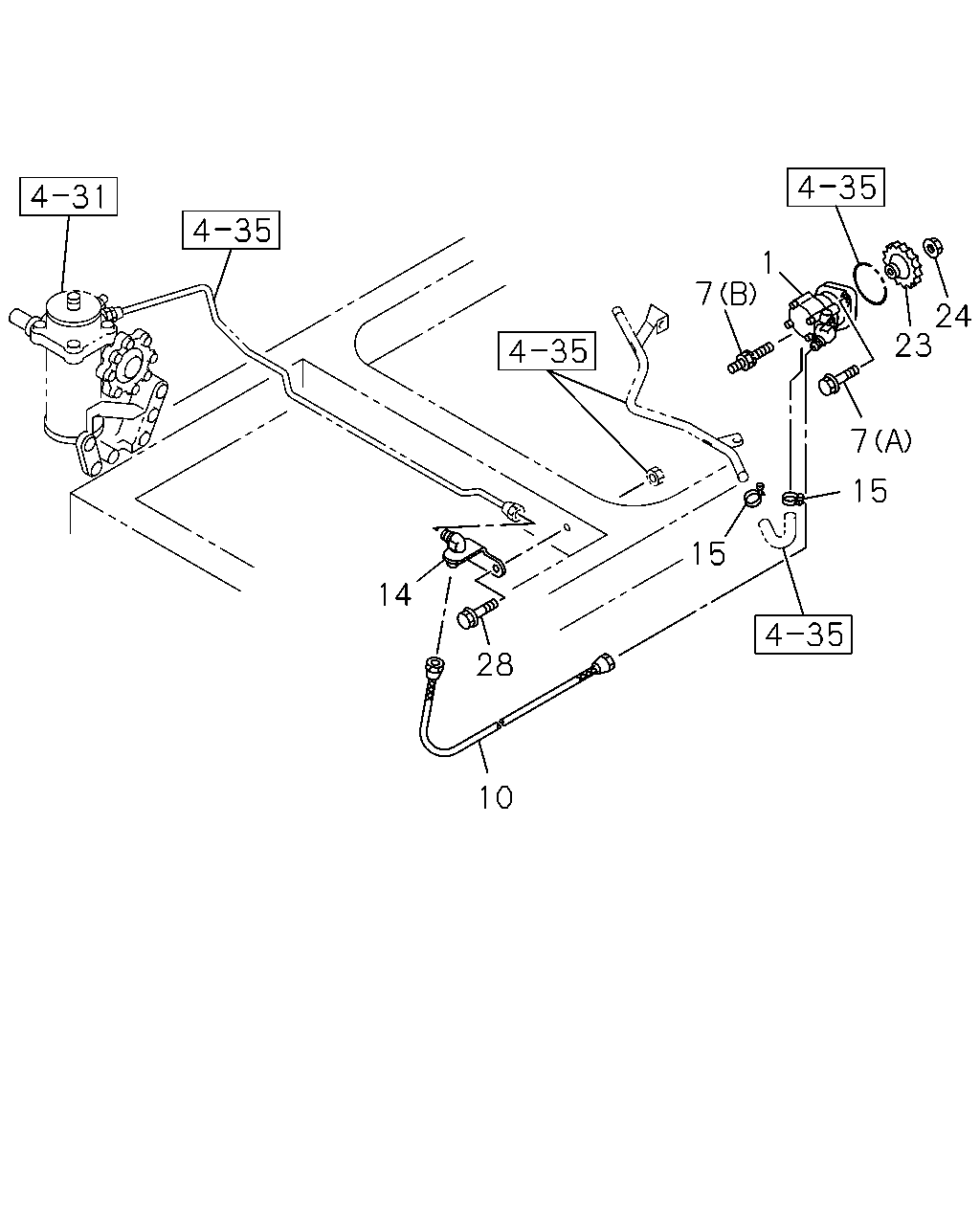

çizim 84256
1 7 24 23 7 15 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-1 01 1 0407-
7 BOLT; OIL PUMP,P/S
(B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0407-
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE THA 		8-94399-863-1 01 1 0407-0805
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 01 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG<57L> 		1-09364-984-1 01 1 0407-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG<65L> 		1-09364-983-1 01 1 0407-
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0407-
15 CLIP; OIL PIPE SUCTION
ID=32 THA 		1-09704-085-0 02 1 0407-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0407-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0407-0712
24 NUT; GEAR,P/S PUMP
M14 FLANGE THA 		0-91180-114-0 01 1 0801-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
