Sayfa 4-42 - Isuzu EPC

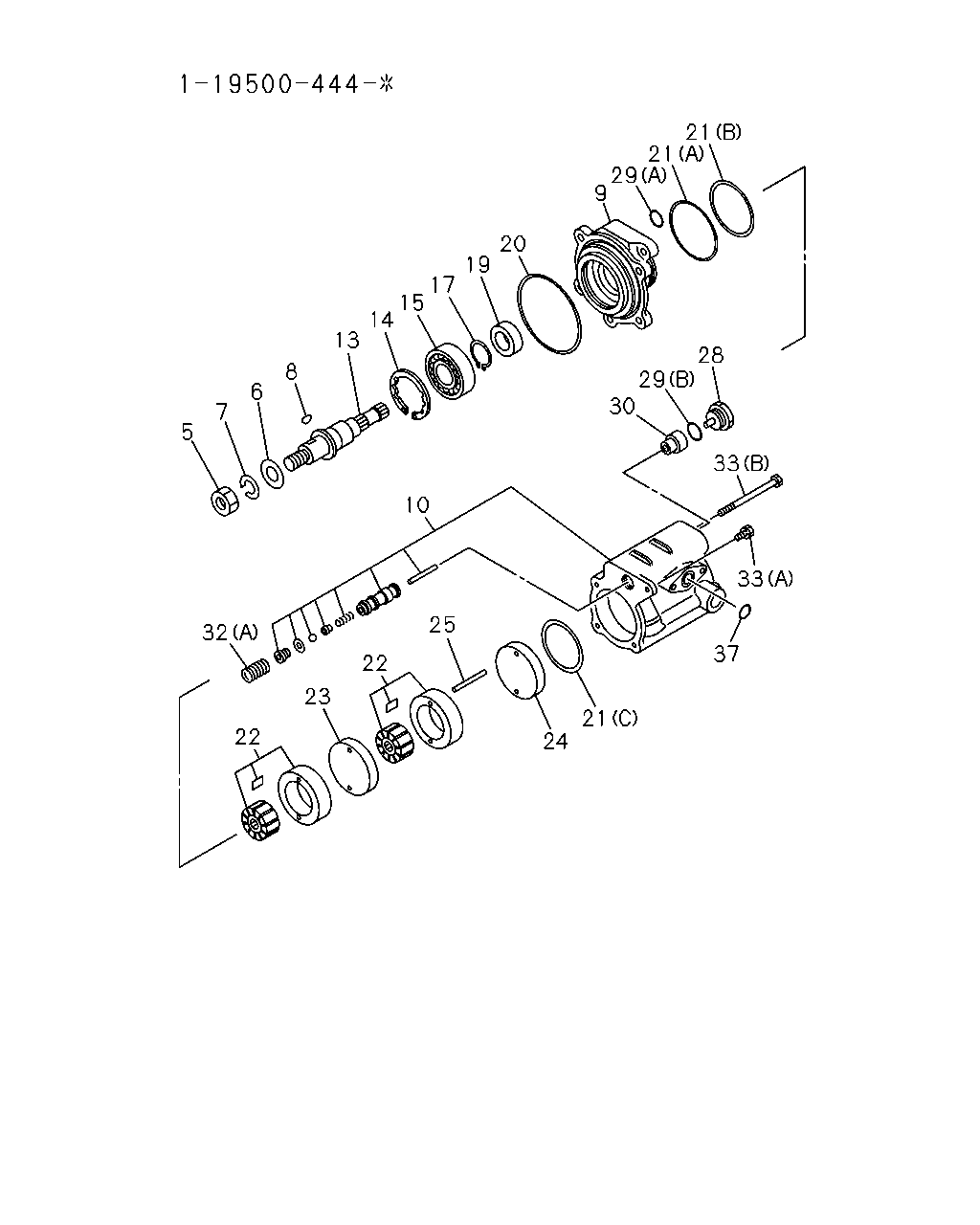

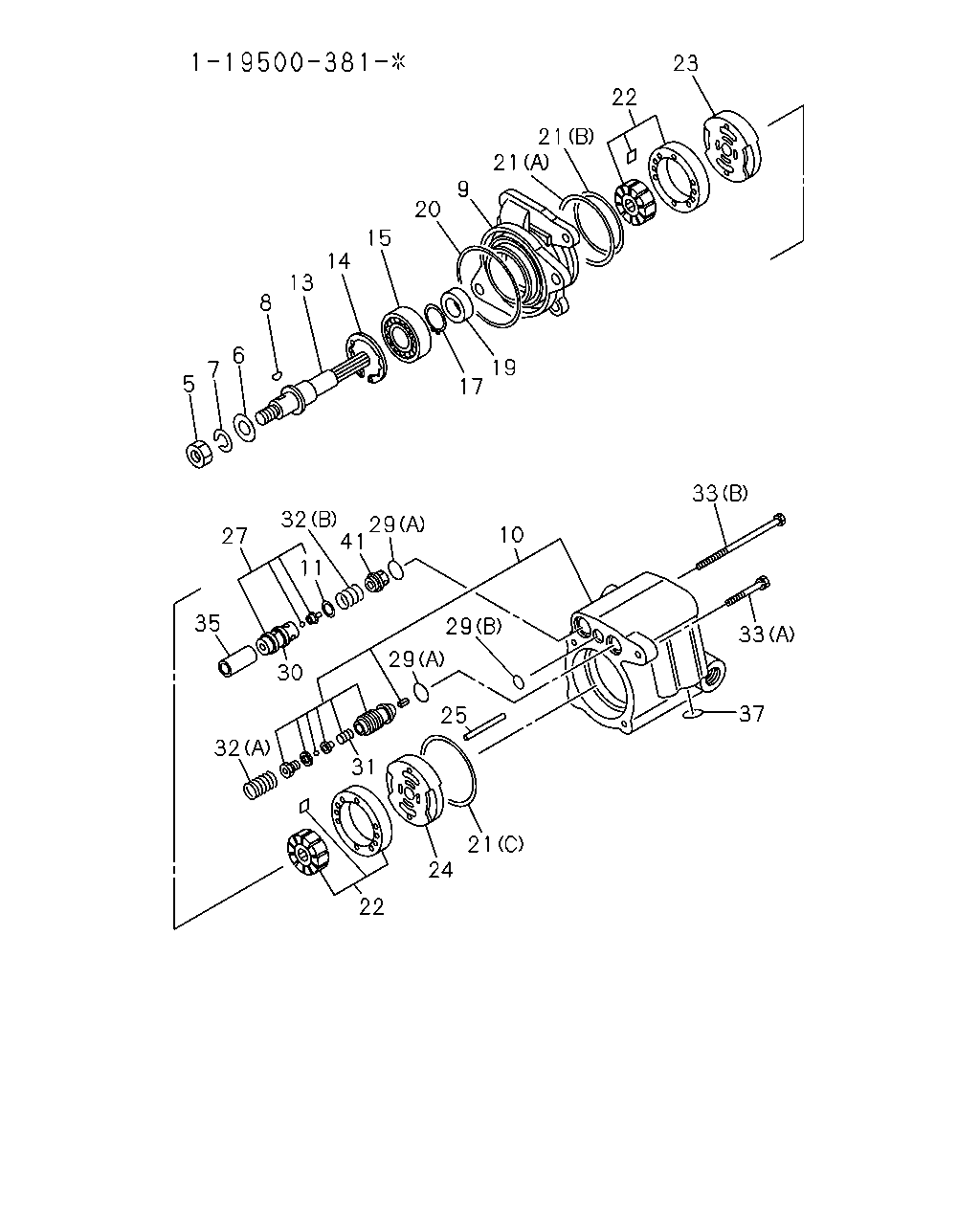

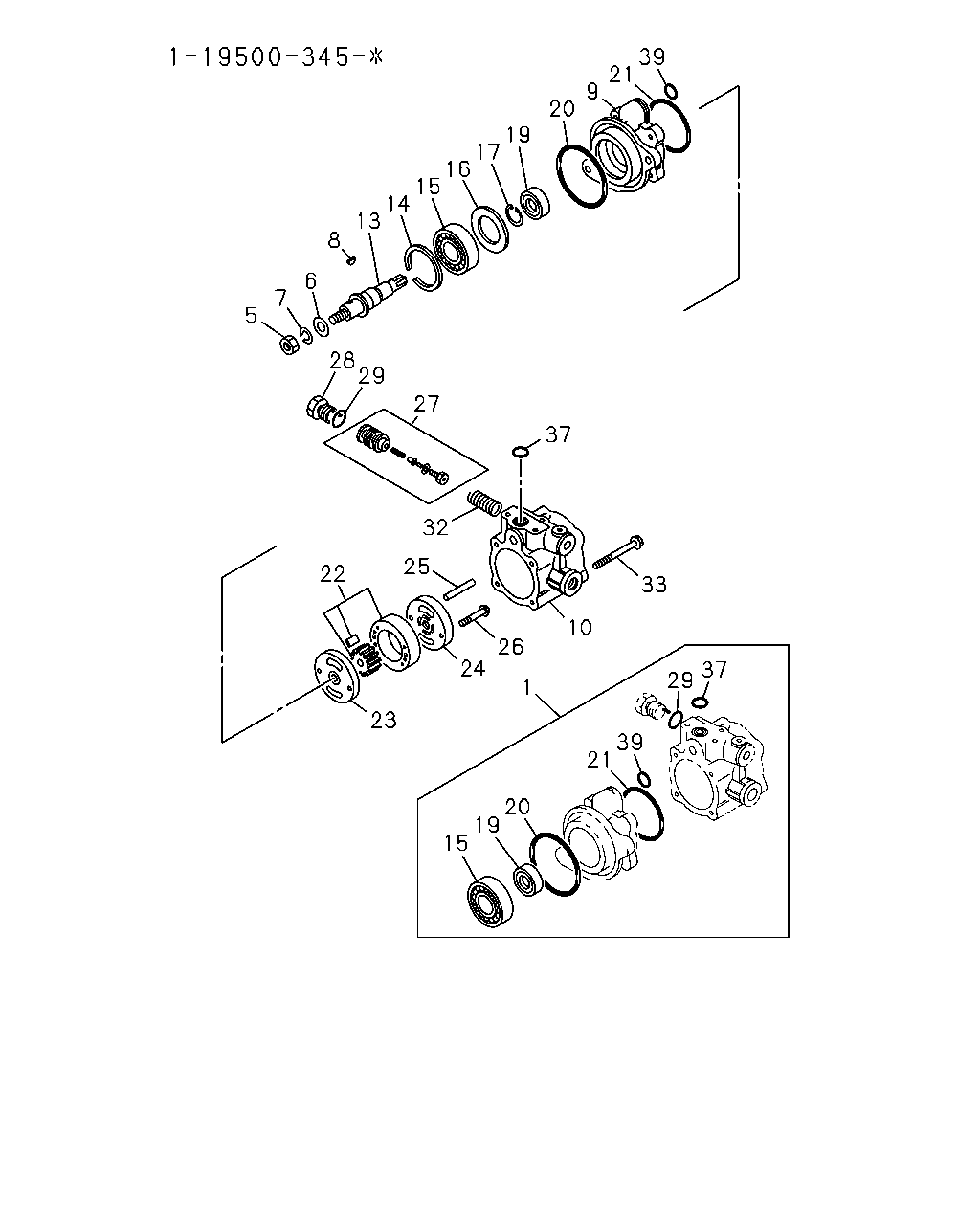

4-42 — POWER STEERING OIL PUMP (#2858) — 445 parça

22 31 24 21 25 37 33 33 10 29 29 30 32 35 27 32 11 29 41 17 19 23 22 21 21 9 20 15 14 13 8 6 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-5	9-19519-112-0	01	1	-9205
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-5	9-88510-424-0	01	1	9206-
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-293-0	01	1	9206-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-088-0	01	1	-9205
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-09150-016-0	01	1	-9205
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-88510-425-0	01	1	9206-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-081-0	01	1	-9205
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-130-0	01	1	9206-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
11	RING; RET,OIL TANK ASM PART: D = 1-19500-381-3	1-19519-165-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-5	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-5	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-132-0	01	1	-9205
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-325-0	01	1	9206-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-237-0	01	1	-9205
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-312-0	01	1	9206-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-168-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-5	1-19519-183-1	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP (B) ASM PART: D = 1-19500-381-3	1-19519-163-1	01	1	-
30	VALVE; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-225-0	01	1	-
31	SPRING; INNER,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-164-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-169-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504
41	SPACER; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-170-0	01	1	-

37 29 39 21 20 19 15 1 23 26 24 33 10 25 22 32 37 27 29 28 5 7 6 8 13 14 15 16 17 19 20 9 21 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

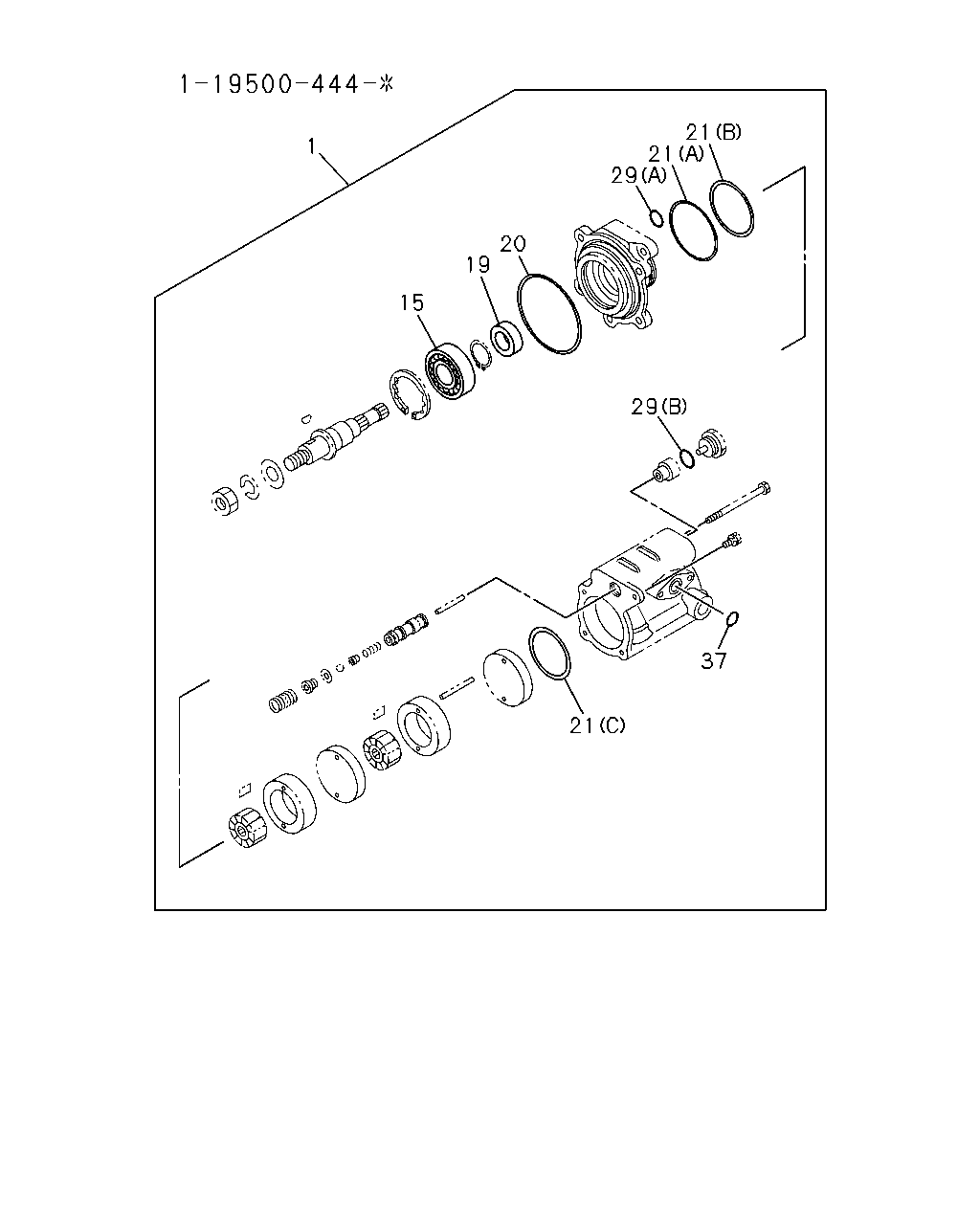

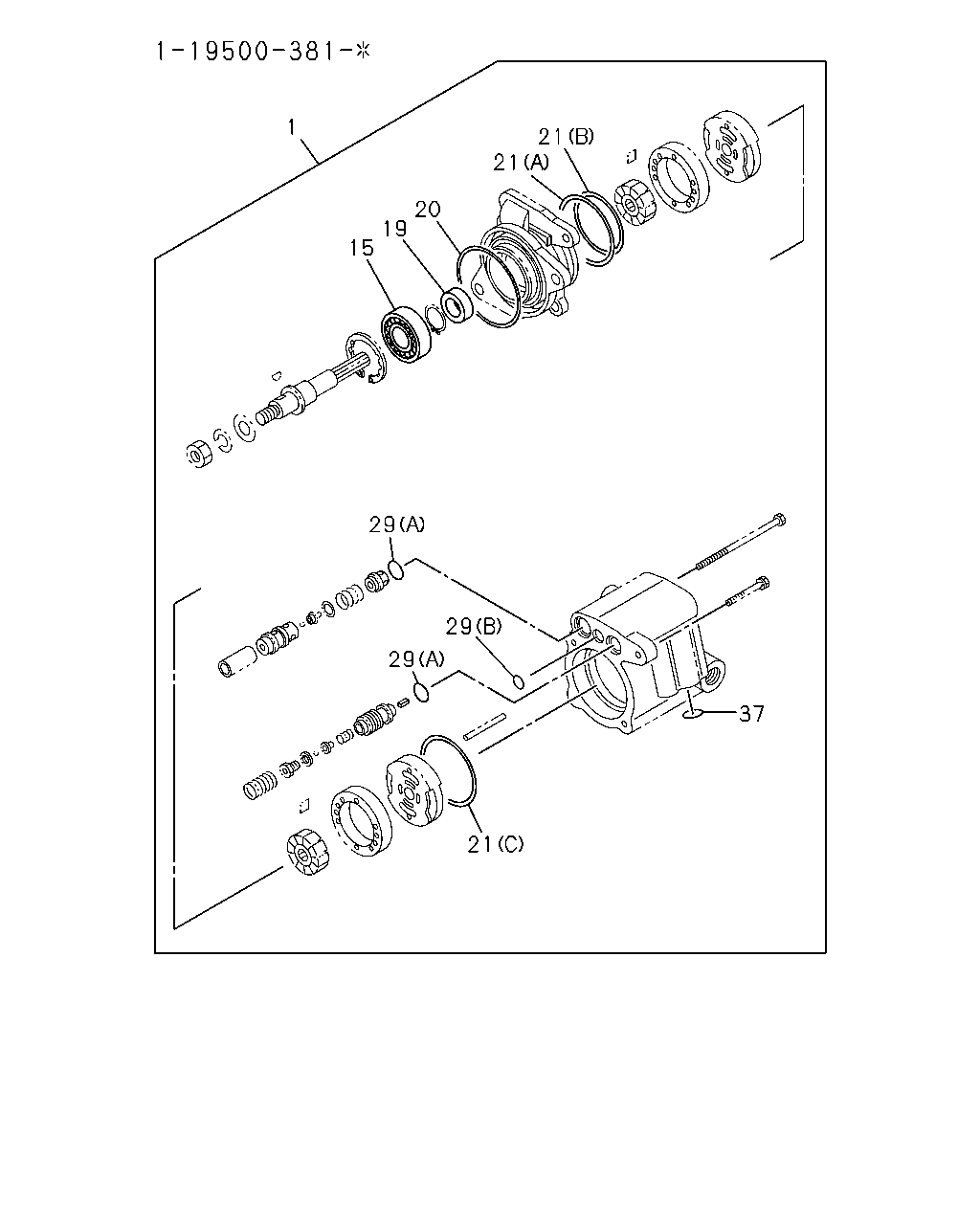

1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-007-0	01	1	-9205
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-87520-184-0	01	1	9206-9504
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-5	9-19519-112-0	01	1	-9205
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-5	9-88510-424-0	01	1	9206-
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-293-0	01	1	9206-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-088-0	01	1	-9205
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-09150-016-0	01	1	-9205
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-88510-425-0	01	1	9206-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-081-0	01	1	-9205
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-130-0	01	1	9206-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-5	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-095-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-5	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-132-0	01	1	-9205
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-325-0	01	1	9206-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-237-0	01	1	-9205
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-312-0	01	1	9206-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-168-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-5	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-313-0	01	1	9505-

29 37 15 1 19 20 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-007-0	01	1	-9205
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-87520-184-0	01	1	9206-9504
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-313-0	01	1	9505-

21 21 29 9 20 19 17 15 14 13 8 6 7 5 32 22 22 23 25 10 30 29 28 33 33 37 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-5	9-19519-112-0	01	1	-9205
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-5	9-88510-424-0	01	1	9206-
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-293-0	01	1	9206-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-088-0	01	1	-9205
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-09150-016-0	01	1	-9205
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-88510-425-0	01	1	9206-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-081-0	01	1	-9205
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-130-0	01	1	9206-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-5	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-5	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-132-0	01	1	-9205
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-325-0	01	1	9206-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-237-0	01	1	-9205
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-312-0	01	1	9206-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP (B) ASM PART: D = 1-19500-381-3	1-19519-163-1	01	1	-
30	VALVE; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-225-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504

37 21 29 29 29 15 19 20 21 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-007-0	01	1	-9205
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-87520-184-0	01	1	9206-9504
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504

37 21 29 15 19 20 1 29 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-007-0	01	1	-9205
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-5	1-87520-184-0	01	1	9206-9504
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504

28 29 27 32 26 33 37 10 25 24 22 23 5 7 6 8 13 14 15 16 17 19 20 9 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-5	9-19519-112-0	01	1	-9205
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-5	9-88510-424-0	01	1	9206-
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-293-0	01	1	9206-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-088-0	01	1	-9205
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-09150-016-0	01	1	-9205
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-5	9-88510-425-0	01	1	9206-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-081-0	01	1	-9205
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-130-0	01	1	9206-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-5	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-5	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-095-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-5	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-5	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-09623-178-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: C = 1-19500-345-5, D = 1-19500-381-3	1-09623-421-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-345-5	9-88510-234-0	01	1	-9504
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-132-0	01	1	-9205
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-325-0	01	1	9206-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-237-0	01	1	-9205
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-5	1-19519-312-0	01	1	9206-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-168-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-5	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-5	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-5	9-48429-028-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-5	1-19519-313-0	01	1	9505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
