8-15 — FIXING PARTS; WIRING HARNESS (#28571) — 125 parça

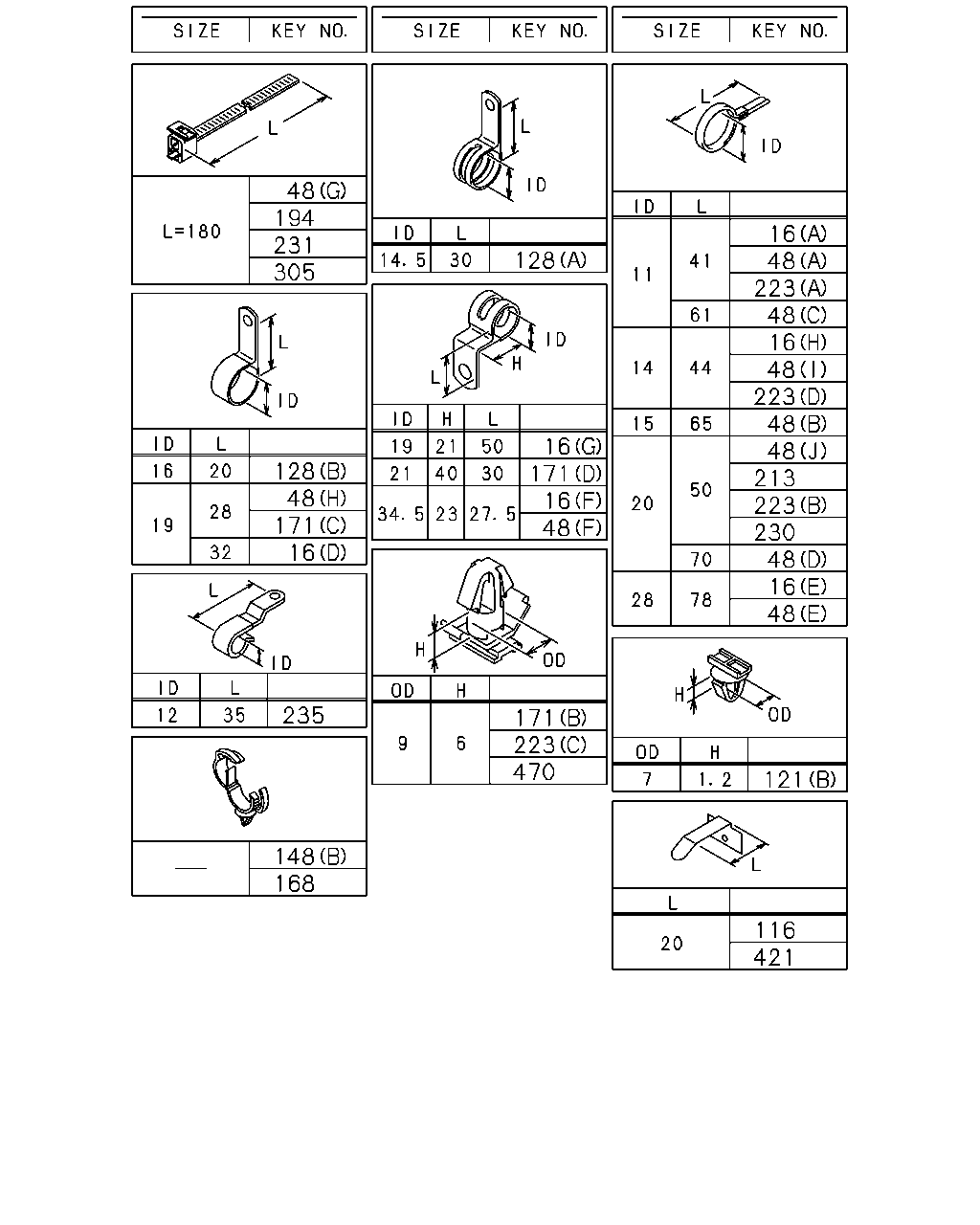

çizim 24522
48 194 231 305 16 48 223 48 16 48 223 48 48 213 223 230 48 16 48 128 16 171 16 48 128 48 171 16 235 171 223 470 121 148 168 116 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0311-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0311-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0311-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0311-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0311-
16 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 01 1 0311-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0311-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 0311-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0311-
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 0311-
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 03 1 0311-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0311-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0311-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0311-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 0311-
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		9-09525-856-0 01 1 0311-0606
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 0311-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 01 1 0311-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 15 1 0311-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0311-1409
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0311-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0311-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0311-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0311-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0311-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0311-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 0311-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0311-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0311-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0311-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0311-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0311-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0311-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0311-
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 03 1 0311-0410
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0411-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0311-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0311-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0311-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0311-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0311-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0311-
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 01 1 0311-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0311-

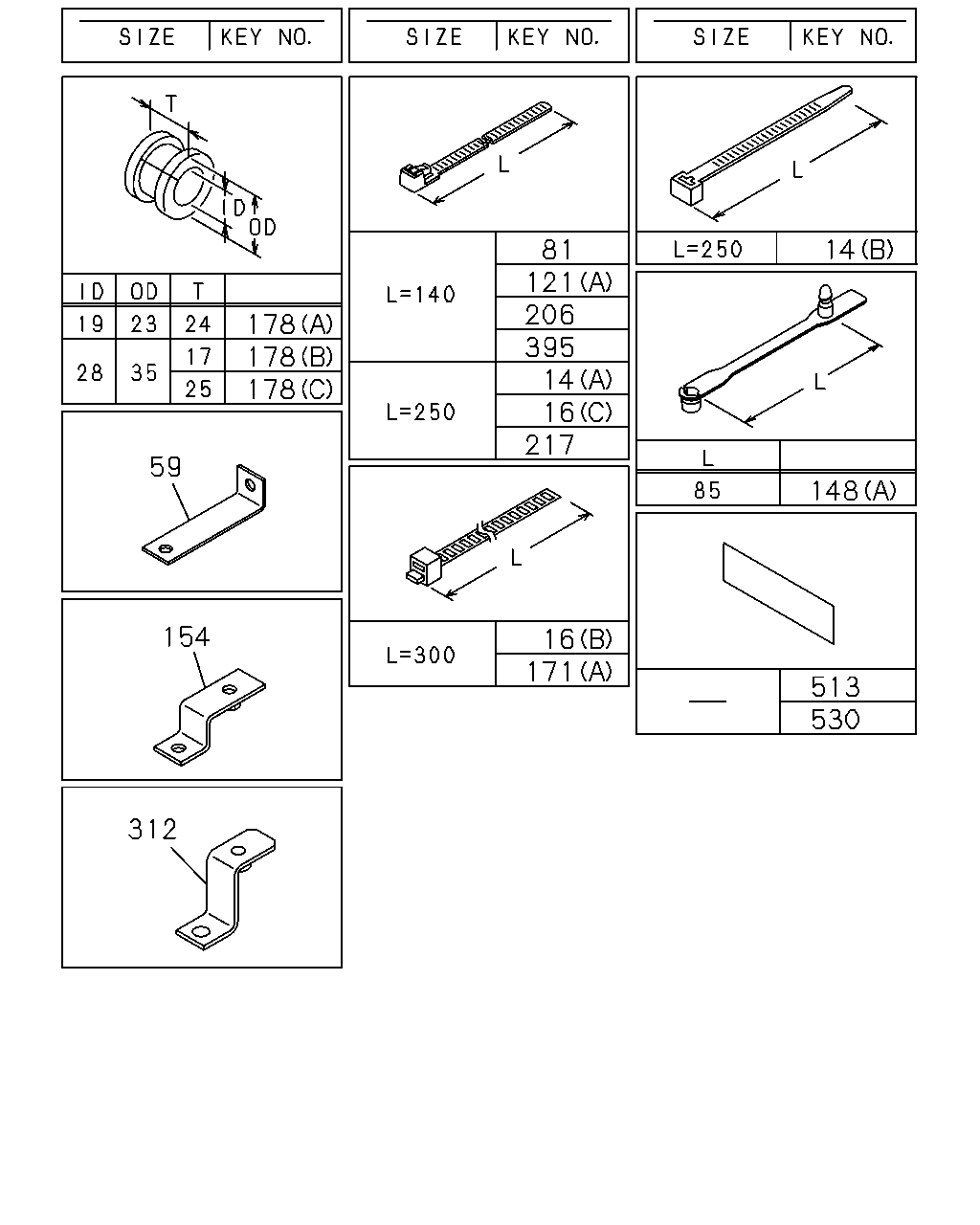

çizim 82561
59 178 178 178 154 312 81 121 206 395 14 16 217 16 171 14 148 513 530
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0311-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0311-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0311-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0311-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0311-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0311-
16 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 01 1 0311-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0311-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 0311-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0311-
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 0311-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0311-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0311-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0311-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0311-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0311-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0311-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0311-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0311-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0311-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0311-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0311-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0311-
206 CLIP; FUEL TANK HARNESS
L=140 IDN 		5-09707-031-1 02 1 0311-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 0311-
312 BRACKET; CLIP HARNESS 1-47478-981-0 01 1 0311-
395 CLIP; WIPER HARNESS
L=140 IDN 		5-09707-031-1 01 1 0311-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0311-0906
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0311-

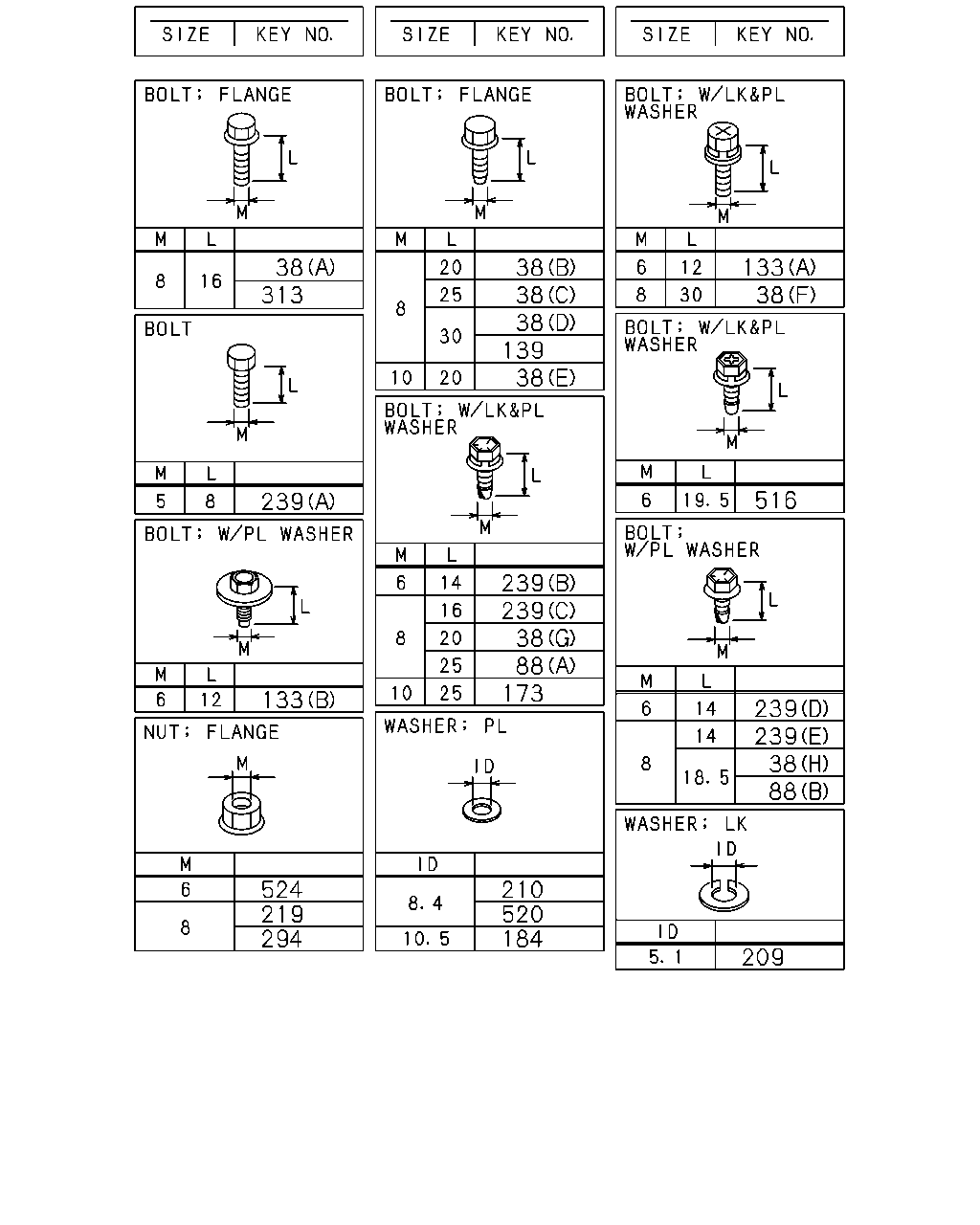

çizim 84470
38 313 38 38 38 139 38 133 38 516 239 239 239 38 88 173 133 239 239 38 88 524 219 294 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0311-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0311-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28680-825-0 01 1 0311-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0311-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0311-0512
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0311-0512
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0311-1202
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0311-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0311-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0311-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0311-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0311-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0311-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0311-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0311-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0311-0602
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0311-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0311-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0311-1202
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0311-0602
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0311-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0311-0512
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0311-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0311-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0311-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
