Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

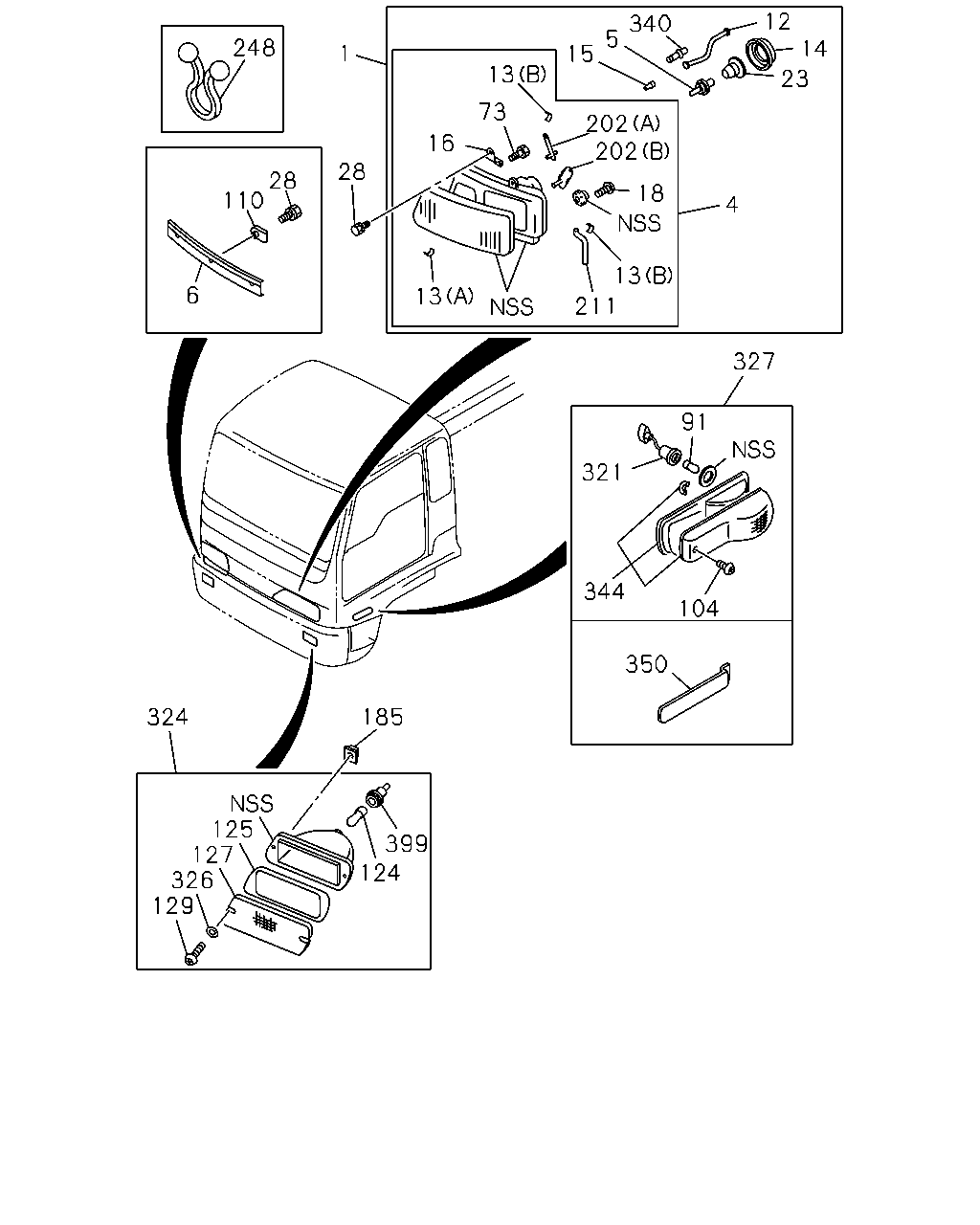

8-01 — LAMP; FRONT AND FRONT SIDE
(#28567) — 46 parça
12
340
5
248
14
15
1
13
23
73
202
202
16
28
28
110
18
4
13
6
13
211
327
91
321
344
104
350
324
185
125
127
326
129
399
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-86830-358-0
01
1
0311-
1
LAMP ASM; HEAD
1-86830-359-0
01
1
0311-
4
HEADLAMP UNIT
1-82119-199-0
01
1
0311-
4
HEADLAMP UNIT
1-82119-200-0
01
1
0311-
5
BULB; HEADLAMP
24V 75/70W IDN
1-82194-063-0
02
1
0311-
6
RIM; HEADLAMP
1-86830-005-5
01
1
0311-
6
RIM; HEADLAMP
1-86830-006-5
01
1
0311-
12
HARNESS; HEADLAMP
1-86830-145-0
02
1
0311-
13
CLIP; HEADLAMP
(B)
1-82119-084-0
04
1
0311-
13
CLIP; HEADLAMP
(A)
8-94381-588-0
14
1
0311-
14
CAP; BULB,LAMP
1-86830-148-0
02
1
0311-
15
BULB; FOG LAMP
24V 55W
1-82194-079-0
02
1
0311-
16
BRACKET; HEADLAMP
1-86830-075-0
01
1
0311-
16
BRACKET; HEADLAMP
1-86830-076-0
01
1
0311-
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
0311-
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
0311-
28
BOLT; HEADLAMP
M6X16 FLANGE
0-28650-616-0
04
1
0709-
28
BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER
8-94279-201-0
14
1
0311-0708
28
BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
0709-
73
BOLT; BRKT,HEADLAMP
8-94332-050-0
04
1
0311-
91
BULB; SIDE TURN SIGNAL
24V 12W
1-82194-030-0
02
1
0311-
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0311-
110
CLIP; RIM,HEADLAMP
1-86830-213-1
04
1
0311-
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-036-0
02
1
0311-
125
GASKET; FRT TURN SIGNAL
1-82216-033-0
02
1
0311-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-064-0
01
1
0311-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-065-0
01
1
0311-
129
SCREW; FRT TURN SIGNAL
1-82219-026-0
04
1
0311-
185
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0311-
202
GEAR UNIT; HEADLAMP
(A)
1-86830-139-0
02
1
0311-
202
GEAR UNIT; HEADLAMP
(B)
1-86830-140-0
02
1
0311-
211
TUBE; HEADLAMP
1-86830-330-0
01
1
0311-
211
TUBE; HEADLAMP
1-86830-331-0
01
1
0311-
248
CLIP; HARNESS
ID=11.5
1-09709-083-0
01
1
0311-
321
HARNESS; SIDE FLASHER LAMP
1-86830-253-0
02
1
0311-
324
LAMP; FRT FLASHER
1-82210-202-1
01
1
0311-
324
LAMP; FRT FLASHER
1-82210-203-1
01
1
0311-
326
WASHER; PL,FRT TURN SIGNAL
1-82216-032-0
04
1
0311-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-007-6
01
1
0311-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-011-6
01
1
0311-
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
0311-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-240-1
01
1
0311-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-241-1
01
1
0311-
350
COVER; SIDE TURN HOLE
1-79996-606-0
01
1
0311-
350
COVER; SIDE TURN HOLE
1-79996-607-0
01
1
0311-
399
SOCKET; TURN SIGNAL
1-82219-034-0
02
1
0311-
