4-36 — POWER STEERING CONTROL; ENGINE SIDE (#2856) — 90 parça

12 30 14 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> (B) L=75	1-09360-524-0	01	1	9002-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> (A) L=380	1-09364-459-0	01	1	9002-	●	●
12	NUT; UNION,FLEX HOSE,P/S M22	9-09111-422-0	01	1	9002-9306	●	●
13	WASHER; LK,FLEX HOSE,P/S ID=22.5	9-09150-522-0	01	1	9002-9306	●	●
14	UNION; FLEX HOSE,P/S L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9002-9306	●	●
14	UNION; FLEX HOSE,P/S V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-9306	●	●
30	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47475-412-0	01	1	9002-9306	●	●

11 11 2 8 22 17 1 23 16 15 10 2 15 16 15 16 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L>	1-19500-310-4	01	1	9002-9306	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L>	1-19500-444-1	01	1	9307-9401	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L>	1-19500-344-4	01	1	9402-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L>	1-19500-345-5	01	1	9002-9306	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6>	1-19500-381-3	01	1	9307-9307	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6>	1-19500-345-5	01	1	9307-9307	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L>	1-19500-345-5	01	1	9308-	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (A)	1-21112-048-0	01	1	9002-	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (B)	1-21112-581-1	01	1	9002-9306	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (B)	1-21114-163-0	01	1	9307-9401	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (B)	1-21112-581-1	01	1	9402-	●	●
2	PIPE ASM; OIL,SUCTION V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-655-0	01	1	9002-	●	●
2	PIPE ASM; OIL,SUCTION V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13311-904-1	01	1	9002-	●	●
8	BOLT; OIL PIPE L TYPE ENG<90L> M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●
8	BOLT; OIL PIPE L TYPE ENG<90L> M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> (B) L=75	1-09360-524-0	01	1	9002-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> (A) L=380	1-09364-459-0	01	1	9002-	●	●
11	CLIP; FLEX HOSE L TYPE ENG<90L> ID=38	9-09915-666-1	02	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION L TYPE ENG<90L> (D) ID=23.6 L=35	1-09700-634-0	04	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION L TYPE ENG<90L> (E) W/NUT	9-09917-564-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION L TYPE ENG<90L> (F) WO/NUT	9-09917-565-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION V TYPE ENG<91L> (A) ID=19 L=32	9-09525-866-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION V TYPE ENG<91L> (B)	9-09917-385-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION V TYPE ENG<91L> (C)	9-09917-386-0	01	1	9002-	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (A) M8X22	9-01910-822-0	01	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9006-	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (B) M10X20 W/LK WASHER	9-01911-020-0	04	1	9002-9002	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (B) M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (C) M6X25	0-28020-625-0	01	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (C) M6X25 FLANGE	0-28080-625-0	01	1	9006-	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (A) M8X12	0-28020-812-0	02	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (A) M8X12 FLANGE	0-28080-812-0	02	1	9006-	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (B) M8X14	0-28020-814-0	01	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (B) M8X14 FLANGE	0-28080-814-0	01	1	9006-	●	●
17	NUT; POWER STRG PUMP L TYPE ENG<90L> M8	9-09110-408-0	05	1	9002-	●	●
17	NUT; POWER STRG PUMP V TYPE ENG<91L> M10 FLANGE	0-91150-110-0	02	1	9002-	●	●
22	WASHER; LK,OIL PUMP,P/S L TYPE ENG<90L> ID=8.2	9-09150-508-0	05	1	9002-	●	●
23	GEAR; OIL PUMP L TYPE ENG<90L>	1-19581-006-3	01	1	9002-	●	●
23	GEAR; OIL PUMP V TYPE ENG<91L> Z=20	1-19581-011-1	01	1	9002-	●	●

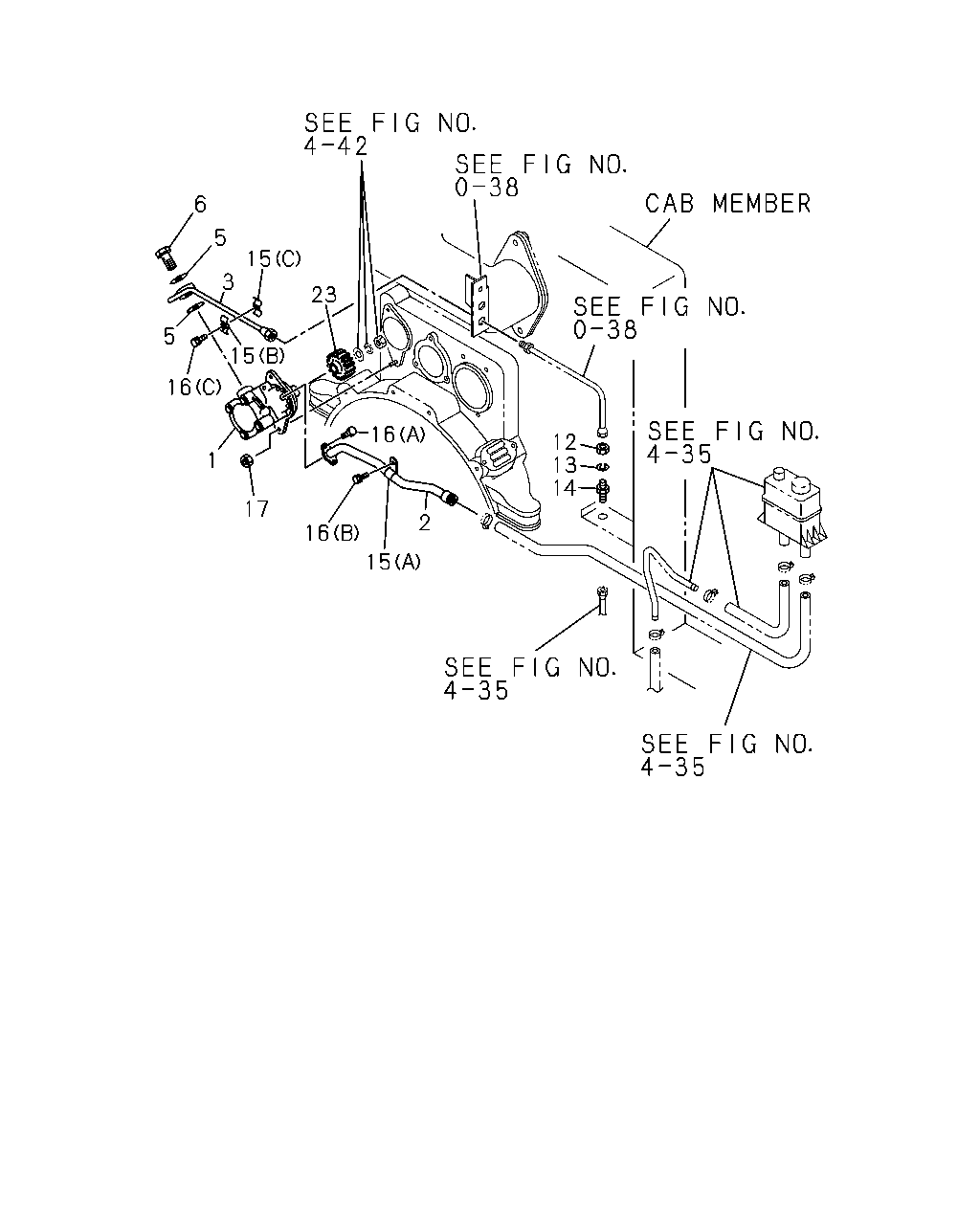

2 16 15 16 17 1 16 5 3 15 6 5 15 23 12 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L>	1-19500-310-4	01	1	9002-9306	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L>	1-19500-444-1	01	1	9307-9401	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L>	1-19500-344-4	01	1	9402-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L>	1-19500-345-5	01	1	9002-9306	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6>	1-19500-381-3	01	1	9307-9307	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6>	1-19500-345-5	01	1	9307-9307	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L>	1-19500-345-5	01	1	9308-	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (A)	1-21112-048-0	01	1	9002-	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (B)	1-21112-581-1	01	1	9002-9306	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (B)	1-21114-163-0	01	1	9307-9401	●	●
2	PIPE ASM; OIL,SUCTION L TYPE ENG<90L> (B)	1-21112-581-1	01	1	9402-	●	●
2	PIPE ASM; OIL,SUCTION V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-655-0	01	1	9002-	●	●
2	PIPE ASM; OIL,SUCTION V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13311-904-1	01	1	9002-	●	●
3	PIPE; OIL,CHARGE,P/S V TYPE ENG<91L>	1-13312-035-0	01	1	9002-9212	●	●
3	PIPE; OIL,CHARGE,P/S V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-341-0	01	1	9301-9306	●	●
3	PIPE; OIL,CHARGE,P/S V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-343-0	01	1	9307-9307	●	●
3	PIPE; OIL,CHARGE,P/S V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-341-0	01	1	9307-9307	●	●
3	PIPE; OIL,CHARGE,P/S V TYPE ENG<91L>	1-13313-341-0	01	1	9308-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). V TYPE ENG<91L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9002-	●	●
6	BOLT; EYE,P/S PIPE V TYPE ENG<91L> M18X36	1-09675-174-0	01	1	9002-	●	●
12	NUT; UNION,FLEX HOSE,P/S M22	9-09111-422-0	01	1	9002-9306	●	●
13	WASHER; LK,FLEX HOSE,P/S ID=22.5	9-09150-522-0	01	1	9002-9306	●	●
14	UNION; FLEX HOSE,P/S L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9002-9306	●	●
14	UNION; FLEX HOSE,P/S V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-9306	●	●
15	CLIP; OIL PIPE SUCTION L TYPE ENG<90L> (D) ID=23.6 L=35	1-09700-634-0	04	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION L TYPE ENG<90L> (E) W/NUT	9-09917-564-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION L TYPE ENG<90L> (F) WO/NUT	9-09917-565-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION V TYPE ENG<91L> (A) ID=19 L=32	9-09525-866-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION V TYPE ENG<91L> (B)	9-09917-385-0	01	1	9002-	●	●
15	CLIP; OIL PIPE SUCTION V TYPE ENG<91L> (C)	9-09917-386-0	01	1	9002-	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (A) M8X22	9-01910-822-0	01	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9006-	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (B) M10X20 W/LK WASHER	9-01911-020-0	04	1	9002-9002	●	●
16	BOLT; STAY,P/S OIL PUMP L TYPE ENG<90L> (B) M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (C) M6X25	0-28020-625-0	01	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (C) M6X25 FLANGE	0-28080-625-0	01	1	9006-	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (A) M8X12	0-28020-812-0	02	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (A) M8X12 FLANGE	0-28080-812-0	02	1	9006-	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (B) M8X14	0-28020-814-0	01	1	9002-9005	●	●
16	BOLT; STAY,P/S OIL PUMP V TYPE ENG<91L> (B) M8X14 FLANGE	0-28080-814-0	01	1	9006-	●	●
17	NUT; POWER STRG PUMP L TYPE ENG<90L> M8	9-09110-408-0	05	1	9002-	●	●
17	NUT; POWER STRG PUMP V TYPE ENG<91L> M10 FLANGE	0-91150-110-0	02	1	9002-	●	●
23	GEAR; OIL PUMP L TYPE ENG<90L>	1-19581-006-3	01	1	9002-	●	●
23	GEAR; OIL PUMP V TYPE ENG<91L> Z=20	1-19581-011-1	01	1	9002-	●	●
