Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#2855) — 283 parça

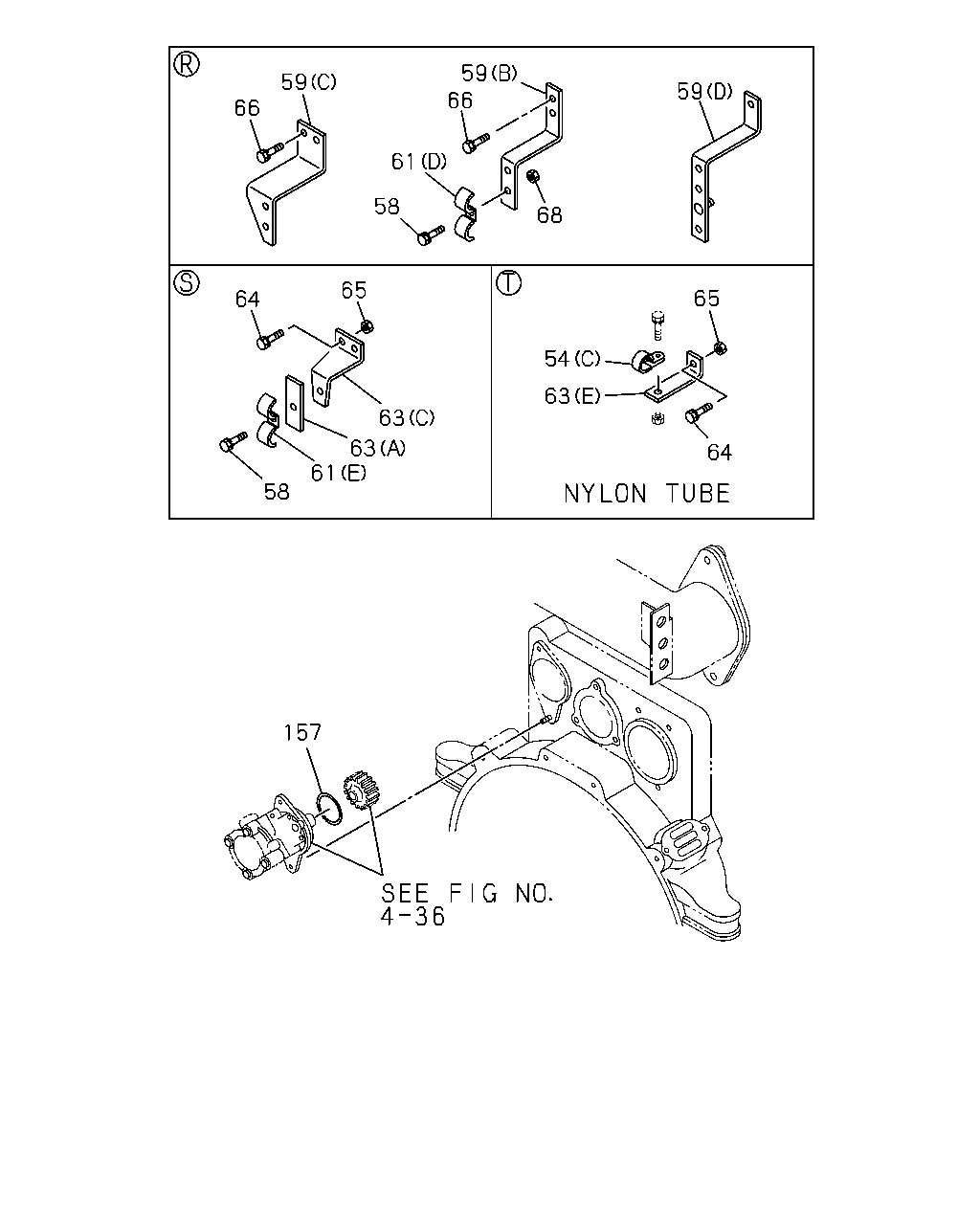

33 73 31 34 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET CAB UP 110MM(W60)	1-21112-054-1	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> EXC. CAB UP 110MM(W60)	1-21112-037-2	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21112-084-1	01	1	9002-9306	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-261-0	01	1	9411-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> ANTI NOISE EQUIPMENT<SV9>	1-21115-261-0	01	1	9411-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-534-0	01	1	9002-9002	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-763-0	01	1	9003-9008	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-810-0	01	1	9009-9410	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-810-0	01	1	9411-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-810-0	01	1	9411-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-533-0	01	1	9002-9002	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-764-0	01	1	9003-9410	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ANTI NOISE EQUIPMENT<SV9>	1-21113-764-0	01	1	9411-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 8PD1 STD ENG(38L)	1-21114-850-0	01	1	9307-9308	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 8PD1 STD ENG(38L)	1-21114-957-0	01	1	9309-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21115-260-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-259-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> ANTI NOISE EQUIPMENT<SV9>	1-21115-259-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-481-0	01	1	9002-9006	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-799-0	01	1	9007-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-443-0	01	1	9307-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NYLON TUBE AIR PIPING<Z29>	1-21113-317-0	01	1	9002-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-532-0	01	1	9002-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-442-0	01	1	9307-9410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-442-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-442-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-531-0	01	1	9002-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-441-0	01	1	9307-9410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ANTI NOISE EQUIPMENT<SV9>	1-21114-441-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L)	1-21114-848-0	01	1	9307-9308	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L)	1-21114-955-0	01	1	9309-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NYLON TUBE AIR PIPING<Z29>	1-21114-440-0	01	1	9307-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21115-258-0	01	1	9411-		●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L> L=390	1-21111-975-1	01	1	9002-	●	●

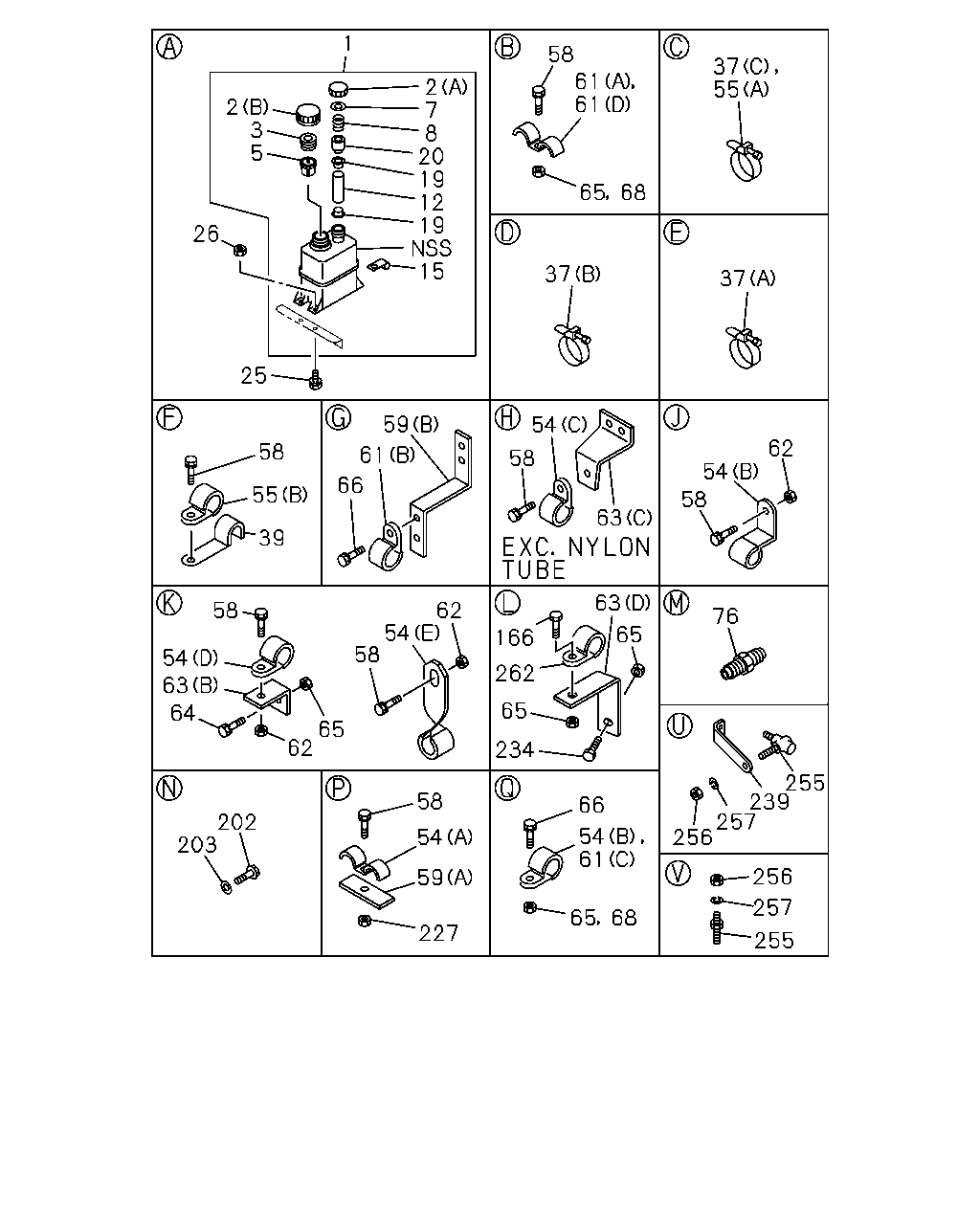

255 256 257 255 239 257 256 68 65 66 61 54 227 58 54 59 202 203 62 65 58 54 62 58 54 63 64 234 262 65 166 65 63 76 58 54 62 54 58 63 59 61 66 58 55 39 25 26 5 3 2 1 7 2 8 20 19 15 19 12 58 65 68 61 61 37 55 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-127-5	01	1	9002-9202	●	●
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9203-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9002-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9002-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9002-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9002-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9002-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9002-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9002-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9002-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9002-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9002-	●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005	●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-	●	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9002-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9002-	●	●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9002-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9002-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9002-	●	●
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9002-9409	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9410-	●	●
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=32 L=75	1-09700-704-1	01	1	9002-9409	●	●
54	CLIP; OIL PIPE (B) ID=16 L=50	9-09525-586-0	01	1	9307-	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 L=50	9-09525-586-0	01	1	9304-9306	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 L=20	9-09525-535-0	01	1	9002-	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=16	9-09525-525-0	01	1	9002-	●	●
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (E) ID=16 L=48	9-09916-568-1	01	1	9002-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●
55	CLIP; P/S RUBBER HOSE (B) ID=28 L=30	1-09700-607-1	01	1	9002-	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (A) ID=28	9-09915-672-1	02	1	9002-	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002	●	●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	04	1	9303-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X18	0-28010-818-0	01	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	01	1	9205-9306	●	●
58	BOLT; CLIP 8PD1 STD ENG(38L) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9205-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9002-9306	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (C)	1-47475-993-1	01	1	9002-9410	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-47475-993-1	01	1	9411-	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (D)	1-47477-128-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 8PD1 STD ENG(38L) (A) L=50	1-47475-299-2	02	1	9307-	●	●
59	BRACKET; CLIP,OIL PIPE 8PD1 STD ENG(38L) (B)	1-47475-963-1	01	1	9307-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9307-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410	●	●
61	CLIP; OIL PIPE 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16	9-09525-525-0	01	1	9002-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-	●	●
61	CLIP; OIL PIPE 8PD1 STD ENG(38L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-	●	●
62	NUT; CLIP FIX L TYPE ENG<90L> M8	9-09110-408-0	02	1	9002-9009	●	●
62	NUT; CLIP FIX L TYPE ENG<90L> M8	9-09110-408-0	03	1	9010-	●	●
62	NUT; CLIP FIX NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9009	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (B)	1-34656-004-0	01	1	9002-9303	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	01	1	9002-9303	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	02	1	9304-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47475-298-0	01	1	9002-	●	●
63	BRACKET; CLIP,P/S NYLON TUBE AIR PIPING<Z29> (E) L=55	1-47475-304-0	01	1	9405-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (C)	1-21119-100-1	01	1	9002-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	9307-	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9009	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9009	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9405-	●	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-408-0	04	1	9002-9009	●	●
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9010-9306	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9010-9404	●	●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9010-9404	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9405-	●	●
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-	●	●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9405-	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9009	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9307-9410	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9411-9501	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9502-	●	●
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9502-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9306	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●
68	NUT; CLIP,OIL PIPE 8PD1 STD ENG(38L) M8	9-09110-408-0	02	1	9307-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> M22	9-09233-015-1	01	1	9002-	●	●
166	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	03	1	9307-	●	●
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X39	1-09675-114-0	01	1	9101-9310	●	●
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X36	1-09675-205-0	01	1	9311-	●	●
203	GASKET; EYE BOLT L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-	●	●
227	NUT; PIPE CLIP V TYPE ENG<91L> M8	9-09110-408-0	01	1	9307-	●	●
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-408-0	03	1	9307-	●	●
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47475-412-0	01	1	9307-	●	●
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9307-	●	●
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9307-	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	9307-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9307-9312	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9405-	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> ID=16	9-09525-525-0	01	1	9307-	●	●

157 64 65 54 63 63 63 61 58 64 65 58 61 68 59 59 66 59 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=16 L=50	9-09525-586-0	01	1	9307-	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 L=50	9-09525-586-0	01	1	9304-9306	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 L=20	9-09525-535-0	01	1	9002-	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=16	9-09525-525-0	01	1	9002-	●	●
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (E) ID=16 L=48	9-09916-568-1	01	1	9002-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9307-	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002	●	●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	04	1	9303-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X18	0-28010-818-0	01	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	01	1	9205-9306	●	●
58	BOLT; CLIP 8PD1 STD ENG(38L) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9205-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9002-9306	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (C)	1-47475-993-1	01	1	9002-9410	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-47475-993-1	01	1	9411-	●	●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (D)	1-47477-128-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 8PD1 STD ENG(38L) (A) L=50	1-47475-299-2	02	1	9307-	●	●
59	BRACKET; CLIP,OIL PIPE 8PD1 STD ENG(38L) (B)	1-47475-963-1	01	1	9307-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9307-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410	●	●
61	CLIP; OIL PIPE 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16	9-09525-525-0	01	1	9002-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●	●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-	●	●
61	CLIP; OIL PIPE 8PD1 STD ENG(38L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (B)	1-34656-004-0	01	1	9002-9303	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	01	1	9002-9303	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	02	1	9304-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47475-298-0	01	1	9002-	●	●
63	BRACKET; CLIP,P/S NYLON TUBE AIR PIPING<Z29> (E) L=55	1-47475-304-0	01	1	9405-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (C)	1-21119-100-1	01	1	9002-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (A) L=50	1-47475-299-2	01	1	9307-	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9009	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9009	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9405-	●	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-408-0	04	1	9002-9009	●	●
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9010-9306	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9010-9404	●	●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9010-9404	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9405-	●	●
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-	●	●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9405-	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9009	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9307-9410	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9411-9501	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9502-	●	●
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9502-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9306	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●
68	NUT; CLIP,OIL PIPE 8PD1 STD ENG(38L) M8	9-09110-408-0	02	1	9307-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 10PD1 STD ENG(40L) ID=79.6	1-09623-421-0	01	1	9002-	●	●

74 31 34 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET CAB UP 110MM(W60)	1-21112-054-1	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> EXC. CAB UP 110MM(W60)	1-21112-037-2	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21112-084-1	01	1	9002-9306	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-485-0	01	1	9002-9002	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-762-0	01	1	9003-9008	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-809-0	01	1	9009-	●	●
45	PIPE; OIL,P/S UNIT TO UNION NYLON TUBE AIR PIPING<Z29>	1-21113-486-0	01	1	9002-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-259-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> ANTI NOISE EQUIPMENT<SV9>	1-21115-259-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-481-0	01	1	9002-9006	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-799-0	01	1	9007-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-443-0	01	1	9307-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NYLON TUBE AIR PIPING<Z29>	1-21113-317-0	01	1	9002-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-532-0	01	1	9002-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-442-0	01	1	9307-9410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-442-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-442-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21113-531-0	01	1	9002-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-441-0	01	1	9307-9410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ANTI NOISE EQUIPMENT<SV9>	1-21114-441-0	01	1	9411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L)	1-21114-848-0	01	1	9307-9308	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L)	1-21114-955-0	01	1	9309-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NYLON TUBE AIR PIPING<Z29>	1-21114-440-0	01	1	9307-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21115-258-0	01	1	9411-		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE CAB UP 110MM(W60) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1372	1-21113-535-0	01	1	9002-	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> CAB UP 110MM(W60) L=1368	1-21113-537-0	01	1	9002-	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. CAB UP 110MM(W60) L=1276	1-21113-536-0	01	1	9002-	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP 110MM(W60) L=1279	1-21113-099-0	01	1	9002-9306	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP 110MM(W60) L=1279	1-21113-099-0	01	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
