Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#28541) — 49 parça
◀

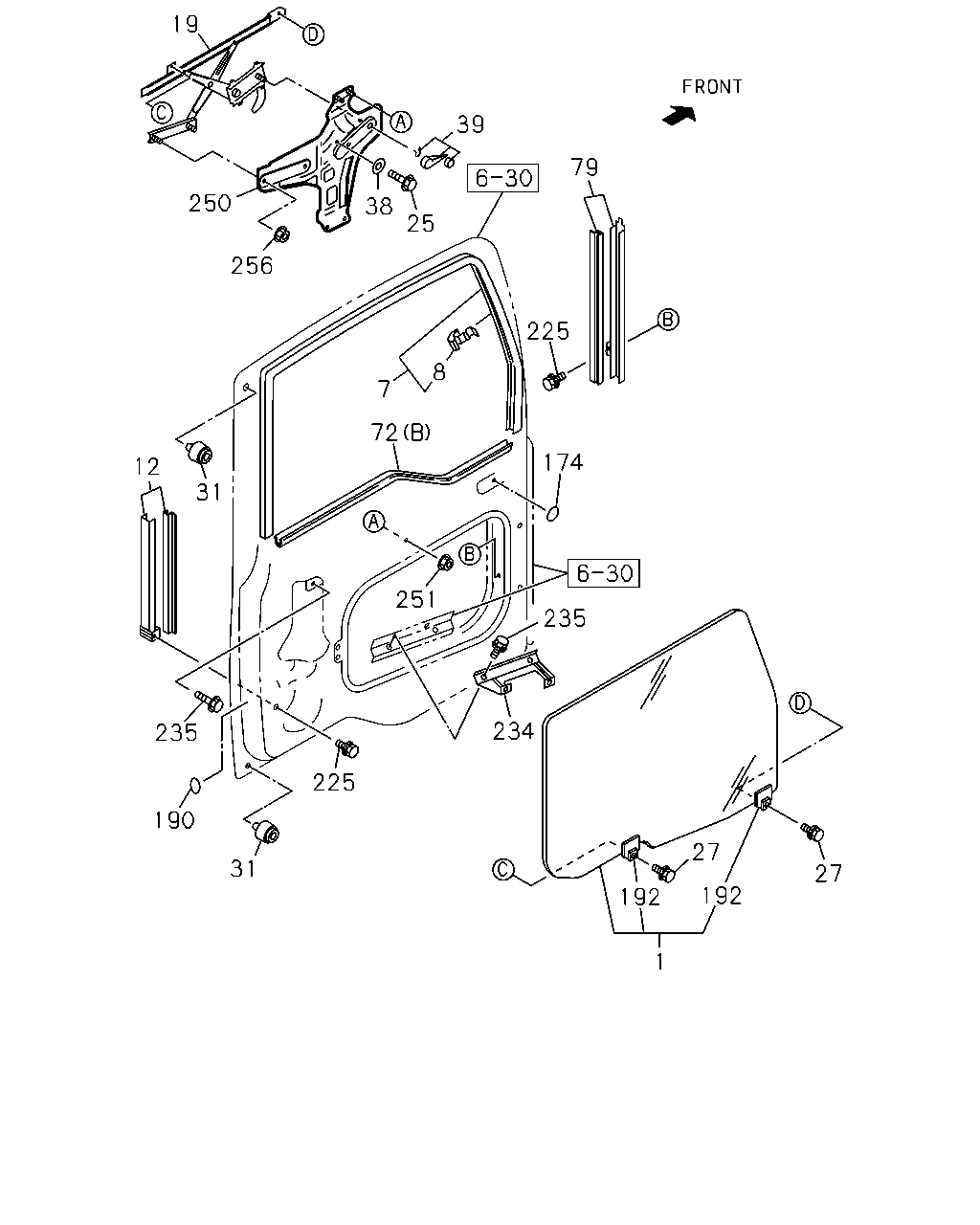

[631A] DOOR GLASS,GLASS RUN AND REGULATOR (39 parça)

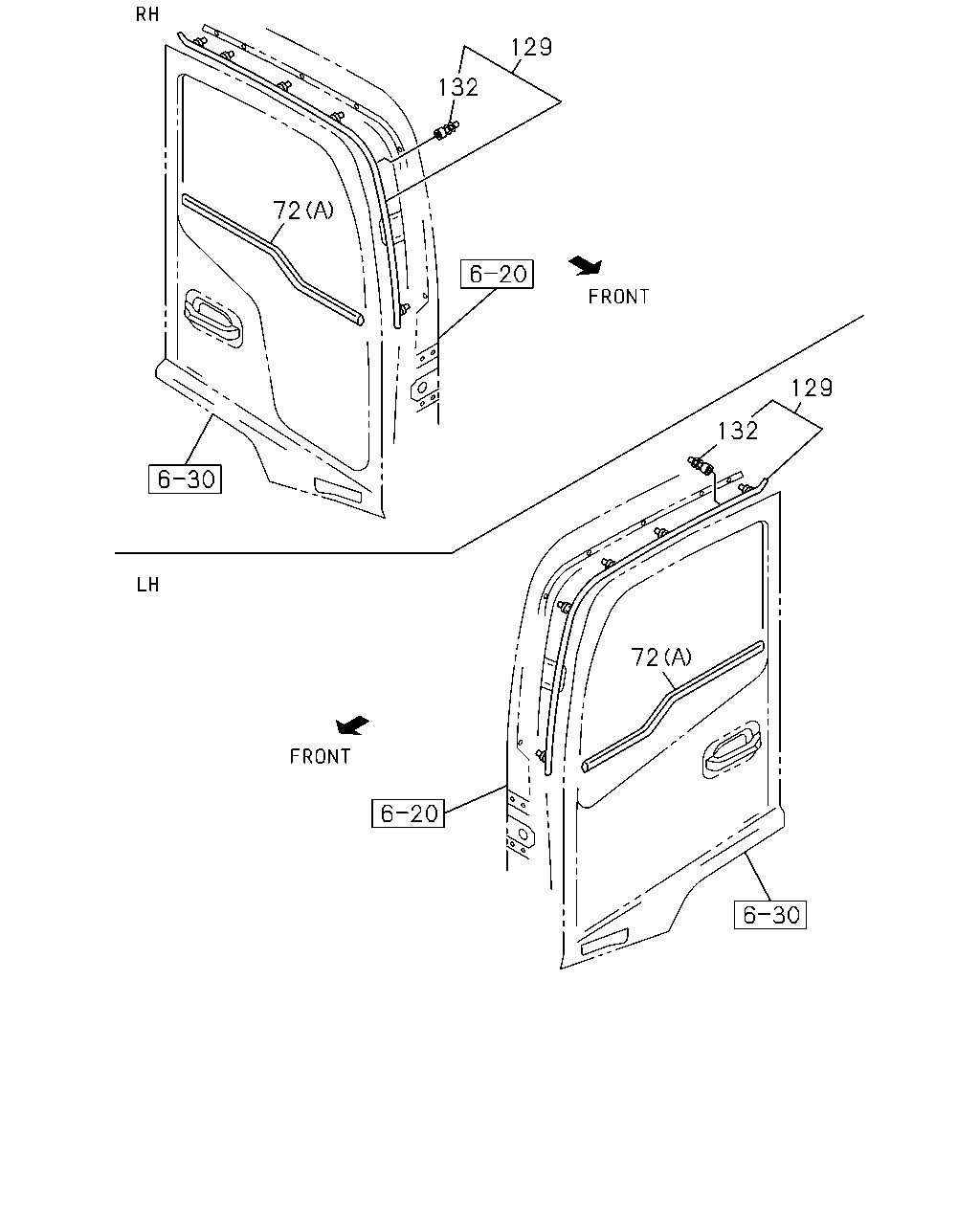

[631A] SEAL (10 parça)
▶
19
39
79
250
38
25
256
225
8
7
72
174
12
31
235
251
234
235
225
190
27
31
27
192
192
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
IDN
8-97525-088-0
01
1
0311-
1
GLASS; FRT DOOR
IDN
8-97525-089-0
01
1
0311-
7
GLASS RUN; FRT DOOR
1-74318-021-8
01
1
0311-
7
GLASS RUN; FRT DOOR
1-74318-022-8
01
1
0311-
8
CLIP; GLASS GUIDE
1-74318-029-1
02
1
0311-
12
CHANNEL; GLASS RUN,FRT
1-74338-070-3
01
1
0311-
12
CHANNEL; GLASS RUN,FRT
1-74338-071-3
01
1
0311-
19
REGULATOR; WINDOW,FRT DOOR
1-74418-134-5
01
1
0311-
19
REGULATOR; WINDOW,FRT DOOR
1-74418-144-5
01
1
0311-
25
BOLT; WINDOW REG
M6X12 W/LK&PL WASHER
8-94279-200-0
08
1
0311-
27
BOLT; GLASS FIX
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
0311-
31
STOPPER; RUBBER,DOOR INNER
1-09983-169-0
04
1
0311-
38
WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1
1-09985-187-0
04
1
0311-
39
HANDLE; WINDOW REG,FRT DOOR
IDN
8-97525-046-0
02
1
0311-
72
SEAL; WAIST,FRT DOOR
(A)
1-76738-088-9
01
1
0311-1207
72
SEAL; WAIST,FRT DOOR
(A)
8-98219-039-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(A)
1-76738-089-9
01
1
0311-1207
72
SEAL; WAIST,FRT DOOR
(A)
8-98219-040-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(B)
1-76738-091-6
01
1
0311-
72
SEAL; WAIST,FRT DOOR
(B)
1-76738-092-6
01
1
0311-
79
CHANNEL; DOOR GLASS,FRT
1-74338-068-3
01
1
0311-
79
CHANNEL; DOOR GLASS,FRT
1-74338-069-3
01
1
0311-
174
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
22
1
0311-
174
SEAL; LOCATION HOLE
OD=52 BLACK
1-76798-041-0
06
1
0311-
190
REFLECTOR; FRT DOOR INNER
5-76777-060-1
01
1
0311-
192
HOLDER; DOOR GLASS
IDN
1-74427-170-0
04
1
0311-
225
BOLT; FRT CHANNEL
M6X10 FLANGE IDN
0-28080-610-0
04
1
0311-0512
225
BOLT; FRT CHANNEL
M6X10 FLANGE IDN
0-28050-610-0
04
1
0601-
234
BRACKET; OK WINDOW
1-74998-057-4
01
1
0311-
234
BRACKET; OK WINDOW
1-74998-062-4
01
1
0311-
235
BOLT; BRKT
M6X16 FLANGE
0-28080-616-0
08
1
0406-0512
235
BOLT; BRKT
M6X16 FLANGE IDN
0-28050-616-0
08
1
0601-0710
235
BOLT; BRKT
M6X10 FLANGE IDN
0-28050-610-0
08
1
0711-
235
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
16
1
0311-0405
235
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0406-
250
BRACKET; REGULATOR
1-74418-148-0
01
1
0311-
250
BRACKET; REGULATOR
1-74418-149-0
01
1
0311-
251
NUT; BRKT
M6 FLANGE
1-09984-141-0
04
1
0311-
256
NUT
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0311-
129
132
72
129
132
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
SEAL; WAIST,FRT DOOR
(A)
1-76738-088-9
01
1
0311-1207
72
SEAL; WAIST,FRT DOOR
(A)
8-98219-039-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(A)
1-76738-089-9
01
1
0311-1207
72
SEAL; WAIST,FRT DOOR
(A)
8-98219-040-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(B)
1-76738-091-6
01
1
0311-
72
SEAL; WAIST,FRT DOOR
(B)
1-76738-092-6
01
1
0311-
129
SEAL; DOOR,SUB UPR
1-76718-198-0
01
1
0311-
129
SEAL; DOOR,SUB UPR
1-76718-199-0
01
1
0311-
132
CLIP; SEAL,DOOR
NATURAL IDN
1-09987-253-1
06
1
0311-
132
CLIP; SEAL,DOOR
YELLOW IDN
1-09987-254-1
06
1
0311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
