◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#2854) — 71 parça

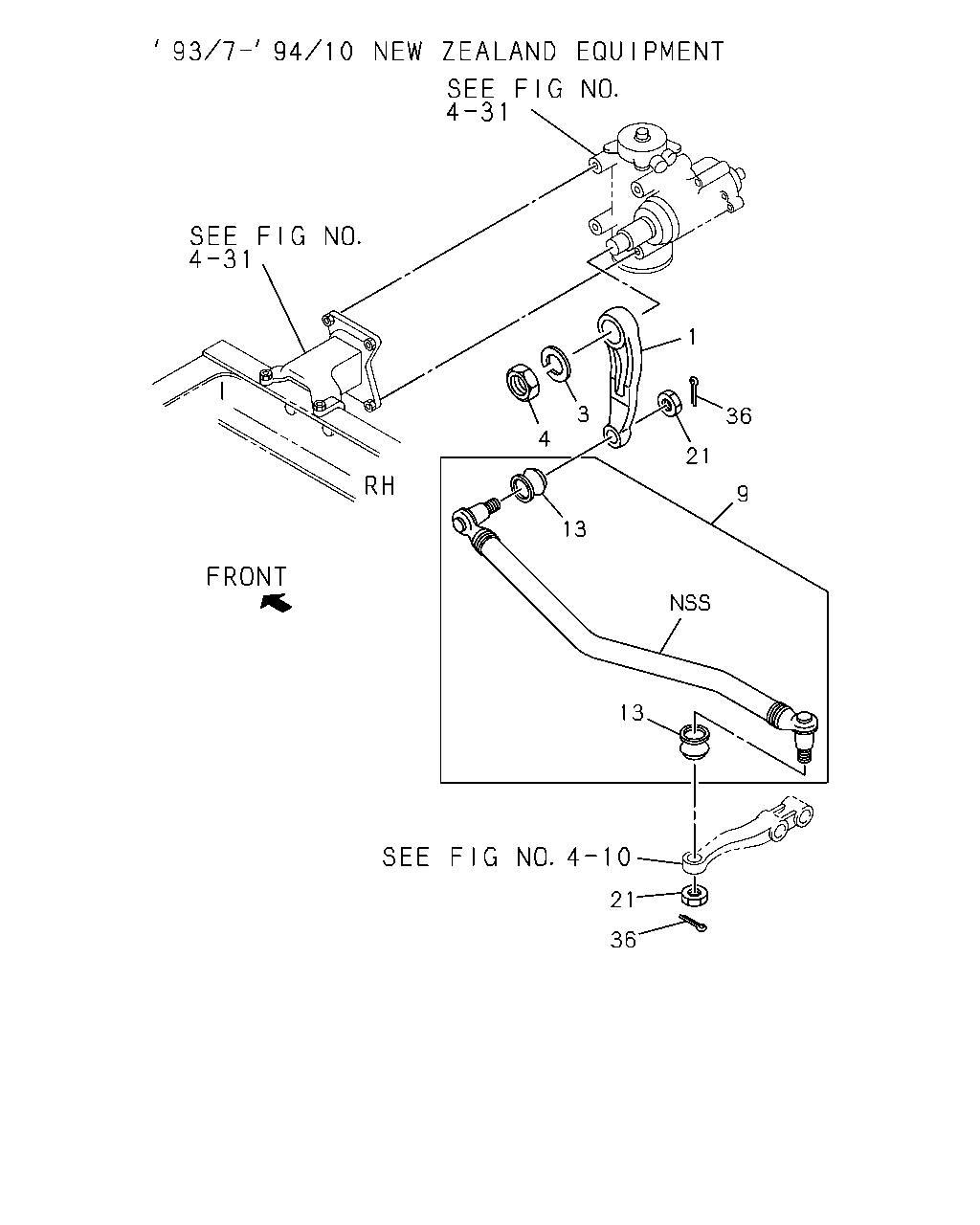

çizim 93899
36 21 13 13 9 21 36 1 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-371-0 01 1 9002-9306 ● ●
1 ARM; PITMAN,STRG 1-44341-377-0 01 1 9307- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9002- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9002- ● ●
9 LINK; DRAG 1-44350-682-2 01 1 9002-9306 ● ●
9 LINK; DRAG 1-44380-051-0 01 1 9307-9410 ●
9 LINK; DRAG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-44380-051-0 01 1 9307-9410 ●
9 LINK; DRAG 1-44380-109-2 01 1 9411- ● ●
9 LINK; DRAG
NEW ZEALAND EQUIPMENT(PK5) 		1-44350-964-1 01 1 9307-9410 ●
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9307- ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 01 1 9002-9306 ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9307- ● ●
36 PIN; SPLIT,DRAG LINK 9-08115-065-0 02 1 9002-9306 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9307- ● ●

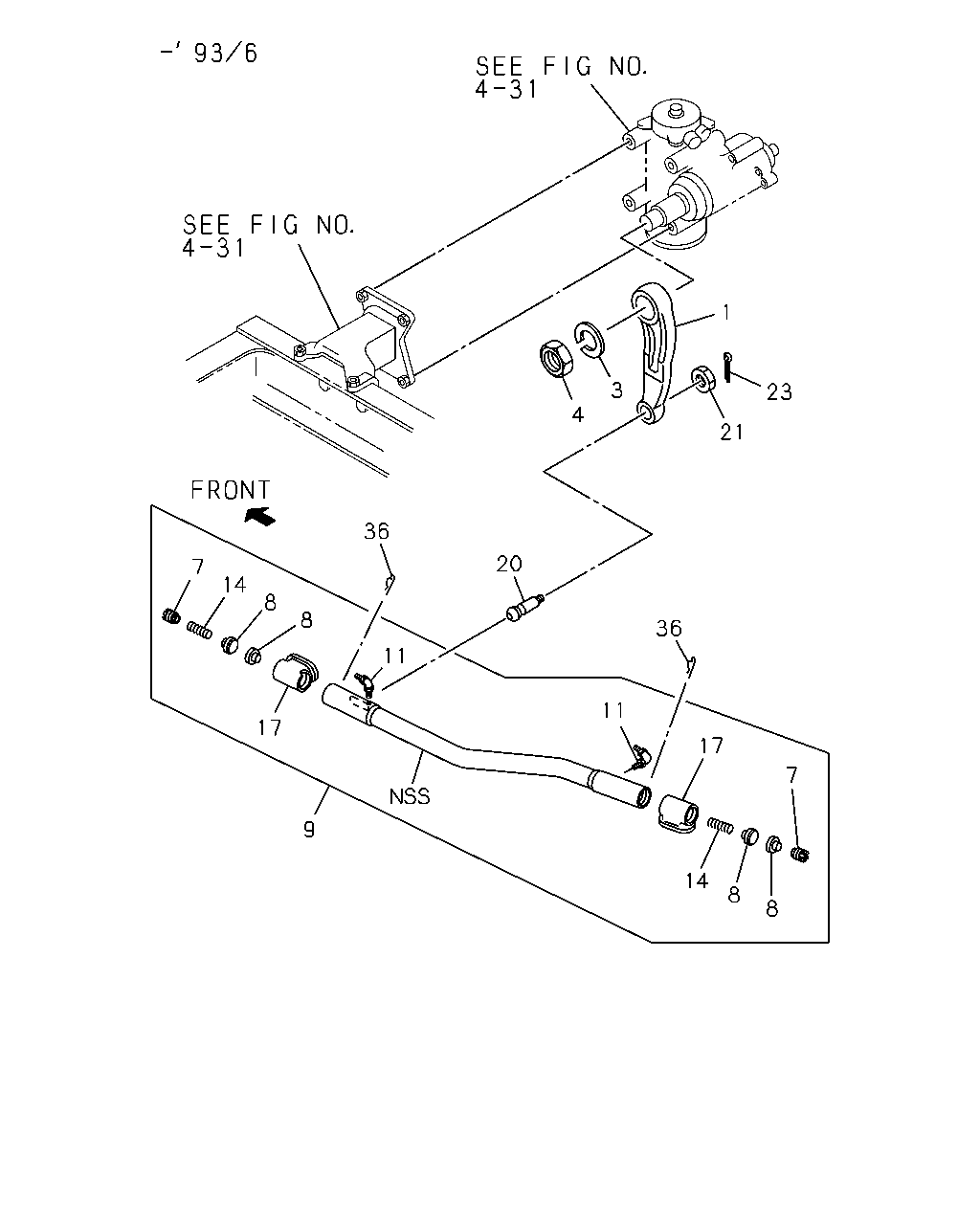

çizim 93917
8 8 14 7 17 11 36 20 9 17 11 36 8 8 14 7 4 3 21 23 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-371-0 01 1 9002-9306 ● ●
1 ARM; PITMAN,STRG 1-44341-377-0 01 1 9307- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9002- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9002- ● ●
7 SCREW; ADJ,JOINT 9-44375-029-1 02 1 9002-9306 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9307-9410 ●
8 SEAT; SPR,ROD END
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-43159-075-0 02 1 9307-9410 ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9411- ● ●
8 SEAT; SPR,ROD END 9-09881-696-0 04 1 9002-9306 ● ●
9 LINK; DRAG 1-44350-682-2 01 1 9002-9306 ● ●
9 LINK; DRAG 1-44380-051-0 01 1 9307-9410 ●
9 LINK; DRAG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-44380-051-0 01 1 9307-9410 ●
9 LINK; DRAG 1-44380-109-2 01 1 9411- ● ●
9 LINK; DRAG
NEW ZEALAND EQUIPMENT(PK5) 		1-44350-964-1 01 1 9307-9410 ●
11 NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9307-9410 ●
14 SPRING; COIL,DRAG LINK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-43159-074-0 02 1 9307-9410 ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9411- ● ●
14 SPRING; COIL,DRAG LINK 1-09580-033-3 02 1 9002-9306 ● ●
17 GUARD; MUD,DRAG LINK 1-44365-033-1 02 1 9002-9306 ● ●
20 JOINT; BALL,PITMAN ARM 1-44361-100-0 01 1 9002-9306 ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 01 1 9002-9306 ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9307- ● ●
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		9-08115-035-0 01 1 9002-9306 ● ●
36 PIN; SPLIT,DRAG LINK 9-08115-065-0 02 1 9002-9306 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9307- ● ●

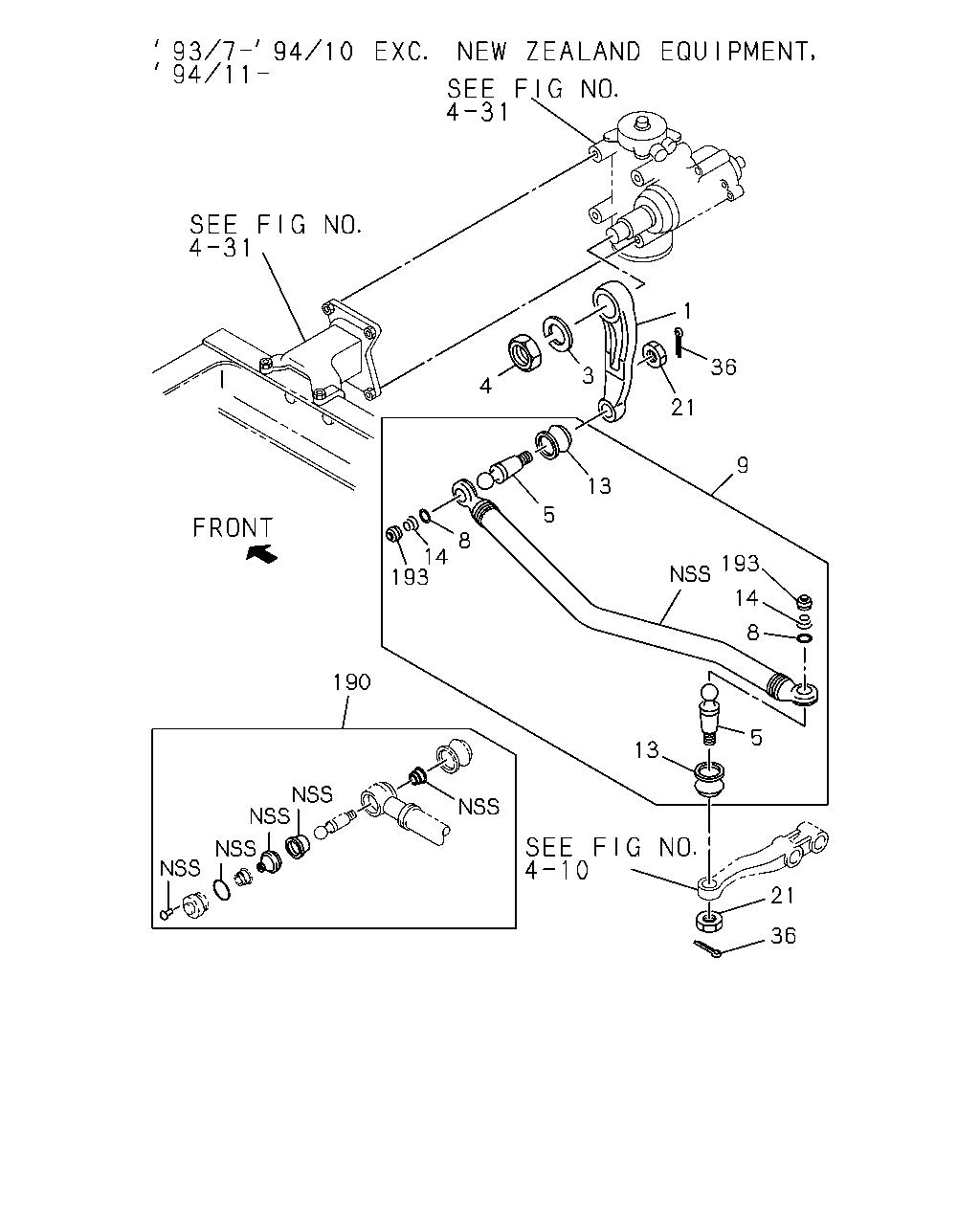

çizim 95199
36 21 5 13 8 14 193 9 21 36 1 3 4 13 5 8 14 193 190
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-371-0 01 1 9002-9306 ● ●
1 ARM; PITMAN,STRG 1-44341-377-0 01 1 9307- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9002- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9002- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9307-9410 ●
5 BALL; JOINT,DRAG LINK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-44361-105-1 02 1 9307-9410 ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9411- ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9307-9410 ●
8 SEAT; SPR,ROD END
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-43159-075-0 02 1 9307-9410 ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9411- ● ●
8 SEAT; SPR,ROD END 9-09881-696-0 04 1 9002-9306 ● ●
9 LINK; DRAG 1-44350-682-2 01 1 9002-9306 ● ●
9 LINK; DRAG 1-44380-051-0 01 1 9307-9410 ●
9 LINK; DRAG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-44380-051-0 01 1 9307-9410 ●
9 LINK; DRAG 1-44380-109-2 01 1 9411- ● ●
9 LINK; DRAG
NEW ZEALAND EQUIPMENT(PK5) 		1-44350-964-1 01 1 9307-9410 ●
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9307- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9307-9410 ●
14 SPRING; COIL,DRAG LINK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-43159-074-0 02 1 9307-9410 ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9411- ● ●
14 SPRING; COIL,DRAG LINK 1-09580-033-3 02 1 9002-9306 ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 01 1 9002-9306 ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9307- ● ●
36 PIN; SPLIT,DRAG LINK 9-08115-065-0 02 1 9002-9306 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9307- ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9307-9410 ●
190 REPAIR KIT; DRAG LINK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-85574-041-0 02 1 9307-9410 ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9411- ● ●
193 PLUG; END,DRAG LINK 1-43159-072-0 02 1 9307-9410 ●
193 PLUG; END,DRAG LINK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-43159-072-0 02 1 9307-9410 ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9411- ● ●
