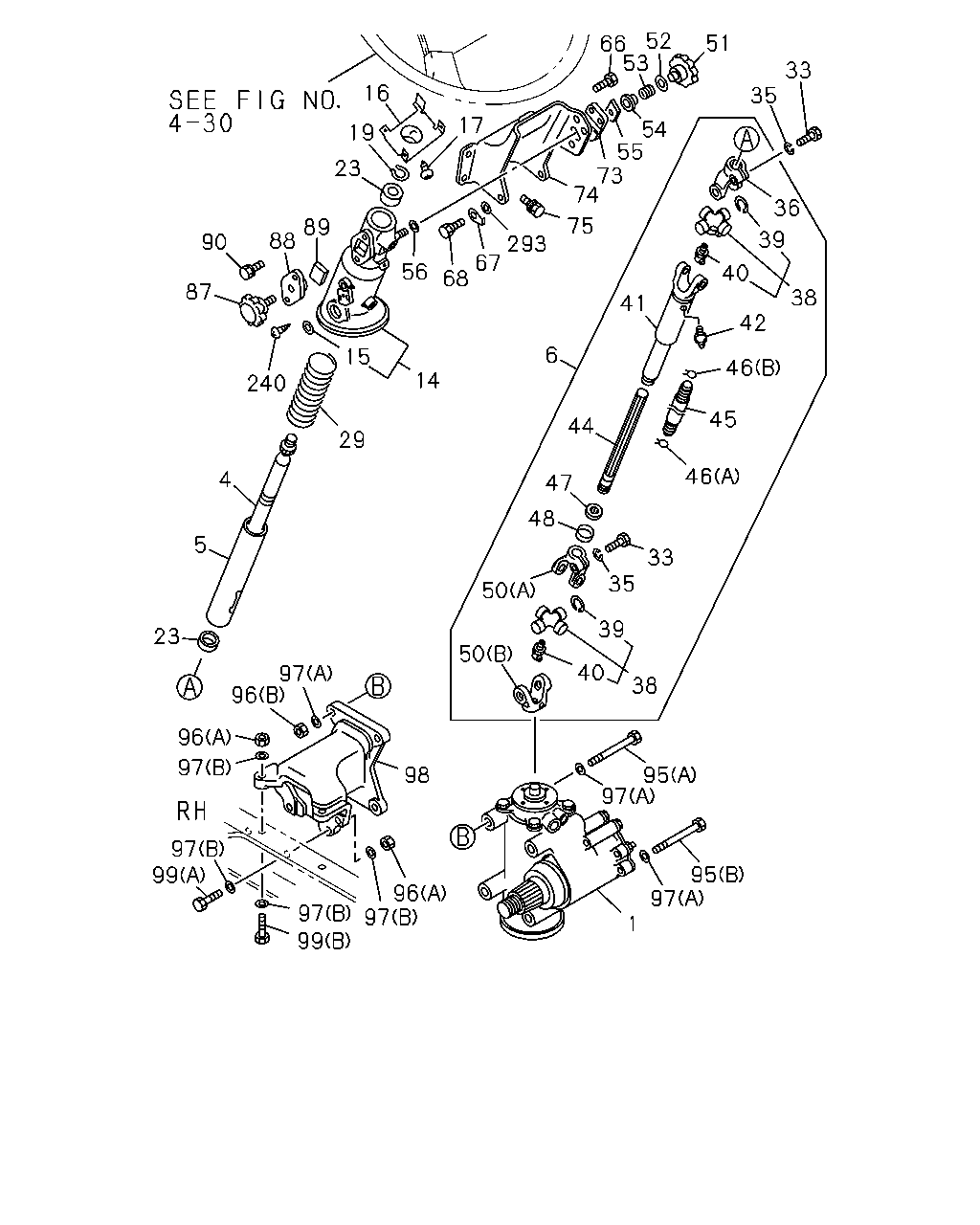

4-31 — STEERING COLUMN AND SHAFT (#2853) — 60 parça
çizim 27113
1 97 95 95 97 38 40 35 39 33 46 45 46 42 40 38 39 36 33 35 41 6 44 47 48 50 50 98 96 97 97 99 99 97 96 97 96 97 23 5 4 29 14 15 240 87 90 88 89 23 19 16 56 68 67 293 75 74 73 55 54 17 66 52 53 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-761-3 01 1 9002-9306 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-805-2 01 1 9307- ● ●
4 SHAFT; STRG 1-44131-118-1 01 1 9002- ● ●
5 COLUMN; STRG 1-44211-043-1 01 1 9002- ● ●
6 SHAFT; STRG LWR
CAB UP 110MM(W60) 		1-44130-384-1 01 1 9002- ● ●
6 SHAFT; STRG LWR
EXC. CAB UP 110MM(W60) 		1-44130-352-2 01 1 9002- ● ●
14 CASE ASM; STRG SHAFT 1-44221-046-3 01 1 9002- ● ●
15 WASHER; TILT CENTER 1-44227-077-1 02 1 9002- ● ●
16 BRACKET; COMB SW 1-44227-074-2 01 1 9002- ● ●
17 SCREW; BRKT
M5X10 PAN-HD 		9-93490-510-0 03 1 9002- ● ●
19 RING; SNAP,STRG SHAFT
ID=23.4 T=1.5 		1-09588-140-0 02 1 9002- ● ●
23 BEARING; BALL,STRG SHAFT 1-09800-157-0 02 1 9002- ● ●
29 SPRING; COLUMN 1-09583-223-0 01 1 9002- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 02 1 9002- ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 02 1 9002- ● ●
36 YOKE; STRG SHAFT 1-44135-179-0 01 1 9002- ● ●
38 JOURNAL; STRG SHAFT 1-44135-098-0 02 1 9002- ● ●
39 RING; SNAP,JOURNAL
T=1.2 		1-09587-061-1 08 1 9002- ● ●
40 NIPPLE; GREASE,JOURNAL 1-09380-004-0 02 1 9002- ● ●
41 YOKE; SLEEVE,STRG
CAB UP 110MM(W60) 		1-44135-153-0 01 1 9002- ● ●
41 YOKE; SLEEVE,STRG
EXC. CAB UP 110MM(W60) 		1-44135-143-0 01 1 9002- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9002- ● ●
44 SHAFT; SPLINE,STRG 1-44131-109-2 01 1 9002- ● ●
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9002- ● ●
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9002- ● ●
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9002- ● ●
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9002- ● ●
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
(A) 		1-44135-090-1 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
(B) 		1-44135-179-0 01 1 9002- ● ●
51 KNOB; TILT 1-44227-099-0 01 1 9002- ● ●
52 WASHER; PL,ADJ LEVER 1-44227-086-0 01 1 9002- ● ●
53 SPRING; TILT KNOB 1-09580-343-0 01 1 9002- ● ●
54 GUIDE; SPR 1-44227-072-0 01 1 9002- ● ●
55 PLATE; GUIDE 1-44227-091-0 01 1 9002- ● ●
56 WASHER; LOCATING PLATE 1-09503-127-1 01 1 9002- ● ●
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204 ● ●
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205- ● ●
67 WASHER; LK,BRKT,STRG COLUMN 1-44227-082-0 02 1 9002- ● ●
68 PIN; TILT CENTER 1-44227-080-1 02 1 9002- ● ●
73 PLATE; LOCATING 1-44227-092-0 01 1 9002- ● ●
74 BRACKET; SUPPORT,STRG 1-44221-047-1 01 1 9002- ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		9-01970-825-0 04 1 9002-9005 ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9006- ● ●
87 KNOB; TELESCOPIC 1-44227-098-0 01 1 9002- ● ●
88 FLANGE; KNOB 1-44227-056-1 01 1 9002- ● ●
89 PLUNGER; STRG COLUMN 1-44227-093-0 01 1 9002- ● ●
90 BOLT; FLANGE
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
90 BOLT; FLANGE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205- ● ●
95 BOLT; STRG UNIT
(A) M16X177 		1-09000-426-0 02 1 9002- ● ●
95 BOLT; STRG UNIT
(B) M16X166 		1-09000-427-0 02 1 9002- ● ●
96 NUT; STRG UNIT
(A) M14 		9-99110-514-0 06 1 9002- ● ●
96 NUT; STRG UNIT
(B) M16 		9-99110-516-0 02 1 9002- ● ●
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9002- ● ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9002- ● ●
98 BRACKET; STRG GEAR BOX 1-44226-108-3 01 1 9002- ● ●
99 BOLT; BRKT TO FRAME
(A) M14X55 		1-09000-425-0 04 1 9002- ● ●
99 BOLT; BRKT TO FRAME
(B) M14X55 		9-92061-455-0 02 1 9002- ● ●
240 SCREW; CLIP
M6X8 W/LK WASHER 		1-09981-040-0 01 1 9002- ● ●
293 WASHER; TILT CENTER 1-44227-077-1 02 1 9002- ● ●
