4-65 — REAR LEAF SPRING (#28528) — 88 parça

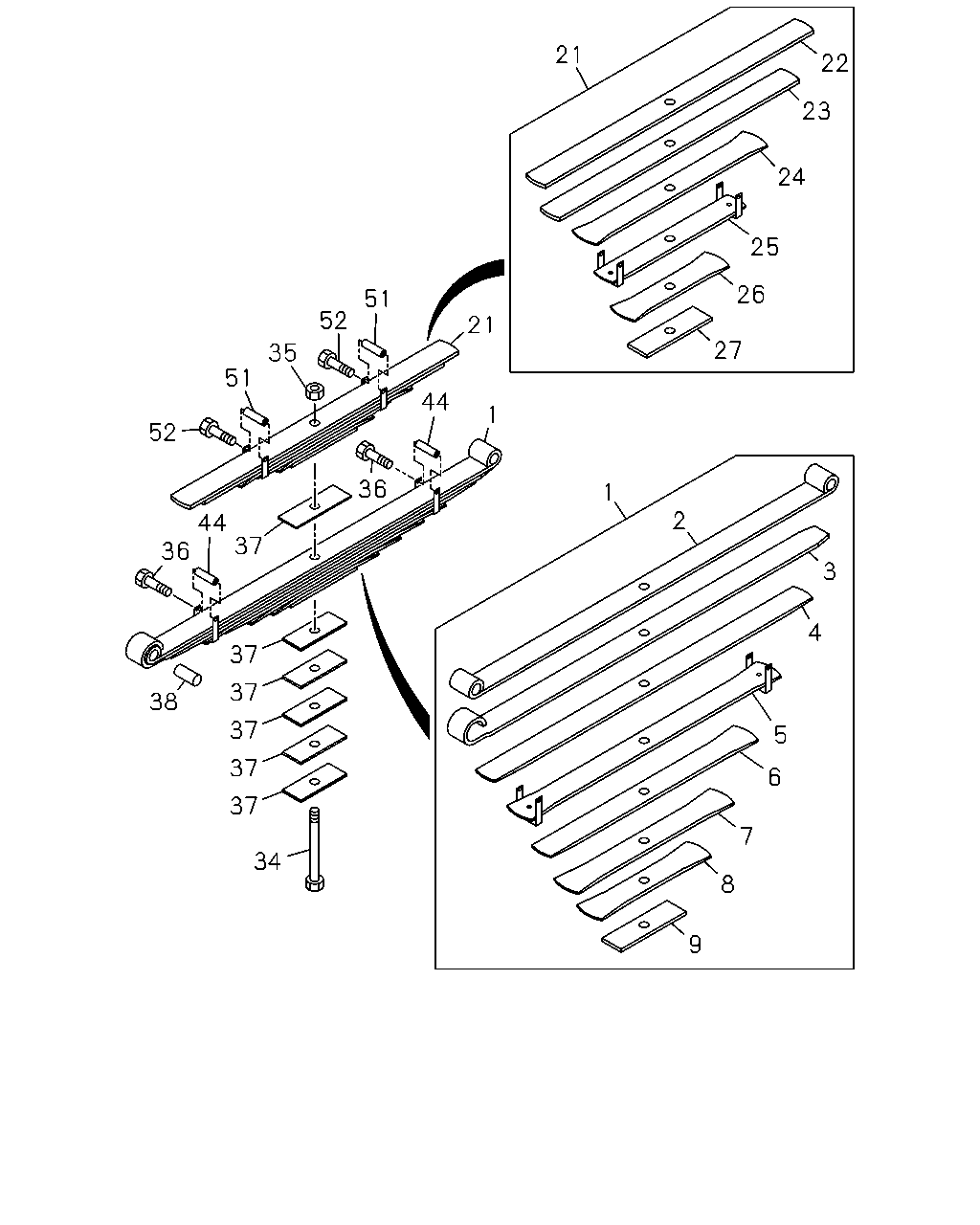

21 22 23 24 25 26 51 52 21 27 35 51 44 1 52 36 1 2 44 37 36 3 4 37 37 38 37 5 37 6 37 7 34 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-479-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-536-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-480-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-538-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-481-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-539-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-482-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-540-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-483-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-541-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-484-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-542-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-485-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-543-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-486-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-544-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-487-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-545-0	01	1	-
21	SPRING ASM; LEAF,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-488-0	01	1	-
21	SPRING ASM; LEAF,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-537-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-489-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-546-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-490-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-547-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-491-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-548-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-492-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-549-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-493-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-550-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-494-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-551-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PT.INDOSPRING, L=240 ASM PART: B = 8-97520-297-0	1-51156-168-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PT.MUARATEWE SPRING, L=240 ASM PART: A = 8-97520-038-0	1-51356-131-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR PT.MUARATEWE SPRING, M16 ASM PART: A = 8-97520-038-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR PT.INDOSPRING, M16 ASM PART: B = 8-97520-297-0	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR PT.MUARATEWE SPRING, M10X117 ASM PART: A = 8-97520-038-0	1-09000-334-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-452-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-450-0	06	1	-
38	BUSHING; LEAF SPR,RR PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	9-51351-028-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-451-0	02	1	-
51	PIPE; CLIP,LEAF SPR,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-451-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB PT.MUARATEWE SPRING, M10X117 ASM PART: A = 8-97520-038-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-452-0	02	1	-

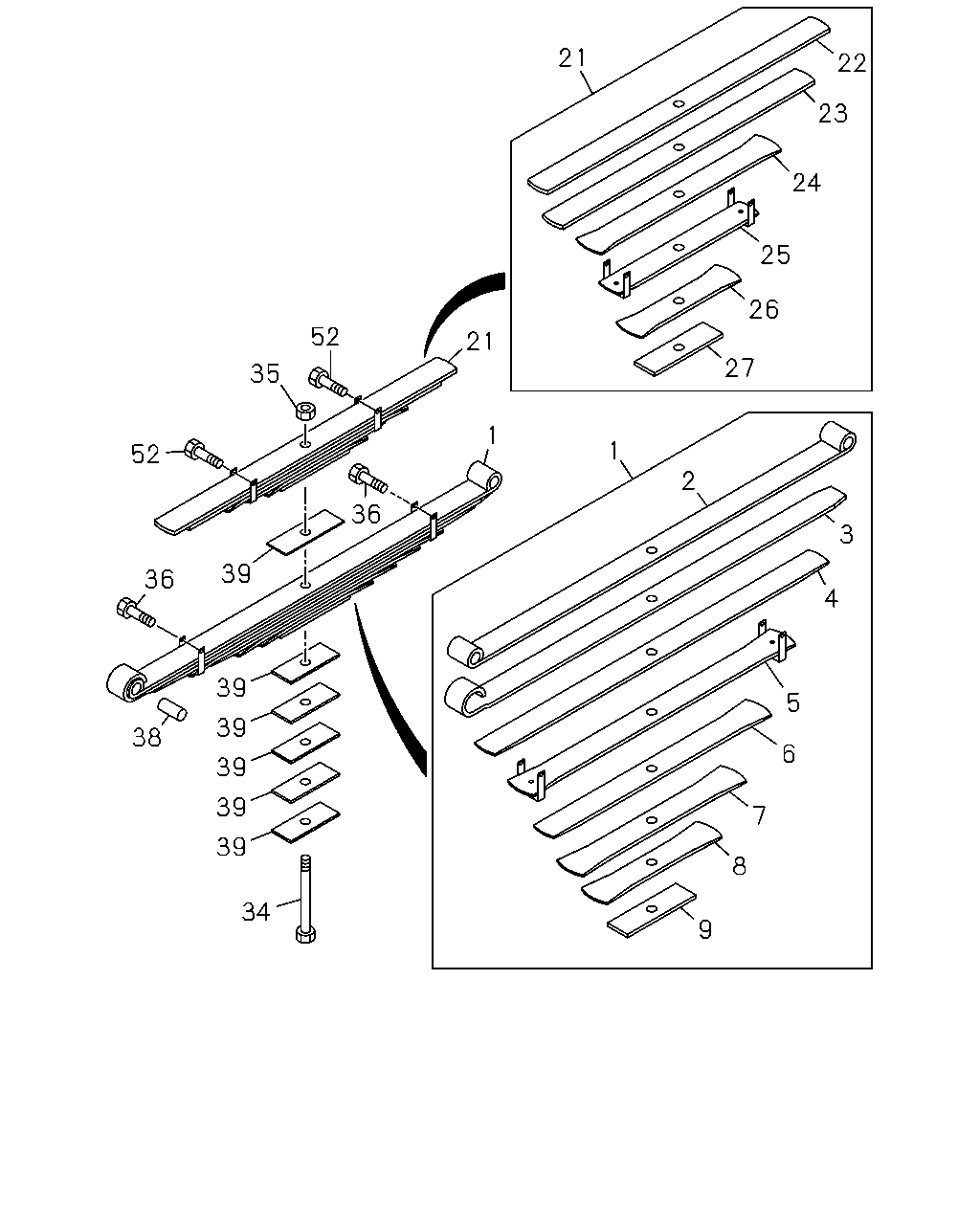

21 22 23 24 25 26 52 21 27 35 1 1 52 2 36 3 39 36 4 39 5 39 38 6 39 39 7 39 8 34 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-479-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-536-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-480-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-538-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-481-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-539-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-482-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-540-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-483-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-541-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-484-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-542-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-485-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-543-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-486-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-544-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-487-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-545-0	01	1	-
21	SPRING ASM; LEAF,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-488-0	01	1	-
21	SPRING ASM; LEAF,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-537-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-489-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-546-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-490-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-547-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-491-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-548-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-492-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-549-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-493-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-550-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-494-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	8-97520-551-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PT.INDOSPRING, L=240 ASM PART: B = 8-97520-297-0	1-51156-168-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN PT.MUARATEWE SPRING, L=240 ASM PART: A = 8-97520-038-0	1-51356-131-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR PT.MUARATEWE SPRING, M16 ASM PART: A = 8-97520-038-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR PT.INDOSPRING, M16 ASM PART: B = 8-97520-297-0	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR PT.MUARATEWE SPRING, M10X117 ASM PART: A = 8-97520-038-0	1-09000-334-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-452-0	02	1	-
38	BUSHING; LEAF SPR,RR PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-038-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	9-51351-028-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN PT.MUARATEWE SPRING, T=10 ASM PART: A = 8-97520-038-0	1-51377-118-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB PT.MUARATEWE SPRING, M10X117 ASM PART: A = 8-97520-038-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB PT.INDOSPRING, IDN ASM PART: B = 8-97520-297-0	8-97520-452-0	02	1	-
