4-55 — FRONT LEAF SPRING (#28526) — 48 parça

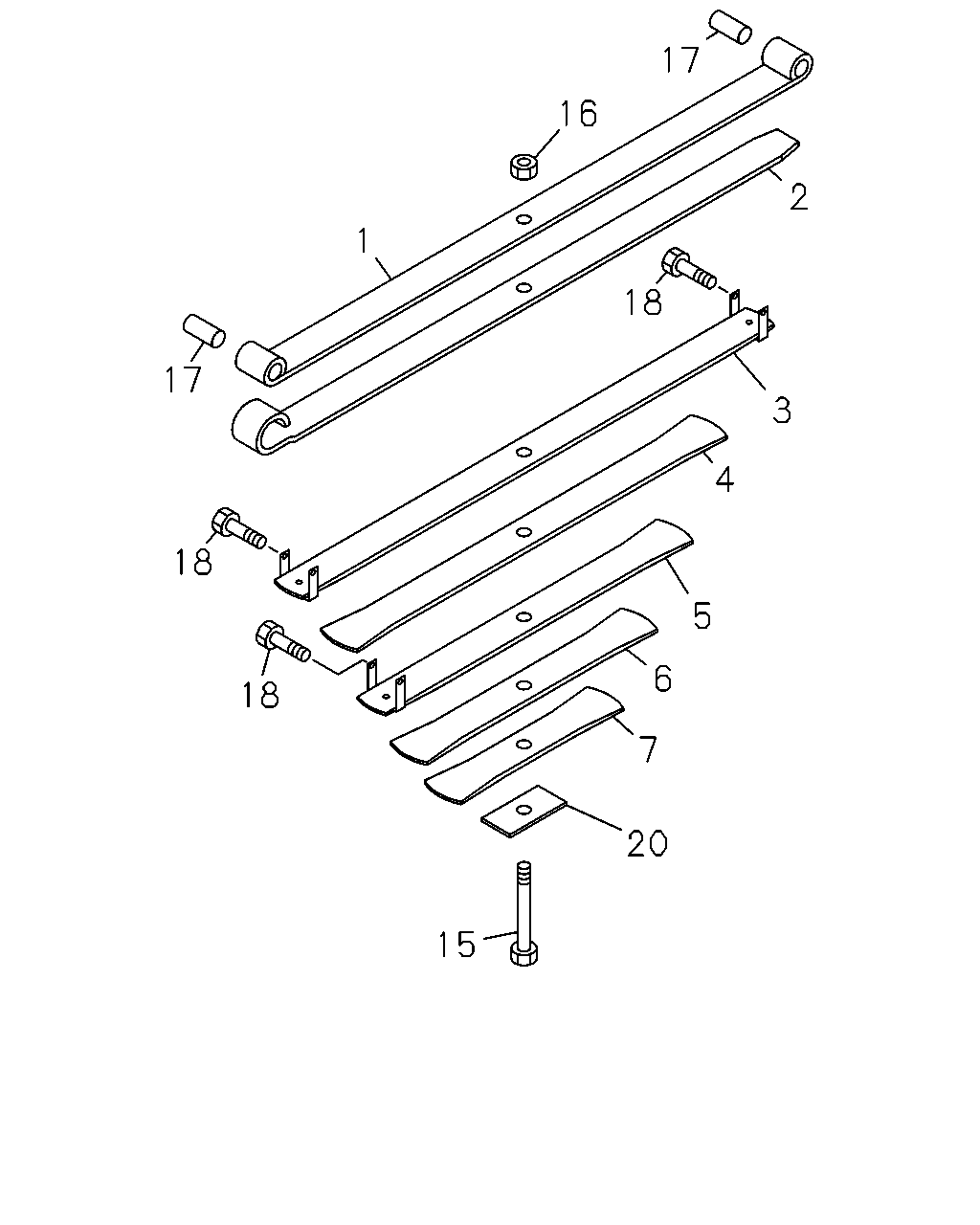

çizim 85151
17 16 2 1 18 17 3 4 18 5 6 18 7 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-364-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-510-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-365-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-511-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-366-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-512-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-367-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-513-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-368-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-514-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-369-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-515-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-370-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-516-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
PT.MUARATEWE SPRING, L=135 ASM PART: A = 8-97520-025-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
PT.INDOSPRING, L=135 ASM PART: B = 8-97520-262-0 		8-97520-385-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
PT.MUARATEWE SPRING, M16 ASM PART: A = 8-97520-025-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
PT.INDOSPRING, M16 ASM PART: B = 8-97520-262-0 		8-97520-386-0 01 1 -
17 BUSHING; LEAF SPR,FRT
PT.MUARATEWE SPRING, OD=38 ASM PART: A = 8-97520-025-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-384-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
PT.MUARATEWE SPRING, M10X99 ASM PART: A = 8-97520-025-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-390-0 03 1 -
20 SEAT; LEAF SPR,FRT
PT.MUARATEWE SPRING, T=13 ASM PART: A = 8-97520-025-0 		1-51177-181-0 01 1 -

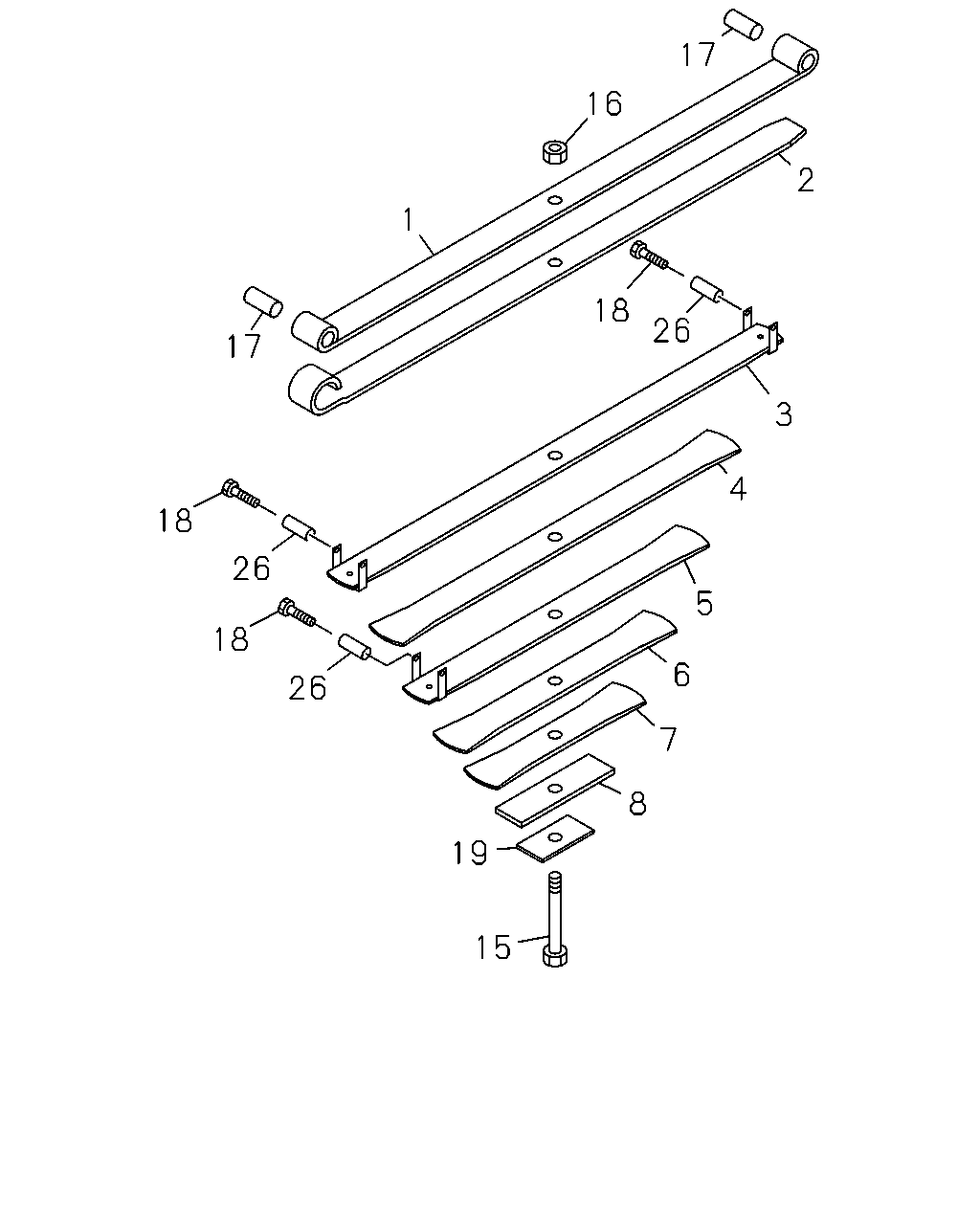

çizim 86272
17 16 2 1 18 26 17 3 4 18 26 5 18 6 26 7 8 19 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-364-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-510-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-365-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-511-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-366-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-512-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-367-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-513-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-368-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-514-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-369-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-515-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-370-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-025-0 		8-97520-516-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-371-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
PT.MUARATEWE SPRING, L=135 ASM PART: A = 8-97520-025-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
PT.INDOSPRING, L=135 ASM PART: B = 8-97520-262-0 		8-97520-385-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
PT.MUARATEWE SPRING, M16 ASM PART: A = 8-97520-025-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
PT.INDOSPRING, M16 ASM PART: B = 8-97520-262-0 		8-97520-386-0 01 1 -
17 BUSHING; LEAF SPR,FRT
PT.MUARATEWE SPRING, OD=38 ASM PART: A = 8-97520-025-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-384-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
PT.MUARATEWE SPRING, M10X99 ASM PART: A = 8-97520-025-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-390-0 03 1 -
19 SPACER; LEAF SPRING,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-392-0 01 1 -
26 PIPE; CLIP,LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-262-0 		8-97520-391-0 03 1 -
