4-36 — POWER STEERING CONTROL; ENGINE SIDE (#28522) — 34 parça

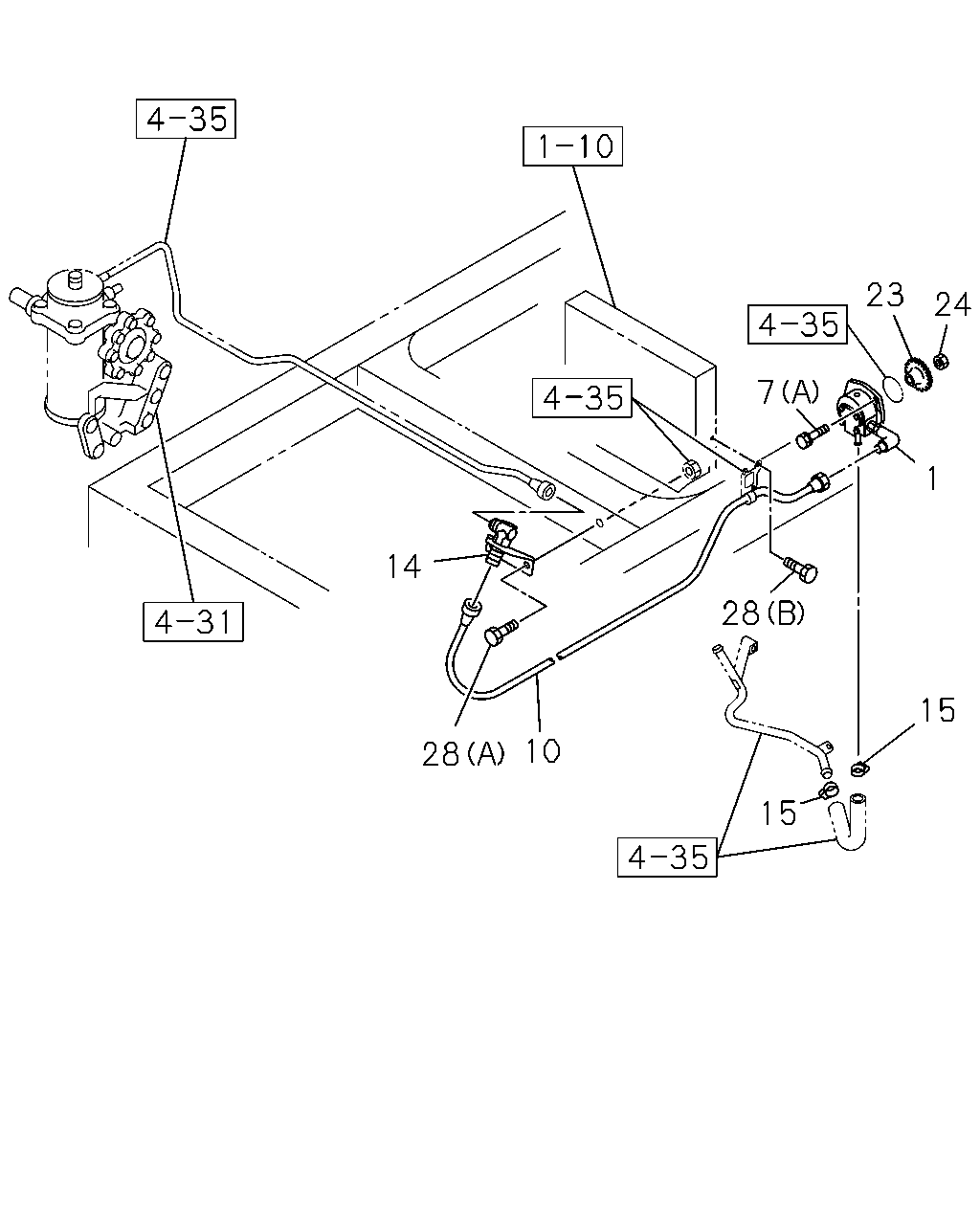

çizim 84785
23 24 7 1 14 28 15 10 28 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> 		1-19500-548-1 01 1 0311-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		1-19500-595-1 01 1 0311-1112
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-98202-668-0 01 1 1201-
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0311-
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0311-0805
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 01 1 0806-
7 BOLT; OIL PUMP,P/S
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 02 1 0311-0805
7 BOLT; OIL PUMP,P/S
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09364-983-1 01 1 0311-
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0311-
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0311-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0311-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0311-0712
24 NUT; GEAR,P/S PUMP
M14 FLANGE IDN 		0-91180-114-0 01 1 0801-
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 0311-0512
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0311-

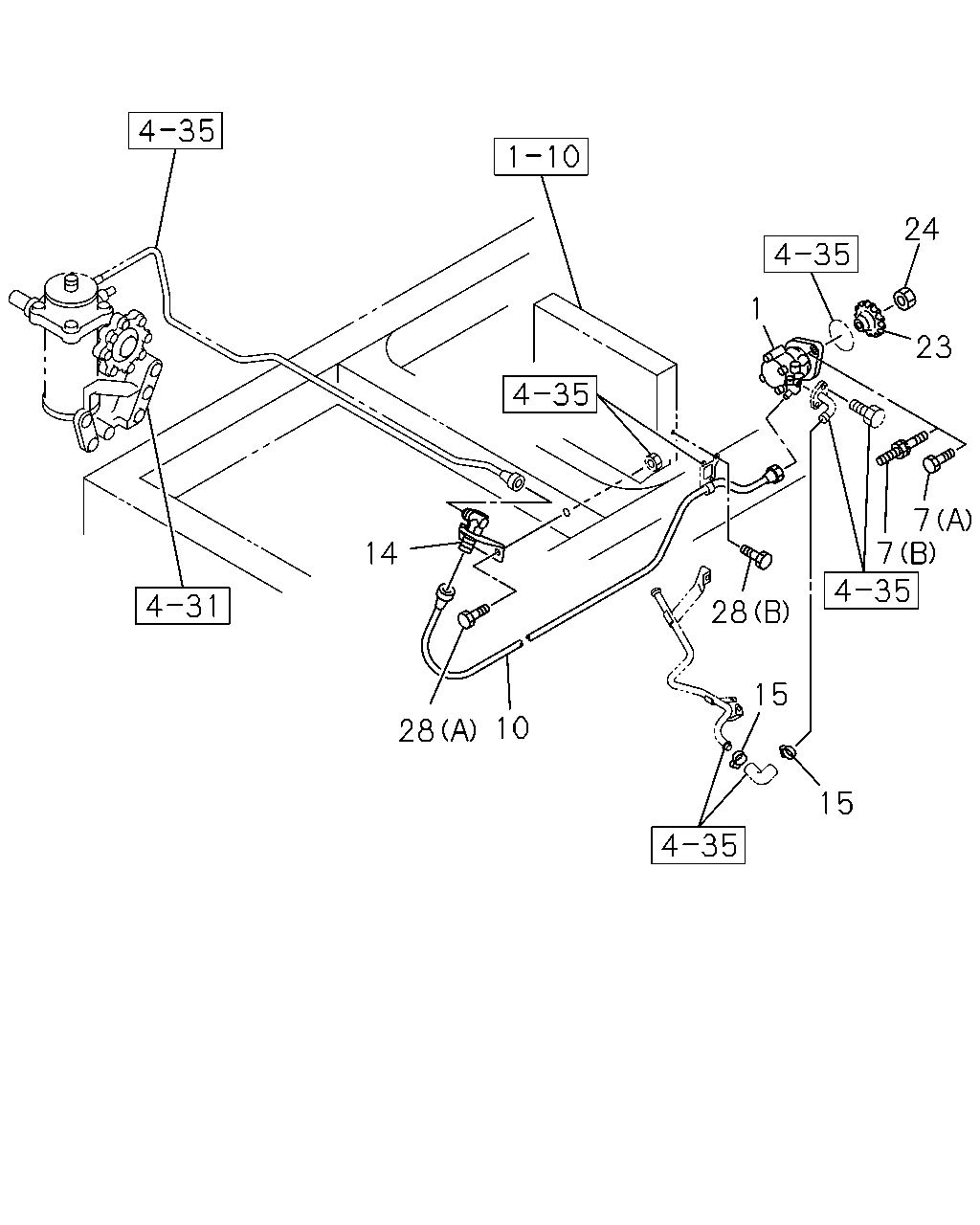

çizim 84835
24 1 23 7 7 14 28 15 10 28 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> 		1-19500-548-1 01 1 0311-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		1-19500-595-1 01 1 0311-1112
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-98202-668-0 01 1 1201-
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0311-
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0311-0805
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 01 1 0806-
7 BOLT; OIL PUMP,P/S
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 02 1 0311-0805
7 BOLT; OIL PUMP,P/S
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09364-983-1 01 1 0311-
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0311-
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0311-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0311-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0311-0712
24 NUT; GEAR,P/S PUMP
M14 FLANGE IDN 		0-91180-114-0 01 1 0801-
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 0311-0512
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0311-
