4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#28521) — 99 parça

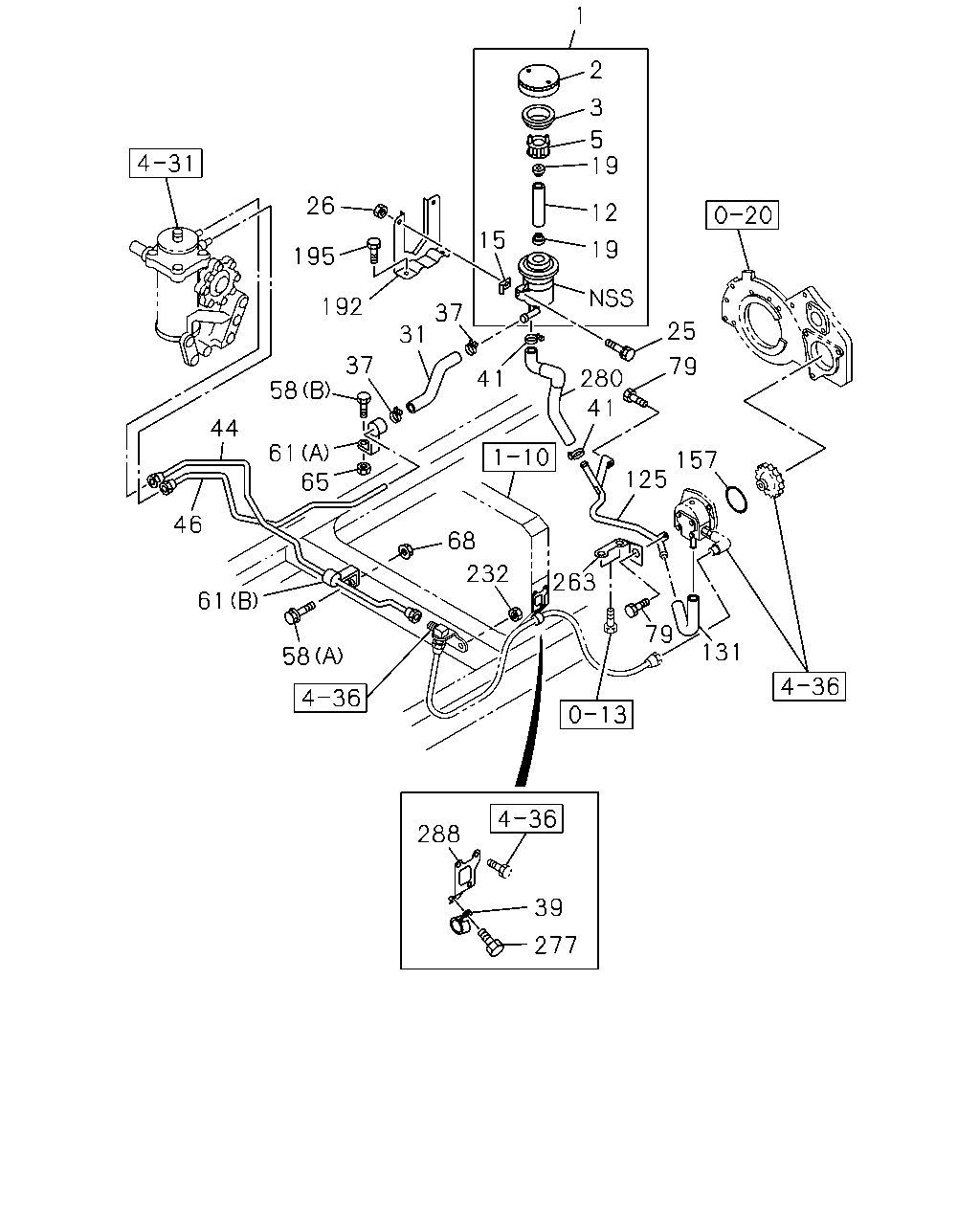

1 2 3 5 19 26 12 15 19 195 192 37 25 31 37 79 280 41 58 41 44 61 65 157 125 46 68 232 263 61 79 131 58 288 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	0311-0508
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-1006
1	TANK ASM; OIL,P/S IDN	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0311-1006
2	CAP; OIL TANK,P/S IDN	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S IDN	1-21249-003-1	01	1	0311-
5	STRAINER; OIL TANK,P/S IDN	1-21235-007-1	01	1	0311-
12	FILTER; MICROBON,OIL TANK,P/S IDN	1-21235-011-0	01	1	0311-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	0311-0508
15	PLATE; FILTER,OIL TANK IDN	1-21249-016-0	02	1	0509-
19	SEAT; OIL TANK IDN	1-21249-004-0	02	1	0311-
25	BOLT; OIL TANK BRKT M8X25 FLANGE IDN	0-28680-825-0	02	1	0311-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
31	HOSE; P/S OIL TANK,INL	1-21113-590-0	01	1	0311-
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	0311-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0311-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0311-
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-902-0	01	1	0311-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=786	1-21115-336-0	01	1	0311-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0311-0512
58	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0311-0512
58	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-
61	CLIP; OIL PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	0311-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0311-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0311-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0311-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
79	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0311-0512
79	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
125	CONNECTOR; P/S PUMP HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-584-1	01	1	0311-
125	CONNECTOR; P/S PUMP EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-97600-113-0	01	1	0311-
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0311-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	0311-
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0311-
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0311-0512
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
263	BRACKET; P/S PIPE	8-97600-117-0	01	1	0311-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0311-0512
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21116-721-0	01	1	0311-
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	0311-

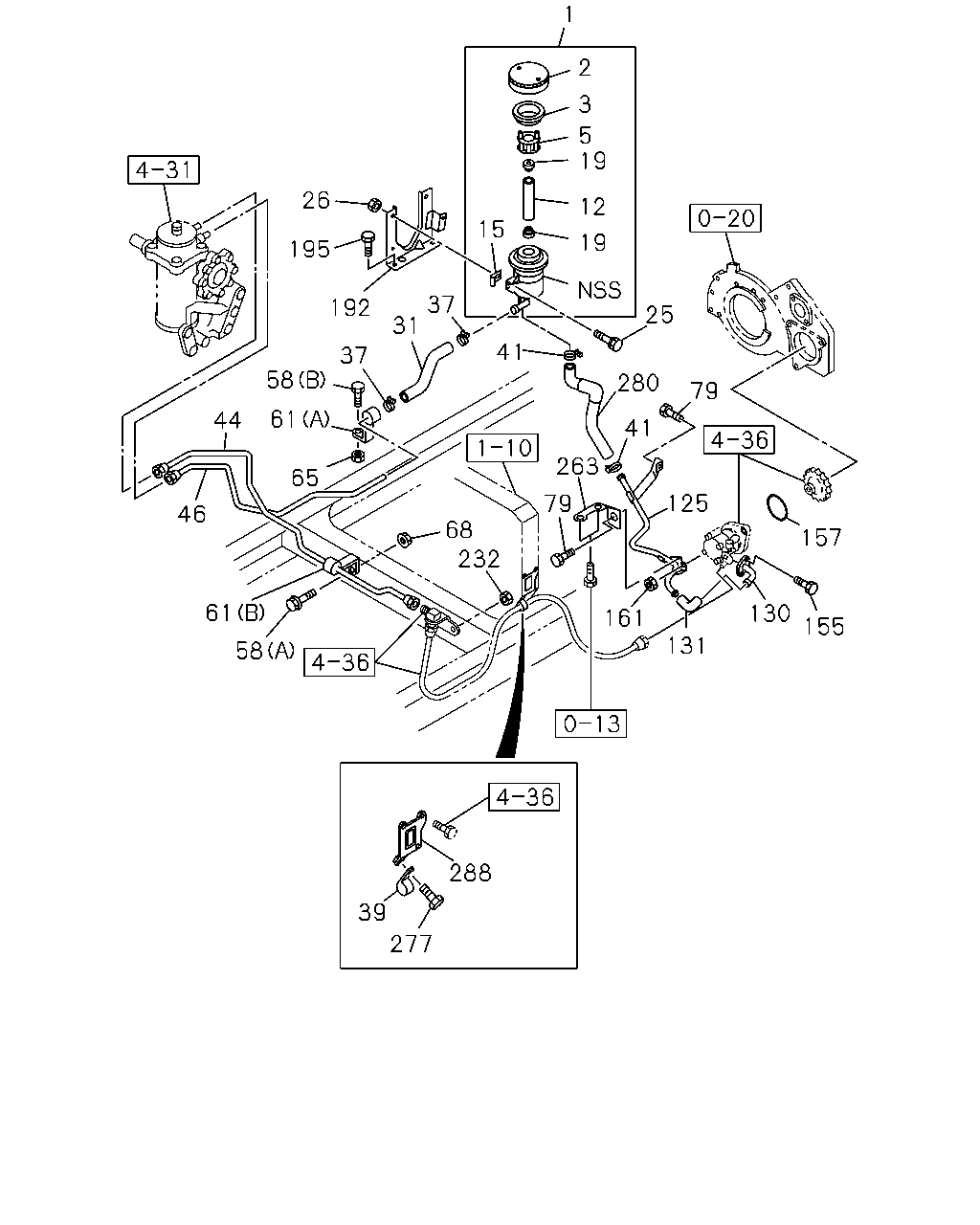

1 2 3 5 19 26 12 15 19 195 37 192 25 31 41 37 58 280 79 61 44 41 263 65 125 79 46 68 232 157 61 130 161 155 131 58 288 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	0311-0508
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-1006
1	TANK ASM; OIL,P/S IDN	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0311-1006
2	CAP; OIL TANK,P/S IDN	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S IDN	1-21249-003-1	01	1	0311-
5	STRAINER; OIL TANK,P/S IDN	1-21235-007-1	01	1	0311-
12	FILTER; MICROBON,OIL TANK,P/S IDN	1-21235-011-0	01	1	0311-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	0311-0508
15	PLATE; FILTER,OIL TANK IDN	1-21249-016-0	02	1	0509-
19	SEAT; OIL TANK IDN	1-21249-004-0	02	1	0311-
25	BOLT; OIL TANK BRKT M8X25 FLANGE IDN	0-28680-825-0	02	1	0311-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
31	HOSE; P/S OIL TANK,INL	1-21113-590-0	01	1	0311-
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	0311-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0311-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0311-
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-902-0	01	1	0311-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=786	1-21115-336-0	01	1	0311-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0311-0512
58	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0311-0512
58	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-
61	CLIP; OIL PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	0311-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0311-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0311-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0311-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
79	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0311-0512
79	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
125	CONNECTOR; P/S PUMP HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-584-1	01	1	0311-
125	CONNECTOR; P/S PUMP EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-97600-113-0	01	1	0311-
130	ADAPTER; P/S PUMP HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-583-0	01	1	0311-
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0311-
155	BOLT; CONNECTOR HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE	0-28080-816-0	02	1	0311-0512
155	BOLT; CONNECTOR HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE	0-28050-816-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	0311-
161	NUT; P/S PIPE HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91150-110-0	01	1	0311-0602
161	NUT; P/S PIPE HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91180-110-0	01	1	0603-
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0311-
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0311-0512
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
263	BRACKET; P/S PIPE	8-97600-117-0	01	1	0311-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0311-0512
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21116-721-0	01	1	0311-
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	0311-
