◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#2852) — 31 parça

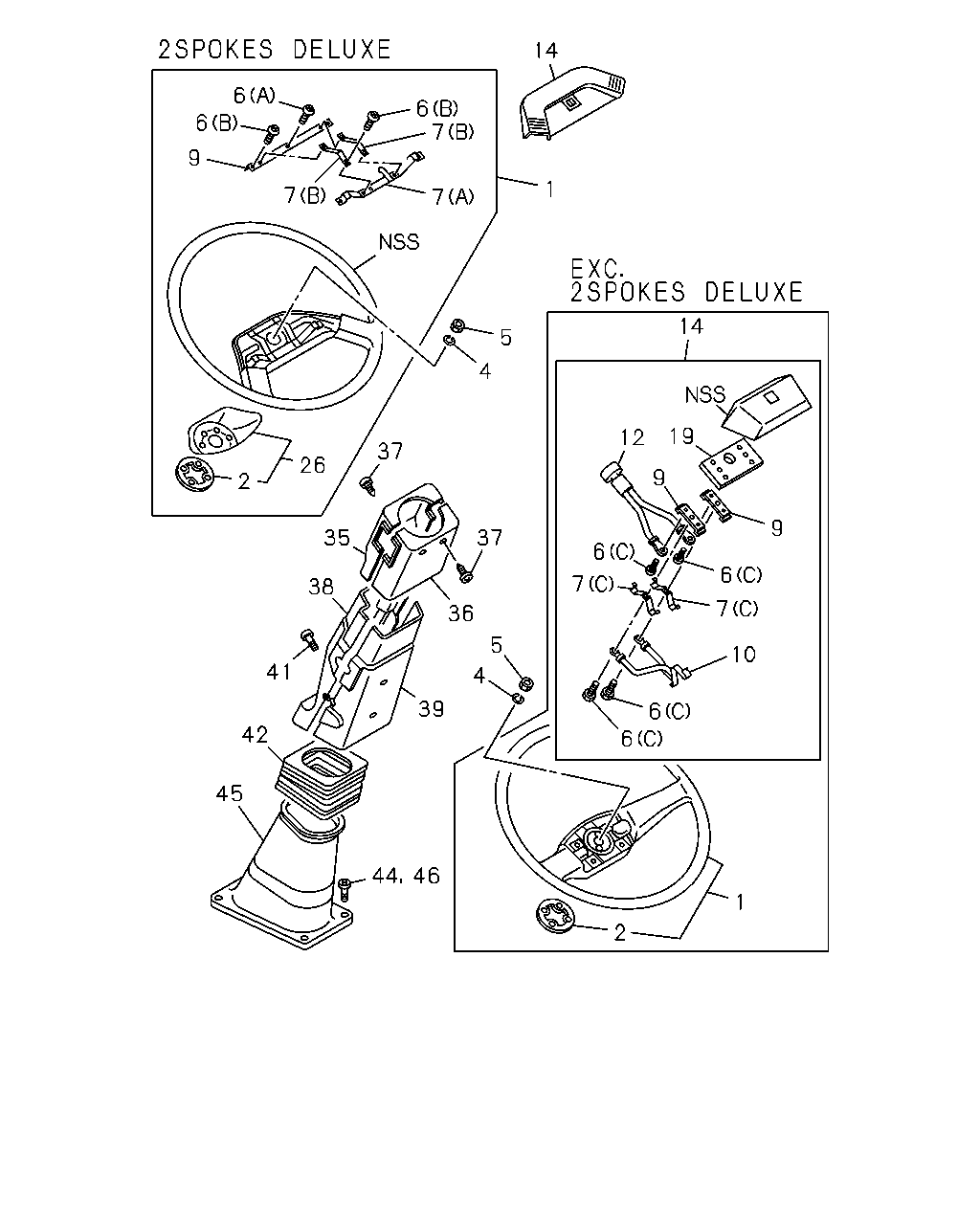

çizim 28531
1 2 46 44 45 41 42 39 36 4 5 6 6 10 9 7 6 7 6 9 19 12 14 5 4 37 37 35 38 26 2 1 14 6 7 7 7 9 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44110-064-4 01 1 9002- ● ●
1 WHEEL; STRG
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44110-048-3 01 1 9002- ● ●
2 RING; HORN CONTACT 1-44129-020-2 01 1 9002- ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9002- ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9002- ● ●
6 SCREW; HORN SPR CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (A) M4X10 		1-44129-034-0 01 1 9002- ● ●
6 SCREW; HORN SPR CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (B) 		1-44129-035-0 06 1 9002- ● ●
6 SCREW; HORN SPR CONTACT
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> (C) 		9-07076-310-0 06 1 9002- ● ●
7 SPRING; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (A) 		1-44129-032-1 01 1 9002- ● ●
7 SPRING; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (B) 		1-44129-033-0 02 1 9002- ● ●
7 SPRING; HORN CONTACT
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> (C) 		1-44129-026-0 02 1 9002- ● ●
9 PLATE; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-031-0 01 1 9002-9312 ● ●
9 PLATE; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-038-0 01 1 9401- ● ●
9 PLATE; HORN CONTACT
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44126-002-0 02 1 9002- ● ●
10 SPRING ASM; LEAD
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-027-2 01 1 9002- ● ●
12 CORD; HORN
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44127-003-0 01 1 9002- ● ●
14 BUTTON; HORN,STRG WHEEL
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44120-019-1 01 1 9002- ● ●
14 BUTTON; HORN,STRG WHEEL
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44120-016-3 01 1 9002- ● ●
19 SEAT; HORN
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-028-3 01 1 9002- ● ●
26 COVER; STRG WHEEL,LWR
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44120-021-1 01 1 9002- ● ●
35 COWL; STRG,UPR FRT 1-79997-097-3 01 1 9002- ● ●
36 COWL; STRG,UPR RR 1-79997-099-2 01 1 9002- ● ●
37 SCREW; STRG COWL UPR
M5X12 TAPPING 		9-09829-321-1 04 1 9002- ● ●
38 COWL; STRG,LWR FRT 1-79997-102-2 01 1 9002- ● ●
39 COWL; STRG,LWR RR 1-79997-106-1 01 1 9002- ● ●
41 SCREW; STRG COWL LWR
W/WASHER M6X12 W/PL WASHER 		1-09981-380-0 02 1 9002- ● ●
41 SCREW; STRG COWL LWR
WO/WASHER M6X12 		9-03494-612-0 02 1 9002- ● ●
42 BOOT; STEERING COLUMN 1-44219-044-0 01 1 9002- ● ●
44 SCREW; STRG COWL
M6X16 		1-09981-425-0 04 1 9002-9207 ● ●
45 BOOT; STRG SHAFT 1-79998-184-1 01 1 9002- ● ●
46 SCREW; STRG SHAFT BOOT
M6X16 W/PL WASHER 		1-09981-505-0 04 1 9208- ● ●
