◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07C - CLUTCH BOOSTER; MINIPACK ▶
2-07C — CLUTCH BOOSTER; MINIPACK (#28514) — 89 parça

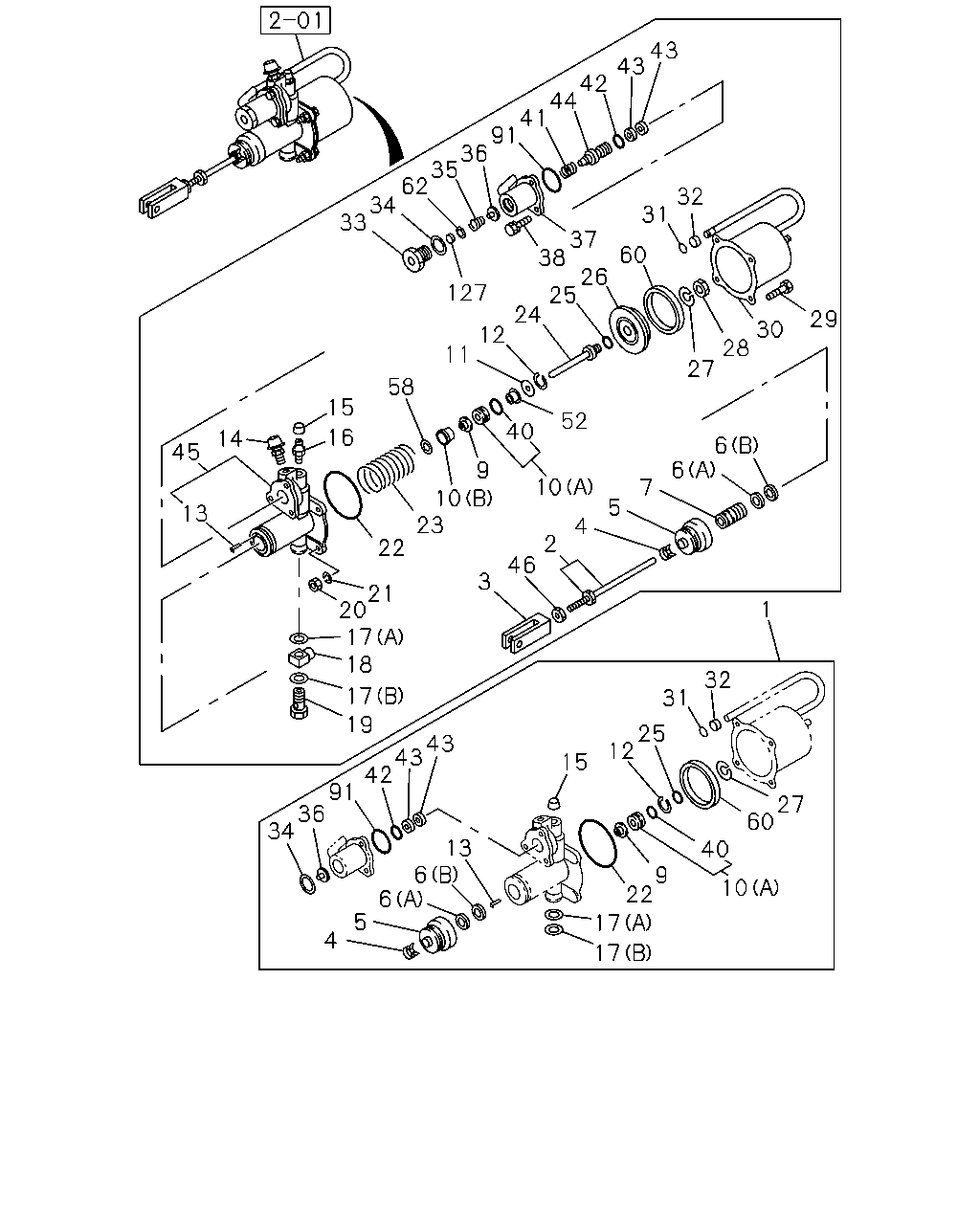

çizim 20400
43 43 42 44 41 91 36 35 62 34 33 32 31 60 26 37 38 127 25 24 12 11 29 30 28 27 52 40 9 58 15 16 14 45 13 10 23 22 21 20 17 18 17 19 3 46 2 4 5 7 6 6 10 1 32 31 25 12 15 27 60 40 10 9 22 17 17 13 6 6 5 4 43 43 42 91 36 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 REPAIR KIT; CLU BOOSTER 1-31829-330-0 01 1 0105-0106 ● ● ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0107- ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0105- ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0105- ● ● ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0105- ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0105- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0105-0106 ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0105-0106 ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 0105-0106 ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0105-0106 ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107- ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0105-0106 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107- ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0203 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0105-0106 ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0105-0106 ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107- ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0105-0106 ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0107- ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 0105-0106 ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 0107- ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0203 ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0204-0501 ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0502- ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-415-0 01 1 0105-0106 ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0105-0106 ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107- ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0105-0106 ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0105-0106 ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107- ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0105-0106 ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107- ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0105-0106 ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107- ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0105-0106 ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107- ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0105- ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0105- ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0105- ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0105- ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0105-0106 ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0107- ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0105- ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 0105-0106 ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107- ● ● ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0105- ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0105- ● ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0105- ● ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 0105-0106 ● ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107- ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0105- ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0105- ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0105-0106 ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0107- ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0105-0106 ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107- ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0105-0106 ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0105-0106 ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-014-0 01 1 0105-0106 ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0107- ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0105-0106 ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0105-0106 ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107- ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-104-0 01 1 0105-0106 ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0107- ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0105- ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0105- ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0105- ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0105-0106 ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0106- ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107-0501 ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502- ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0105-0106 ● ● ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107- ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-301-0 01 1 0105-0106 ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 0105-0106 ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107- ● ● ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0105-0106 ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107- ● ● ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ● ● ● ●
