2-07A — CLUTCH BOOSTER; MINIPACK (#28512) — 108 parça

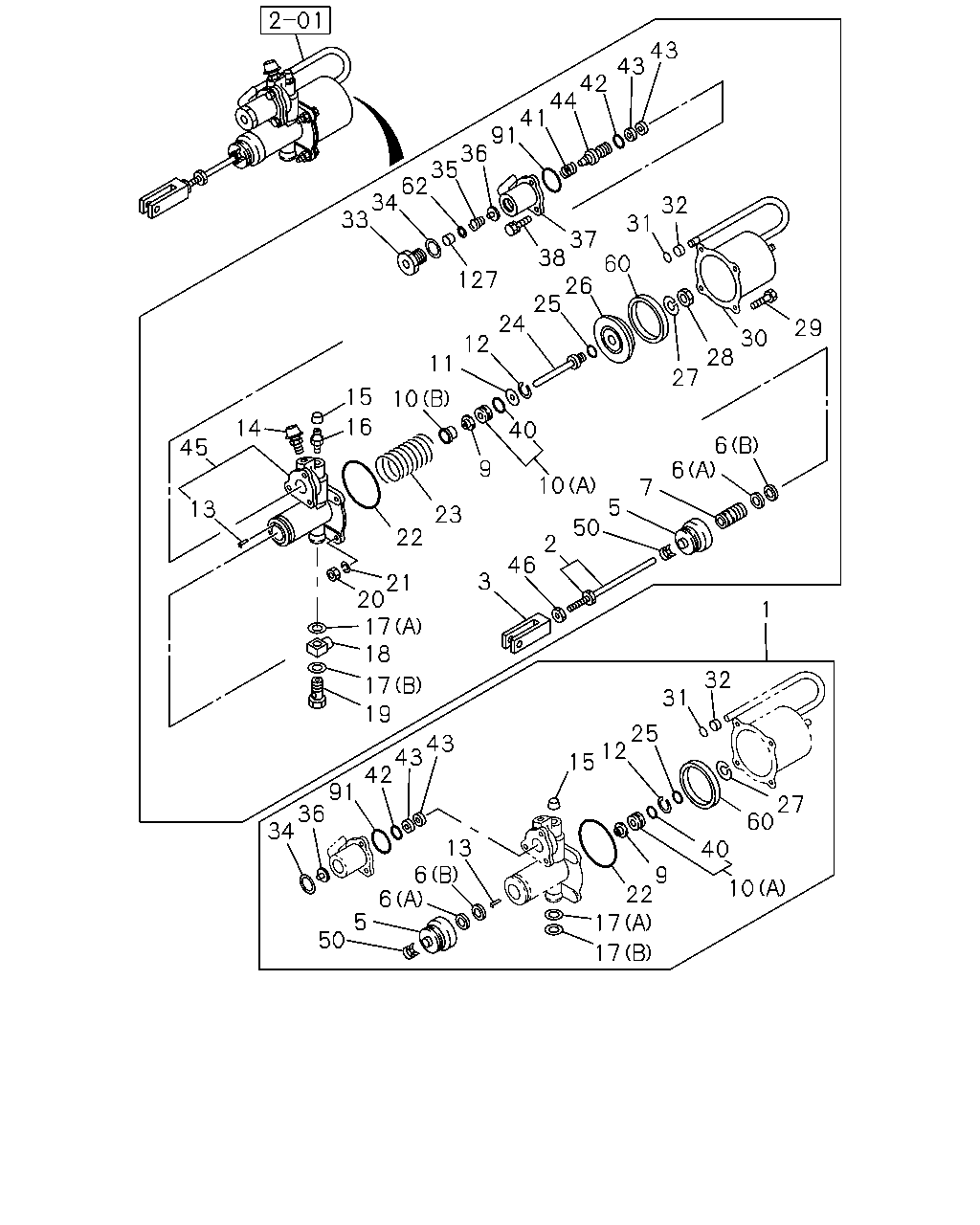

çizim 20823
17 17 10 27 60 40 9 22 1 32 31 25 12 15 13 6 6 5 50 43 43 42 91 36 34 19 17 18 17 20 21 3 46 2 50 5 7 6 6 22 23 9 40 10 27 28 30 29 16 15 14 45 13 10 11 12 24 25 26 60 32 31 37 38 127 43 43 42 44 41 91 36 35 62 34 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-500-0 01 1 0105-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-500-0 01 1 0107- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0105-0106 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0107-0501 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0502- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0105-0106 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0105-0106 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0107- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0105-0106 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0105-0106 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0105-0106 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0105-0106 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0105-0106 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0105-0106 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0203 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0105-0106 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0105-0106 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0107- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0105-0106 ●
13 PIN; SPR 1-31829-109-0 01 1 0107- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0502- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0105-0106 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0203 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0204-0501 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0105-0106 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0105-0106 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0105-0106 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0105-0106 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0105-0106 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0105-0106 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0105-0106 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0105-0106 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0105-0106 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0105-0106 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0107- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0105-0106 ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0107- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0105-0106 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0105-0106 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0107- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0105-0106 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0105-0106 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0105-0106 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0105-0106 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0107- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0105-0106 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0105-0106 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0105-0106 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0107- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0105-0106 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0105-0106 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0105-0106 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0105-0106 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0105-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0105-0106 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0105-0106 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0107-0501 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0502- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0105-0106 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0105-0106 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0105-0106 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0105-0106 ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0107- ● ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0105-0106 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0501 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0105-0106 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0107- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0105-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0107- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0105-0106 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0105-0106 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0105-0106 ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ● ●
