Sayfa 2-05 - Isuzu EPC

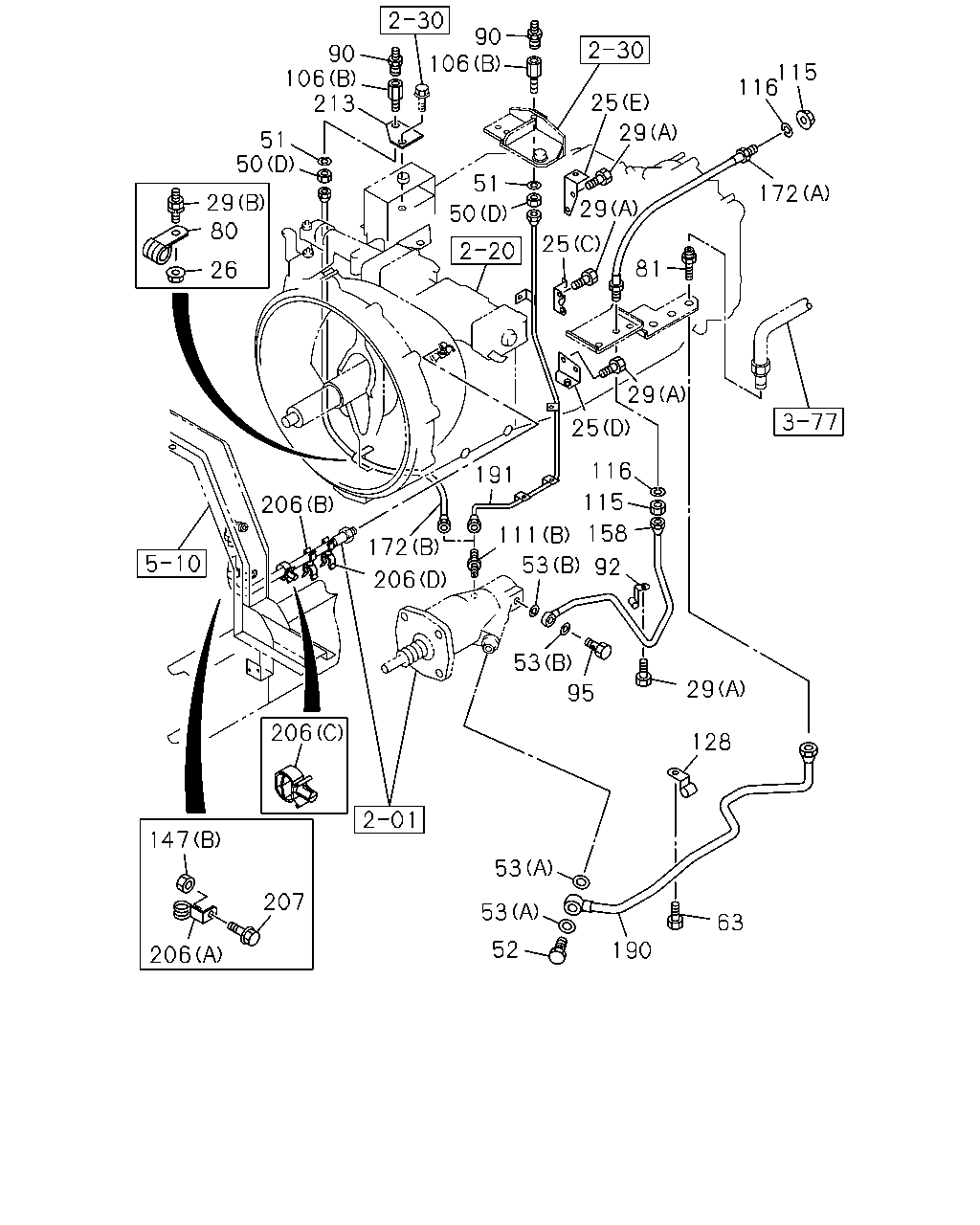

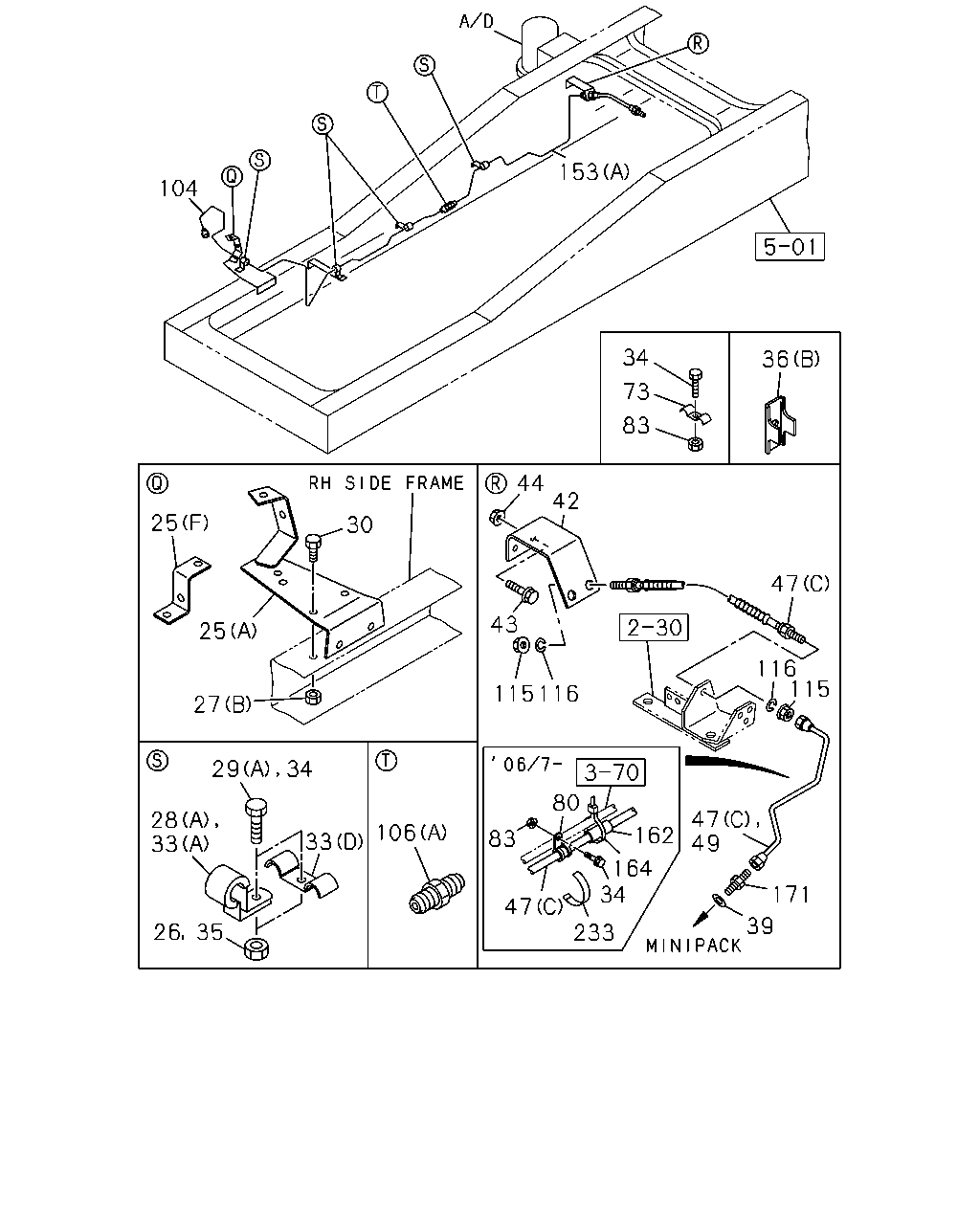

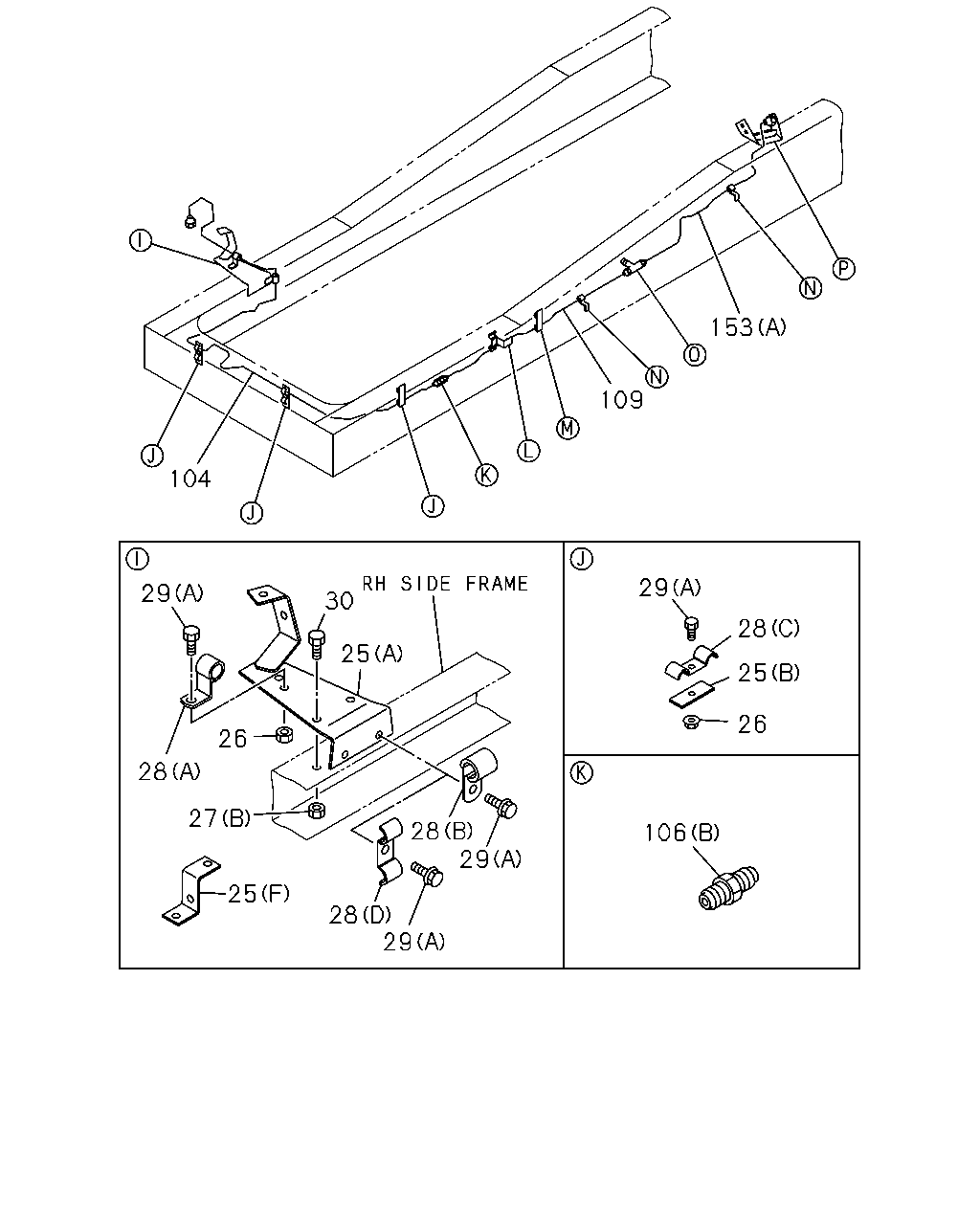

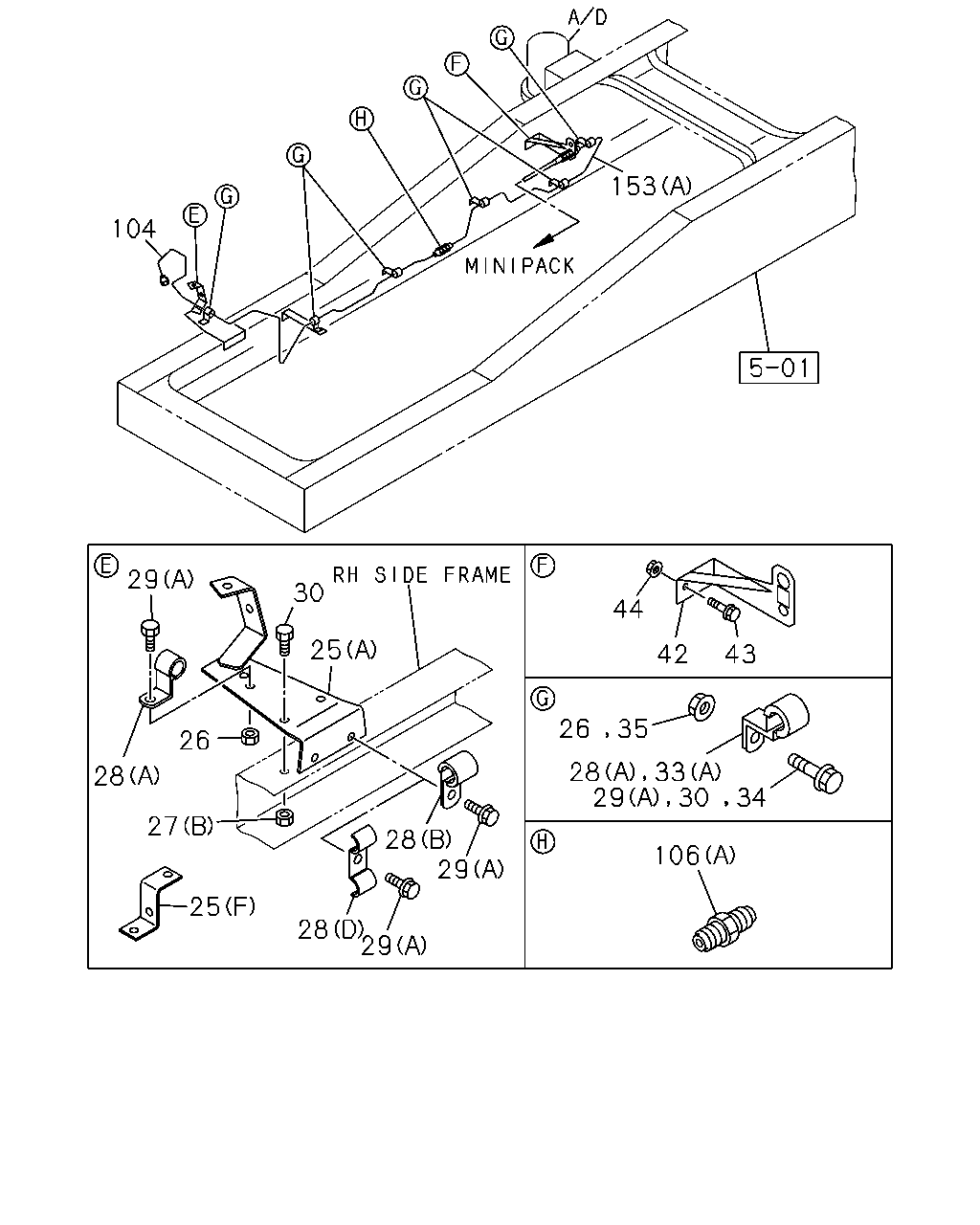

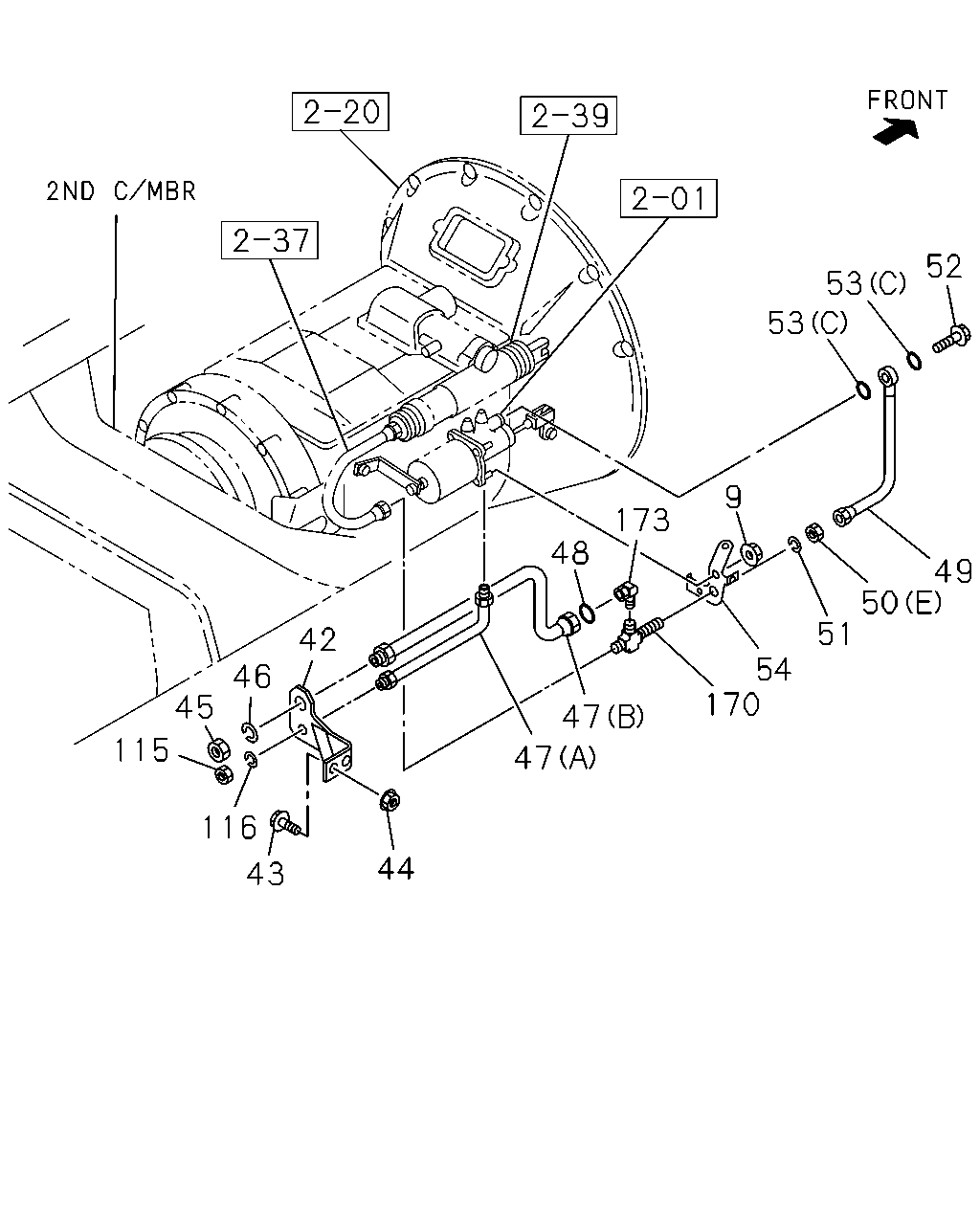

2-05 — CLUTCH PIPING (#28511) — 667 parça

104 153 36 34 73 83 42 44 47 115 116 116 115 43 30 25 25 27 47 49 171 39 80 83 47 162 164 34 233 106 33 34 29 28 33 35 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE (F)	1-47477-653-0	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE CAB UP +110MM<TGG> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-0106
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-0105
28	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=9 L=20	9-09524-835-0	01	1	0106-0106
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0105
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0105-0106
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	03	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28050-816-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	04	1	0105-0106
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0105-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0105-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47475-420-1	01	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0105-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) L=580	0-07806-580-1	01	1	0109-
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=640	1-09365-155-0	01	1	0109-
47	HOSE; FLEX,CLU CONT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A)	0-07806-630-1	01	1	0109-
47	HOSE; FLEX,CLU CONT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (B) L=670	1-09365-179-0	01	1	0109-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU) (A) L=660	0-07806-660-1	01	1	0109-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU) (B) L=700	1-09364-456-0	01	1	0109-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=500	1-09364-546-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0108
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0109-0605
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> (A) L=560	0-57806-560-1	01	1	0606-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=600	1-09364-705-0	01	1	0105-0108
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> (B) L=600	1-09364-705-0	01	1	0109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ISUZU M/T<X9A> L=293	1-49117-734-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0105-0606
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0607-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	0105-0512
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	01	1	0601-0606
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0607-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1595	1-49165-436-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2889	1-49164-483-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-0106
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1753 SERVICED BY L=1800	1-47426-392-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> ZF M/T<X9E> (A) L=962	1-49165-241-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0105-
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0607-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0105-
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0607-

115 116 29 25 172 90 106 90 106 213 51 50 29 80 26 51 50 29 25 81 29 25 116 115 191 206 172 206 111 158 53 92 53 95 29 128 63 190 52 53 53 207 206 147 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE (F)	1-47477-653-0	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0105
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0105-0106
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
50	NUT; UNION ISUZU M/T<X9A> (E) M20	9-99111-420-0	01	1	0105-0512
50	NUT; UNION ISUZU M/T<X9A> (E) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-0106
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-0106
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0107-0603
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-0106
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0107-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-0106
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0107-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-0106
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0105-0106
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	01	1	0601-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0607-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0105-0106
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0107-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0105-0106
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0107-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-0606
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	0-95234-865-0	01	1	0607-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0107-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-0106
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-0106
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0107-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0107-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0107-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0107-0107
206	CLIP; TUBE 6WF1 TC-C(1B8) ZF M/T<X9E> (D) ID=13 & 21	8-94417-626-0	01	1	0108-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

153 104 30 25 29 26 28 27 28 29 29 28 25 44 42 43 34 30 33 29 28 35 26 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE (F)	1-47477-653-0	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE CAB UP +110MM<TGG> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-0106
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-0105
28	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=9 L=20	9-09524-835-0	01	1	0106-0106
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0105
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0105-0106
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	03	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28050-816-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	04	1	0105-0106
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47475-420-1	01	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0105-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1595	1-49165-436-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2889	1-49164-483-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-0106
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1753 SERVICED BY L=1800	1-47426-392-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> ZF M/T<X9E> (A) L=962	1-49165-241-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0105-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	0105-
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A>,FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-801-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1595	1-49165-436-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2889	1-49164-483-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1753 SERVICED BY L=1800	1-47426-392-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> ZF M/T<X9E> (A) L=962	1-49165-241-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0105-
167	BRACKET; UNION	1-71117-183-3	01	1	0105-

34 30 31 32 33 29 34 33 32 50 111 34 29 33 35 172 116 115 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0105
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0105-0106
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0602
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (A) L=50	1-47475-299-2	01	1	0105-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47475-881-0	01	1	0105-0106
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47477-669-1	01	1	0107-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	03	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28050-816-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	04	1	0105-0106
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
50	NUT; UNION ISUZU M/T<X9A> (E) M20	9-99111-420-0	01	1	0105-0512
50	NUT; UNION ISUZU M/T<X9A> (E) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-0106
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-0106
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1753 SERVICED BY L=1800	1-47426-392-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> ZF M/T<X9E> (A) L=962	1-49165-241-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0107-

1 180 184 133 50 153 1 56 175 10 17 50 22 103 24 167 187 192 102 153 186 147 185 66 67 67 58 57 58 27 36 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	0105-
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A>,FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0105-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0105-
50	NUT; UNION ISUZU M/T<X9A> (E) M20	9-99111-420-0	01	1	0105-0512
50	NUT; UNION ISUZU M/T<X9A> (E) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-0106
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
56	BRACKET; FLEX HOSE	1-47477-801-0	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1753 SERVICED BY L=1800	1-47426-392-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> ZF M/T<X9E> (A) L=962	1-49165-241-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0105-
167	BRACKET; UNION	1-71117-183-3	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0105-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0105-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0105-
187	SEAL; BRKT	1-71117-222-0	01	1	0105-
192	PLATE	1-71117-221-0	01	1	0105-

52 53 53 49 50 51 54 170 9 173 48 47 47 42 46 45 44 43 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G) M10 FLANGE	0-91150-210-0	02	1	0105-0106
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0107-0602
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJD7S M/T(Y2Y) M10 FLANGE	0-91180-210-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47475-420-1	01	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0105-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-0512
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> M20	0-91111-520-0	01	1	0601-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) L=580	0-07806-580-1	01	1	0109-
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=640	1-09365-155-0	01	1	0109-
47	HOSE; FLEX,CLU CONT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A)	0-07806-630-1	01	1	0109-
47	HOSE; FLEX,CLU CONT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (B) L=670	1-09365-179-0	01	1	0109-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU) (A) L=660	0-07806-660-1	01	1	0109-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU) (B) L=700	1-09364-456-0	01	1	0109-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=500	1-09364-546-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0108
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0109-0605
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> (A) L=560	0-57806-560-1	01	1	0606-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=600	1-09364-705-0	01	1	0105-0108
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> (B) L=600	1-09364-705-0	01	1	0109-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ISUZU M/T<X9A> L=293	1-49117-734-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0105-0606
50	NUT; UNION ISUZU M/T<X9A> (E) M20	9-99111-420-0	01	1	0105-0512
50	NUT; UNION ISUZU M/T<X9A> (E) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-0106
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-0106
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0107-0603
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-0106
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0107-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-0106
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0107-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-0106
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G)	1-47477-284-1	01	1	0105-0106
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G),MJD7S M/T(Y2Y)	1-47477-284-1	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
170	UNION; AIR PIPE ISUZU M/T<X9A>	1-09656-640-0	01	1	0105-
173	CONNECTOR ISUZU M/T<X9A> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-

153 109 104 29 30 25 26 28 27 25 28 28 29 29 29 28 25 26 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE (F)	1-47477-653-0	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE CAB UP +110MM<TGG> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-0106
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-0105
28	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=9 L=20	9-09524-835-0	01	1	0106-0106
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0105
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0105-0106
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1595	1-49165-436-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2889	1-49164-483-0	01	1	0105-0105
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-0106
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0107-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0106
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1753 SERVICED BY L=1800	1-47426-392-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> ZF M/T<X9E> (A) L=962	1-49165-241-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
