◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#2851) — 809 parça

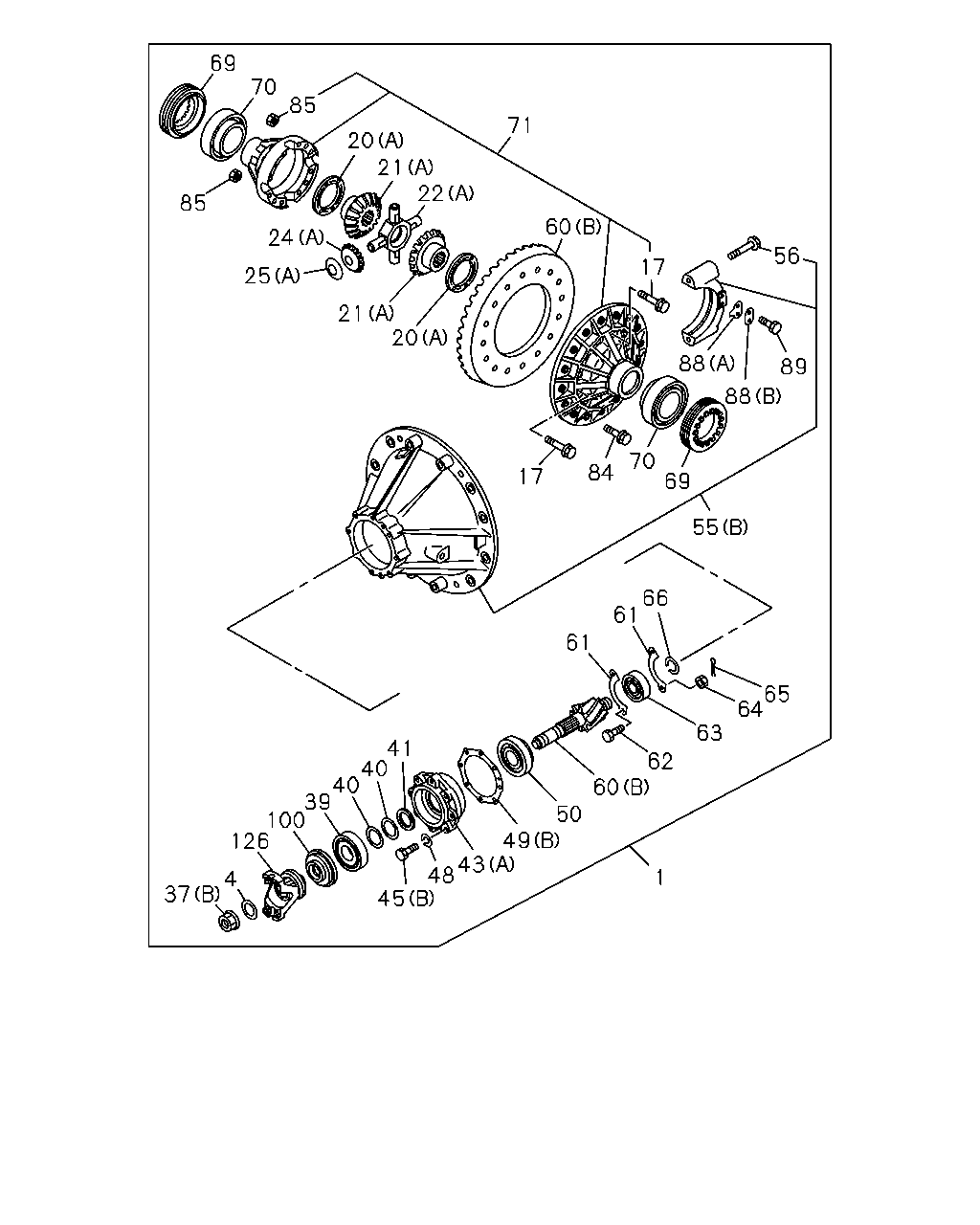

çizim 27190
1 45 49 43 48 50 60 62 63 64 65 66 61 61 41 40 40 39 100 126 4 37 17 84 70 69 55 89 88 88 56 17 60 71 20 21 25 24 85 22 21 20 85 70 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 43/6 		1-41001-390-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/6 		1-41001-497-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/6 		1-41001-566-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6 		1-41000-829-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6 		1-41001-564-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
FORWARD 45/7 		1-41000-804-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 45/7 		1-41001-391-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/7 		1-41001-424-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/7 		1-41001-605-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7 		1-41000-803-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7 		1-41001-652-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/7 		1-41001-426-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/7 		1-41001-558-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7 		1-41000-802-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7 		1-41001-556-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-430-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-614-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41000-800-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41001-656-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41001-397-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41001-434-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41001-362-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41001-363-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41001-562-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/6 		1-41001-290-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/6 		1-41001-568-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41001-499-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41001-287-0 01 1 9002-9306 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9002- ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9002-9602 ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9603- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 9002-9306 ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9002- ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9307- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-112-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-113-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-114-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-115-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-116-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-117-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-118-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-120-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-121-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-122-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-123-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-124-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-125-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-126-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.7 		1-41562-127-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.8 		1-41562-128-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.9 		1-41562-129-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.0 		1-41562-130-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.1 		1-41562-131-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.2 		1-41562-132-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.3 		1-41562-133-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.4 		1-41562-134-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) 		1-41561-036-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-037-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9002- ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9307- ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-019-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9002- ● ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-1 01 1 9307- ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-016-0 04 1 9002-9306 ● ● ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9002- ● ● ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9307- ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9002- ● ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 9002-9306 ● ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9307- ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 FLANGE 		1-09449-043-1 01 1 9002- ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-074-1 01 1 9603- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-030-0 01 1 9002- ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=56 		1-41151-035-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=53 		1-41151-053-0 01 1 9307- ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		9-91656-655-0 08 1 9002-9005 ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9006- ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X45 		9-92361-645-0 08 1 9002-9207 ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9208- ● ● ● ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-030-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-031-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-054-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-055-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9307- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-1 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9603- ● ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-071-1 01 1 9002-9602 ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-037-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9307- ● ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9603- ● ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9002- ● ● ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-293-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-437-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-472-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/6 		1-41210-406-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/6 		1-41210-461-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 45/7 		1-41210-287-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 45/7 		1-41210-433-0 01 1 9209-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-407-1 01 1 9002-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-308-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-440-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-475-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-408-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-464-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-291-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-436-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-476-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-409-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-465-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-306-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-443-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-478-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-411-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-467-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-41210-383-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-41210-441-0 01 1 9209-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/9 		1-41210-413-1 01 1 9002-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-402-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-434-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-481-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-414-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-470-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-381-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-435-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-473-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-416-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-462-0 01 1 9311- ●
61 RETAINER; PILOT BRG,PINION 1-41227-003-0 04 1 9002-9204 ● ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 9205- ● ● ● ● ● ● ● ●
62 BOLT; RET 9-01145-838-0 04 1 9002-9005 ● ● ● ● ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 04 1 9006-9204 ● ● ● ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9205- ● ● ● ● ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-182-0 02 1 9002- ● ● ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9002- ● ● ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 04 1 9002- ● ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9002- ● ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9002- ● ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 02 1 9002- ● ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 02 1 9002- ● ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 04 1 9002- ● ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 04 1 9002- ● ● ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9002- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 02 1 9002- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9002- ● ● ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9002- ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9002- ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9002- ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		9-02040-816-0 08 1 9002-9204 ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9205- ● ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9002- ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-09625-030-0 01 1 9002-9312 ●
126 COUPLING; DRIVING PINION 1-37245-225-1 01 1 9002- ● ● ● ● ● ● ● ●

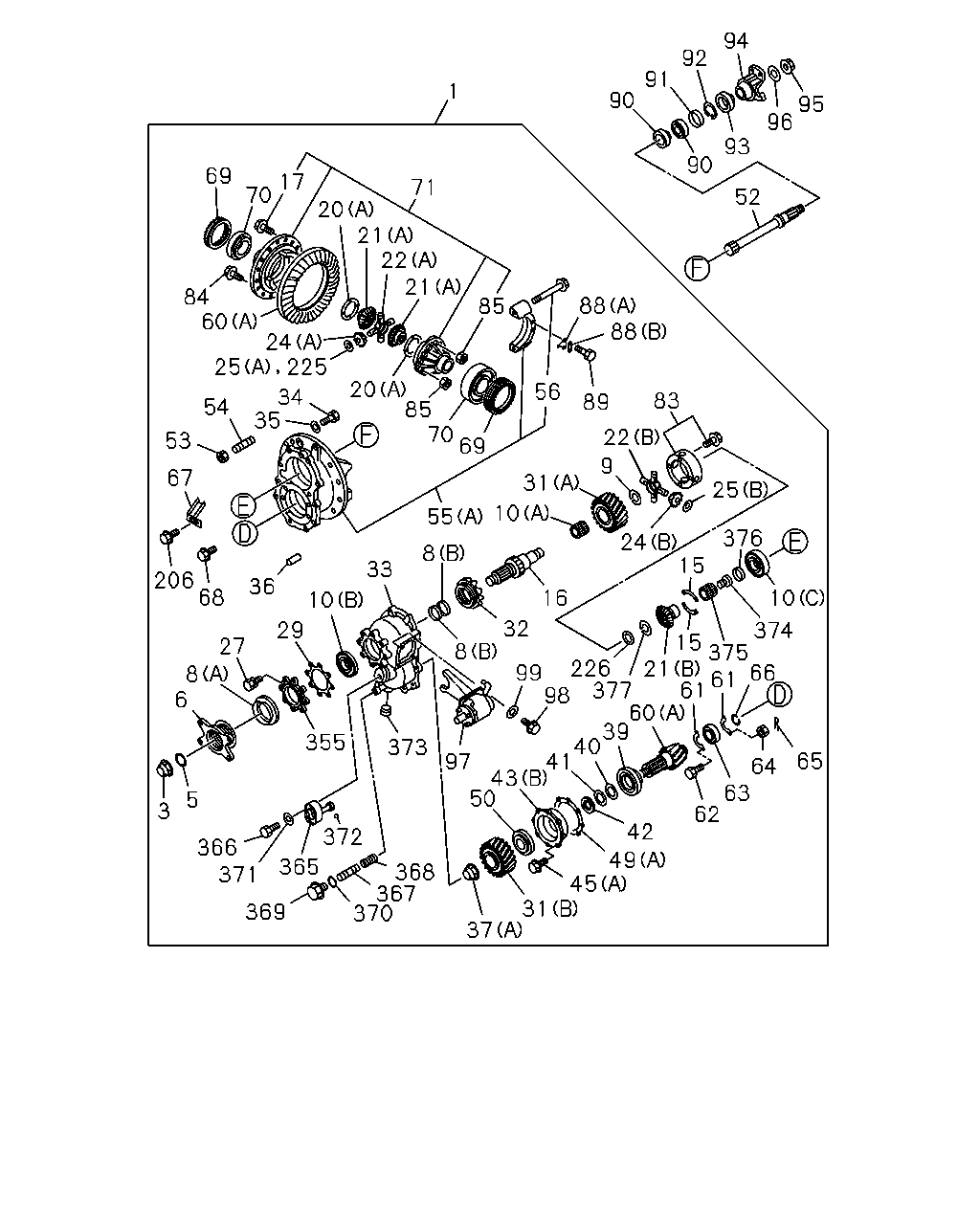

çizim 28836
37 31 42 49 45 62 63 64 65 66 61 61 60 39 40 41 43 50 368 367 370 369 371 366 372 355 373 97 98 99 8 5 3 6 8 27 29 36 68 206 10 33 8 55 10 32 16 226 377 21 15 15 375 376 10 374 25 24 31 9 22 83 89 56 88 88 85 69 70 85 20 34 35 54 53 67 25 225 24 60 84 69 17 70 71 20 21 22 21 1 90 91 92 94 95 96 93 90 52 365
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 43/6 		1-41001-390-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/6 		1-41001-497-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/6 		1-41001-566-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6 		1-41000-829-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6 		1-41001-564-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
FORWARD 45/7 		1-41000-804-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 45/7 		1-41001-391-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/7 		1-41001-424-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/7 		1-41001-605-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7 		1-41000-803-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7 		1-41001-652-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/7 		1-41001-426-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/7 		1-41001-558-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7 		1-41000-802-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7 		1-41001-556-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-430-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-614-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41000-800-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41001-656-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41001-397-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41001-434-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41001-362-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41001-363-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41001-562-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/6 		1-41001-290-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/6 		1-41001-568-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41001-499-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41001-287-0 01 1 9002-9306 ●
3 NUT; INPUT SHAFT
M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ● ● ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ● ● ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 9002- ● ● ● ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> 		1-37245-143-2 01 1 9002-9306 ● ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> 		1-37245-211-2 01 1 9002-9306 ● ● ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> 		1-37245-267-2 01 1 9307- ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> 		1-37245-265-2 01 1 9307- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 9002- ● ● ● ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 9307- ● ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09587-058-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09800-173-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) KOYO 		1-09800-174-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) KOYO 		1-09811-346-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) KOYO 		1-09812-182-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) KOYO 		1-09812-198-0 01 1 9307- ● ● ● ● ● ●
15 CATCHER; OIL 1-41349-028-1 01 1 9002-9306 ● ● ● ● ● ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 9307- ● ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41340-046-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 9307- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9002-9602 ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9603- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 9002-9306 ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9002- ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9307- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-112-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-113-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-114-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-115-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-116-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-117-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-118-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-120-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-121-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-122-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-123-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-124-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-125-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-126-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.7 		1-41562-127-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.8 		1-41562-128-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.9 		1-41562-129-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.0 		1-41562-130-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.1 		1-41562-131-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.2 		1-41562-132-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.3 		1-41562-133-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.4 		1-41562-134-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) 		1-41561-036-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-037-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9002- ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9307- ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-019-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9002- ● ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-1 01 1 9307- ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-016-0 04 1 9002-9306 ● ● ● ● ● ● ● ●

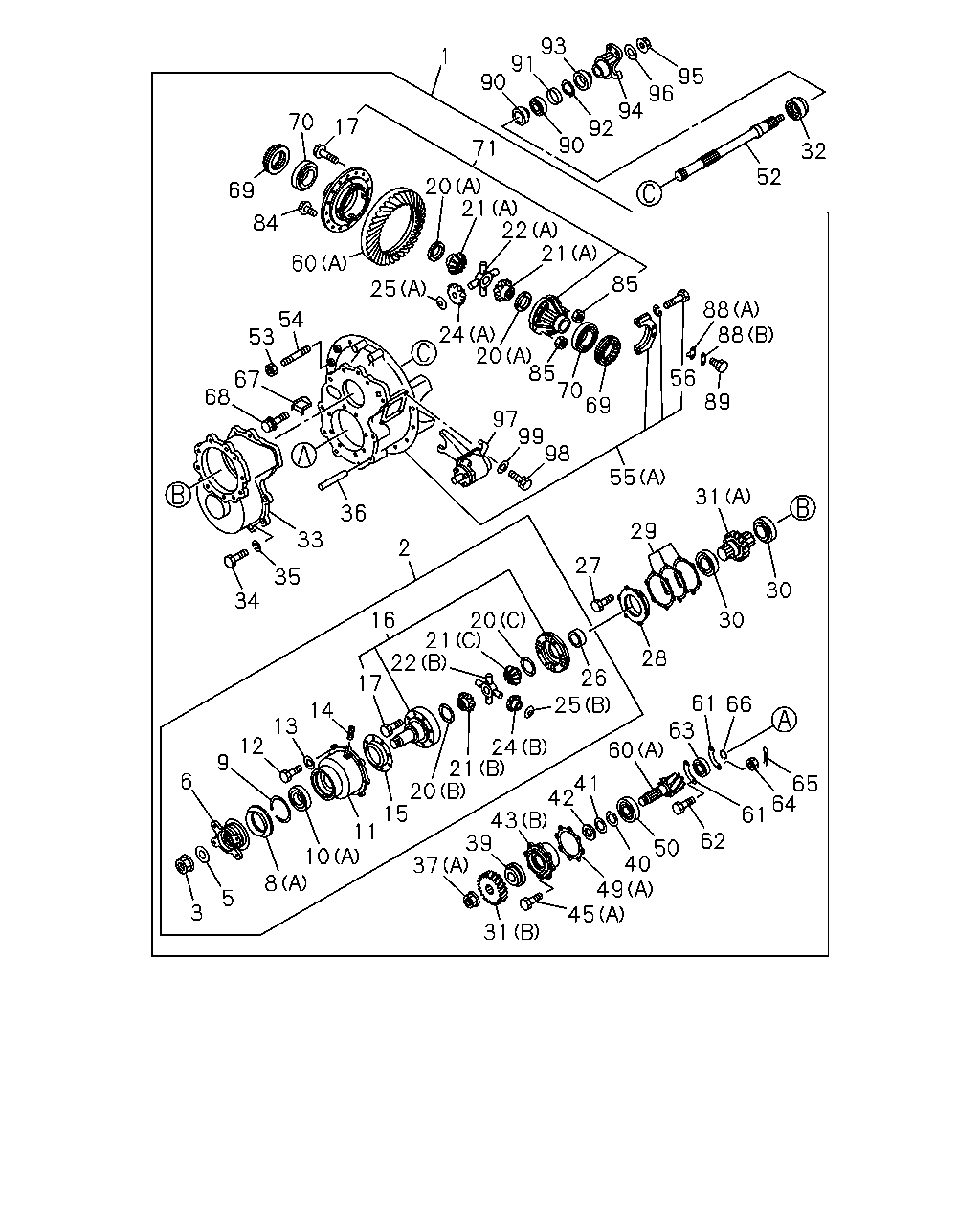

24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9002- ● ● ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9307- ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9002- ● ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 9002-9306 ● ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9307- ● ● ● ● ● ● ● ●
27 BOLT; BRG RET
M8X22 HEX SOCKET 		9-05820-822-0 02 1 9002-9306 ● ● ● ● ● ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=1.00 		1-41355-029-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41355-030-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.20 		1-41355-031-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.15 		1-41355-032-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=1.00 		1-41349-149-0 AR 1 9307- ● ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=31 		1-41351-025-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 9002- ● ● ● ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 9307- ● ● ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41356-002-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 9307- ● ● ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-013-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 9307- ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		9-92351-440-0 02 1 9002-9005 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 02 1 9006-9306 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X45 		9-92351-445-0 08 1 9002-9005 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X45 		0-23801-445-0 08 1 9006-9306 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 10 1 9307- ● ● ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-514-0 10 1 9002-9306 ● ● ● ● ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 9307- ● ● ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 9002- ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 FLANGE 		1-09449-043-1 01 1 9002- ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-074-1 01 1 9603- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-030-0 01 1 9002- ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=56 		1-41151-035-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=53 		1-41151-053-0 01 1 9307- ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		9-91656-655-0 08 1 9002-9005 ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9006- ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X45 		9-92361-645-0 08 1 9002-9207 ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9208- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-030-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-031-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-054-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-055-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9307- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-1 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9603- ● ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-009-1 01 1 9002-9306 ● ● ● ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 9307- ● ● ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 02 1 9002- ● ● ● ● ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 02 1 9002- ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-071-1 01 1 9002-9602 ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-037-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9307- ● ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9603- ● ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9002- ● ● ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-293-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-437-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-472-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/6 		1-41210-406-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/6 		1-41210-461-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 45/7 		1-41210-287-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 45/7 		1-41210-433-0 01 1 9209-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-407-1 01 1 9002-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-308-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-440-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-475-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-408-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-464-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-291-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-436-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-476-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-409-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-465-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-306-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-443-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-478-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-411-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-467-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-41210-383-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-41210-441-0 01 1 9209-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/9 		1-41210-413-1 01 1 9002-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-402-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-434-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-481-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-414-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-470-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-381-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-435-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-473-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-416-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-462-0 01 1 9311- ●
61 RETAINER; PILOT BRG,PINION 1-41227-003-0 04 1 9002-9204 ● ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 9205- ● ● ● ● ● ● ● ●
62 BOLT; RET 9-01145-838-0 04 1 9002-9005 ● ● ● ● ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 04 1 9006-9204 ● ● ● ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9205- ● ● ● ● ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-182-0 02 1 9002- ● ● ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9002- ● ● ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 04 1 9002- ● ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9002- ● ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9002- ● ● ● ● ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-001-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 9307- ● ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X16 		9-01970-816-0 02 1 9002-9005 ● ● ● ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 9006-9306 ● ● ● ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 9307- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 02 1 9002- ● ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 02 1 9002- ● ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 04 1 9002- ● ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 04 1 9002- ● ● ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9002- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 02 1 9002- ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 9307- ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9002- ● ● ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9002- ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9002- ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9002- ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		9-02040-816-0 08 1 9002-9204 ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9205- ● ● ● ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 9002- ● ● ● ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
KOYO 		1-09812-069-0 02 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 9002- ● ● ● ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 9002- ● ● ● ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 9002- ● ● ● ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 9002- ● ● ● ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 9002- ● ● ● ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 9002- ● ● ● ● ● ● ● ●

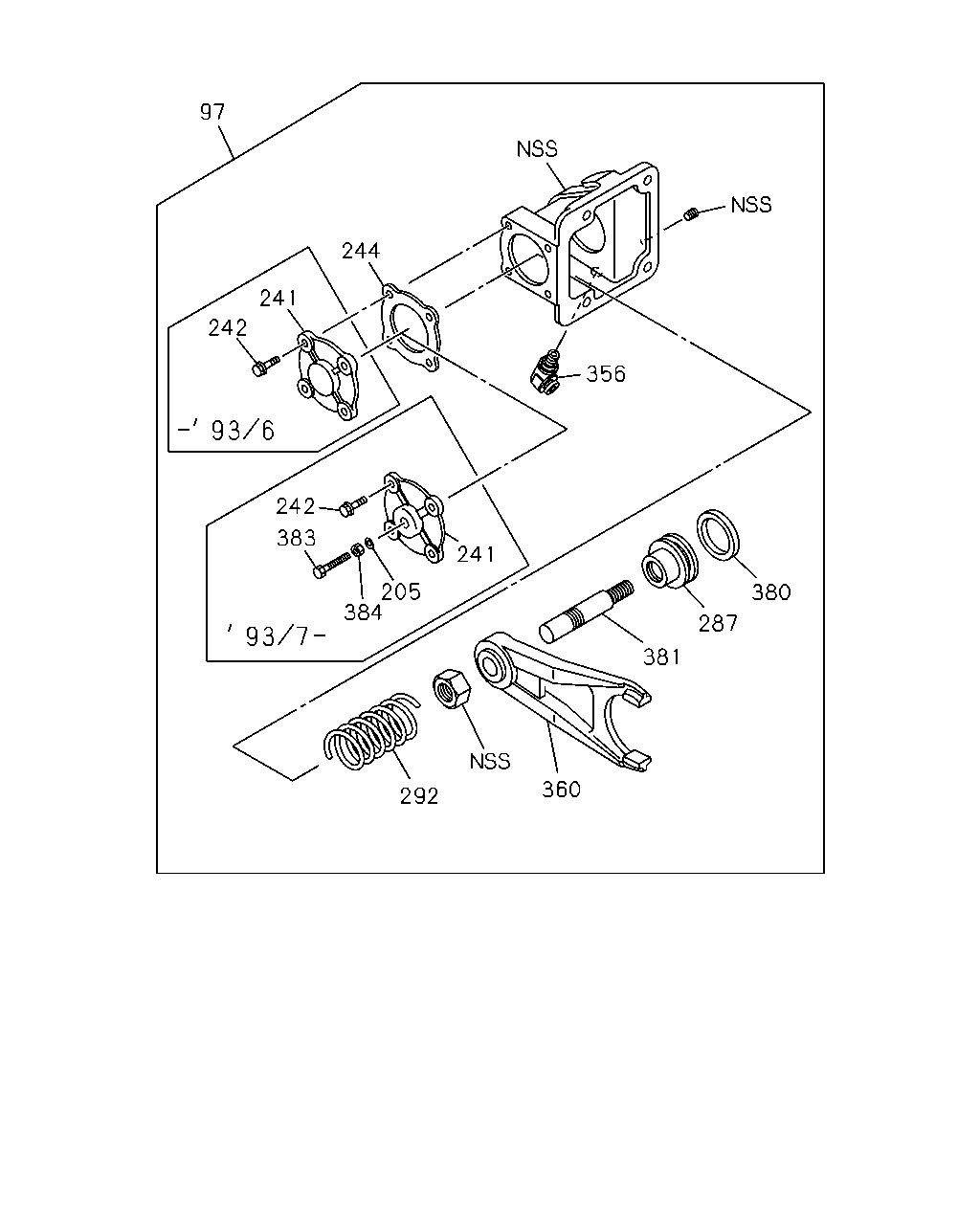

97 SHIFT UNIT; DIFF LOCK 1-48260-035-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-052-1 01 1 9307- ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X55 		9-01656-055-0 01 1 9002-9004 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X55 		0-16806-055-0 01 1 9005-9409 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 9410- ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 W/LK WASHER 		9-01931-025-0 03 1 9002-9002 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 W/LK WASHER 		0-50051-025-0 03 1 9003-9409 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 9410- ● ● ● ● ● ● ● ●
99 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9002-9409 ● ● ● ● ● ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-1 AR 1 9307- ● ● ● ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-1 AR 1 9307- ● ● ● ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 9307- ● ● ● ● ● ●
355 RETAINER; BRG 1-41227-011-0 01 1 9307- ● ● ● ● ● ●
365 PUMP ASM; OIL 1-41381-008-0 01 1 9307- ● ● ● ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 9307- ● ● ● ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 9307- ● ● ● ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 9307- ● ● ● ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 9307- ● ● ● ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 9307- ● ● ● ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		9-09150-808-0 04 1 9307- ● ● ● ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 9307- ● ● ● ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 9307- ● ● ● ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 9307- ● ● ● ● ● ●
375 BEARING; SIDE GEAR
KOYO 		1-09811-348-0 01 1 9307- ● ● ● ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 9307- ● ● ● ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 9307- ● ● ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 9307- ● ● ● ● ● ●
çizim 29284
31 45 50 40 49 61 62 65 64 66 61 63 60 41 42 43 39 37 3 5 8 10 11 15 20 21 24 26 25 30 28 30 31 29 55 27 20 21 22 16 2 17 14 13 12 9 6 34 35 33 36 68 67 53 54 97 99 98 89 56 88 88 85 69 70 85 20 24 25 60 84 69 70 17 1 91 90 93 71 20 21 22 21 52 32 95 96 94 92 90
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 43/6 		1-41001-390-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/6 		1-41001-497-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/6 		1-41001-566-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6 		1-41000-829-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6 		1-41001-564-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
FORWARD 45/7 		1-41000-804-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 45/7 		1-41001-391-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/7 		1-41001-424-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 43/7 		1-41001-605-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7 		1-41000-803-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7 		1-41001-652-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/7 		1-41001-426-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/7 		1-41001-558-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7 		1-41000-802-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7 		1-41001-556-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-430-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-614-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41000-800-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41001-656-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41001-397-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41001-434-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41001-362-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41001-363-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41001-562-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/6 		1-41001-290-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/6 		1-41001-568-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41001-499-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41001-287-0 01 1 9002-9306 ●
2 DIFF ASM; INTER,FINAL
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> 		1-41320-018-0 01 1 9002-9306 ● ● ● ● ● ●
2 DIFF ASM; INTER,FINAL
P115 PROP SHAFT<C5X> 		1-41320-026-0 01 1 9002-9306 ● ● ● ● ● ● ●
3 NUT; INPUT SHAFT
M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ● ● ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ● ● ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 9002- ● ● ● ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> 		1-37245-143-2 01 1 9002-9306 ● ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> 		1-37245-211-2 01 1 9002-9306 ● ● ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> 		1-37245-267-2 01 1 9307- ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> 		1-37245-265-2 01 1 9307- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 9002- ● ● ● ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 9307- ● ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09587-058-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09800-173-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) KOYO 		1-09800-174-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) KOYO 		1-09811-346-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) KOYO 		1-09812-182-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 9307- ● ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) KOYO 		1-09812-198-0 01 1 9307- ● ● ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41323-011-1 01 1 9002-9306 ● ● ● ● ● ● ● ●
12 BOLT; COVER TO CASE
M12X55 		9-01656-255-0 08 1 9002-9005 ● ● ● ● ● ● ● ●
12 BOLT; COVER TO CASE
M12X55 		0-16806-255-0 08 1 9006-9306 ● ● ● ● ● ● ● ●
13 WASHER; COVER TO CASE
ID=12.2 		9-09150-512-0 08 1 9002-9306 ● ● ● ● ● ● ● ●
14 PLUG; FILLER
PT1/2 		9-09204-521-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
15 CATCHER; OIL 1-41349-028-1 01 1 9002-9306 ● ● ● ● ● ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 9307- ● ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41340-046-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 9307- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9002-9602 ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9603- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 9002-9306 ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9002- ● ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9307- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-112-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-113-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-114-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-115-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-116-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-117-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-118-0 AR 1 9002- ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-120-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-121-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-122-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-123-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-124-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-125-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-126-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.7 		1-41562-127-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.8 		1-41562-128-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.9 		1-41562-129-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.0 		1-41562-130-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.1 		1-41562-131-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.2 		1-41562-132-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.3 		1-41562-133-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.4 		1-41562-134-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) 		1-41561-036-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-037-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9002- ● ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9307- ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-019-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9002- ● ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-1 01 1 9307- ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-016-0 04 1 9002-9306 ● ● ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9002- ● ● ● ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9307- ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9002- ● ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 9002-9306 ● ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9307- ● ● ● ● ● ● ● ●
26 BUSHING; DIFF CAGE 1-41519-006-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
27 BOLT; BRG RET
M8X22 HEX SOCKET 		9-05820-822-0 02 1 9002-9306 ● ● ● ● ● ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 9307- ● ● ● ● ● ●
28 RETAINER; BRG,DRIVE GEAR 1-41353-011-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=1.00 		1-41355-029-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41355-030-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.20 		1-41355-031-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.15 		1-41355-032-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 9307- ● ● ● ● ● ●
29 SHIM; BRG RET
T=1.00 		1-41349-149-0 AR 1 9307- ● ● ● ● ● ●
30 BEARING; TAPER ROLLER
NSK 		1-09812-161-0 02 1 9002-9306 ● ● ● ● ● ● ● ●
30 BEARING; TAPER ROLLER
KOYO 		1-09812-162-0 02 1 9002-9306 ● ● ● ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=31 		1-41351-025-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 9002- ● ● ● ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 9307- ● ● ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41356-002-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 9307- ● ● ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-013-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 9307- ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		9-92351-440-0 02 1 9002-9005 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 02 1 9006-9306 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X45 		9-92351-445-0 08 1 9002-9005 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X45 		0-23801-445-0 08 1 9006-9306 ● ● ● ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 10 1 9307- ● ● ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-514-0 10 1 9002-9306 ● ● ● ● ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 9307- ● ● ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 9002- ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 FLANGE 		1-09449-043-1 01 1 9002- ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9603- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-074-1 01 1 9603- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9002- ● ● ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-030-0 01 1 9002- ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=56 		1-41151-035-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=53 		1-41151-053-0 01 1 9307- ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		9-91656-655-0 08 1 9002-9005 ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9006- ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X45 		9-92361-645-0 08 1 9002-9207 ● ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9208- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-030-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-031-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-054-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-055-0 AR 1 9002-9306 ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9002- ● ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9307- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9307- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-0 02 1 9002-9602 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-1 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9603- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9603- ● ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-009-1 01 1 9002-9306 ● ● ● ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 9307- ● ● ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 02 1 9002- ● ● ● ● ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 02 1 9002- ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-071-1 01 1 9002-9602 ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-037-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9307- ● ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9603- ● ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9002- ● ● ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-293-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-437-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-472-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/6 		1-41210-406-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/6 		1-41210-461-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 45/7 		1-41210-287-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 45/7 		1-41210-433-0 01 1 9209-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-407-1 01 1 9002-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-308-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-440-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-475-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-408-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-464-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-291-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-436-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-476-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-409-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-465-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-306-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-443-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-478-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-411-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-467-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-41210-383-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-41210-441-0 01 1 9209-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/9 		1-41210-413-1 01 1 9002-9306 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-402-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-434-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-481-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-414-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-470-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-381-1 01 1 9002-9208 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-435-0 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-473-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-416-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-462-0 01 1 9311- ●
61 RETAINER; PILOT BRG,PINION 1-41227-003-0 04 1 9002-9204 ● ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 9205- ● ● ● ● ● ● ● ●
62 BOLT; RET 9-01145-838-0 04 1 9002-9005 ● ● ● ● ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 04 1 9006-9204 ● ● ● ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9205- ● ● ● ● ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-182-0 02 1 9002- ● ● ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9002- ● ● ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 04 1 9002- ● ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9002- ● ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9002- ● ● ● ● ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-001-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 9307- ● ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X16 		9-01970-816-0 02 1 9002-9005 ● ● ● ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 9006-9306 ● ● ● ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 9307- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 02 1 9002- ● ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 02 1 9002- ● ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 04 1 9002- ● ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 04 1 9002- ● ● ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9002- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 02 1 9002- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9002- ● ● ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9002- ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9002- ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9002- ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		9-02040-816-0 08 1 9002-9204 ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9205- ● ● ● ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 9002- ● ● ● ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
KOYO 		1-09812-069-0 02 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 9002- ● ● ● ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 9002- ● ● ● ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 9002- ● ● ● ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 9002- ● ● ● ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 9002- ● ● ● ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 9002- ● ● ● ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 9002- ● ● ● ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-035-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-052-1 01 1 9307- ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X55 		9-01656-055-0 01 1 9002-9004 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X55 		0-16806-055-0 01 1 9005-9409 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 9410- ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 W/LK WASHER 		9-01931-025-0 03 1 9002-9002 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 W/LK WASHER 		0-50051-025-0 03 1 9003-9409 ● ● ● ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 9410- ● ● ● ● ● ● ● ●
99 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9002-9409 ● ● ● ● ● ● ● ●
çizim 93652
380 381 360 292 384 205 241 383 242 356 244 97 241 242 287
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
97 SHIFT UNIT; DIFF LOCK 1-48260-035-2 01 1 9002-9306 ● ● ● ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-052-1 01 1 9307- ● ● ● ● ● ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 9307- ● ● ● ● ● ●
241 COVER; SHIFT HSG 1-48266-011-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 9307- ● ● ● ● ● ●
242 BOLT; COVER
M8X20 		9-02040-820-0 04 1 9002-9210 ● ● ● ● ● ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 9211- ● ● ● ● ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 9002- ● ● ● ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-011-0 01 1 9002-9210 ● ● ● ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 9211-9306 ● ● ● ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-011-1 01 1 9307- ● ● ● ● ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 9002- ● ● ● ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
M20 & PT1/4 ELBOW 		1-48269-012-0 01 1 9002- ● ● ● ● ● ● ● ●
360 FORK; SHIFT 1-48269-063-0 01 1 9002-9306 ● ● ● ● ● ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 9307- ● ● ● ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 9002- ● ● ● ● ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 9002- ● ● ● ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 M10X45 		0-20801-045-0 01 1 9307- ● ● ● ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 9307- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
