◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#28504) — 122 parça

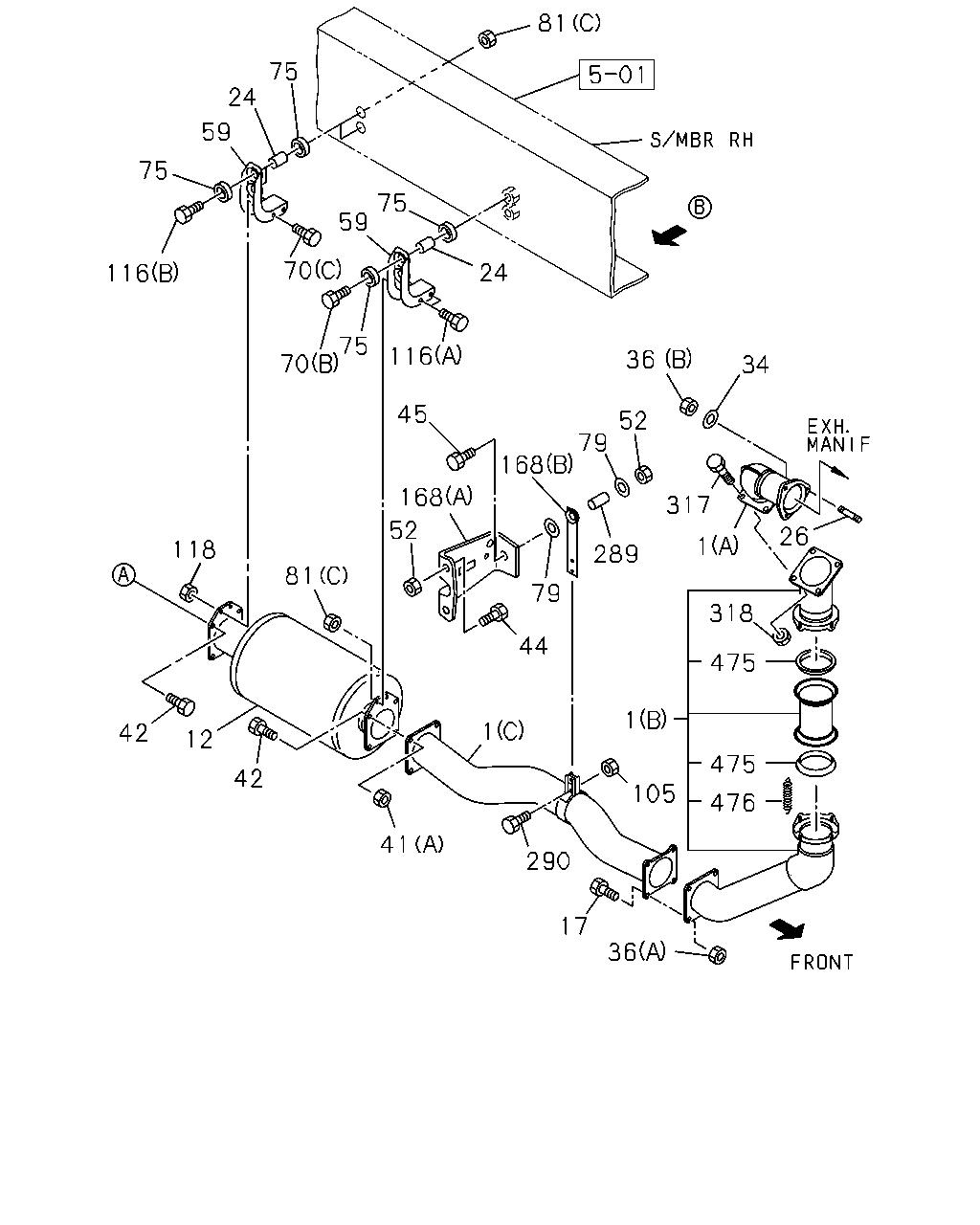

çizim 20738
81 75 24 59 75 116 75 59 70 75 24 116 70 45 36 34 52 79 168 168 52 317 289 26 318 475 475 476 79 44 1 105 1 81 118 42 12 42 41 290 17 36 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
6WA1 TC-C(55L) (B) 		1-22122-459-1 01 1 0105-
1 PIPE; EXH
6WA1 TC-C(55L) (C) 		1-22123-388-0 01 1 0105-
1 PIPE; EXH
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) 		1-22122-227-1 01 1 0105-
1 PIPE; EXH
6WF1 TC-C(1B8) (A) 		1-22122-976-0 01 1 0105-
1 PIPE; EXH
6WF1 TC-C(1B8) (B) 		1-22123-464-0 01 1 0105-
1 PIPE; EXH
6WF1 TC-C(1B8),6WG1 TC-C(72L) (C) 		1-22123-465-0 01 1 0105-
1 PIPE; EXH
6WG1 TC-C(72L) (B) 		1-22123-230-0 01 1 0105-
12 SILENCER ASM; EXH
6WA1 TC-C(55L) 		1-22140-938-0 01 1 0105-
12 SILENCER ASM; EXH
6WF1 TC-C(1B8),6WG1 TC-C(72L) 		1-22140-985-1 01 1 0105-
17 BOLT; EXH PIPE
M12X25 FLANGE 		1-09000-604-0 04 1 0105-
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 04 1 0105-
26 STUD; EXH MANIF
6WA1 TC-C(55L),6WG1 TC-C(72L) M12X140 L=160 		1-09302-163-0 03 1 0210-
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 03 1 0105-0209
26 STUD; EXH MANIF
6WF1 TC-C(1B8) M12X140 L=160 		1-09302-163-0 04 1 0210-
34 WASHER; EXH PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) ID=13 OD=26 		1-09556-020-0 03 1 0210-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 03 1 0105-0209
34 WASHER; EXH PIPE
6WF1 TC-C(1B8) ID=13 OD=26 		1-09556-020-0 04 1 0210-
36 NUT; EXH PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M12 		1-09400-131-0 03 1 0210-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 03 1 0105-0209
36 NUT; EXH PIPE
6WF1 TC-C(1B8) (B) M12 		1-09400-131-0 04 1 0210-
36 NUT; EXH PIPE
(A) M12 		9-99110-512-0 04 1 0105-0512
36 NUT; EXH PIPE
(A) M12 		0-91110-512-0 04 1 0601-
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91150-212-0 04 1 0105-0602
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91180-212-0 04 1 0603-
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		9-99110-512-0 04 1 0105-0512
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		0-91110-512-0 04 1 0601-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 04 1 0105-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 04 1 0105-
44 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512
44 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
45 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 01 1 0105-0512
45 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 01 1 0601-
52 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
52 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0105-0602
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603-
59 BRACKET; EXH SILENCER,FRT 1-22151-727-1 01 1 0105-
59 BRACKET; EXH SILENCER,FRT 1-22151-727-1 01 1 0105-
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0305-0512
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0601-
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28081-050-0 03 1 0105-0304
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28081-050-0 01 1 0305-0512
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 0601-
70 BOLT; BRKT
(C) M10X70 FLANGE 		0-28081-070-0 02 1 0105-0512
70 BOLT; BRKT
(C) M10X70 FLANGE 		0-28051-070-0 02 1 0601-
70 BOLT; BRKT
WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
70 BOLT; BRKT
WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 0105-
79 SUPPORT; BRKT
OD=40 		1-22159-094-0 02 1 0105-
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 05 1 0105-0602
81 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 05 1 0603-
81 NUT; BRKT
WHEEL BASE 6300MM(63W) (A) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
81 NUT; BRKT
WHEEL BASE 6300MM(63W) (A) M10 FLANGE 		0-91180-210-0 02 1 0603-
105 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
105 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 0603-
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0105-0304
116 BOLT; BRKT
(B) M10X60 FLANGE 		0-28081-060-0 02 1 0305-0512
116 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0601-
116 BOLT; BRKT
(A) M10X70 FLANGE 		0-28081-070-0 02 1 0105-0512
116 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0601-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
168 BRACKET; EXH PIPE,FRT
(B) 		1-22131-276-2 01 1 0105-
168 BRACKET; EXH PIPE,FRT
(A) 		1-22131-649-0 01 1 0105-
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 6300MM(63W) (C) 		1-22131-761-0 01 1 0105-
289 COLLAR; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0105-
290 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 0105-0512
290 BOLT; CLAMP
M8X40 FLANGE 		0-28050-840-0 02 1 0601-
317 BOLT; EXH PIPE,FRT
M12X25 FLANGE 		1-09000-604-0 04 1 0105-
318 NUT; EXH PIPE,FRT
M12 FLANGE 		0-91150-212-0 04 1 0105-0602
318 NUT; EXH PIPE,FRT
M12 FLANGE 		0-91180-212-0 04 1 0603-
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=122 		1-22119-297-0 02 1 0105-
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 04 1 0105-

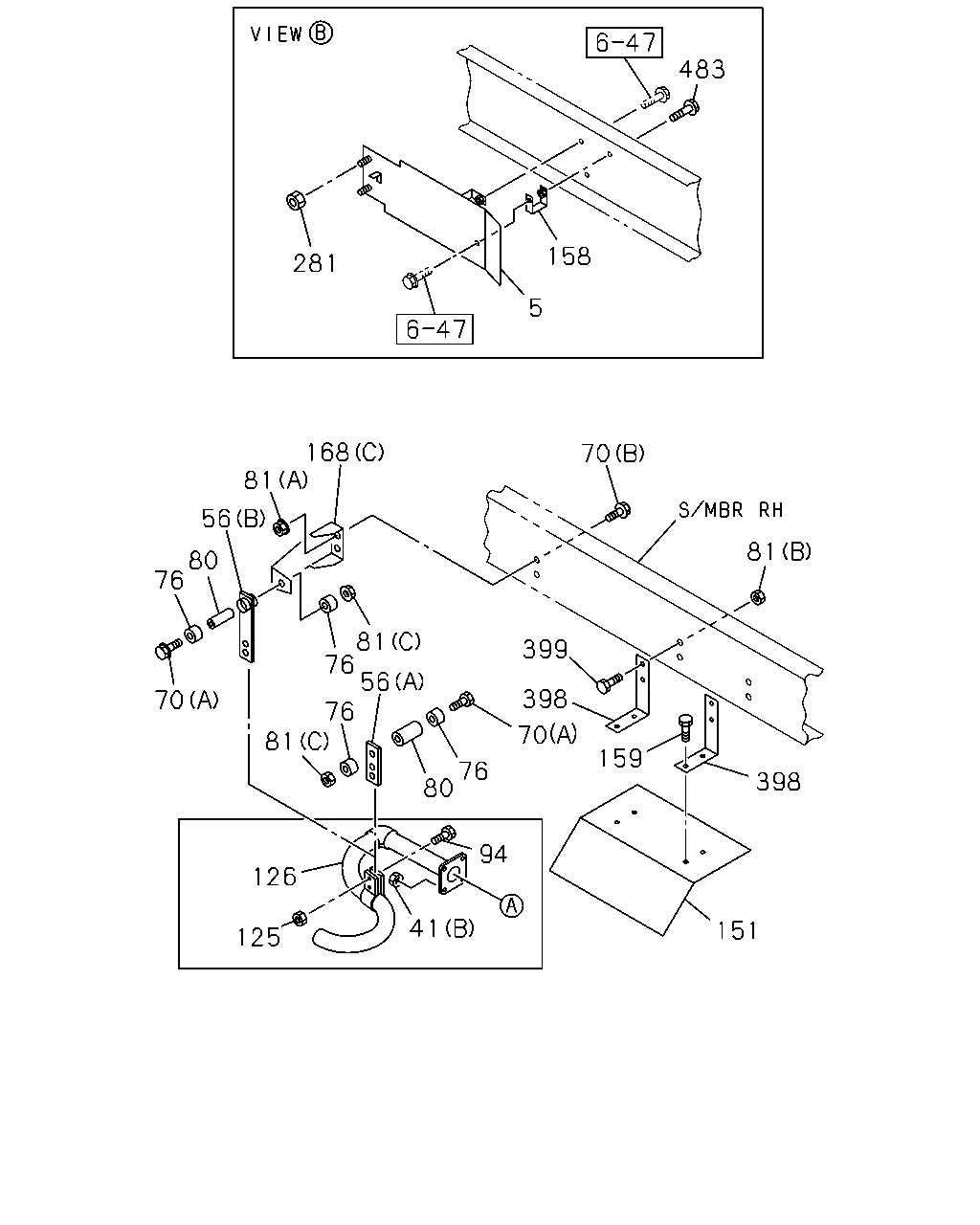

çizim 79660
483 158 5 281 168 81 56 80 76 70 81 76 56 76 81 70 81 399 398 70 159 398 76 80 151 94 41 126 125
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
CAB UP +110MM<TGG> 		1-22119-405-0 01 1 0105-
5 PROTECTOR; HEAT
EXC. CAB UP +110MM<TGG> 		1-22119-366-0 01 1 0105-
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91150-212-0 04 1 0105-0602
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91180-212-0 04 1 0603-
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		9-99110-512-0 04 1 0105-0512
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		0-91110-512-0 04 1 0601-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM(63W) (B) 		1-22131-232-3 01 1 0105-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6600MM(66W) (A) 		1-22131-280-2 01 1 0105-
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0305-0512
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0601-
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28081-050-0 03 1 0105-0304
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28081-050-0 01 1 0305-0512
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 0601-
70 BOLT; BRKT
(C) M10X70 FLANGE 		0-28081-070-0 02 1 0105-0512
70 BOLT; BRKT
(C) M10X70 FLANGE 		0-28051-070-0 02 1 0601-
70 BOLT; BRKT
WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
70 BOLT; BRKT
WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
76 SUPPORT; BRKT
OD=40 		1-22159-193-0 02 1 0105-
80 COLLAR; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0105-
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 05 1 0105-0602
81 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 05 1 0603-
81 NUT; BRKT
WHEEL BASE 6300MM(63W) (A) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
81 NUT; BRKT
WHEEL BASE 6300MM(63W) (A) M10 FLANGE 		0-91180-210-0 02 1 0603-
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 0105-0512
94 BOLT; CLAMP
M8X40 FLANGE 		0-28050-840-0 02 1 0601-
125 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
125 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 0603-
126 PIPE; EXH,RR
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) 		1-22126-228-0 01 1 0105-
126 PIPE; EXH,RR
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) 		1-22126-227-0 01 1 0105-
126 PIPE; EXH,RR
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) 		1-22126-338-0 01 1 0105-
126 PIPE; EXH,RR
6WF1 TC-C(1B8),6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) 		1-22126-337-0 01 1 0105-
151 PROTECTOR; HEAT,EXH PIPE 1-22159-274-0 01 1 0105-
158 BRACKET; HEAT PROTECTOR 1-22119-368-0 01 1 0105-
159 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
159 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
168 BRACKET; EXH PIPE,FRT
(B) 		1-22131-276-2 01 1 0105-
168 BRACKET; EXH PIPE,FRT
(A) 		1-22131-649-0 01 1 0105-
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 6300MM(63W) (C) 		1-22131-761-0 01 1 0105-
281 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
281 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 0603-
398 BRACKET; HEAT PROTECTOR 1-22119-355-0 02 1 0105-
399 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 04 1 0105-0512
399 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
