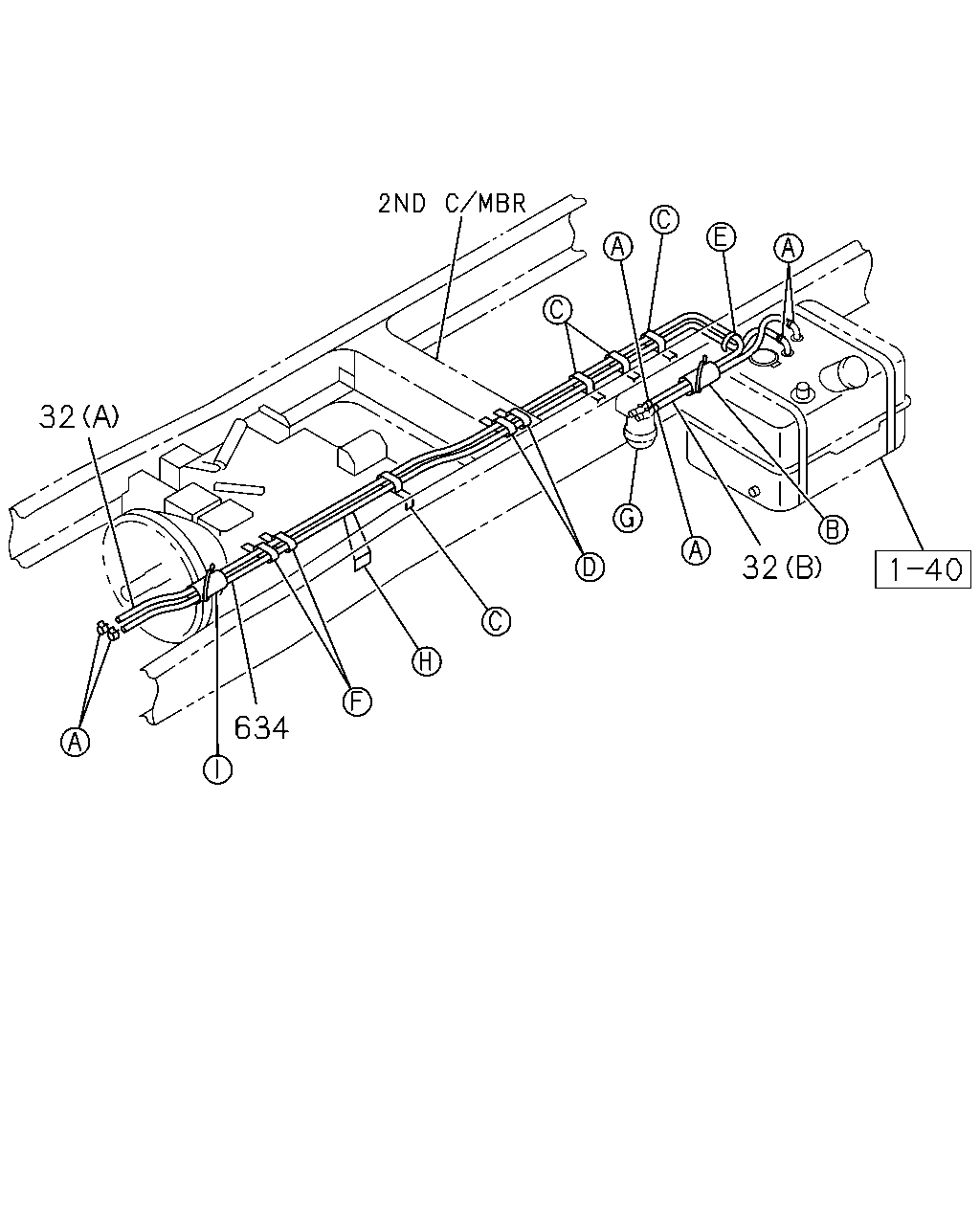

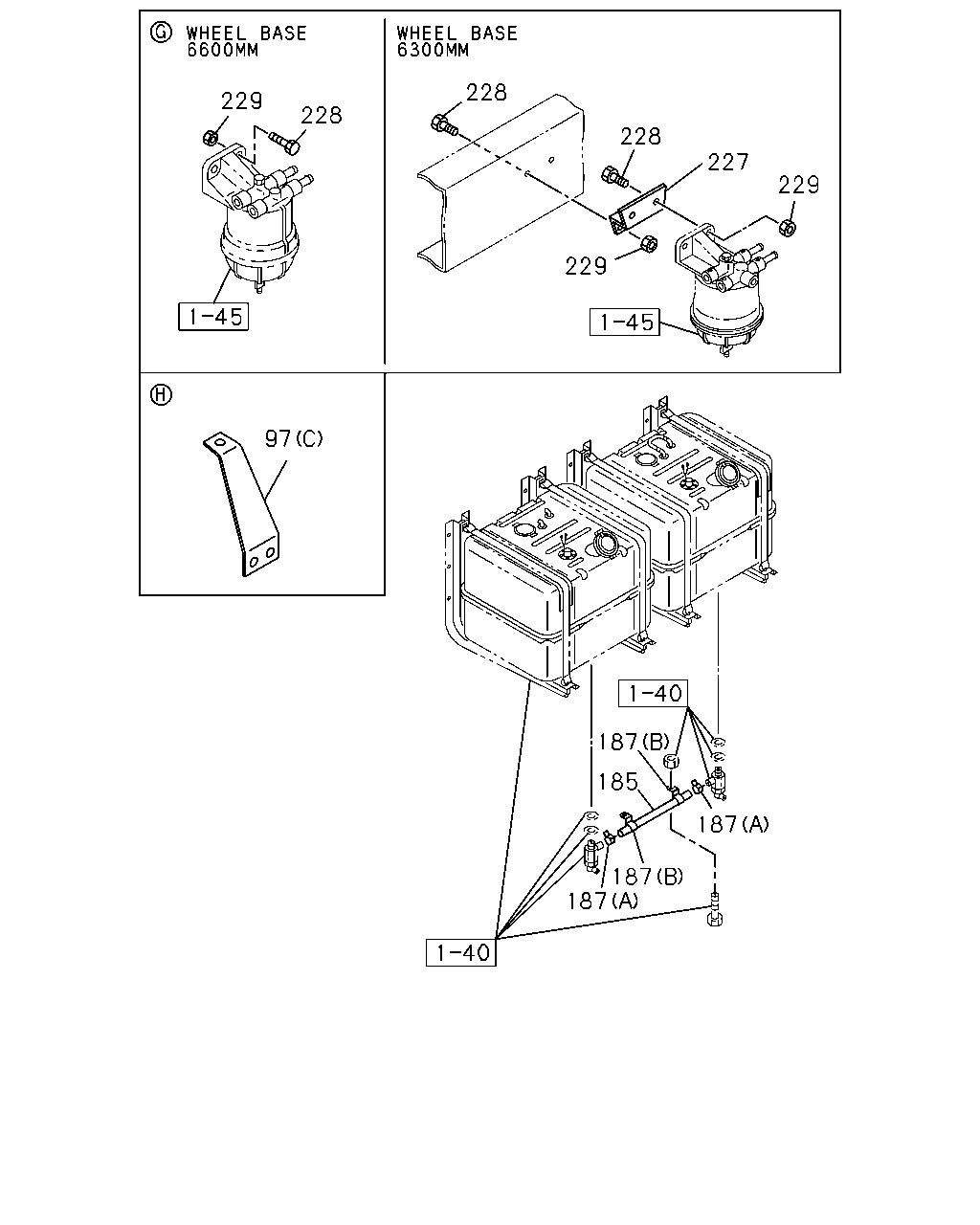

1-41 — FUEL PIPING; CHASSIS (#28502) — 130 parça

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9> (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9> (A) L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> (B) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> (A) L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) EXC. FUEL SEDIMENTER<PS9> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) EXC. FUEL SEDIMENTER<PS9> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) SERVICED BY L=3000	0-01260-300-0	01	1	0105-
634	HOSE; RUBBER RETURN WHEEL BASE 6600MM(66W) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0105-

229 228 228 228 227 229 229 97 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (A) L=135	1-22518-099-0	01	1	0105-
97	BRACKET; CLIP FULLER M/T<X9B> (D)	1-47479-248-0	01	1	0106-
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47478-083-0	01	1	0105-0105
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47479-247-0	01	1	0106-0408
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47471-045-0	01	1	0409-
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (C)	1-47478-442-0	01	1	0105-0105
97	BRACKET; CLIP ISUZU M/T<X9A>,ZF M/T<X9E> (B)	1-47479-247-0	02	1	0106-0408
97	BRACKET; CLIP ISUZU M/T<X9A>,ZF M/T<X9E> (B)	1-47471-045-0	02	1	0409-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) ZF M/T<X9E> (A) L=115	1-47475-305-0	01	1	0105-0105
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=115	1-47475-305-0	01	1	0105-0105
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=115	1-47475-305-0	01	1	0106-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=115	1-47475-305-0	03	1	0105-
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	0105-
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=17.1	8-94122-679-0	02	1	0105-
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	0105-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9>	1-19755-223-0	01	1	0105-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9>	1-22518-186-0	01	1	0105-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9>	1-22518-156-0	01	1	0105-
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M14X45	0-20801-445-0	02	1	0105-
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M12X35	9-92061-235-0	04	1	0105-0512
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M12X35	0-20951-235-0	04	1	0601-
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9> M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9> M10X40 FLANGE	0-28651-040-0	02	1	0601-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10X35 FLANGE	0-28651-035-0	02	1	0601-
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> M14	9-99110-414-0	02	1	0105-0512
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> M14	0-91110-514-0	02	1	0601-
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> M12 FLANGE	0-91150-212-0	02	1	0105-0602
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> M12 FLANGE	0-91180-212-0	02	1	0603-
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0105-0602
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0105-0602
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91180-210-0	02	1	0603-
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91180-210-0	02	1	0603-

41 38 289 102 101 100 97 101 95 100 48 144 102 103 156 100 101 97 97 100 101 453 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE FUEL SEDIMENTER<PS9> ID=14 OD=18 L=60	1-09337-030-0	01	1	0105-
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	0105-0106
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	0105-
48	BOLT; BRKT FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	05	1	0105-0105
48	BOLT; BRKT WHEEL BASE 6300MM(63W) FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0105-0105
48	BOLT; BRKT WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0105-0105
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	03	1	0105-0105
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	04	1	0105-0105
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (A) L=135	1-22518-099-0	01	1	0105-
97	BRACKET; CLIP FULLER M/T<X9B> (D)	1-47479-248-0	01	1	0106-
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47478-083-0	01	1	0105-0105
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47479-247-0	01	1	0106-0408
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47471-045-0	01	1	0409-
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (C)	1-47478-442-0	01	1	0105-0105
97	BRACKET; CLIP ISUZU M/T<X9A>,ZF M/T<X9E> (B)	1-47479-247-0	02	1	0106-0408
97	BRACKET; CLIP ISUZU M/T<X9A>,ZF M/T<X9E> (B)	1-47471-045-0	02	1	0409-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) ZF M/T<X9E> (A) L=115	1-47475-305-0	01	1	0105-0105
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=115	1-47475-305-0	01	1	0105-0105
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=115	1-47475-305-0	01	1	0106-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=115	1-47475-305-0	03	1	0105-
100	CLIP; FUEL PIPE FUEL SEDIMENTER<PS9> ID=16X2 L=20	9-09535-536-0	01	1	0105-0606
100	CLIP; FUEL PIPE FUEL SEDIMENTER<PS9> ID=16X2 L=20	0-95325-536-0	01	1	0607-
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,ZF M/T<X9E> ID=14X29 H=15 L=20	1-09700-744-0	06	1	0106-
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) FULLER M/T<X9B> ID=14X29 H=15 L=20	1-09700-744-0	07	1	0106-
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	06	1	0105-0105
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> ID=15	1-09700-845-1	02	1	0106-0106
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E>	1-09701-299-0	02	1	0107-
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	07	1	0105-0105
100	CLIP; FUEL PIPE FULLER M/T<X9B> ID=15	1-09700-845-1	01	1	0106-0106
100	CLIP; FUEL PIPE FULLER M/T<X9B>	1-09701-299-0	01	1	0107-
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,FULLER M/T<X9B> ID=16X2 L=20	9-09535-536-0	08	1	0105-0105
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A>,ZF M/T<X9E> ID=14X29 H=15 L=20	1-09700-744-0	04	1	0106-
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	09	1	0105-0105
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) FULLER M/T<X9B> ID=14X29 H=15 L=20	1-09700-744-0	05	1	0106-
101	BOLT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
101	BOLT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8X25 FLANGE	0-28650-825-0	01	1	0601-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	06	1	0105-0105
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	0106-0512
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	04	1	0601-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	07	1	0105-0105
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	05	1	0106-0512
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	05	1	0601-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	08	1	0105-0105
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	06	1	0106-0512
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	06	1	0601-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	09	1	0105-0105
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	07	1	0106-0512
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	07	1	0601-
102	NUT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8 FLANGE	0-91150-108-0	01	1	0105-0602
102	NUT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8 FLANGE	0-91180-108-0	01	1	0603-
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	05	1	0105-0105
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	09	1	0106-0602
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	09	1	0603-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-0105
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0105-0105
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0105
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	13	1	0106-0602
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	13	1	0603-
103	NUT; BRKT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	05	1	0105-0105
103	NUT; BRKT WHEEL BASE 6300MM(63W) FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0105-0105
103	NUT; BRKT WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0105-0105
103	NUT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0105-0105
103	NUT; BRKT WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0105
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL SEDIMENTER<PS9> M8X35 FLANGE	0-28680-835-0	01	1	0105-0105
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6300MM(63W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL SEDIMENTER<PS9> M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6300MM(63W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28650-835-0	01	1	0601-
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL SEDIMENTER<PS9> M8X35 FLANGE	0-28650-835-0	01	1	0601-
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6300MM(63W) FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6300MM(63W) FULLER M/T<X9B> M8X35 FLANGE	0-28650-835-0	02	1	0601-
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	03	1	0106-0512
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28650-835-0	03	1	0601-
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6600MM(66W) FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	04	1	0106-0512
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6600MM(66W) FULLER M/T<X9B> M8X35 FLANGE	0-28650-835-0	04	1	0601-
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47478-306-0	02	1	0105-0106
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-47478-306-0	02	1	0107-0107
289	CLIP; BAND,HOSE FUEL SEDIMENTER<PS9> L=250	5-09707-030-1	01	1	0105-
289	CLIP; BAND,HOSE MIXER TRUCK<RA2> L=250	1-09707-126-0	01	1	0110-
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	0105-0106
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0107-
453	BAND; FLEX HOSE MIXER TRUCK<RA2> L=175	1-09707-178-0	01	1	0110-
