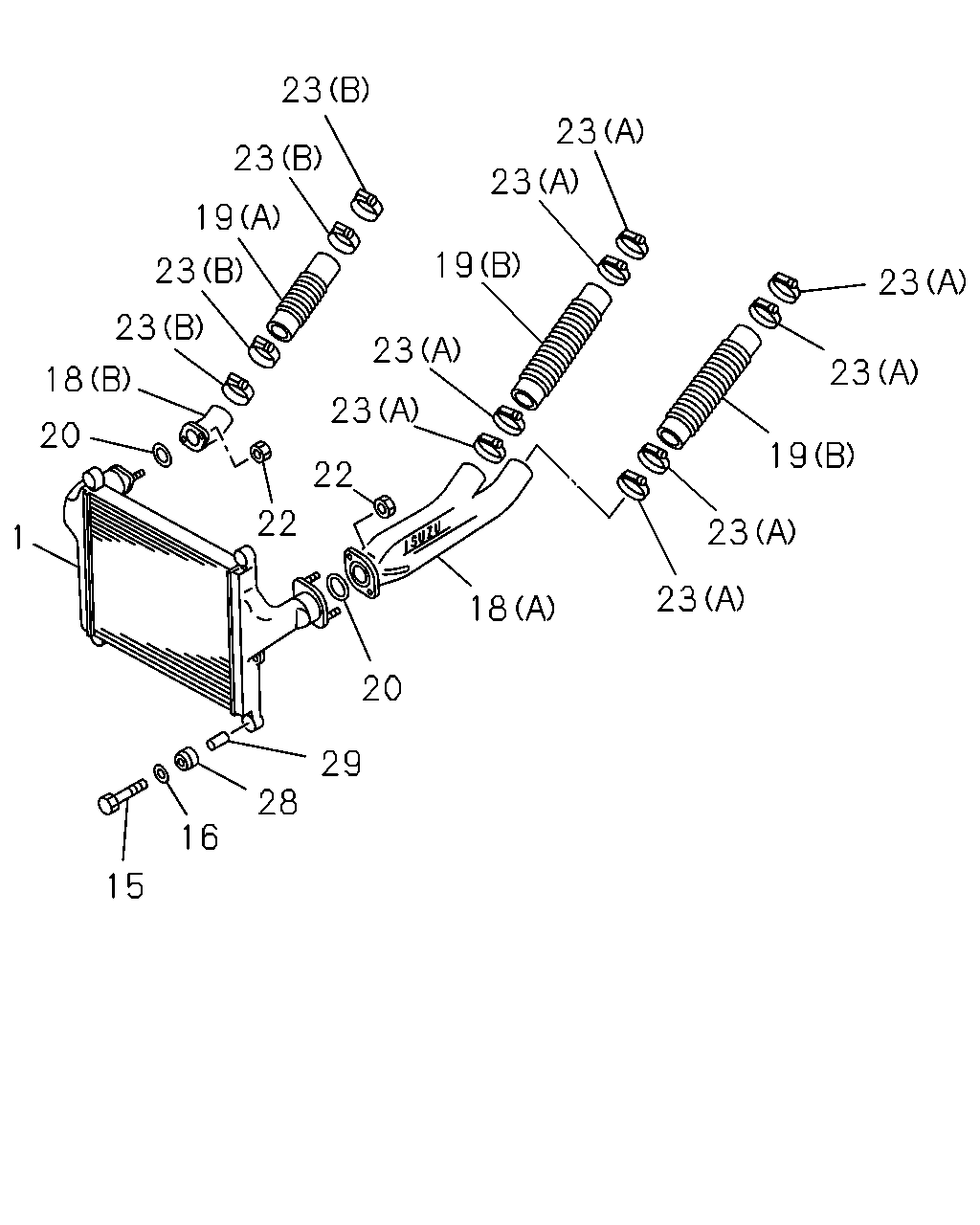

1-35 — CHARGE AIR COOLER (#28500) — 45 parça
çizim 77851
23 23 19 23 23 18 20 1 22 22 23 23 19 23 23 23 23 19 23 23 18 20 29 28 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 0105- ●
1 COOLER; CHARGE AIR 1-14431-057-0 01 1 0105- ●
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 0105- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 0105- ● ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 02 1 0105- ●
15 BOLT; CHARGE AIR COOLER
M8X50 FLANGE 		0-28080-850-0 02 1 0105- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0105- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 0105- ●
18 ADAPTER
(A) 		1-14112-491-1 01 1 0105- ● ●
18 ADAPTER
(B) 		1-14112-567-0 01 1 0105- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 0105- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 0105- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-088-0 01 1 0105- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		1-09361-089-1 01 1 0105- ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 0105- ● ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602 ● ●
22 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 0105-0306 ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-198-0 04 1 0307- ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 0105-0306 ● ●
23 CLIP; HOSE
(A) ID=68-85 		1-09707-202-0 08 1 0307- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 08 1 0105-0306 ●
23 CLIP; HOSE
ID=87-113 		1-09707-199-0 01 1 0307- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0105- ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0105- ● ● ●
çizim 82905
23 23 19 23 23 16 29 28 16 15 23 23 19 23 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 0105- ●
1 COOLER; CHARGE AIR 1-14431-057-0 01 1 0105- ●
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 0105- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 0105- ● ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 02 1 0105- ●
15 BOLT; CHARGE AIR COOLER
M8X50 FLANGE 		0-28080-850-0 02 1 0105- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0105- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 0105- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 0105- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 0105- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-088-0 01 1 0105- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		1-09361-089-1 01 1 0105- ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 0105-0306 ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-198-0 04 1 0307- ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 0105-0306 ● ●
23 CLIP; HOSE
(A) ID=68-85 		1-09707-202-0 08 1 0307- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 08 1 0105-0306 ●
23 CLIP; HOSE
ID=87-113 		1-09707-199-0 01 1 0307- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0105- ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0105- ● ● ●
