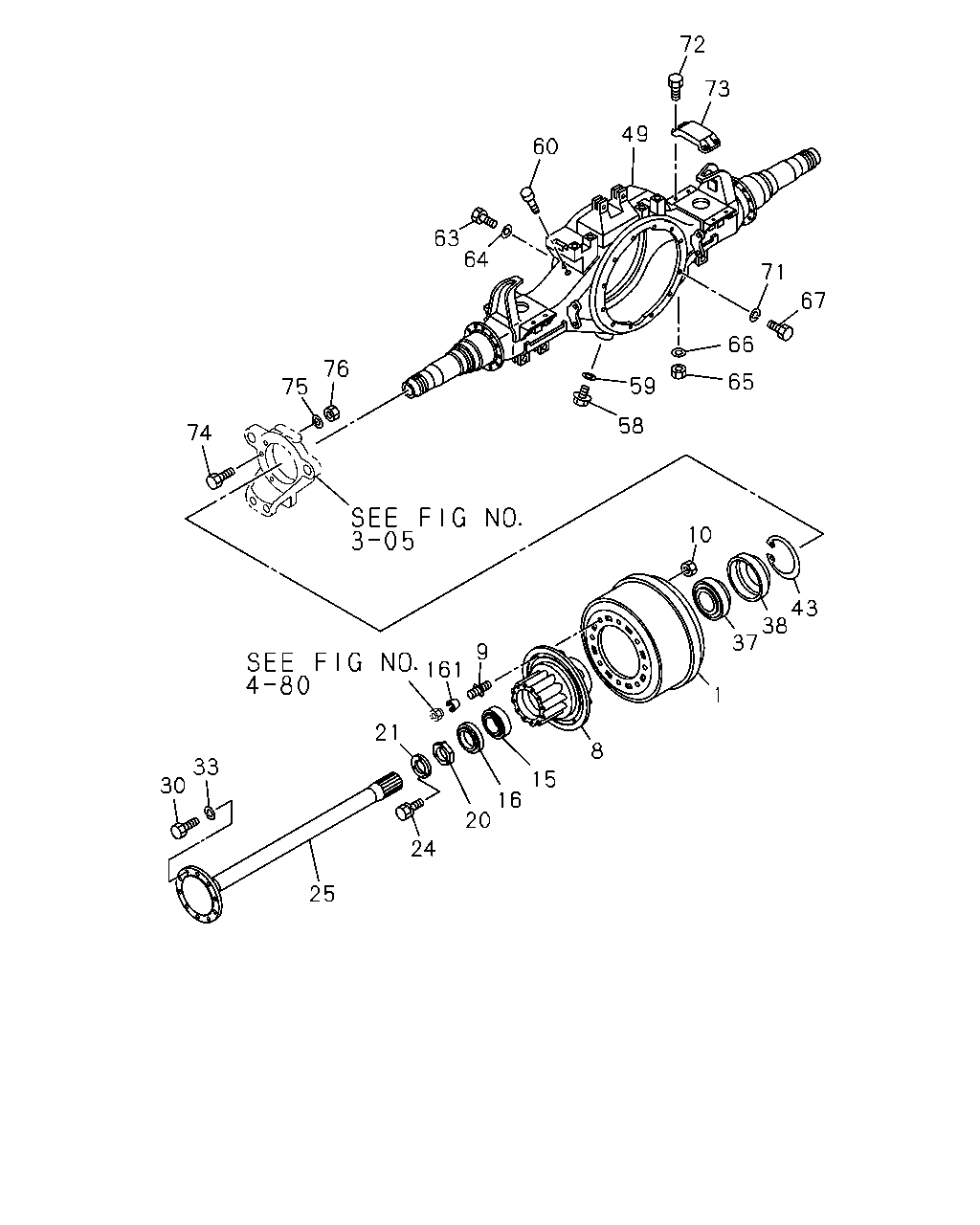

4-20 — REAR AXLE CASE AND SHAFT (#2850) — 154 parça

25 24 20 8 15 16 1 37 38 43 10 9 161 21 33 30 74 75 76 63 64 60 49 72 73 71 67 65 66 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-3	04	1	9002-9011	●	●
1	DRUM; BRK,RR WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	04	1	9012-	●	●
1	DRUM; BRK,RR EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	04	1	9012-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-038-6	04	1	9002-9412	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-038-6	04	1	9501-		●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9012-9508	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-100-0	04	1	9509-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9002-9306	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> L=114 M22X55.8,M22X53.5 RH THREAD	1-42337-035-0	40	1	9307-9311	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9312-9412	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9501-		●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> L=110 M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	32	1	9012-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	32	1	9012-	●	●
10	NUT; WHEEL PIN,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9002-9111	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9012-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	9002-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=976	1-42171-339-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=976	1-42171-356-0	02	1	9308-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1106	1-42171-340-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1106	1-42171-357-0	02	1	9308-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	40	1	9002-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	40	1	9002-9408	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	40	1	9409-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●
49	CASE; RR AXLE FORWARD	1-42150-360-5	01	1	9002-9306	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD	1-42150-662-1	01	1	9307-9407	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD	1-42160-071-0	01	1	9408-	●	●
49	CASE; RR AXLE REARWARD	1-42150-379-4	01	1	9002-9306	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> FORWARD	1-42150-660-1	01	1	9307-	●	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> FORWARD	1-42150-696-1	01	1	9307-	●	●
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B> REARWARD	1-42150-698-1	01	1	9307-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD	1-42150-695-2	01	1	9307-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	9002-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	9002-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	9002-9306	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9307-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	02	1	9002-9307	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	9308-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	02	1	9002-9307	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	9308-	●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	08	1	9004-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9004-9602	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	06	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	06	1	9004-9306	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9307-9602	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9603-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	24	1	9002-9003	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	24	1	9004-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	28	1	9002-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●
161	RING; SPRING,REAR WHEEL EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●

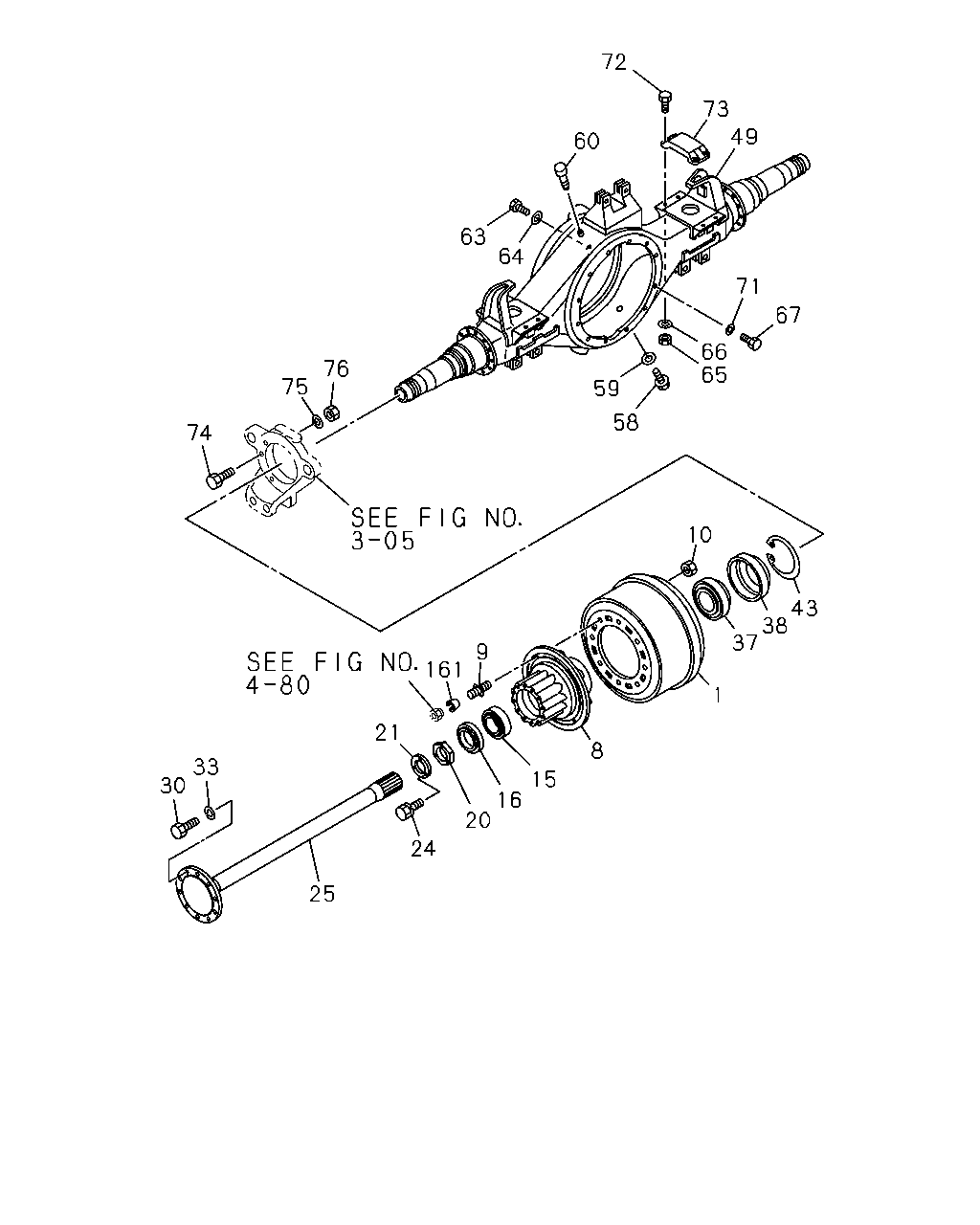

43 38 37 1 10 9 161 21 8 15 16 20 24 25 33 30 74 75 76 63 64 59 58 65 66 67 71 49 73 72 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-3	04	1	9002-9011	●	●
1	DRUM; BRK,RR WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	04	1	9012-	●	●
1	DRUM; BRK,RR EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	04	1	9012-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-038-6	04	1	9002-9412	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-038-6	04	1	9501-		●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9012-9508	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-100-0	04	1	9509-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9002-9306	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> L=114 M22X55.8,M22X53.5 RH THREAD	1-42337-035-0	40	1	9307-9311	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9312-9412	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9501-		●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> L=110 M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	32	1	9012-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	32	1	9012-	●	●
10	NUT; WHEEL PIN,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9002-9111	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9012-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	9002-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=976	1-42171-339-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=976	1-42171-356-0	02	1	9308-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1106	1-42171-340-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1106	1-42171-357-0	02	1	9308-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	40	1	9002-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	40	1	9002-9408	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	40	1	9409-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●
49	CASE; RR AXLE FORWARD	1-42150-360-5	01	1	9002-9306	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD	1-42150-662-1	01	1	9307-9407	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD	1-42160-071-0	01	1	9408-	●	●
49	CASE; RR AXLE REARWARD	1-42150-379-4	01	1	9002-9306	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> FORWARD	1-42150-660-1	01	1	9307-	●	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> FORWARD	1-42150-696-1	01	1	9307-	●	●
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B> REARWARD	1-42150-698-1	01	1	9307-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> FORWARD	1-42150-695-2	01	1	9307-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	9002-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	9002-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	9002-9306	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9307-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	02	1	9002-9307	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	9308-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	02	1	9002-9307	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	9308-	●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	08	1	9004-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9004-9602	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	06	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	06	1	9004-9306	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9307-9602	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9603-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	24	1	9002-9003	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	24	1	9004-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	28	1	9002-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●
161	RING; SPRING,REAR WHEEL EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●
