Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#28499) — 523 parça

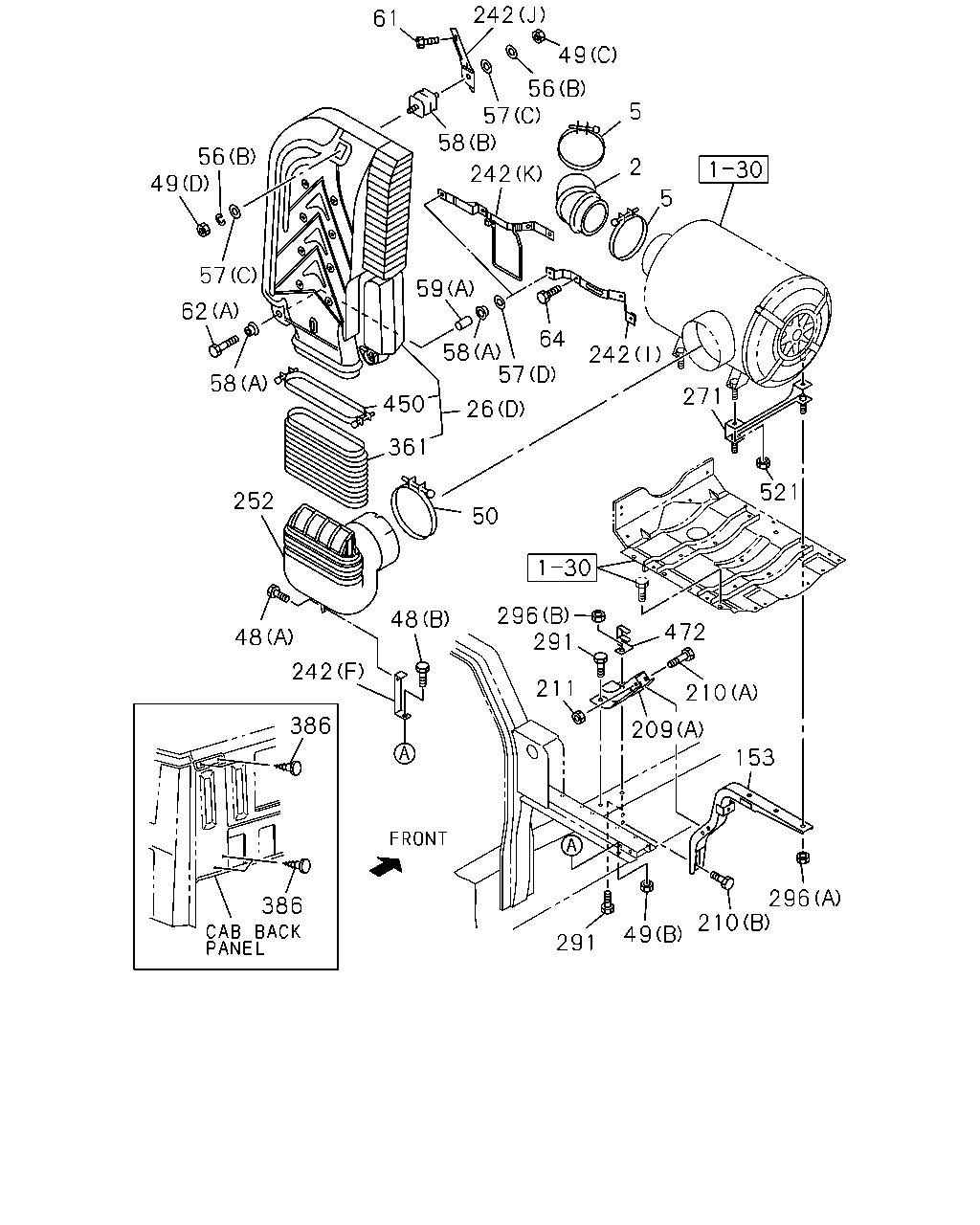

386 55 470 74 76 76 287 17 67 257 257 57 257 209 59 58 61 242 74 267 257 64 58 59 58 56 49 59 58 57 62 26 54 51 252 242 5 2 5 50 49 48 296 472 291 211 291 210 153 296 209 296 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1) CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●
2	HOSE; ACL CAB UP +110MM<TGG> EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-		●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-	●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0105-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-		●
54	CLIP; GASKET,AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-		●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-		●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-		●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-		●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16), PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●	●	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-		●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-		●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-		●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-		●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●	●	●

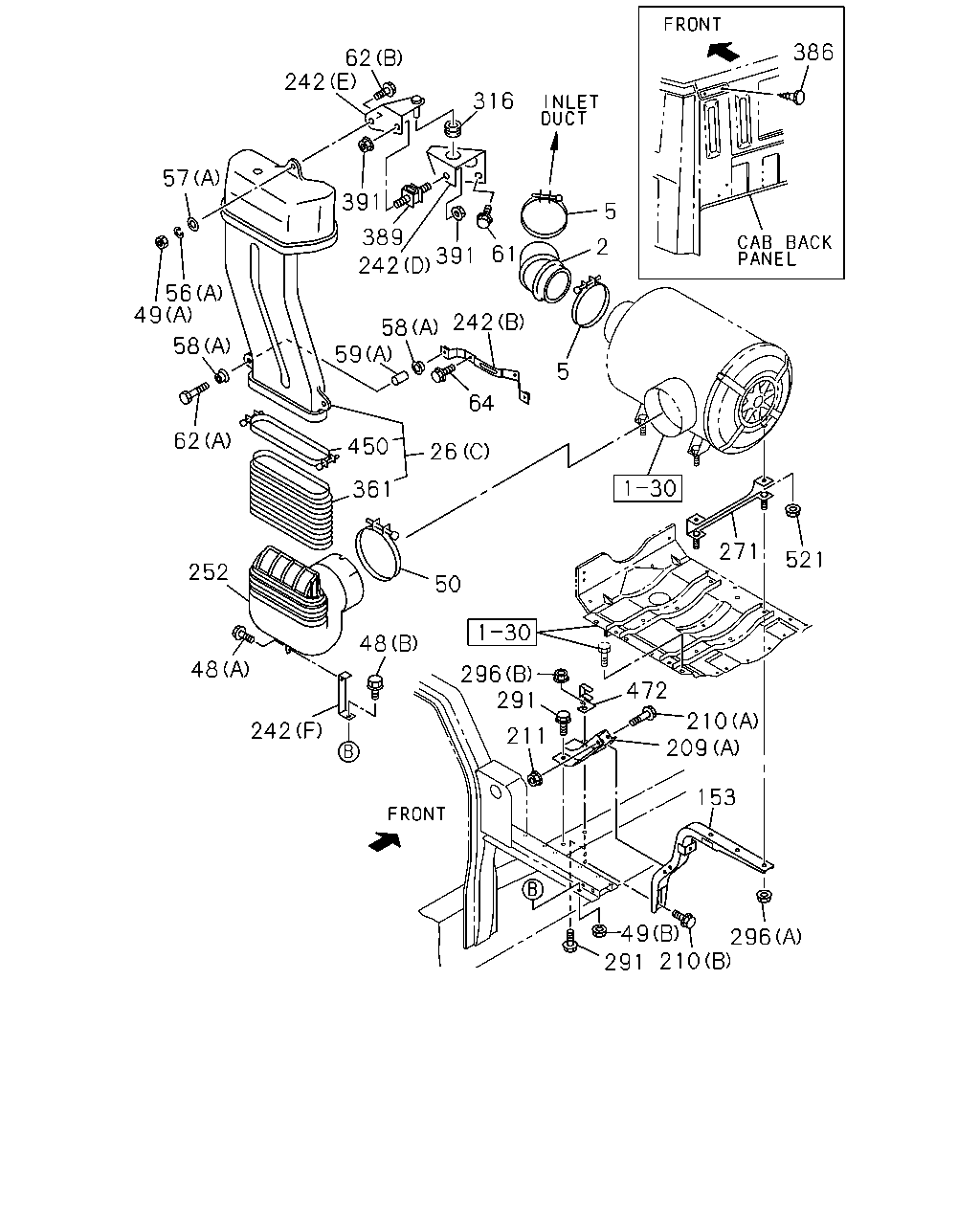

386 61 58 59 49 56 57 58 59 242 58 64 242 58 62 450 361 26 252 48 49 50 5 2 5 472 296 291 210 291 211 296 209 210 296 153 313 311 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1) CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●
2	HOSE; ACL CAB UP +110MM<TGG> EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-	●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0105-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-		●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16), PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
310	PROTECTOR; HEAT,ACL EXC. CAB UP +110MM<TGG>	1-14181-287-1	01	1	0105-		●
311	BOLT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512		●
311	BOLT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
313	NUT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0105-0602		●
313	NUT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	01	1	0603-		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-		●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●	●	●

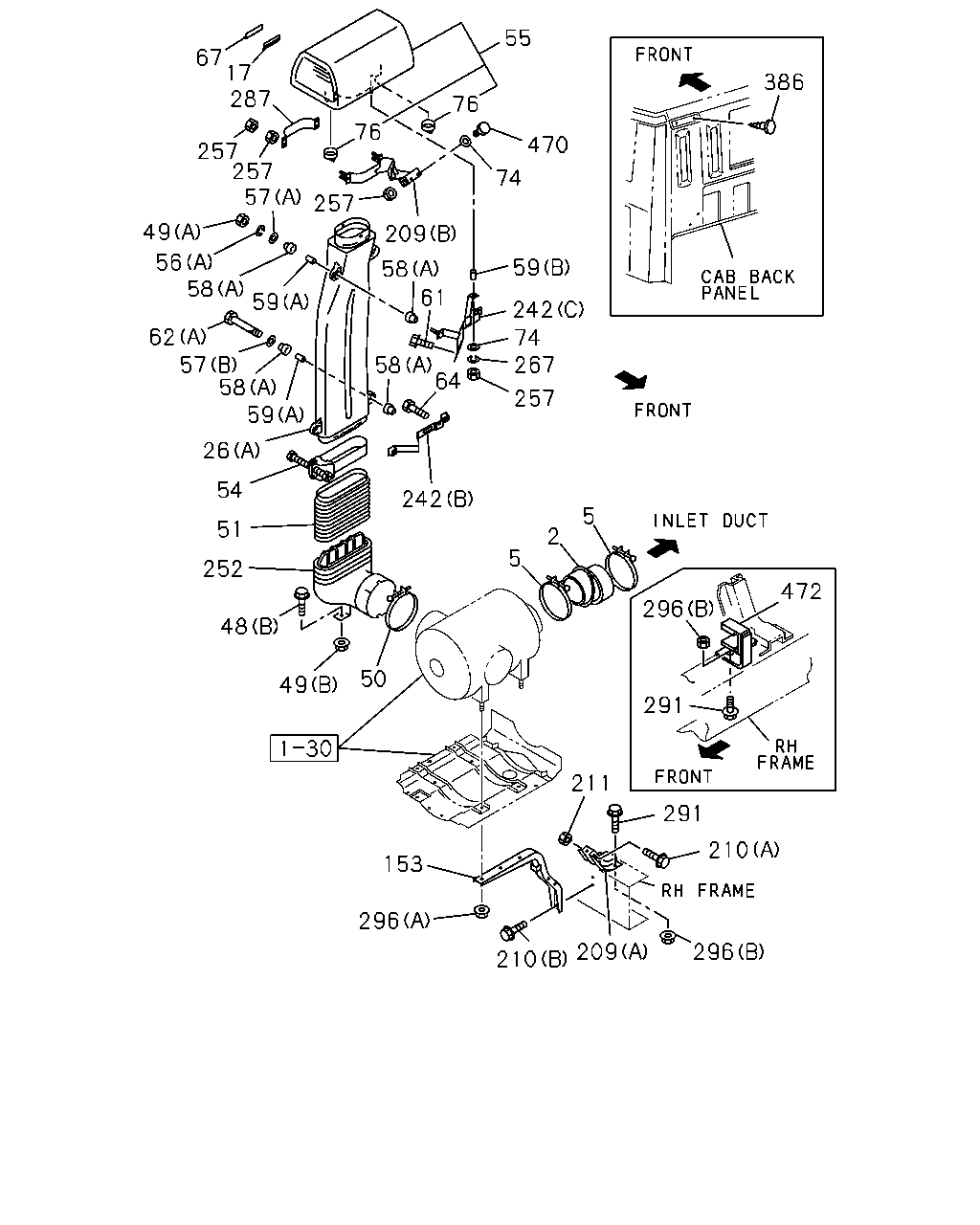

386 49 56 57 242 26 489 57 56 61 5 2 5 242 240 49 514 64 421 402 489 59 489 48 50 252 48 242 48 271 521 296 291 211 472 210 209 153 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1) CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●
2	HOSE; ACL CAB UP +110MM<TGG> EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-	●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0105-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-		●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0105-	●		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16), PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●	●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●		●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●		●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●		●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0105-	●		●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0105-	●		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●		●

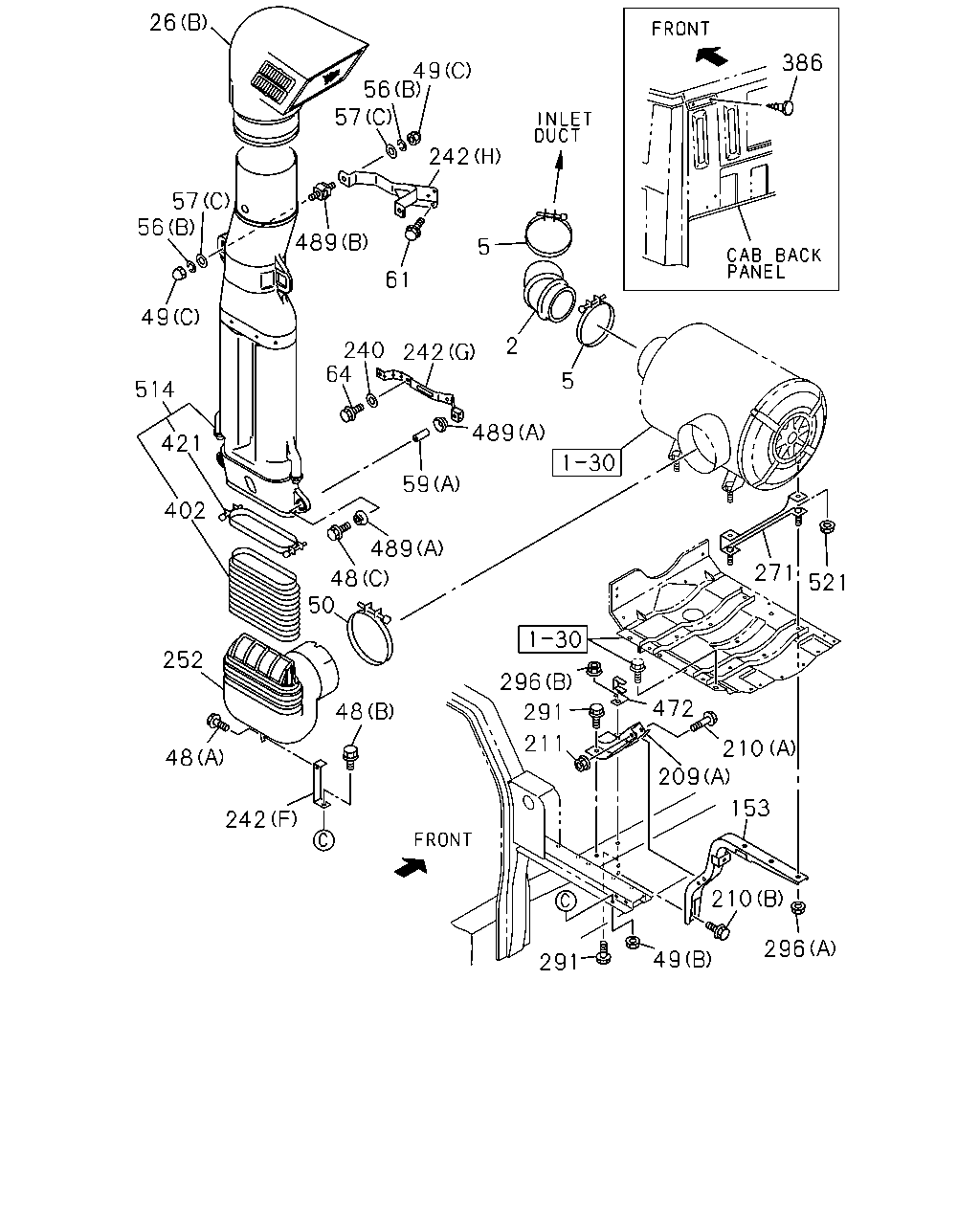

386 5 2 316 62 242 57 391 389 242 391 61 58 242 59 56 49 58 62 450 361 26 64 5 252 48 50 48 242 271 521 296 291 211 472 210 209 153 296 210 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1) CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●
2	HOSE; ACL CAB UP +110MM<TGG> EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-	●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0105-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-		●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16), PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●	●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●		●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
316	RUBBER; CUSHION,DUCT EXC. PRE CLEANER<W17>	9-09575-525-0	01	1	0105-			●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-		●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR EXC. PRE CLEANER<W17>	8-97080-149-0	01	1	0105-			●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91150-108-0	02	1	0105-0602			●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91180-108-0	02	1	0603-			●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●		●

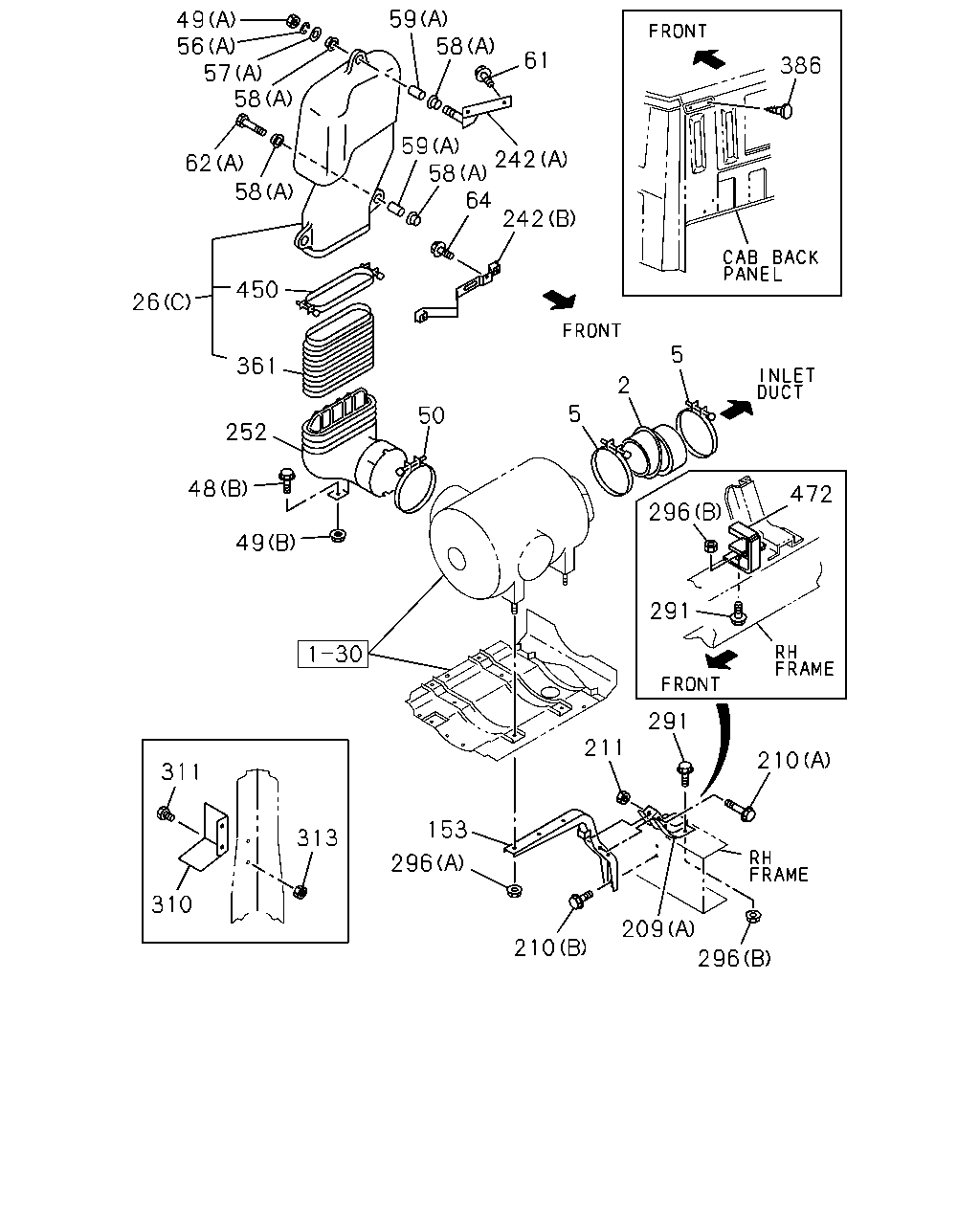

61 242 49 56 57 58 242 5 2 5 56 49 57 62 58 59 64 242 58 57 26 450 361 271 521 50 252 48 242 296 291 211 472 210 209 153 296 210 49 291 386 386 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1) CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●
2	HOSE; ACL CAB UP +110MM<TGG> EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-	●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0105-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-		●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (K)	8-98041-993-0	01	1	0607-	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16), PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-0607	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (I)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●	●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●		●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-		●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
