1-10 — RADIATOR (#28496) — 213 parça

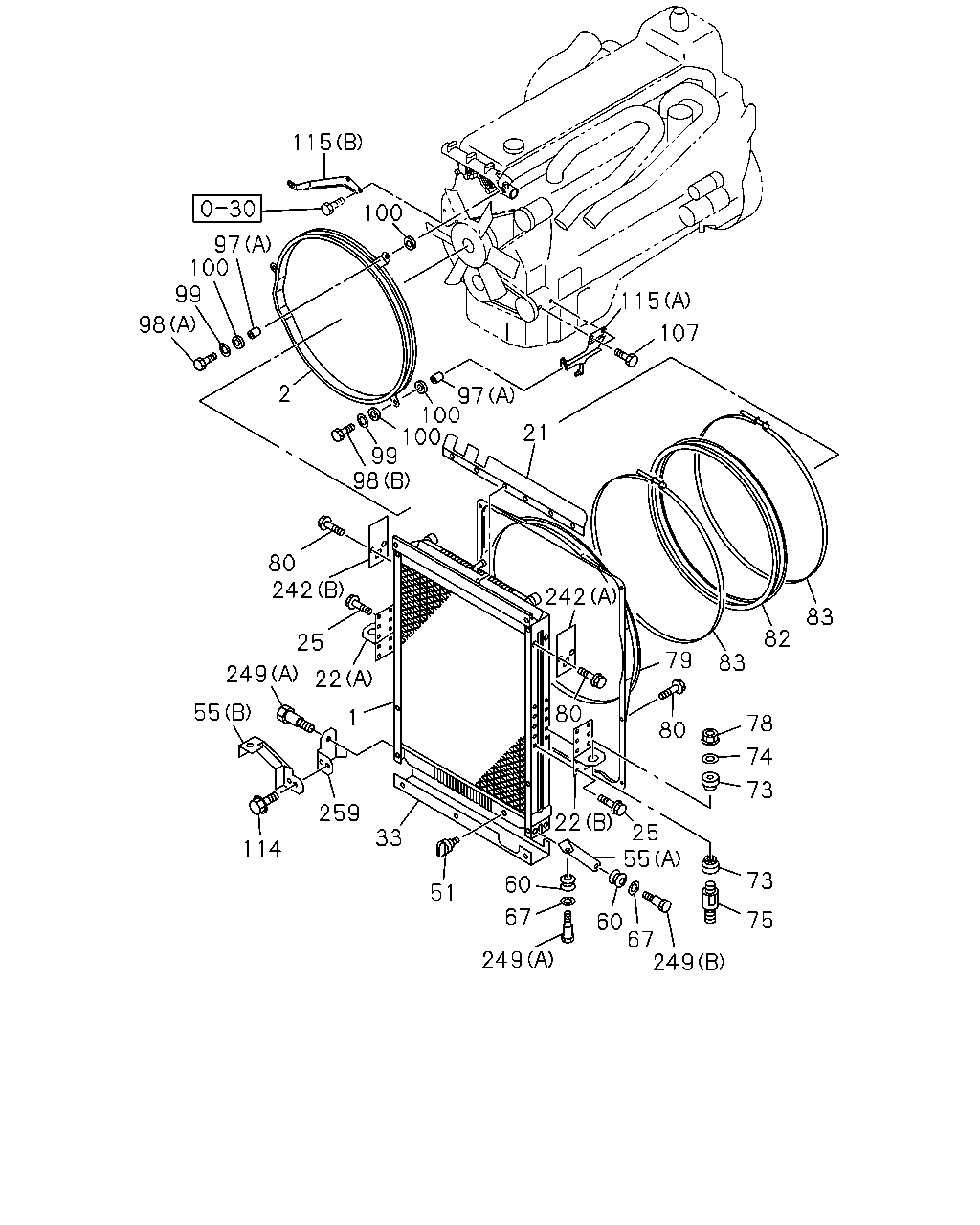

çizim 20664
115 100 97 100 99 98 2 107 115 21 97 100 100 99 98 80 242 25 22 249 55 1 259 114 33 51 242 79 83 82 83 80 80 78 74 73 22 25 55 73 75 249 67 60 60 67 249
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-693-0 01 1 0105- ●
1 RADIATOR ASM 1-21410-870-1 01 1 0105-0106 ●
1 RADIATOR ASM
EXC. EURO3 SPECIFICATION<NJX> 		1-21410-870-1 01 1 0107- ●
1 RADIATOR ASM
EURO3 SPECIFICATION<NJX> 		1-21410-871-1 01 1 0107- ●
1 RADIATOR ASM 1-21410-730-1 01 1 0105- ●
2 GUIDE; FAN 1-21551-369-0 01 1 0105- ●
2 GUIDE; FAN
EURO2 SPECIFICATION<THN> 		1-21551-420-0 01 1 0105-0606 ●
2 GUIDE; FAN 1-21551-420-0 01 1 0105-0606 ●
2 GUIDE; FAN
EURO2 SPECIFICATION<THN> 		8-97615-752-0 01 1 0607- ●
2 GUIDE; FAN 8-97615-752-0 01 1 0607- ●
2 GUIDE; FAN
EURO3 SPECIFICATION<NJX> 		1-21551-500-0 01 1 0107- ●
21 SEAL; RAD 1-21460-090-0 01 1 0105- ●
21 SEAL; RAD 1-21460-123-0 01 1 0105- ●
21 SEAL; RAD 1-21460-096-0 01 1 0105- ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 0105- ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 0105- ●
22 BRACKET; RAD MTG
(B) 		1-21464-504-0 01 1 0105- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-503-0 01 1 0105- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 20 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 18 1 0105- ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 0105- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0105- ● ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-499-0 01 1 0105- ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-641-0 01 1 0105- ● ●
60 GROMMET 1-09332-117-0 04 1 0105- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0105-0605 ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0105- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 0105- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0105- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 0105-0111 ●
79 GUIDE; FAN,RAD 1-21551-439-0 01 1 0112- ●
79 GUIDE; FAN,RAD 1-21551-422-1 01 1 0105- ● ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 0105- ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 0105- ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 0105- ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 0105- ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 0105- ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0105- ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 0105- ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 0105- ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 0105- ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 0105-0105 ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X45 FLANGE 		0-28081-045-0 03 1 0105-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X45 FLANGE 		0-28051-045-0 03 1 0601- ● ● ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 0105-0105 ● ●
98 BOLT; RAD FAN GUIDE
EURO2 SPECIFICATION<THN> (A) M10X40 FLANGE 		0-28081-040-0 01 1 0105-0105 ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 0105-0605 ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0606- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0105- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 0105-0512 ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 02 1 0601- ● ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 0105- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 0105-0307 ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-485-0 01 1 0308- ● ● ●
115 BRACKET; FAN GUIDE
EURO3 SPECIFICATION<NJX> (C) 		1-21559-463-0 01 1 0107- ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 0105- ●
242 BRACKET; RAD
(A) 		1-21464-729-0 01 1 0105- ●
242 BRACKET; RAD
(B) 		1-21464-730-0 01 1 0105- ●
242 BRACKET; RAD
(A) 		1-21464-517-0 01 1 0105- ●
242 BRACKET; RAD
(B) 		1-21464-518-0 01 1 0105- ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0202- ● ● ●
249 BOLT; STAY,RAD MBR
(A),(B) M8X30 		1-09009-020-1 04 1 0105-0201 ● ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0202- ● ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 0105- ● ● ●

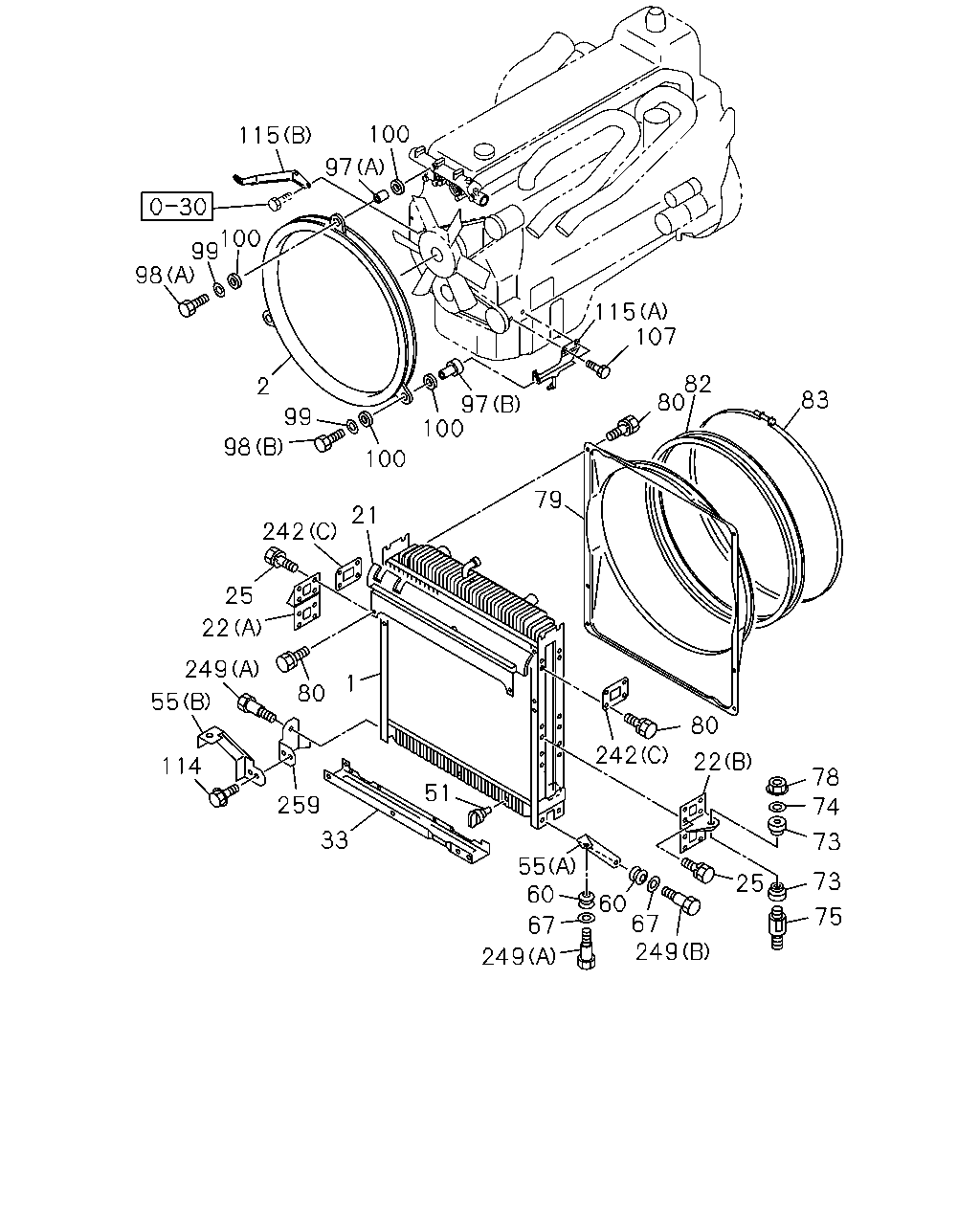

çizim 20741
115 100 97 100 99 98 115 107 83 82 80 97 100 100 99 2 98 79 21 242 25 22 249 80 1 55 114 259 33 51 80 22 242 78 74 73 73 75 25 249 67 60 55 60 67 249
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-693-0 01 1 0105- ●
1 RADIATOR ASM 1-21410-870-1 01 1 0105-0106 ●
1 RADIATOR ASM
EXC. EURO3 SPECIFICATION<NJX> 		1-21410-870-1 01 1 0107- ●
1 RADIATOR ASM
EURO3 SPECIFICATION<NJX> 		1-21410-871-1 01 1 0107- ●
1 RADIATOR ASM 1-21410-730-1 01 1 0105- ●
2 GUIDE; FAN 1-21551-369-0 01 1 0105- ●
2 GUIDE; FAN
EURO2 SPECIFICATION<THN> 		1-21551-420-0 01 1 0105-0606 ●
2 GUIDE; FAN 1-21551-420-0 01 1 0105-0606 ●
2 GUIDE; FAN
EURO2 SPECIFICATION<THN> 		8-97615-752-0 01 1 0607- ●
2 GUIDE; FAN 8-97615-752-0 01 1 0607- ●
2 GUIDE; FAN
EURO3 SPECIFICATION<NJX> 		1-21551-500-0 01 1 0107- ●
21 SEAL; RAD 1-21460-090-0 01 1 0105- ●
21 SEAL; RAD 1-21460-123-0 01 1 0105- ●
21 SEAL; RAD 1-21460-096-0 01 1 0105- ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 0105- ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 0105- ●
22 BRACKET; RAD MTG
(B) 		1-21464-504-0 01 1 0105- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-503-0 01 1 0105- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 20 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 18 1 0105- ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 0105- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0105- ● ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-499-0 01 1 0105- ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-641-0 01 1 0105- ● ●
60 GROMMET 1-09332-117-0 04 1 0105- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0105-0605 ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0105- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 0105- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0105- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 0105-0111 ●
79 GUIDE; FAN,RAD 1-21551-439-0 01 1 0112- ●
79 GUIDE; FAN,RAD 1-21551-422-1 01 1 0105- ● ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 0105- ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 0105- ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 0105- ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 0105- ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 0105- ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0105- ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 0105- ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 0105- ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 0105- ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 0105-0105 ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X45 FLANGE 		0-28081-045-0 03 1 0105-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X45 FLANGE 		0-28051-045-0 03 1 0601- ● ● ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 0105-0105 ● ●
98 BOLT; RAD FAN GUIDE
EURO2 SPECIFICATION<THN> (A) M10X40 FLANGE 		0-28081-040-0 01 1 0105-0105 ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 0105-0605 ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0606- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0105- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 0105-0512 ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 02 1 0601- ● ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 0105- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 0105-0307 ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-485-0 01 1 0308- ● ● ●
115 BRACKET; FAN GUIDE
EURO3 SPECIFICATION<NJX> (C) 		1-21559-463-0 01 1 0107- ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 0105- ●
242 BRACKET; RAD
(A) 		1-21464-729-0 01 1 0105- ●
242 BRACKET; RAD
(B) 		1-21464-730-0 01 1 0105- ●
242 BRACKET; RAD
(A) 		1-21464-517-0 01 1 0105- ●
242 BRACKET; RAD
(B) 		1-21464-518-0 01 1 0105- ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0202- ● ● ●
249 BOLT; STAY,RAD MBR
(A),(B) M8X30 		1-09009-020-1 04 1 0105-0201 ● ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0202- ● ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 0105- ● ● ●

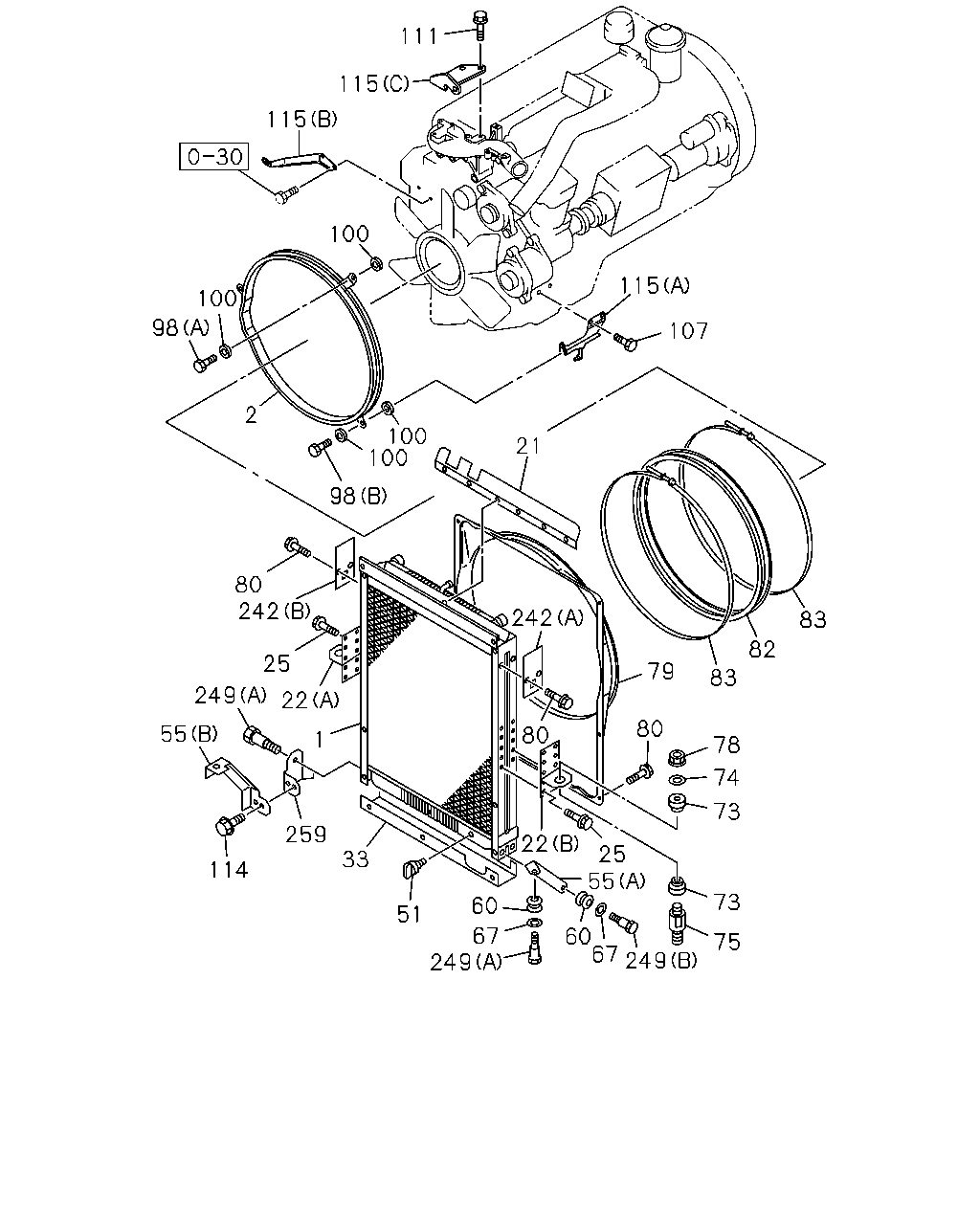

çizim 21289
111 115 115 100 115 107 100 98 2 100 100 21 98 80 242 25 22 249 55 1 259 114 33 51 242 79 83 82 83 80 80 78 74 73 25 22 60 67 249 55 60 67 249 73 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-693-0 01 1 0105- ●
1 RADIATOR ASM 1-21410-870-1 01 1 0105-0106 ●
1 RADIATOR ASM
EXC. EURO3 SPECIFICATION<NJX> 		1-21410-870-1 01 1 0107- ●
1 RADIATOR ASM
EURO3 SPECIFICATION<NJX> 		1-21410-871-1 01 1 0107- ●
1 RADIATOR ASM 1-21410-730-1 01 1 0105- ●
2 GUIDE; FAN 1-21551-369-0 01 1 0105- ●
2 GUIDE; FAN
EURO2 SPECIFICATION<THN> 		1-21551-420-0 01 1 0105-0606 ●
2 GUIDE; FAN 1-21551-420-0 01 1 0105-0606 ●
2 GUIDE; FAN
EURO2 SPECIFICATION<THN> 		8-97615-752-0 01 1 0607- ●
2 GUIDE; FAN 8-97615-752-0 01 1 0607- ●
2 GUIDE; FAN
EURO3 SPECIFICATION<NJX> 		1-21551-500-0 01 1 0107- ●
21 SEAL; RAD 1-21460-090-0 01 1 0105- ●
21 SEAL; RAD 1-21460-123-0 01 1 0105- ●
21 SEAL; RAD 1-21460-096-0 01 1 0105- ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 0105- ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 0105- ●
22 BRACKET; RAD MTG
(B) 		1-21464-504-0 01 1 0105- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-503-0 01 1 0105- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 20 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 18 1 0105- ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 0105- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0105- ● ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-499-0 01 1 0105- ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-641-0 01 1 0105- ● ●
60 GROMMET 1-09332-117-0 04 1 0105- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0105-0605 ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0105- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 0105- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0105- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 0105-0111 ●
79 GUIDE; FAN,RAD 1-21551-439-0 01 1 0112- ●
79 GUIDE; FAN,RAD 1-21551-422-1 01 1 0105- ● ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 0105- ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 0105- ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 0105- ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 0105- ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 0105- ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0105- ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 0105-0105 ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X45 FLANGE 		0-28081-045-0 03 1 0105-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X45 FLANGE 		0-28051-045-0 03 1 0601- ● ● ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 0105-0105 ● ●
98 BOLT; RAD FAN GUIDE
EURO2 SPECIFICATION<THN> (A) M10X40 FLANGE 		0-28081-040-0 01 1 0105-0105 ●
100 RUBBER; MTG 1-09337-017-0 06 1 0105- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 0105-0512 ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 02 1 0601- ● ● ●
111 BOLT; BRKT
EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ●
111 BOLT; BRKT
EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 0105- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 0105-0307 ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-485-0 01 1 0308- ● ● ●
115 BRACKET; FAN GUIDE
EURO3 SPECIFICATION<NJX> (C) 		1-21559-463-0 01 1 0107- ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 0105- ●
242 BRACKET; RAD
(A) 		1-21464-729-0 01 1 0105- ●
242 BRACKET; RAD
(B) 		1-21464-730-0 01 1 0105- ●
242 BRACKET; RAD
(A) 		1-21464-517-0 01 1 0105- ●
242 BRACKET; RAD
(B) 		1-21464-518-0 01 1 0105- ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0202- ● ● ●
249 BOLT; STAY,RAD MBR
(A),(B) M8X30 		1-09009-020-1 04 1 0105-0201 ● ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0202- ● ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 0105- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
