Sayfa 1-01 - Isuzu EPC

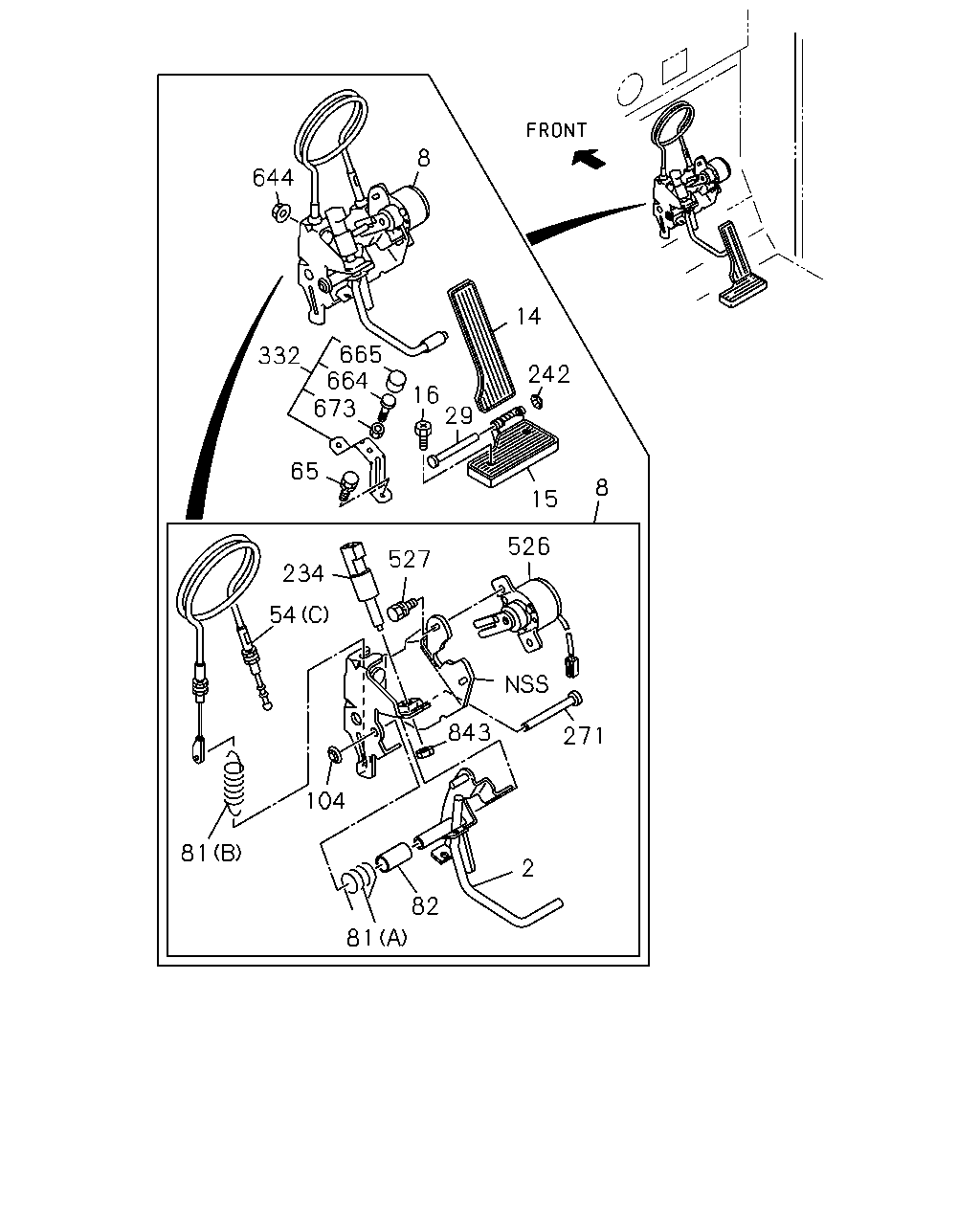

1-01 — ACCELERATOR PEDAL AND CONTROL (#28495) — 303 parça

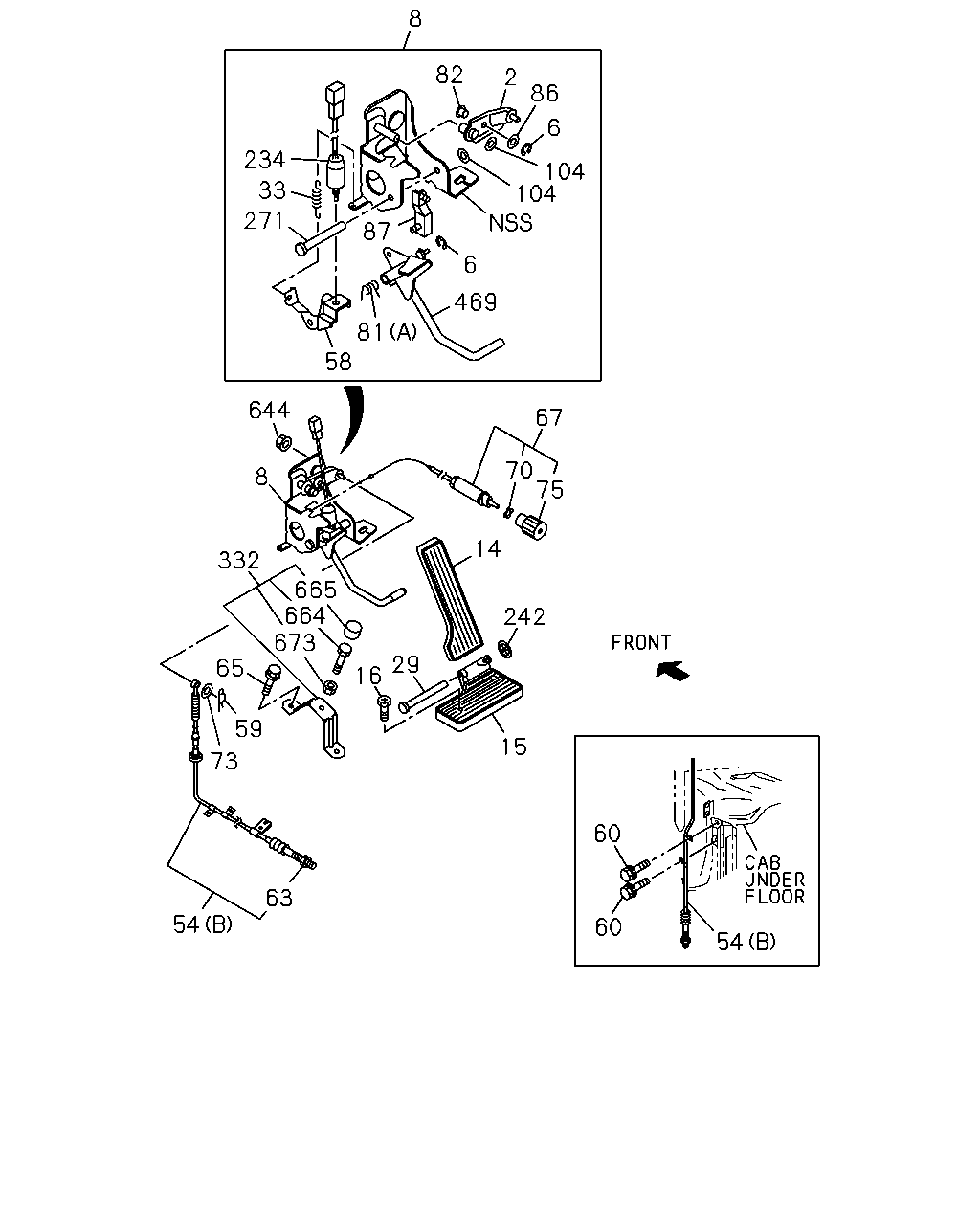

8 82 2 86 6 104 104 234 33 271 87 6 469 81 58 644 8 332 67 70 75 14 242 15 29 16 665 664 673 65 59 73 63 54 60 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-550-1	01	1	0105-	●	●	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-210-2	01	1	0105-	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=4	9-09185-404-0	02	1	0105-0604	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=4	0-91805-504-0	02	1	0605-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-551-3	01	1	0105-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73996-206-6	01	1	0105-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-94414-815-0	01	1	0105-	●	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	0105-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-242-1	01	1	0105-	●	●	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=27.7	1-09747-005-0	01	1	0105-	●	●	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0105-		●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	01	1	0105-		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=399	1-73998-912-3	01	1	0105-0204	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=315	1-73908-423-0	01	1	0205-	●	●	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73908-045-1	01	1	0105-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4	9-09160-508-0	01	1	0105-0605	●	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97066-797-1	01	1	0105-0109	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97137-504-0	01	1	0110-0204	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73908-409-0	01	1	0205-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-71907-268-0	01	1	0105-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	8-97997-917-0	01	1	0207-	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=31.5	1-53459-627-0	01	1	0105-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-244-1	02	1	0105-	●	●	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6.4	9-09160-506-0	02	1	0105-	●	●	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-211-1	01	1	0105-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-131-2	01	1	0105-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-114-3	01	1	0105-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=69	1-71907-298-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-209-5	01	1	0105-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●

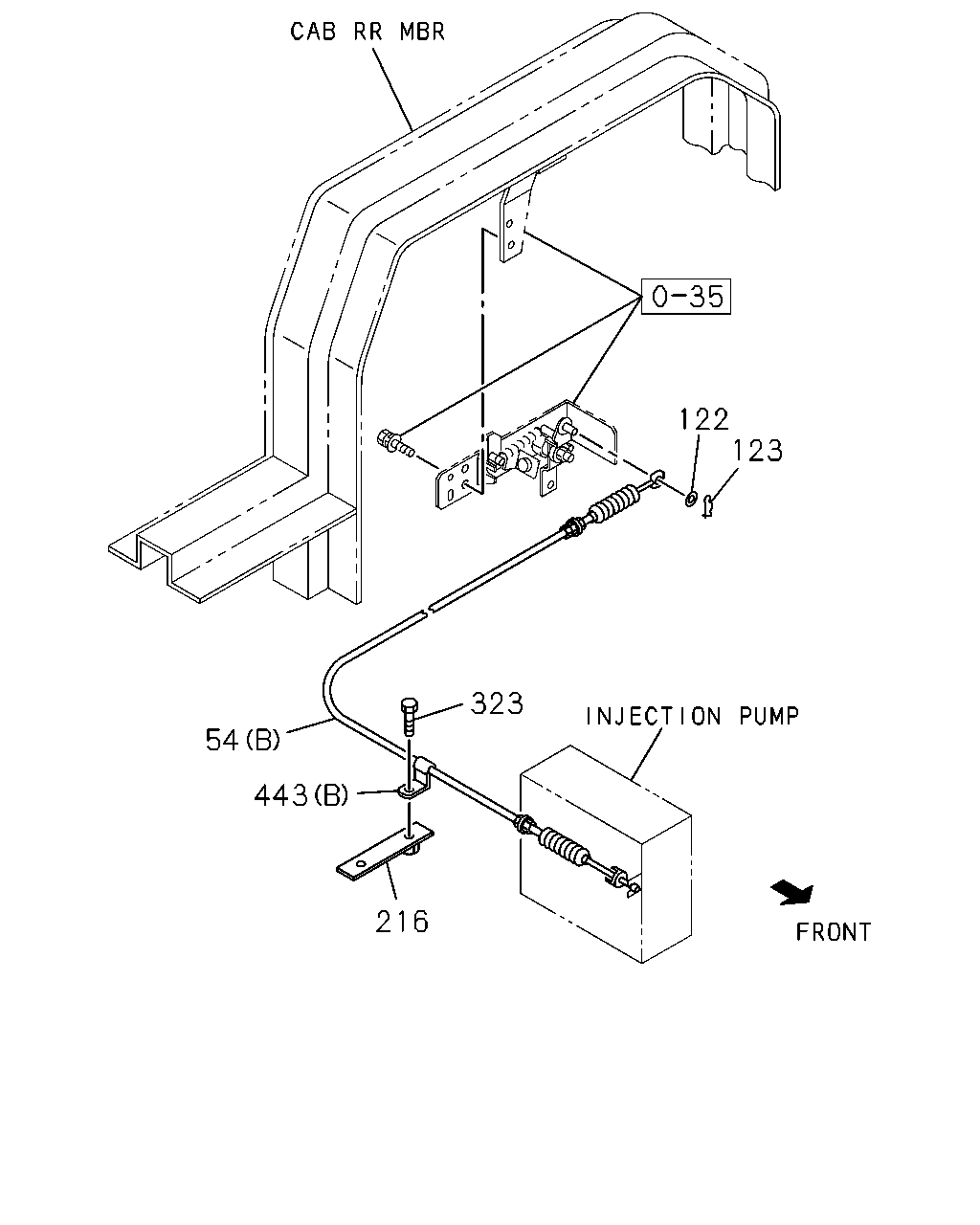

122 123 323 54 443 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	0105-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4	9-09160-508-0	01	1	0105-0605	●	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0105-0605		●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605	●		●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-	●		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0105-		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=27.7	1-09987-141-0	01	1	0105-	●	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-	●		●
216	BRACKET PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47476-881-0	01	1	0105-	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●	●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	9-09525-035-0	02	1	0105-0606	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	0-95235-035-0	02	1	0607-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●	●	●

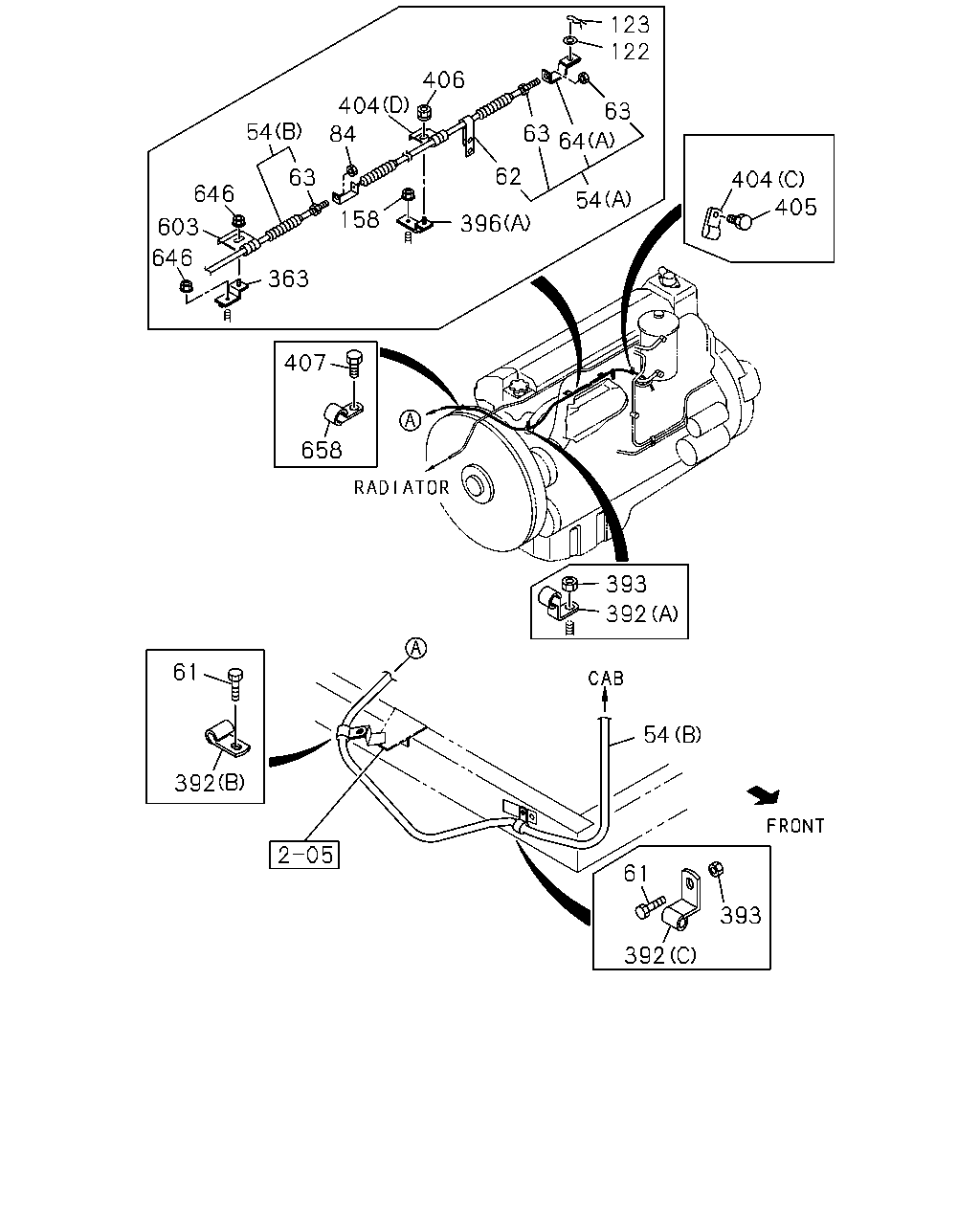

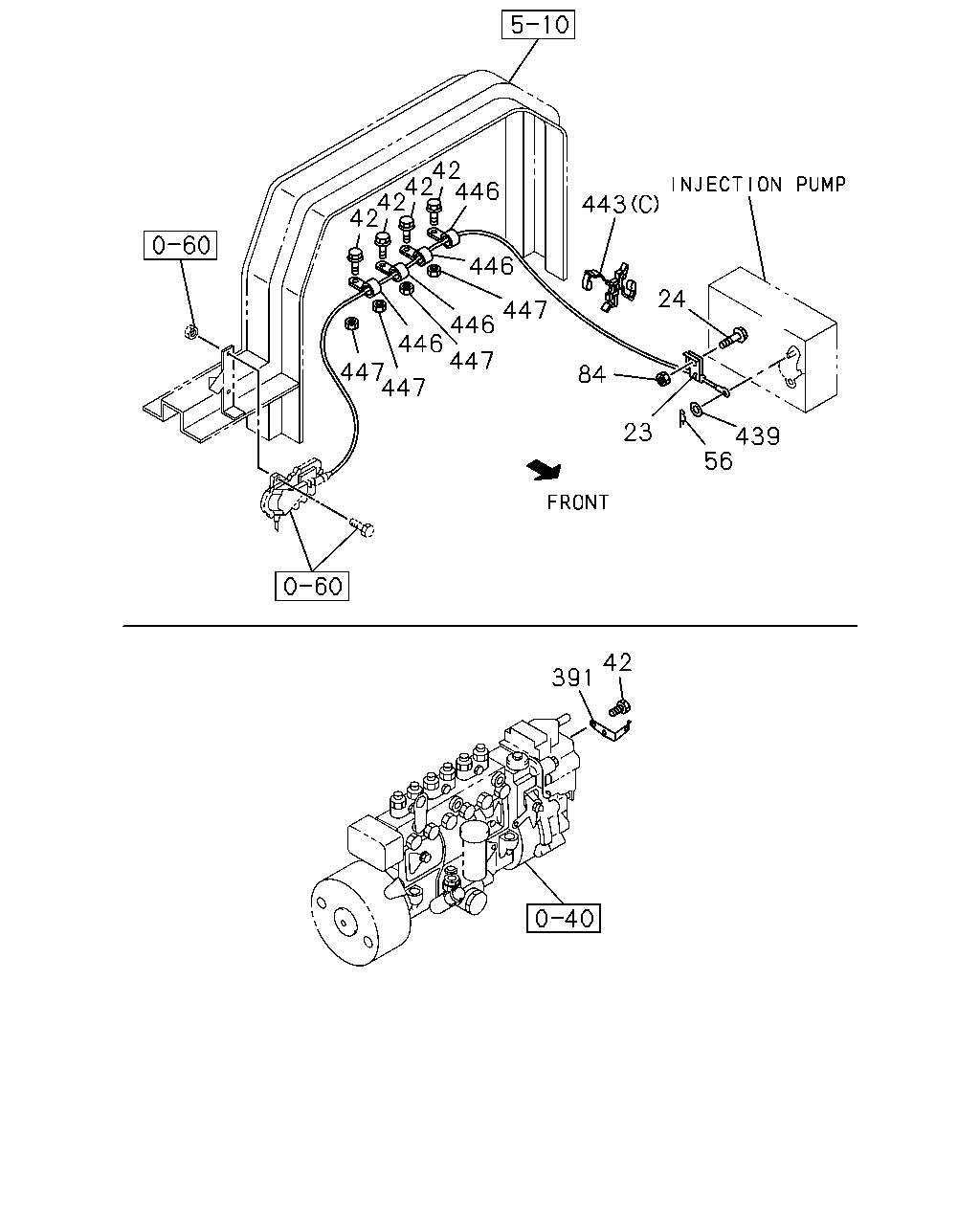

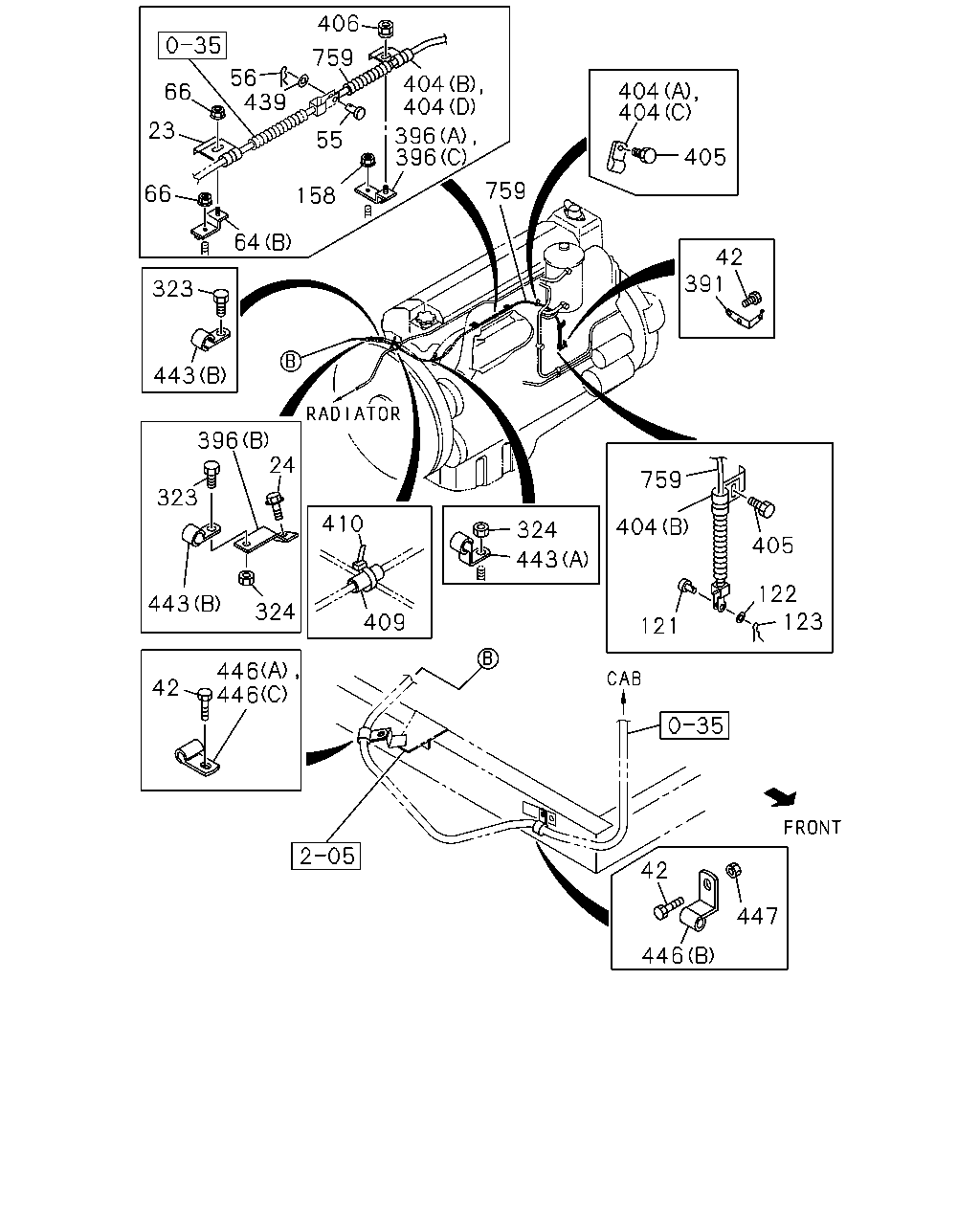

406 759 56 66 23 66 439 404 404 396 396 55 158 64 759 405 404 404 323 443 42 391 24 396 323 443 324 410 409 446 446 42 443 324 759 404 405 122 123 121 447 446 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0105-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-099-0	01	1	0105-0105	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0105-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-138-0	01	1	0105-	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0105	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28080-820-0	02	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X12 FLANGE	0-28080-612-0	02	1	0105-0512	●
42	BOLT; BRKT,ENG CONT CABLE M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=11	1-09744-102-0	01	1	0105-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	0105-		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-47477-804-3	01	1	0105-0105	●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0105-	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	02	1	0105-0105	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0105-	●		●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4	9-09160-508-0	01	1	0105-0605	●	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0105-0605		●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605	●		●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-	●		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0105-		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=27.7	1-09987-141-0	01	1	0105-	●	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0105-	●
396	BRACKET; CLIP ELECTRONIC GOV RED4(Q4F) (B)	1-47479-250-0	01	1	0105-	●	●	●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-		●	●
396	BRACKET; CLIP (C)	1-14319-130-1	01	1	0105-	●
404	CLIP; CABLE (D)	1-14319-111-0	01	1	0105-		●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0105-0606		●	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0105-0606		●
404	CLIP; CABLE (C) ID=9 L=40	0-95234-875-0	01	1	0607-		●	●
404	CLIP; CABLE (C) ID=9 L=40	0-95234-875-0	01	1	0607-		●
404	CLIP; CABLE (A) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●
404	CLIP; CABLE (A) ID=11 L=20	0-95235-035-0	01	1	0607-	●
404	CLIP; CABLE (B)	1-14319-111-0	02	1	0105-	●		●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	0105-0512		●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
409	SLEEVE ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0108-	●
409	SLEEVE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 L=30	5-09360-352-0	01	1	0106-	●	●	●
410	CLIP; BAND ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> L=300	1-09707-001-1	01	1	0108-0504	●
410	CLIP; BAND ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> L=350	1-09707-183-0	01	1	0505-	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=140	5-09707-031-1	01	1	0105-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●	●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	9-09525-035-0	02	1	0105-0606	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	0-95235-035-0	02	1	0607-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	9-09524-655-0	04	1	0105-0606	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	0-95234-655-0	04	1	0607-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED4(Q4F) (C)	9-09917-514-0	01	1	0105-0404	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0105-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0105-			●

391 42 56 439 23 84 24 447 447 447 447 446 446 446 446 443 42 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0105-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-099-0	01	1	0105-0105	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0105-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-138-0	01	1	0105-	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0105	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28080-820-0	02	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X12 FLANGE	0-28080-612-0	02	1	0105-0512	●
42	BOLT; BRKT,ENG CONT CABLE M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0105-0501	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	9-09110-408-0	01	1	0502-0512	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	0-91110-508-0	01	1	0601-	●	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0105-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●	●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	9-09525-035-0	02	1	0105-0606	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	0-95235-035-0	02	1	0607-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	9-09524-655-0	04	1	0105-0606	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	0-95234-655-0	04	1	0607-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED4(Q4F) (C)	9-09917-514-0	01	1	0105-0404	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●

392 393 61 392 61 54 392 393 658 407 405 404 54 122 123 63 64 63 62 396 158 363 646 603 646 63 54 84 404 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	0105-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	0105-		●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0105-		●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	01	1	0105-		●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	0105-		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-47477-804-3	01	1	0105-0105	●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0105-	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0105-0501	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	9-09110-408-0	01	1	0502-0512	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	0-91110-508-0	01	1	0601-	●	●	●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4	9-09160-508-0	01	1	0105-0605	●	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0105-0605		●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605	●		●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-	●		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0105-		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=27.7	1-09987-141-0	01	1	0105-	●	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47477-804-3	01	1	0105-	●	●	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-	●	●	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●	●	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
396	BRACKET; CLIP ELECTRONIC GOV RED4(Q4F) (B)	1-47479-250-0	01	1	0105-	●	●	●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-		●	●
396	BRACKET; CLIP (C)	1-14319-130-1	01	1	0105-	●
404	CLIP; CABLE (D)	1-14319-111-0	01	1	0105-		●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0105-0606		●	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0105-0606		●
404	CLIP; CABLE (C) ID=9 L=40	0-95234-875-0	01	1	0607-		●	●
404	CLIP; CABLE (C) ID=9 L=40	0-95234-875-0	01	1	0607-		●
404	CLIP; CABLE (A) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●
404	CLIP; CABLE (A) ID=11 L=20	0-95235-035-0	01	1	0607-	●
404	CLIP; CABLE (B)	1-14319-111-0	02	1	0105-	●		●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	0105-0512		●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-140-0	01	1	0105-	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=20	9-09524-635-0	02	1	0105-0606	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=20	0-95234-635-0	02	1	0607-	●	●	●

8 644 14 242 8 15 29 16 332 665 664 673 65 526 527 234 54 271 843 104 2 82 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-550-1	01	1	0105-	●	●	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-210-2	01	1	0105-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-551-3	01	1	0105-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73996-206-6	01	1	0105-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	0105-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-71907-268-0	01	1	0105-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	8-97997-917-0	01	1	0207-	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=31.5	1-53459-627-0	01	1	0105-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-244-1	02	1	0105-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-131-2	01	1	0105-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-114-3	01	1	0105-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=69	1-71907-298-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-81534-003-2	01	1	0105-	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0206	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M12	9-99111-412-0	01	1	0105-0512	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M12	0-91111-512-0	01	1	0601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
