4-11 — FRONT HUB AND DRUM OR ROTOR (#2849) — 51 parça

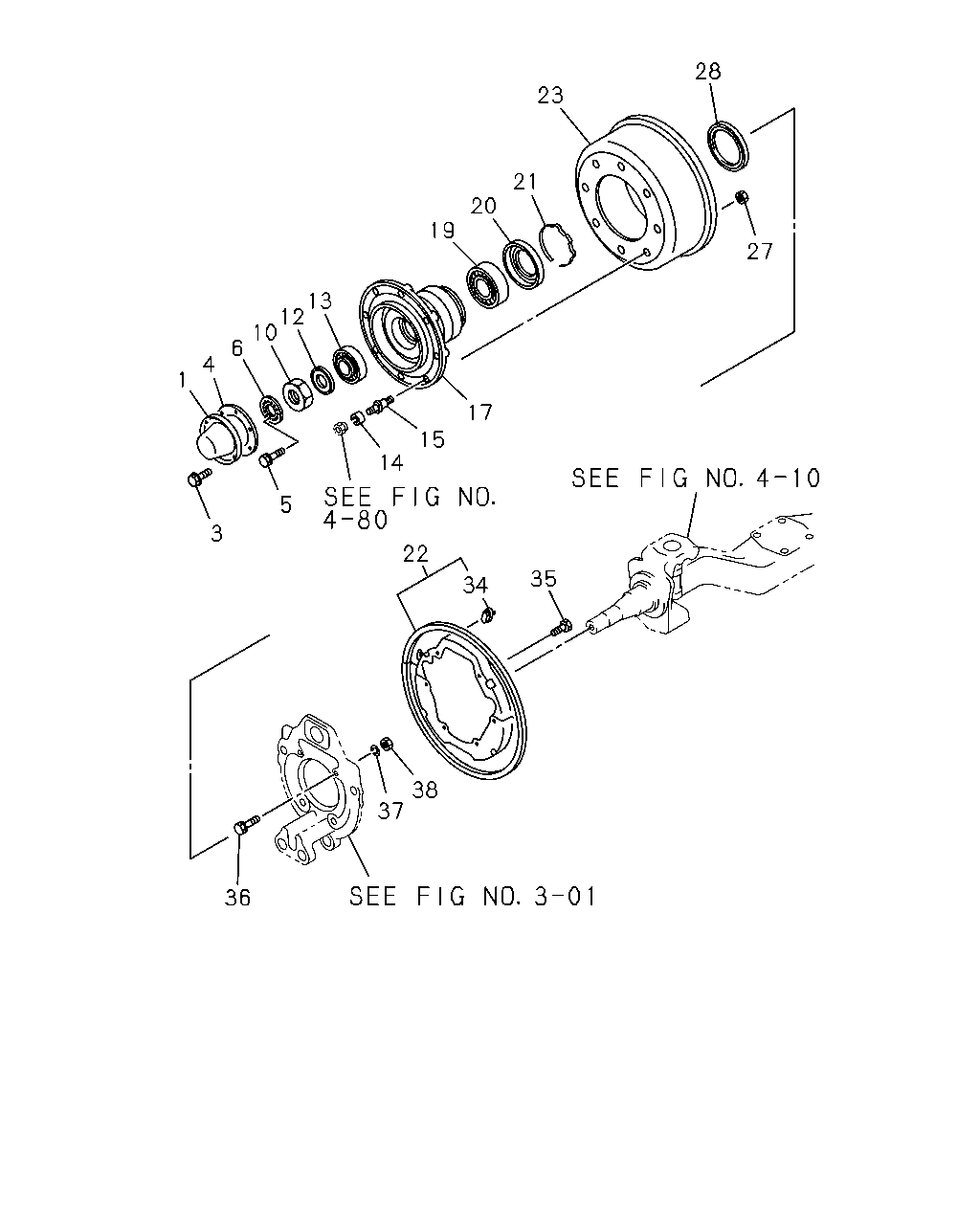

çizim 96383
35 34 22 38 37 36 3 5 14 15 17 1 4 6 10 12 13 19 20 21 23 28 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9002- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		9-01900-814-0 12 1 9002-9204 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		0-50040-814-0 12 1 9205-9509 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9510- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9002- ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		9-01910-616-0 04 1 9002-9005 ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9006- ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9002- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9002- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9002- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 02 1 9002- ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-085-0 02 1 9002- ● ●
14 RING; SPR,FRT WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42339-025-1 20 1 9002- ● ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9002-9412 ● ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9501- ●
15 PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42331-042-0 20 1 9002-9111 ● ●
15 PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9112- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9012- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9012- ● ●
17 HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-055-0 02 1 9002-9111 ● ●
17 HUB; FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-055-0 02 1 9112-9404 ● ●
17 HUB; FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-100-0 02 1 9405- ● ●
17 HUB; FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-043-0 02 1 9002-9111 ● ●
17 HUB; FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-047-2 02 1 9012-9211 ● ●
17 HUB; FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-111-0 02 1 9212-9404 ● ●
17 HUB; FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-109-0 02 1 9405-9506 ● ●
17 HUB; FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42312-128-1 02 1 9507- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 02 1 9002- ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-143-0 02 1 9002- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9002- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9002- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 9002- ● ●
23 DRUM; BRK,FRT 1-42315-218-3 02 1 9002-9011 ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-218-4 02 1 9012-9306 ● ●
23 DRUM; BRK,FRT
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-329-1 02 1 9012-9307 ● ●
23 DRUM; BRK,FRT
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-336-1 02 1 9308- ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-333-1 02 1 9307-9307 ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-337-0 02 1 9308- ● ●
27 NUT; WHEEL PIN,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-09400-071-0 20 1 9002-9111 ● ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-09400-071-0 20 1 9112- ● ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-09400-037-0 20 1 9002-9111 ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		9-09110-522-0 16 1 9012- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9002- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-095-0 04 1 9002-9501 ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9502- ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		9-01901-016-0 12 1 9002-9204 ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9205- ● ●
36 BOLT; BACK PLATE
M16X59 FLANGE 		1-09044-002-2 04 1 9002- ● ●
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-516-0 04 1 9002-9401 ● ●
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 9402- ● ●
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 9002- ● ●
