0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#28486) — 112 parça

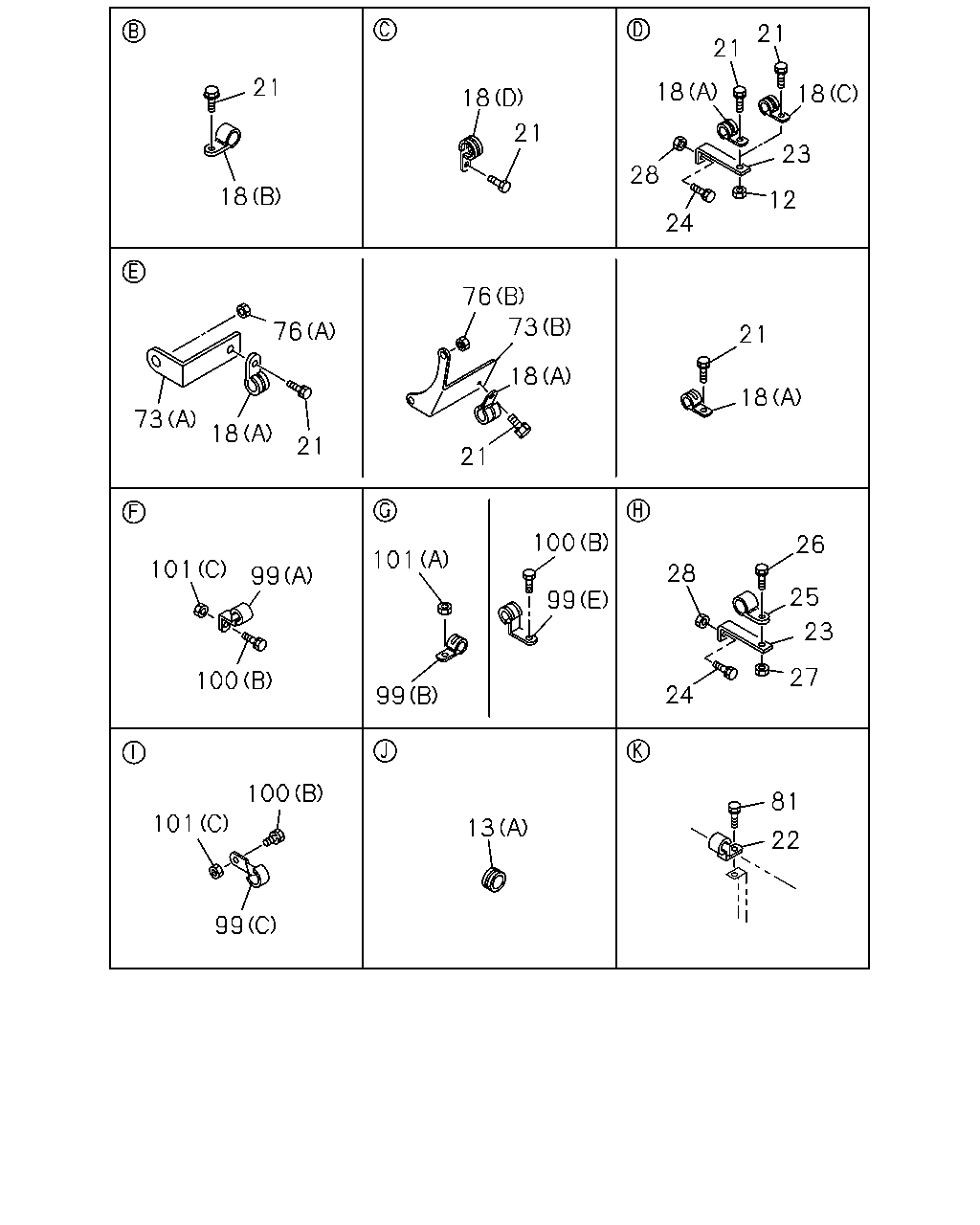

21 21 21 18 18 18 21 23 28 18 12 24 76 73 76 21 18 18 73 18 21 21 100 26 101 101 28 99 25 99 23 27 100 24 99 100 81 101 13 22 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-0602
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	0105-
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	02	1	0105-
18	CLIP; BATTERY CABLE (C) ID=19 L=28	9-09525-856-0	02	1	0105-0606
18	CLIP; BATTERY CABLE (C) ID=19 L=28	0-95235-856-0	02	1	0607-
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0105-0606
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0607-
18	CLIP; BATTERY CABLE ZF M/T<X9E> (D) ID=19 L=60	9-09525-896-0	01	1	0105-0606
18	CLIP; BATTERY CABLE ZF M/T<X9E> (D) ID=19 L=60	0-95235-896-0	01	1	0607-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	05	1	0105-0512
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	05	1	0601-
22	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	01	1	0105-
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	01	1	0105-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6300MM(63W) L=105 L=145 B=25	1-47479-123-0	01	1	0109-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6600MM(66W) L=95	1-82699-085-0	04	1	0109-0109
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6600MM(66W) L=112	1-47475-694-1	01	1	0109-
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	07	1	0105-0108
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	0109-0109
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6300MM(63W) L=95	1-82699-085-0	03	1	0109-0109
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	0109-
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	0109-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	07	1	0105-0512
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	07	1	0601-
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 6300MM(63W) ID=18 L=28	1-09701-067-0	04	1	0105-0112
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 6600MM(66W) ID=18 L=50	1-09701-072-0	04	1	0105-0112
25	CLIP; BATTERY CABLE TO BRKT ID=18 L=50	1-09701-072-0	04	1	0201-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	07	1	0105-0602
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	07	1	0603-
73	BRACKET; BATTERY CABLE FULLER M/T<X9B> (B)	1-82699-104-0	01	1	0105-
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> (A)	1-82699-493-0	01	1	0105-
76	NUT; BATTERY CABLE FULLER M/T<X9B> (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602
76	NUT; BATTERY CABLE FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
76	NUT; BATTERY CABLE ISUZU M/T<X9A> (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602
76	NUT; BATTERY CABLE ISUZU M/T<X9A> (A) M10 FLANGE	0-91180-210-0	02	1	0603-
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28650-820-0	02	1	0601-
99	CLIP; BATTERY CABLE (C) ID=18 L=54	1-09701-068-0	01	1	0105-0206
99	CLIP; BATTERY CABLE (C) ID=18 L=80	1-09701-069-0	01	1	0207-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0105-
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) (B) ID=18 L=50	1-09701-072-0	02	1	0105-0105
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) (E) ID=18 L=25 H=50	1-09701-096-0	02	1	0105-
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=18 L=80	1-09701-069-0	01	1	0105-0206
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
101	NUT; BATTERY CABLE CLIP (C) M8 FLANGE	0-91150-108-0	03	1	0105-0602
101	NUT; BATTERY CABLE CLIP (C) M8 FLANGE	0-91180-108-0	03	1	0603-
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91180-108-0	02	1	0603-
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8 FLANGE	0-91180-108-0	01	1	0603-

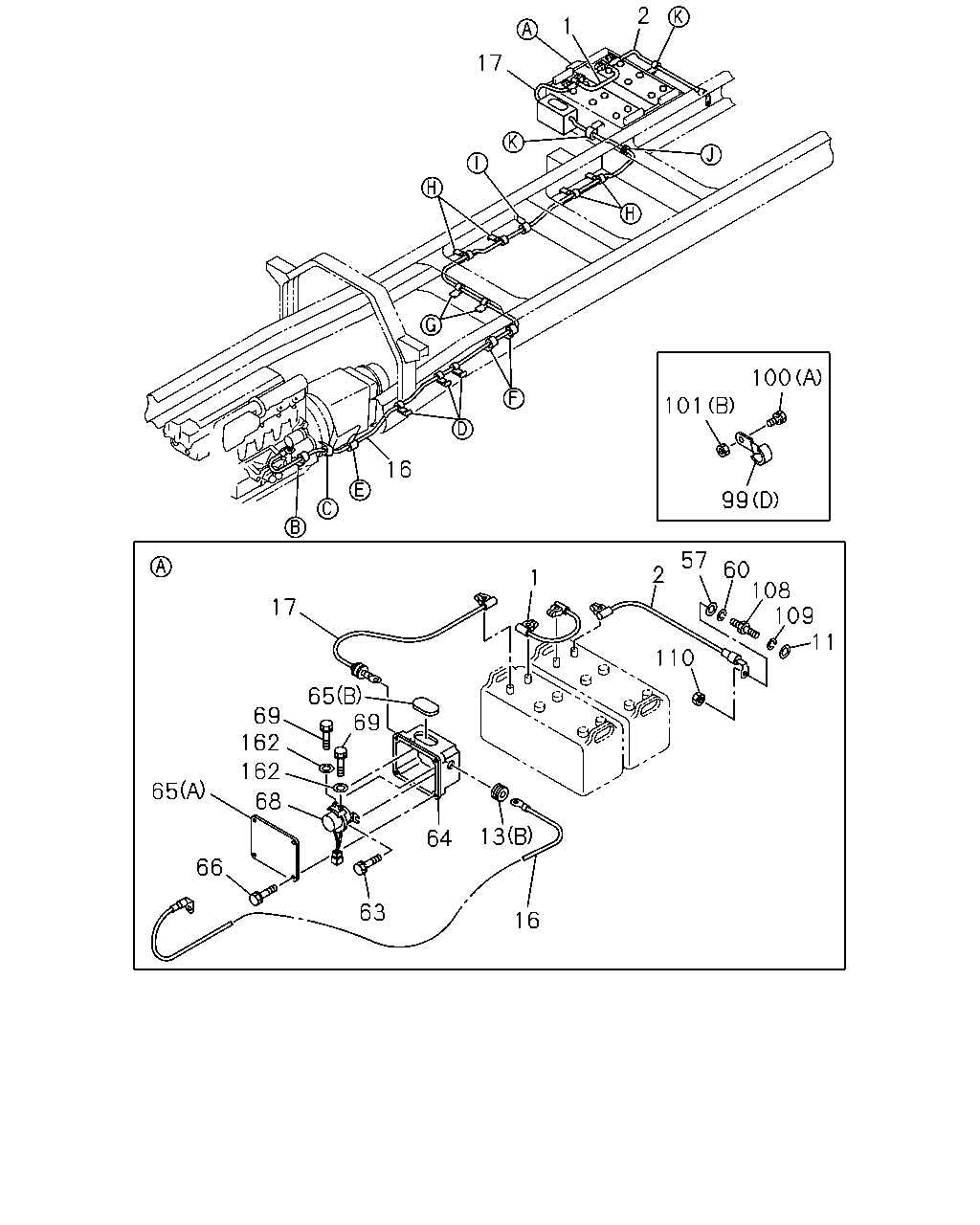

2 1 17 100 101 16 99 57 60 108 109 11 2 1 17 110 65 69 69 162 162 65 68 13 64 66 63 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	0105-
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	0105-
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	0105-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0105-0605
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	0105-
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) EXC. CAB UP +110MM<TGG> L=4940	1-82652-782-0	01	1	0112-
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> EXC. CAB UP +110MM<TGG> L=5440	1-82652-780-0	01	1	0112-
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) FULLER M/T<X9B>	1-82652-781-0	01	1	0112-
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=4900	1-82652-744-1	01	1	0105-0111
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> L=4900	1-82652-744-1	01	1	0112-
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-745-1	01	1	0105-0111
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> ISUZU M/T<X9A> L=5400	1-82652-745-1	01	1	0112-
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) ZF M/T<X9E> L=5400	1-82652-745-1	01	1	0112-
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	0105-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0106-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0106-0603
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	0105-
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	0105-
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	0105-
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	0105-
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	0105-0512
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50640-616-0	04	1	0601-
68	RELAY; BATTERY	1-82550-282-0	01	1	0105-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-0512
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
99	CLIP; BATTERY CABLE (C) ID=18 L=54	1-09701-068-0	01	1	0105-0206
99	CLIP; BATTERY CABLE (C) ID=18 L=80	1-09701-069-0	01	1	0207-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0105-
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) (B) ID=18 L=50	1-09701-072-0	02	1	0105-0105
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) (E) ID=18 L=25 H=50	1-09701-096-0	02	1	0105-
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=18 L=80	1-09701-069-0	01	1	0105-0206
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
101	NUT; BATTERY CABLE CLIP (C) M8 FLANGE	0-91150-108-0	03	1	0105-0602
101	NUT; BATTERY CABLE CLIP (C) M8 FLANGE	0-91180-108-0	03	1	0603-
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91180-108-0	02	1	0603-
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0105-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0105-0603
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0105-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0105-0605
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-
