◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#28485) — 146 parça
çizim 24019
490 489 488
BalonParca AdiParca NoAdetTipApplied Date
488 STOPPER; ENG
6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-82840-161-0 01 1 0105-
488 STOPPER; ENG
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CAB UP +110MM<TGG> 		1-82840-145-1 01 1 0105-
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0105-0512
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601-
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91180-108-0 02 1 0603-

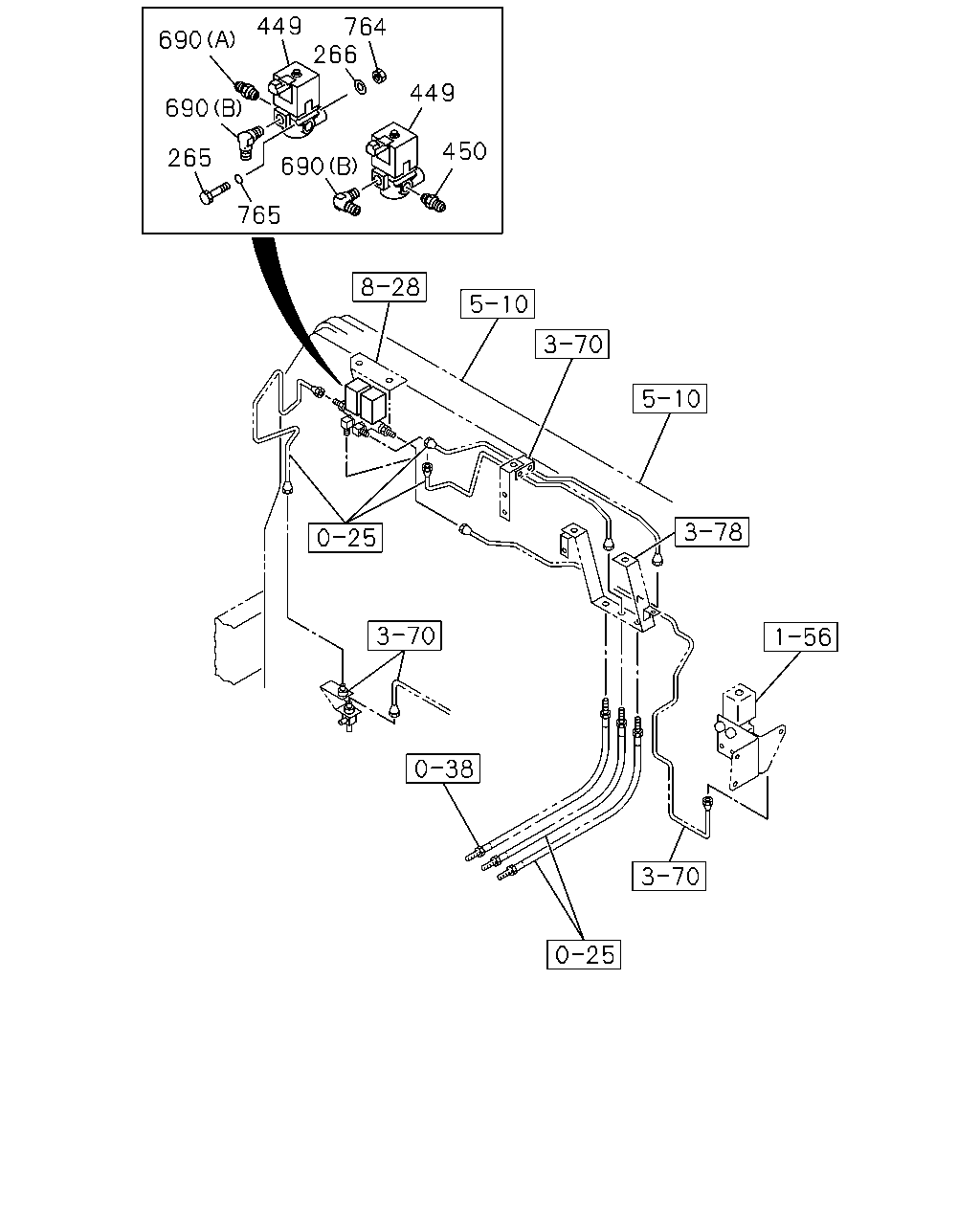

çizim 24020
449 764 266 690 449 690 450 265 690 765
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; MAG VLV FIX
6WG1 TC-C(72L) M6X50 FLANGE 		0-28080-650-0 01 1 0105-0512
265 BOLT; MAG VLV FIX
6WG1 TC-C(72L) M6X50 FLANGE 		0-28050-650-0 01 1 0601-
266 WASHER; PL,MAG VLV FIX
6WG1 TC-C(72L) 		1-82569-266-0 02 1 0105-
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WA1 TC-C(55L) 		1-82563-871-2 01 1 0105-
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WG1 TC-C(72L) 		1-82563-871-2 02 1 0105-
450 CONNECTOR; MAG VLV,INL PORT
6WA1 TC-C(55L),6WG1 TC-C(72L) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-
690 CONNECTOR
6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105-
690 CONNECTOR
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-
690 CONNECTOR
6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0105-
764 NUT; MAG VLV
6WG1 TC-C(72L) M6 FLANGE 		0-91150-106-0 01 1 0105-0602
764 NUT; MAG VLV
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 01 1 0603-
765 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 01 1 0105-

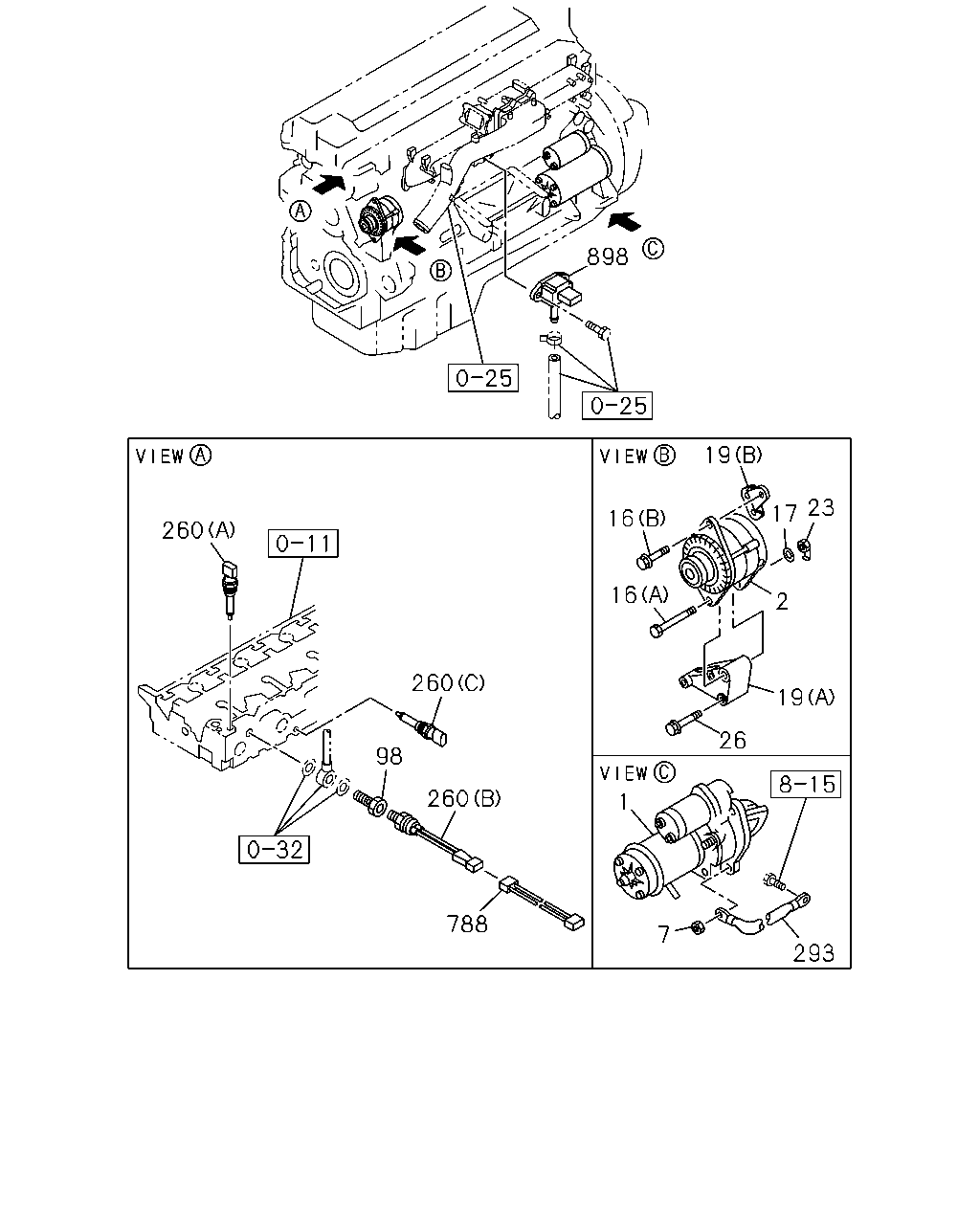

çizim 79074
898 19 17 23 2 16 16 26 19 1 7 293 788 260 260 98 260
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-352-1 01 1 0105-0106
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-352-3 01 1 0107-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8) ENGINE REAR PTO HEAVY DUTY<NJU> 24V 7.0KW MITSUBISHI 		1-81100-352-3 01 1 0107-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI 		1-81100-341-1 01 1 0105-0105
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-341-1 01 1 0105-0105
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI 		1-81100-341-3 01 1 0106-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-341-3 01 1 0106-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8) EXC. ENGINE REAR PTO HEAVY DUTY<NJU> 24V 7.0KW MITSUBISHI 		1-81100-341-3 01 1 0106-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) 24V 50A MITSUBISHI 		1-81200-517-2 01 1 0105-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) 24V 50A MITSUBISHI 		1-81200-484-7 01 1 0105-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0105-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0105-
16 BOLT; GEN
6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) M12X40 FLANGE 		0-28081-240-0 01 1 0105-0512
16 BOLT; GEN
6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) M12X40 FLANGE 		0-28051-240-0 01 1 0601-
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0105-0605
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-
19 BRACKET; GEN
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) 		1-19711-144-0 01 1 0105-
19 BRACKET; GEN
6WF1 TC-C(1B8) (B) 		1-19711-101-0 01 1 0105-0502
19 BRACKET; GEN
6WF1 TC-C(1B8) (B) 		8-97606-317-0 01 1 0503-
19 BRACKET; GEN
6WF1 TC-C(1B8) (A) 		1-19711-143-0 01 1 0105-0502
19 BRACKET; GEN
6WF1 TC-C(1B8) (A) 		8-97604-177-0 01 1 0503-
19 BRACKET; GEN
6WG1 TC-C(72L) (B) 		1-19711-082-0 01 1 0105-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0105-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 0105-0512
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0601-
98 ADAPTER; TEMP SENSOR 1-09675-236-0 01 1 0105-
260 SENSOR; WATER TEMP
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) 		1-80210-004-0 01 1 0105-
260 SENSOR; WATER TEMP
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) 		1-83161-038-0 01 1 0105-
260 SENSOR; WATER TEMP
6WF1 TC-C(1B8) (C) 		1-80210-005-1 01 1 0105-
260 SENSOR; WATER TEMP
6WF1 TC-C(1B8) (B) 		1-83161-040-0 01 1 0105-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0105-
788 HARNESS; EXT,WATER TEMP SENSOR
6WG1 TC-C(72L) 		1-82641-186-0 02 1 0105-0303
788 HARNESS; EXT,WATER TEMP SENSOR
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-82641-186-0 02 1 0304-
788 HARNESS; EXT,WATER TEMP SENSOR
6WF1 TC-C(1B8) 		1-82641-183-0 01 1 0105-
898 SENSOR; BOOST
6WF1 TC-C(1B8) 		1-80220-014-0 01 1 0105-

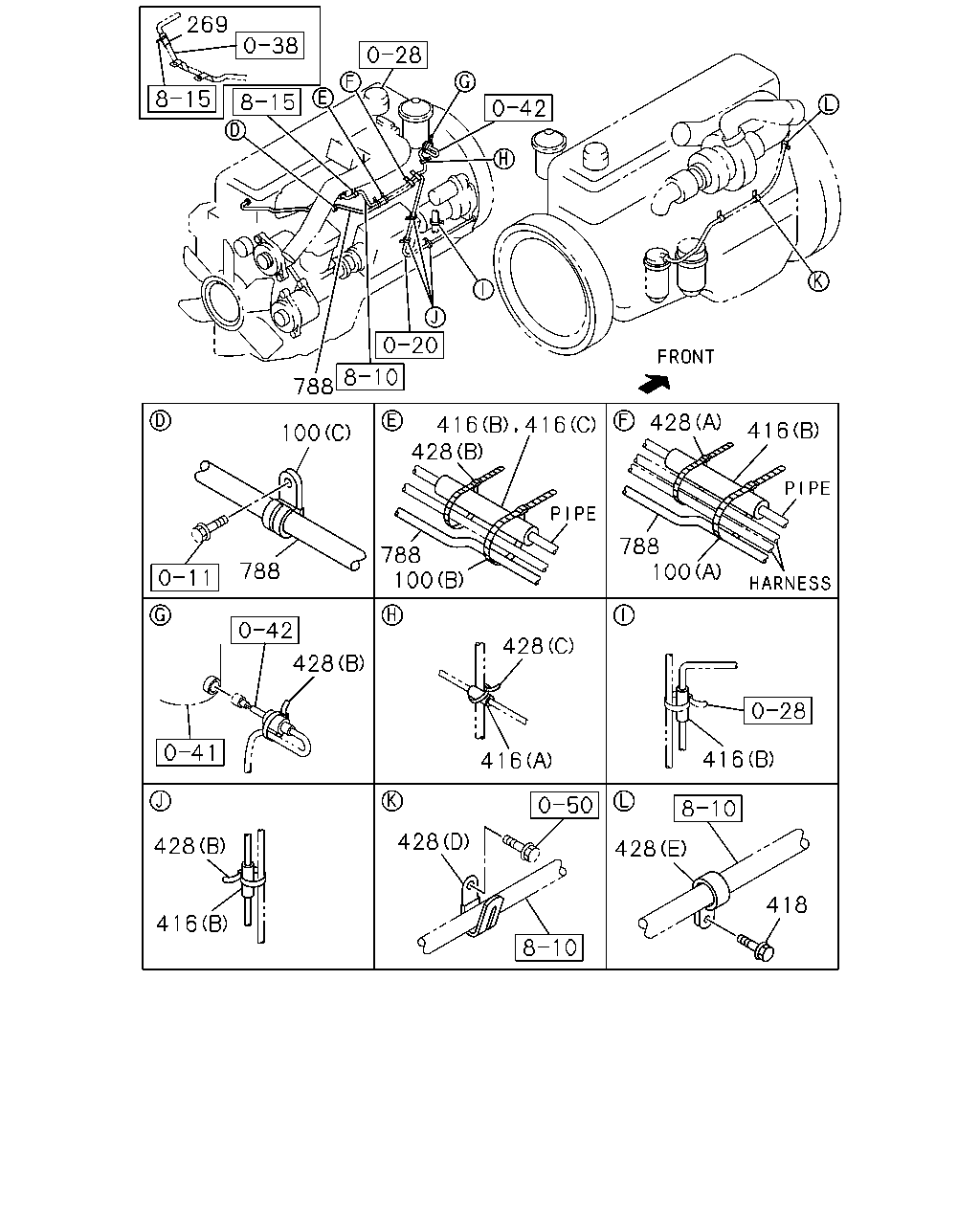

çizim 79213
269 788 428 428 416 100 788 100 788 100 788 428 428 416 416 428 428 428 418 416 416 416
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-
100 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=11 L=20 		9-09525-035-0 01 1 0105-0606
100 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=11 L=20 		0-95235-035-0 01 1 0607-
100 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) L=140 		5-09707-031-1 01 1 0105-
100 CLIP; HARNESS
6WG1 TC-C(72L) (C) ID=11 L=30 		1-09700-511-0 01 1 0105-
269 SLEEVE; RUBBER,CABLE
6WA1 TC-C(55L),6WG1 TC-C(72L) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0111-
269 SLEEVE; RUBBER,CABLE
6WF1 TC-C(1B8) EXC. ENGINE REAR PTO HEAVY DUTY<NJU> ID=18 OD=22 L=25 		8-94412-773-0 01 1 0111-
416 SLEEVE; RUBBER
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0105-
416 SLEEVE; RUBBER
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=10 OD=14 L=30 		9-09956-682-0 06 1 0105-
416 SLEEVE; RUBBER
6WF1 TC-C(1B8) (A) ID=6 L=30 		5-09360-352-0 01 1 0105-
416 SLEEVE; RUBBER
6WF1 TC-C(1B8) (B) ID=10 OD=14 L=30 		9-09956-682-0 07 1 0105-
416 SLEEVE; RUBBER
6WG1 TC-C(72L) (C) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0105-
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 0105-0512
418 BOLT; CLIP
M10X16 FLANGE 		0-28151-016-0 01 1 0601-
428 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (H) ID=32 L=35 		1-09701-244-0 01 1 0212-
428 CLIP; HARNESS
(I) 		1-82698-392-0 01 1 0112-
428 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
428 CLIP; HARNESS
(F) ID=26 L=26 		1-09701-236-0 01 1 0105-
428 CLIP; HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 0105-0211
428 CLIP; HARNESS
CAB UP +110MM<TGG> (H) ID=32 L=35 		1-09701-244-0 02 1 0212-
428 CLIP; HARNESS
(A) L=250 		5-09707-030-1 02 1 0105-
428 CLIP; HARNESS
(B) L=140 		5-09707-031-1 05 1 0105-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0105-
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0105-
428 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=100 		5-09707-036-1 01 1 0105-
788 HARNESS; EXT,WATER TEMP SENSOR
6WG1 TC-C(72L) 		1-82641-186-0 02 1 0105-0303
788 HARNESS; EXT,WATER TEMP SENSOR
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-82641-186-0 02 1 0304-
788 HARNESS; EXT,WATER TEMP SENSOR
6WF1 TC-C(1B8) 		1-82641-183-0 01 1 0105-

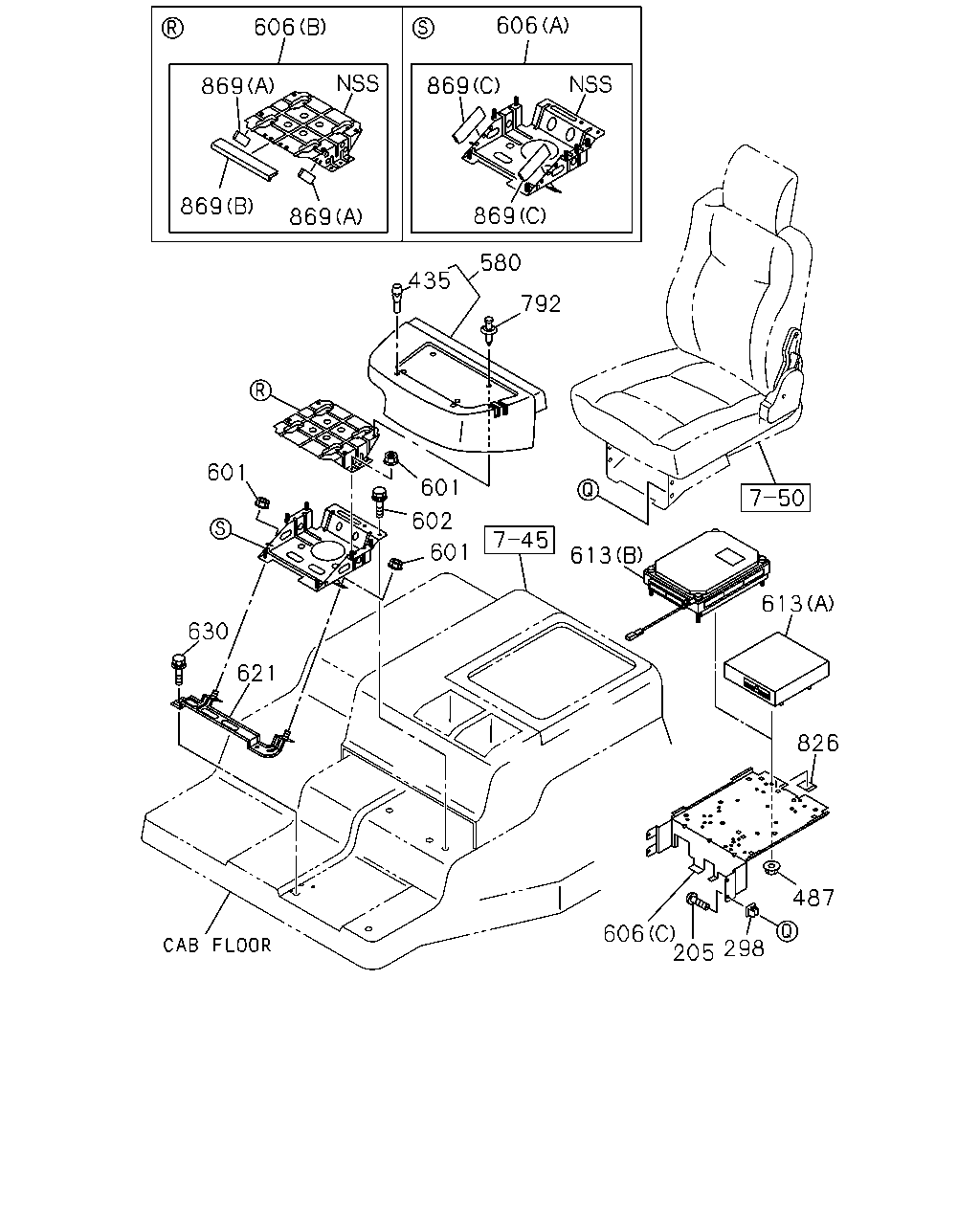

çizim 79247
606 606 869 869 869 869 869 580 435 792 601 601 602 601 613 613 630 621 826 487 606 298 205
BalonParca AdiParca NoAdetTipApplied Date
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0105-
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0105-
435 RUBBER; CUSHION
CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 0105-
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602
487 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-191-0 01 1 0105-0404
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-243-1 01 1 0405-0507
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-279-2 01 1 0508-
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91150-106-0 06 1 0105-0602
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91180-106-0 06 1 0603-
602 BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
606 BRACKET; CONT UNIT
(C) 		1-75558-598-3 01 1 0105-
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (A) 		1-72537-195-2 01 1 0105-
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-205-2 01 1 0105-
613 CONTROL UNIT; ENG
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-80110-666-0 01 1 0105-
613 CONTROL UNIT; ENG
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) 		1-80110-440-0 01 1 0105-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-80110-759-1 01 1 0105-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ELECTRONIC GOV RED4(Q4F) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-80110-763-1 01 1 0107-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-80110-439-0 01 1 0105-
621 SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-097-1 01 1 0105-
630 SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
792 FASTENER
CENTER SEAT DELETE(SP9) D8X13.5 		1-09987-270-0 04 1 0105-0404
792 FASTENER
CENTER SEAT DELETE(SP9) D8X13.5 		1-09987-270-0 05 1 0405-0507
792 FASTENER
CENTER SEAT DELETE(SP9) D8X13.5 		1-09987-270-0 04 1 0508-
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 0105-0309
826 SEAL; NOISE INSULATION
30X30 		1-74998-128-0 03 1 0310-
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) L=200 SERVICED BY L=880 		1-73948-003-0 01 1 0105-
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) L=100 SERVICED BY L=880 		1-73948-003-0 02 1 0105-
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) L=65 SERVICED BY L=880 		1-73948-003-0 02 1 0105-
çizim 79733
449 450 690 690
BalonParca AdiParca NoAdetTipApplied Date
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WA1 TC-C(55L) 		1-82563-871-2 01 1 0105-
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WG1 TC-C(72L) 		1-82563-871-2 02 1 0105-
450 CONNECTOR; MAG VLV,INL PORT
6WA1 TC-C(55L),6WG1 TC-C(72L) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-
690 CONNECTOR
6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105-
690 CONNECTOR
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-
690 CONNECTOR
6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0105-

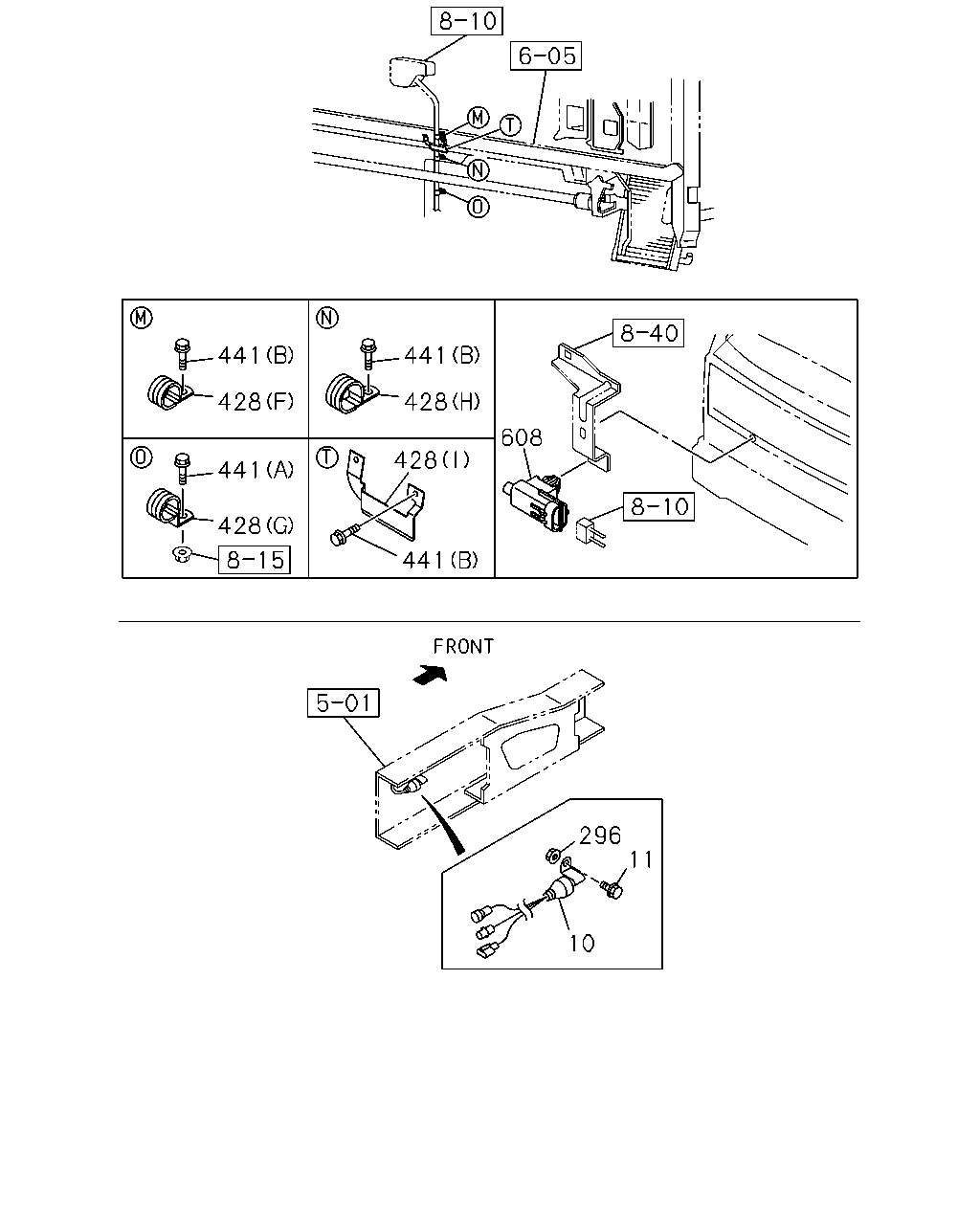

çizim 79734
441 441 428 428 608 428 441 428 441 296 11 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 0105-
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603-
428 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (H) ID=32 L=35 		1-09701-244-0 01 1 0212-
428 CLIP; HARNESS
(I) 		1-82698-392-0 01 1 0112-
428 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
428 CLIP; HARNESS
(F) ID=26 L=26 		1-09701-236-0 01 1 0105-
428 CLIP; HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 0105-0211
428 CLIP; HARNESS
CAB UP +110MM<TGG> (H) ID=32 L=35 		1-09701-244-0 02 1 0212-
428 CLIP; HARNESS
(A) L=250 		5-09707-030-1 02 1 0105-
428 CLIP; HARNESS
(B) L=140 		5-09707-031-1 05 1 0105-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0105-
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0105-
428 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=100 		5-09707-036-1 01 1 0105-
441 BOLT; HARNESS TO FRAME
EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0212-0512
441 BOLT; HARNESS TO FRAME
EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0112
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201-0211
441 BOLT; HARNESS TO FRAME
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0212-0512
441 BOLT; HARNESS TO FRAME
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0111
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0112-
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		8-97177-549-0 01 1 0105-

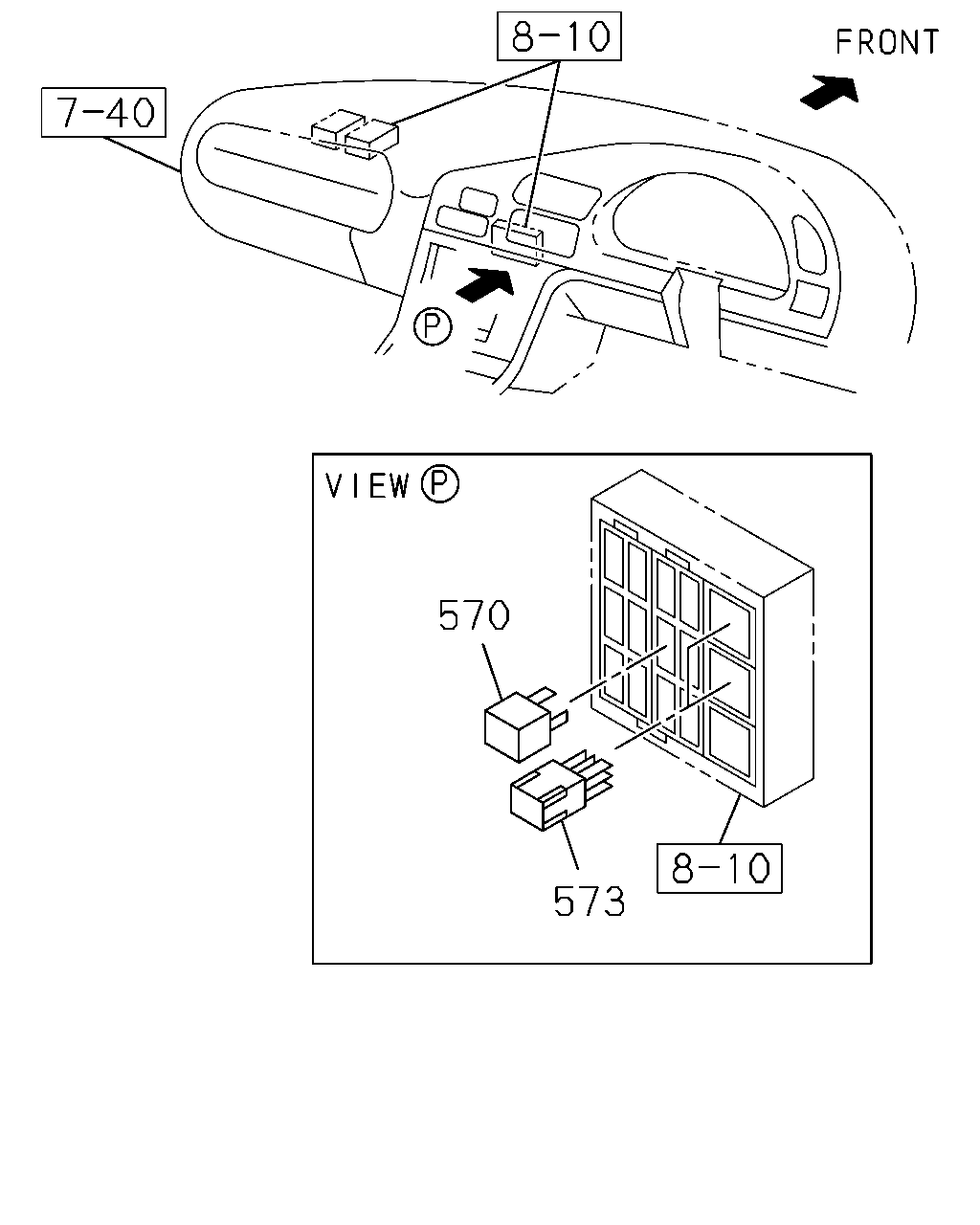

çizim 81583
570 573
BalonParca AdiParca NoAdetTipApplied Date
570 RELAY; EXH SHUTTER
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 10A PANASONIC 		8-97173-035-1 01 1 0105-
573 RELAY; ELEC GOV
ELECTRONIC GOV RED4(Q4F) EXC. EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0301-
573 RELAY; ELEC GOV
ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA 		8-97062-815-1 02 1 0105-0111
573 RELAY; ELEC GOV
ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-0212
573 RELAY; ELEC GOV
EURO3 SPECIFICATION<NJX> ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
