Sayfa 0-38 - Isuzu EPC

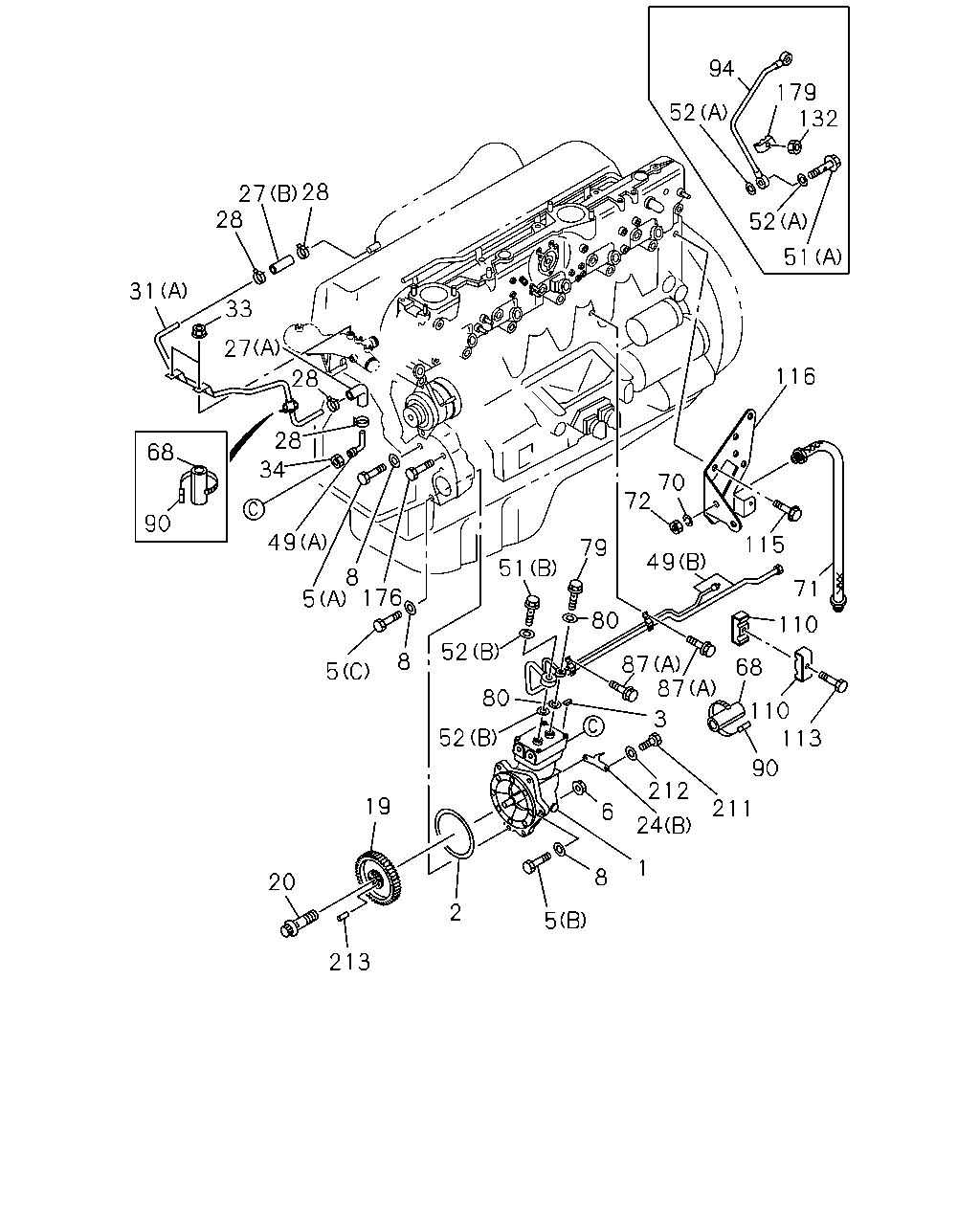

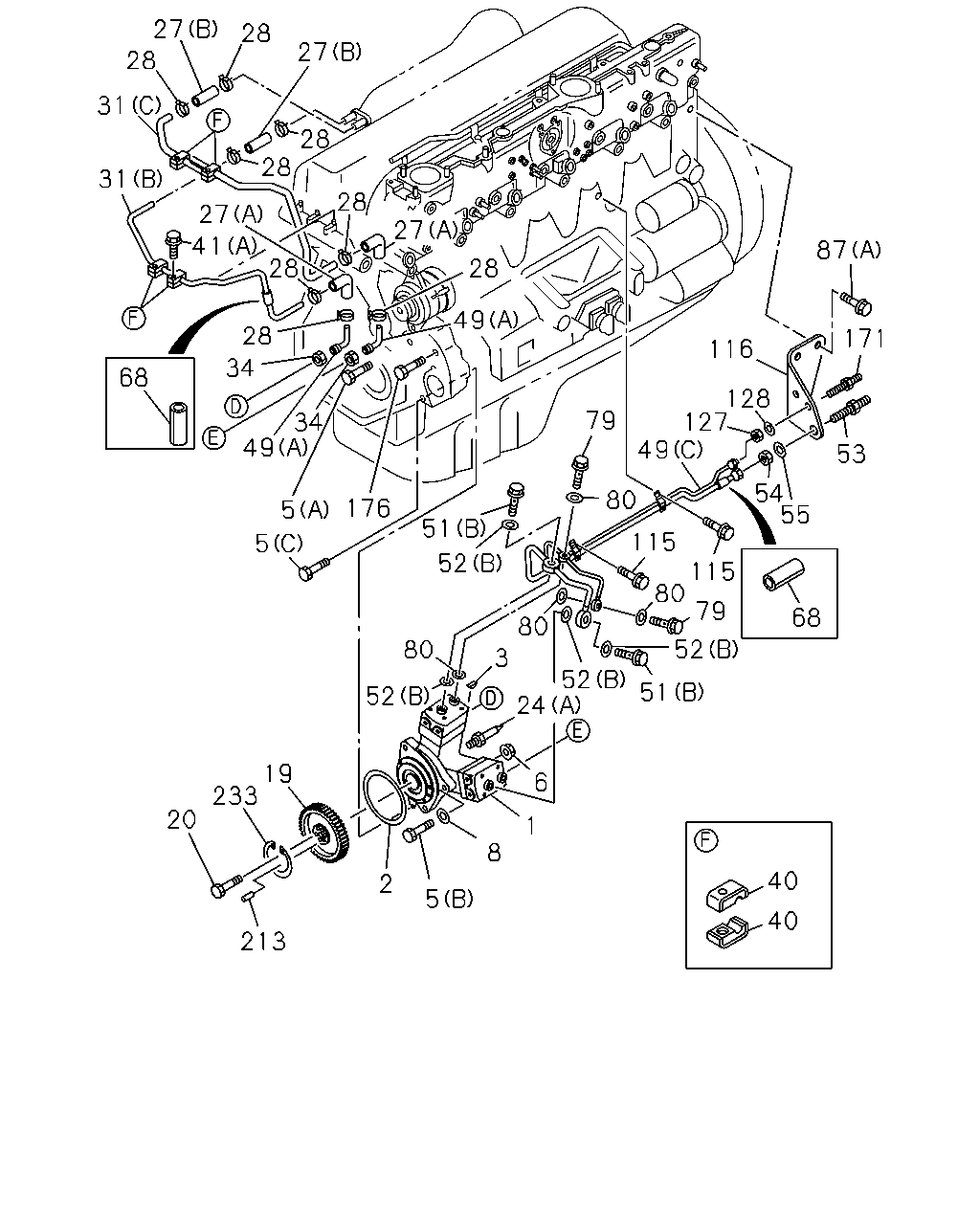

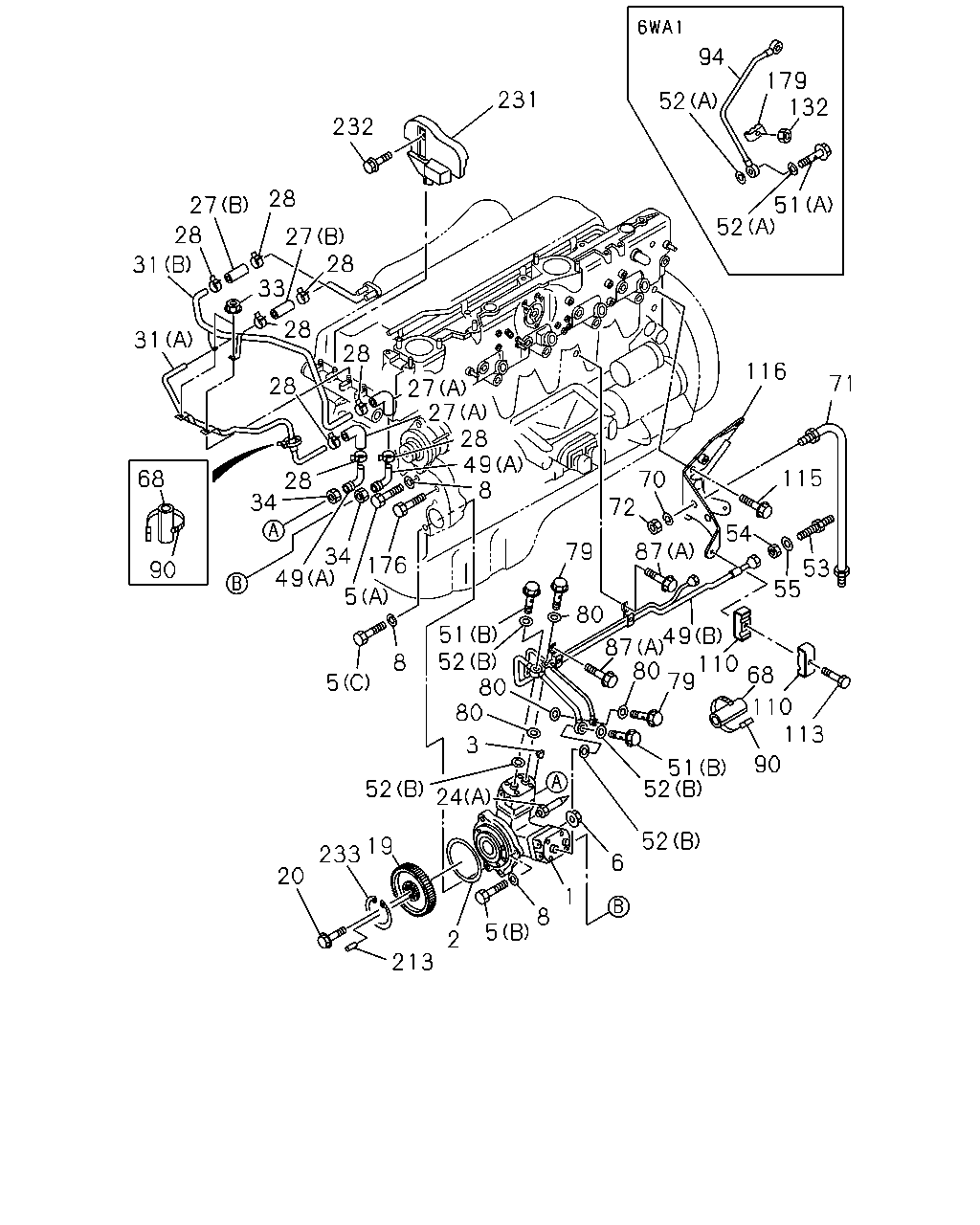

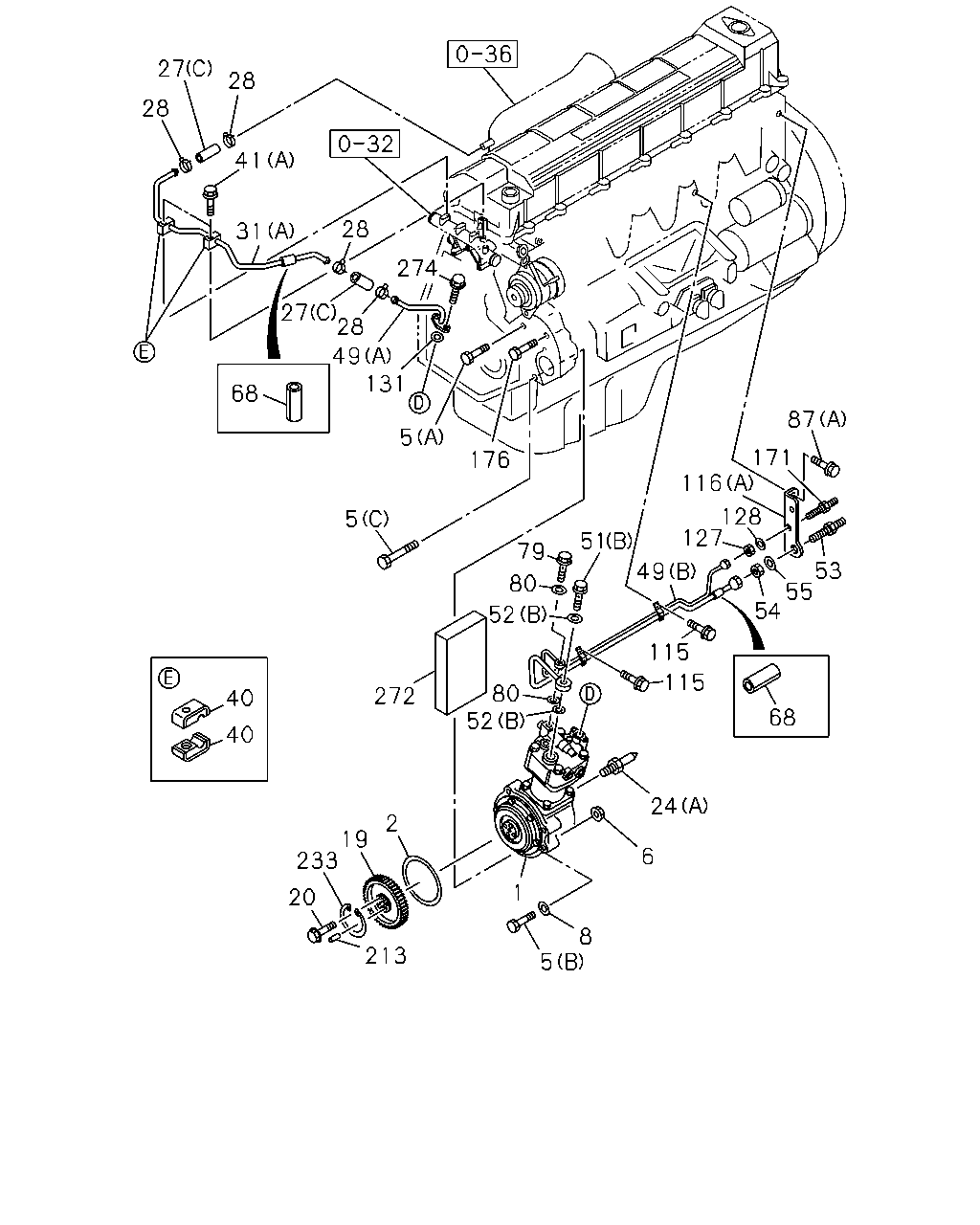

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#28476) — 532 parça

94 179 132 52 28 52 51 31 33 116 28 28 68 34 70 72 115 90 49 79 49 51 8 176 71 5 80 110 52 8 87 87 68 5 80 110 113 3 52 90 212 19 211 6 1 8 20 2 5 213 24 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0105-0107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-0107	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-			●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0105	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0105			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0202	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-111-1	01	1	0106-0202			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-164-0	01	1	0203-0205			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205			●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-11327-040-1	01	1	0105-	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-11327-017-1	01	1	0105-	●	●
24	POINTER; AIR CMPR (A)	1-11327-017-1	01	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-0107	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-327-0	01	1	0105-0107			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO3 SPECIFICATION<NJX> (A)	1-19193-327-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-		●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	0105-	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0105-0107	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-0107	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-			●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-			●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-			●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) (B) M24X39	1-09675-175-1	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-			●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●	●	●
68	SLEEVE; RUBBER EURO3 SPECIFICATION<NJX> ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0108-	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0105-0603	●	●
70	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0105-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-			●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0105-	●	●
94	PIPE; AIR,BOOST	1-19193-109-0	01	1	0105-	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	0105-	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	0105-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-			●
116	BRACKET; AIR PIPE	1-19199-386-0	01	1	0105-		●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0105-0602	●
132	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512			●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-			●
179	CLIP; PIPE	1-09701-132-1	02	1	0105-	●
211	BOLT; POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	0105-	●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	0105-0603	●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	0-91510-510-0	02	1	0604-	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●

27 28 28 27 31 28 28 31 28 27 27 41 87 28 28 49 28 171 116 34 68 128 127 49 34 49 79 53 54 55 80 176 5 51 115 5 52 115 80 79 80 3 68 52 80 52 24 52 51 19 233 6 20 1 8 40 2 5 40 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0105-0107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-0107	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-			●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0105	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0105			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0202	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-111-1	01	1	0106-0202			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-164-0	01	1	0203-0205			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205			●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-11327-040-1	01	1	0105-	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-11327-017-1	01	1	0105-	●	●
24	POINTER; AIR CMPR (A)	1-11327-017-1	01	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-0107	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-327-0	01	1	0105-0107			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO3 SPECIFICATION<NJX> (A)	1-19193-327-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-		●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	0105-	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0105-0107	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-	●	●	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=17 L=17	1-09701-284-0	08	1	0108-			●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0105-0107			●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-281-1	04	1	0108-			●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X70 FLANGE	0-28080-870-0	02	1	0108-0512			●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-			●
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107			●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512			●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512			●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28050-630-0	04	1	0601-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-0107	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-			●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-			●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-			●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) (B) M24X39	1-09675-175-1	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-			●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-		●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512		●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-		●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603		●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-		●	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●	●	●
68	SLEEVE; RUBBER EURO3 SPECIFICATION<NJX> ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0108-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-			●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-			●
116	BRACKET; AIR PIPE	1-19199-386-0	01	1	0105-		●
127	NUT; UNION M12	9-09840-280-0	01	1	0105-			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603			●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-			●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-0607			●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-			●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512			●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-			●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●

94 179 132 231 52 232 28 27 51 52 28 27 28 31 33 28 31 28 116 71 28 27 27 28 49 8 70 72 115 68 28 34 87 54 79 34 176 53 5 90 49 5 80 51 52 80 80 49 87 110 80 68 79 8 5 110 113 3 90 51 52 24 52 52 19 233 6 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0105-0107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-0107	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-			●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0105	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0105			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0202	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-111-1	01	1	0106-0202			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-164-0	01	1	0203-0205			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205			●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-11327-040-1	01	1	0105-	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-11327-017-1	01	1	0105-	●	●
24	POINTER; AIR CMPR (A)	1-11327-017-1	01	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-0107	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-327-0	01	1	0105-0107			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO3 SPECIFICATION<NJX> (A)	1-19193-327-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-		●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	0105-	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0105-0107	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-0107	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-			●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-			●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-			●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) (B) M24X39	1-09675-175-1	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-			●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-		●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512		●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-		●	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●	●	●
68	SLEEVE; RUBBER EURO3 SPECIFICATION<NJX> ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0108-	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0105-0603	●	●
70	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0105-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-			●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0105-	●	●
94	PIPE; AIR,BOOST	1-19193-109-0	01	1	0105-	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	0105-	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	0105-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-			●
116	BRACKET; AIR PIPE	1-19199-386-0	01	1	0105-		●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0105-0602	●
132	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512			●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-			●
179	CLIP; PIPE	1-09701-132-1	02	1	0105-	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	0105-		●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	0105-0512		●
232	BOLT; INSULATOR M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●

27 28 28 41 1 28 31 274 27 28 49 131 68 87 5 171 176 116 128 127 5 79 51 53 55 54 49 80 52 115 115 80 52 272 40 68 40 24 2 19 233 6 1 20 8 5 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0105-0107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0105	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0105			●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0202	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-111-1	01	1	0106-0202			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-164-0	01	1	0203-0205			●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205			●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-11327-040-1	01	1	0105-	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-11327-017-1	01	1	0105-	●	●
24	POINTER; AIR CMPR (A)	1-11327-017-1	01	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-0107	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-0107	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-327-0	01	1	0105-0107			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO3 SPECIFICATION<NJX> (A)	1-19193-327-0	01	1	0108-			●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-		●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=17 L=17	1-09701-284-0	08	1	0108-			●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0105-0107			●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-281-1	04	1	0108-			●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X70 FLANGE	0-28080-870-0	02	1	0108-0512			●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-			●
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107			●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512			●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512			●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28050-630-0	04	1	0601-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	0105-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-0107	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-			●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-			●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-			●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) (B) M24X39	1-09675-175-1	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-			●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-		●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512		●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-		●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603		●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-		●	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●	●	●
68	SLEEVE; RUBBER EURO3 SPECIFICATION<NJX> ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0108-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. ENGINE REAR PTO(SV1) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-			●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-			●
116	BRACKET; AIR PIPE	1-19199-386-0	01	1	0105-		●
127	NUT; UNION M12	9-09840-280-0	01	1	0105-			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603			●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-			●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0105-0107			●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26.8	1-09623-415-0	01	1	0108-0608			●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5	8-94399-398-0	01	1	0609-			●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-0607			●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-			●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512			●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-			●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●
272	INSULATOR; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19389-238-0	01	1	0107-			●
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0105-0107			●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28080-820-0	02	1	0108-0512			●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●

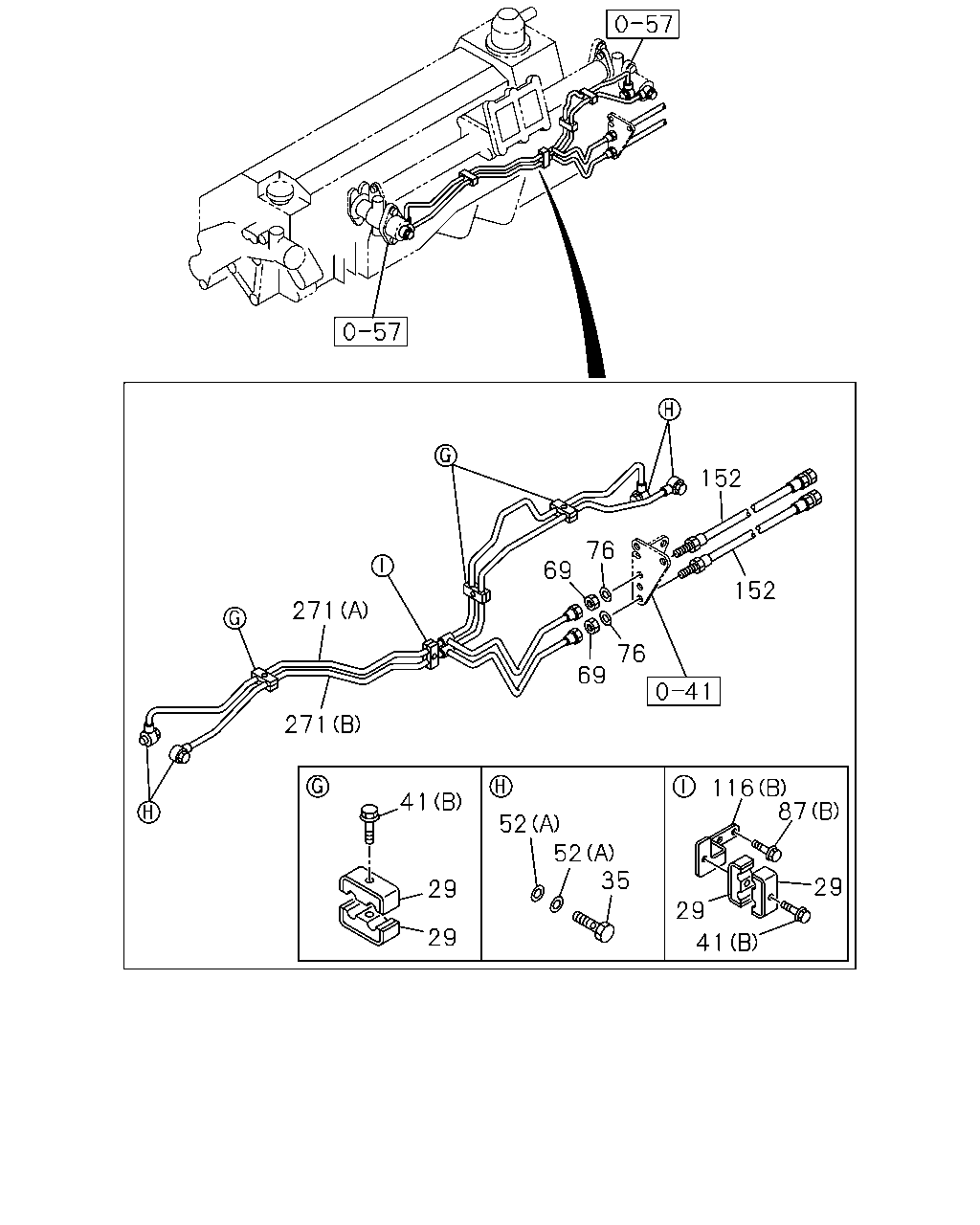

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-132-1	08	1	0107-			●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M10X21 FLANGE	8-94396-711-0	04	1	0107-			●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X70 FLANGE	0-28080-870-0	02	1	0108-0512			●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-			●
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107			●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512			●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512			●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28050-630-0	04	1	0601-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-			●
69	NUT; FLEX HOSE EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	02	1	0107-			●
76	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	9-09150-512-0	02	1	0107-0603			●
76	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	02	1	0604-			●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-			●
116	BRACKET; AIR PIPE	1-19199-386-0	01	1	0105-		●
152	HOSE; FLEX EURO3 SPECIFICATION<NJX> L=280	1-09363-610-0	02	1	0107-			●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (A)	1-19193-236-0	01	1	0107-			●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (B)	1-19193-237-0	01	1	0107-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
