Sayfa 0-35 - Isuzu EPC

0-35 — ENGINE CONTROL VALVE AND LEVER (#28473) — 181 parça

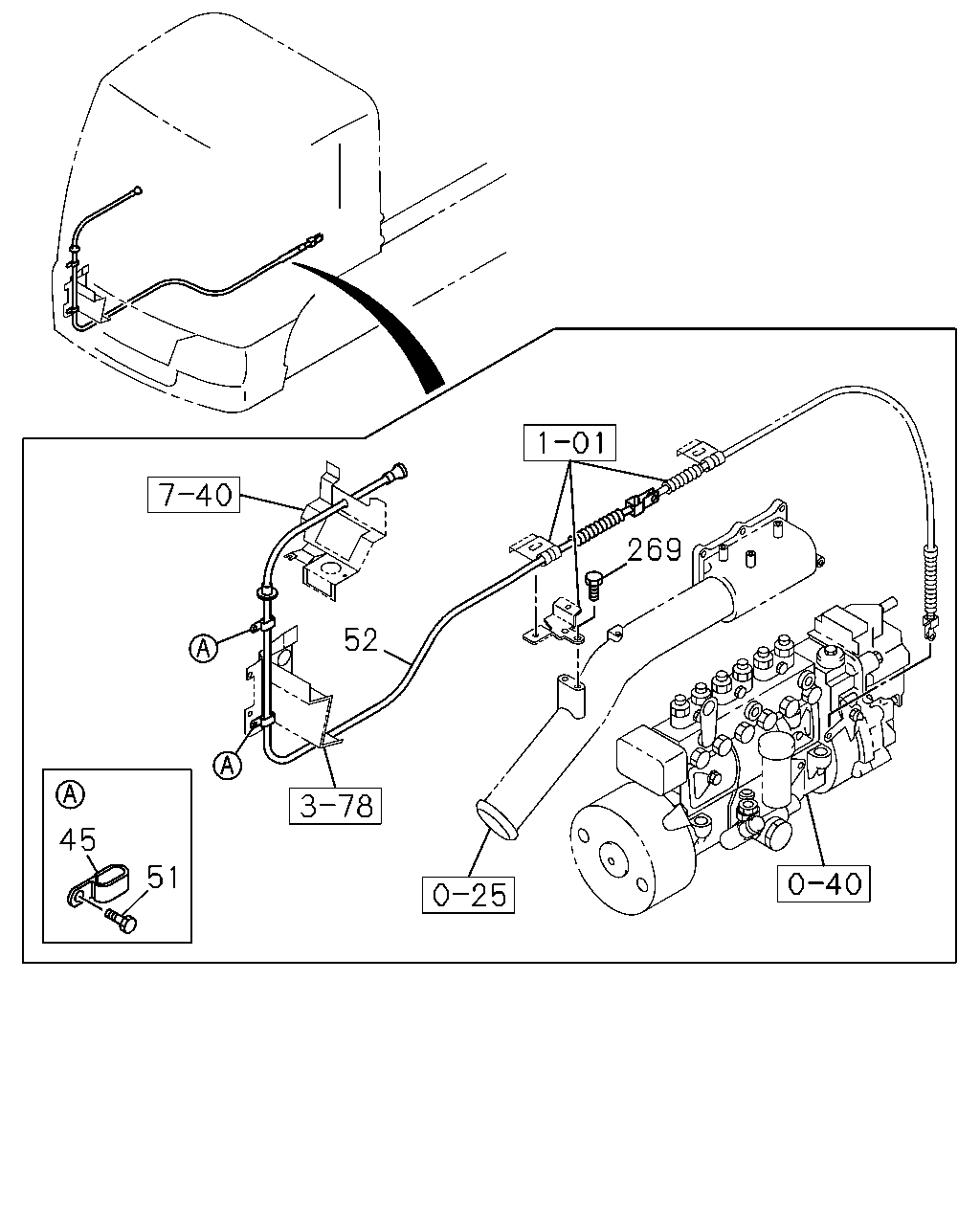

269 52 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	02	1	0105-0606	●	●
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F) ID=11 L=20	9-09525-035-0	02	1	0105-0606			●
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) ID=11 L=20	0-95235-035-0	02	1	0607-	●	●
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F) ID=11 L=20	0-95235-035-0	02	1	0607-			●
51	BOLT; CLIP,FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
51	BOLT; CLIP,FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-			●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) L=3334	1-73907-534-0	01	1	0105-	●	●
52	CABLE; FUEL CUT ELECTRONIC GOV RED4(Q4F) L=3479	1-73907-677-0	01	1	0105-0404			●
52	CABLE; FUEL CUT ELECTRONIC GOV RED4(Q4F) L=3479	1-73907-720-0	01	1	0405-			●
269	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0105-0512			●
269	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-			●

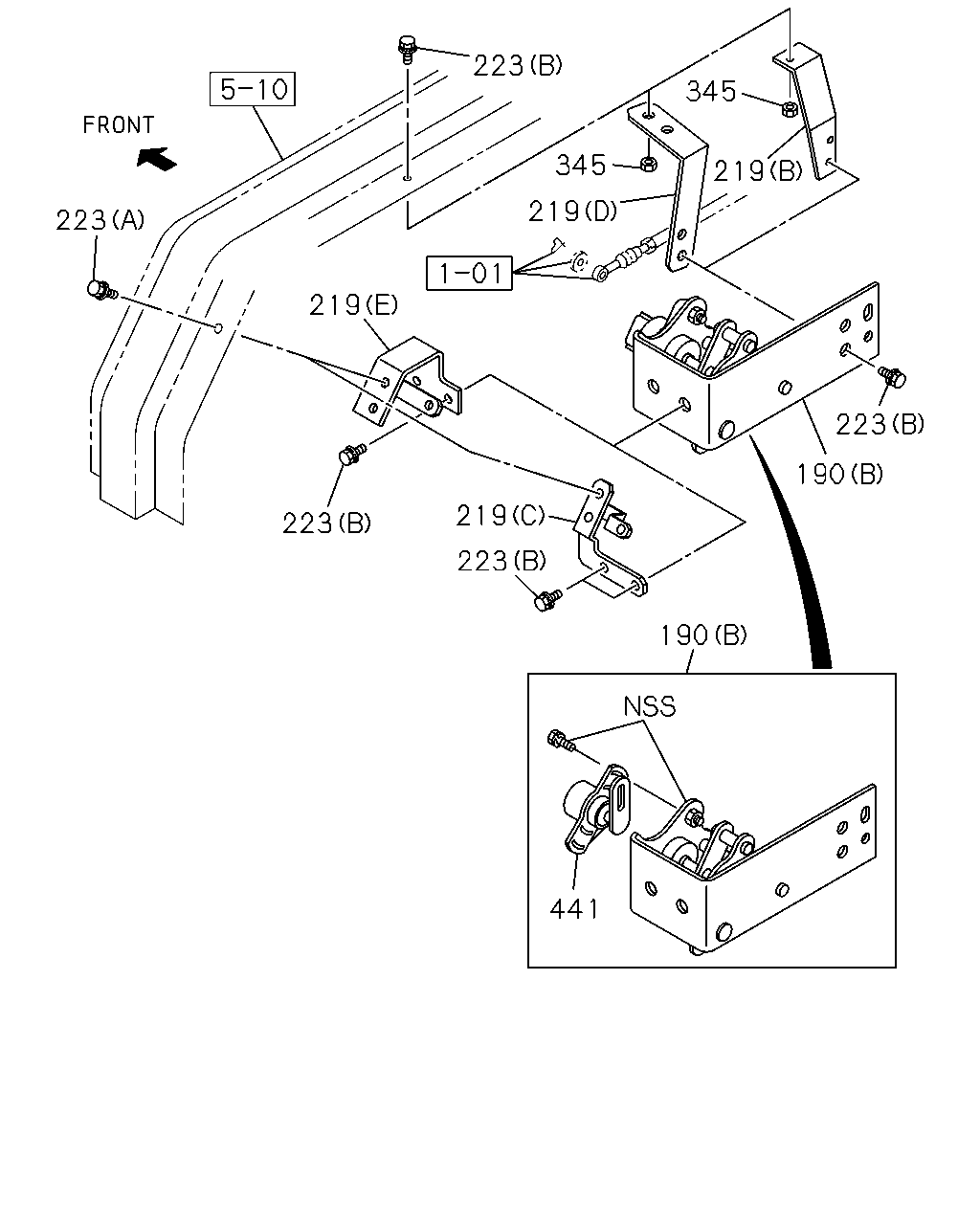

223 345 345 219 219 223 219 223 190 219 223 223 190 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0105-0109	●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0110-0206	●	●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0110-0206			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-3	01	1	0207-	●	●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-3	01	1	0207-			●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-547-0	01	1	0105-0109			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-547-0	01	1	0105-0109		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23335-503-0	01	1	0105-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-581-0	01	1	0207-			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-581-0	01	1	0207-		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (E)	1-23335-579-0	01	1	0207-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	0105-0206	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	0207-	●	●	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	0105-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-545-0	01	1	0105-0109			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-545-0	01	1	0105-0109		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-572-0	01	1	0110-0202			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-572-0	01	1	0110-0202		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-575-0	01	1	0203-0206			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-575-0	01	1	0203-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C)	1-23335-575-0	01	1	0207-		●	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-546-0	01	1	0105-0202			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-546-0	01	1	0105-0202		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-574-0	01	1	0203-0206			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-574-0	01	1	0203-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D)	1-23335-574-0	01	1	0207-		●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
441	SENSOR; THROTTLE POSITION ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ>	8-97200-308-0	01	1	0503-	●	●
441	SENSOR; THROTTLE POSITION ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ>	8-97200-308-0	01	1	0503-			●

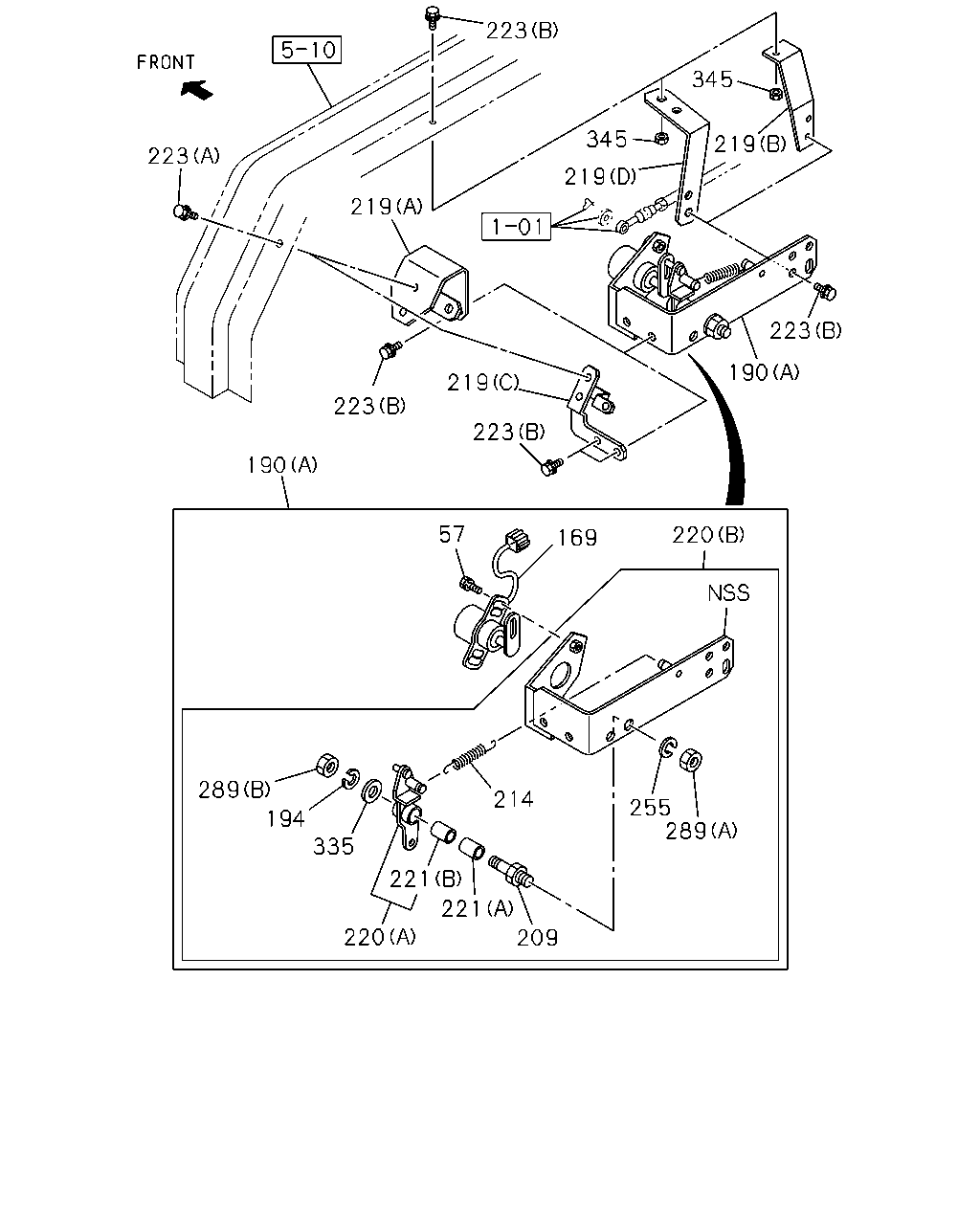

223 345 345 219 223 219 219 223 190 219 223 223 190 57 220 169 289 214 255 289 194 335 221 221 220 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	BOLT; BRKT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0105-0206	●	●
57	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0105-0206			●
169	SENSOR ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ>	1-81534-010-0	01	1	0105-0206	●	●
169	SENSOR ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ>	1-81534-010-0	01	1	0105-0206			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0105-0109	●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0110-0206	●	●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0110-0206			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-3	01	1	0207-	●	●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-3	01	1	0207-			●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-547-0	01	1	0105-0109			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-547-0	01	1	0105-0109		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23335-503-0	01	1	0105-	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	0105-0206	●	●	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2	9-09150-508-0	01	1	0207-0603	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2	0-91510-508-0	01	1	0604-	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	1-14336-002-1	01	1	0105-0206	●	●	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-14336-002-1	01	1	0207-	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0105-0206	●	●	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	8-94481-840-1	01	1	0207-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-581-0	01	1	0207-			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-581-0	01	1	0207-		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (E)	1-23335-579-0	01	1	0207-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	0105-0206	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	0207-	●	●	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	0105-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-545-0	01	1	0105-0109			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-545-0	01	1	0105-0109		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-572-0	01	1	0110-0202			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-572-0	01	1	0110-0202		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-575-0	01	1	0203-0206			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-575-0	01	1	0203-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C)	1-23335-575-0	01	1	0207-		●	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-546-0	01	1	0105-0202			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-546-0	01	1	0105-0202		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-574-0	01	1	0203-0206			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-574-0	01	1	0203-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D)	1-23335-574-0	01	1	0207-		●	●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	0105-0109	●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	0110-0206	●	●
220	LEVER ASM ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	0110-0206			●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-357-0	01	1	0105-0206	●	●
220	LEVER ASM ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-357-0	01	1	0105-0206			●
220	LEVER ASM ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-551-0	01	1	0105-0109			●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-551-0	01	1	0105-0109		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23311-359-0	01	1	0105-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23311-360-0	01	1	0105-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	0105-0206	●	●	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-09330-057-0	01	1	0207-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	0105-0206	●	●	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B)	1-09330-058-0	01	1	0207-	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	0105-0206	●	●	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	0207-0603	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2	0-91510-510-0	01	1	0604-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	0105-0206	●	●	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10	9-09110-410-0	01	1	0207-0512	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10	0-91110-510-0	01	1	0601-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	0105-0206	●	●	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8	9-09111-408-0	01	1	0207-0512	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8	0-91111-508-0	01	1	0601-	●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	0105-0206	●	●	●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	5-09503-135-0	01	1	0207-	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●

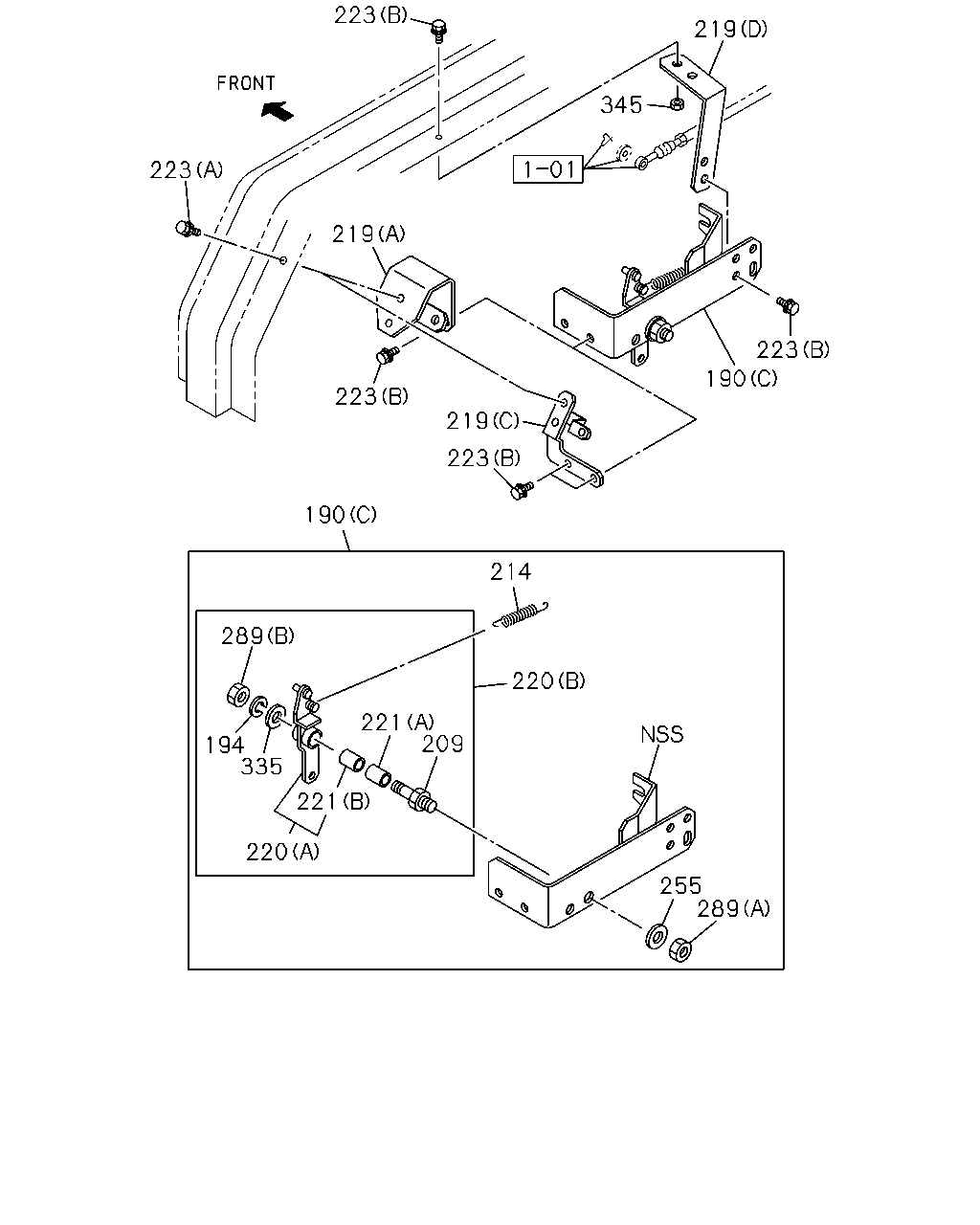

223 219 345 223 219 223 190 223 219 223 190 214 289 220 221 209 194 335 221 220 255 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0105-0109	●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0110-0206	●	●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	0110-0206			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-3	01	1	0207-	●	●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-3	01	1	0207-			●
190	LEVER; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-547-0	01	1	0105-0109			●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-547-0	01	1	0105-0109		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23335-503-0	01	1	0105-	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	0105-0206	●	●	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2	9-09150-508-0	01	1	0207-0603	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2	0-91510-508-0	01	1	0604-	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	1-14336-002-1	01	1	0105-0206	●	●	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-14336-002-1	01	1	0207-	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0105-0206	●	●	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	8-94481-840-1	01	1	0207-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-581-0	01	1	0207-			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-581-0	01	1	0207-		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (E)	1-23335-579-0	01	1	0207-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	0105-0206	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	0207-	●	●	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	0105-	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-545-0	01	1	0105-0109			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-545-0	01	1	0105-0109		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-572-0	01	1	0110-0202			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-572-0	01	1	0110-0202		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-575-0	01	1	0203-0206			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-575-0	01	1	0203-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C)	1-23335-575-0	01	1	0207-		●	●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-546-0	01	1	0105-0202			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-546-0	01	1	0105-0202		●
219	BRACKET; ENG CONT ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-574-0	01	1	0203-0206			●
219	BRACKET; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-574-0	01	1	0203-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D)	1-23335-574-0	01	1	0207-		●	●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	0105-0109	●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	0110-0206	●	●
220	LEVER ASM ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	0110-0206			●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-357-0	01	1	0105-0206	●	●
220	LEVER ASM ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-357-0	01	1	0105-0206			●
220	LEVER ASM ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-551-0	01	1	0105-0109			●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-551-0	01	1	0105-0109		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23311-359-0	01	1	0105-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23311-360-0	01	1	0105-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	0105-0206	●	●	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-09330-057-0	01	1	0207-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	0105-0206	●	●	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B)	1-09330-058-0	01	1	0207-	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	0105-0206	●	●	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	0207-0603	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2	0-91510-510-0	01	1	0604-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	0105-0206	●	●	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10	9-09110-410-0	01	1	0207-0512	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10	0-91110-510-0	01	1	0601-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	0105-0206	●	●	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8	9-09111-408-0	01	1	0207-0512	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8	0-91111-508-0	01	1	0601-	●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	0105-0206	●	●	●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	5-09503-135-0	01	1	0207-	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
