Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#2847) — 522 parça

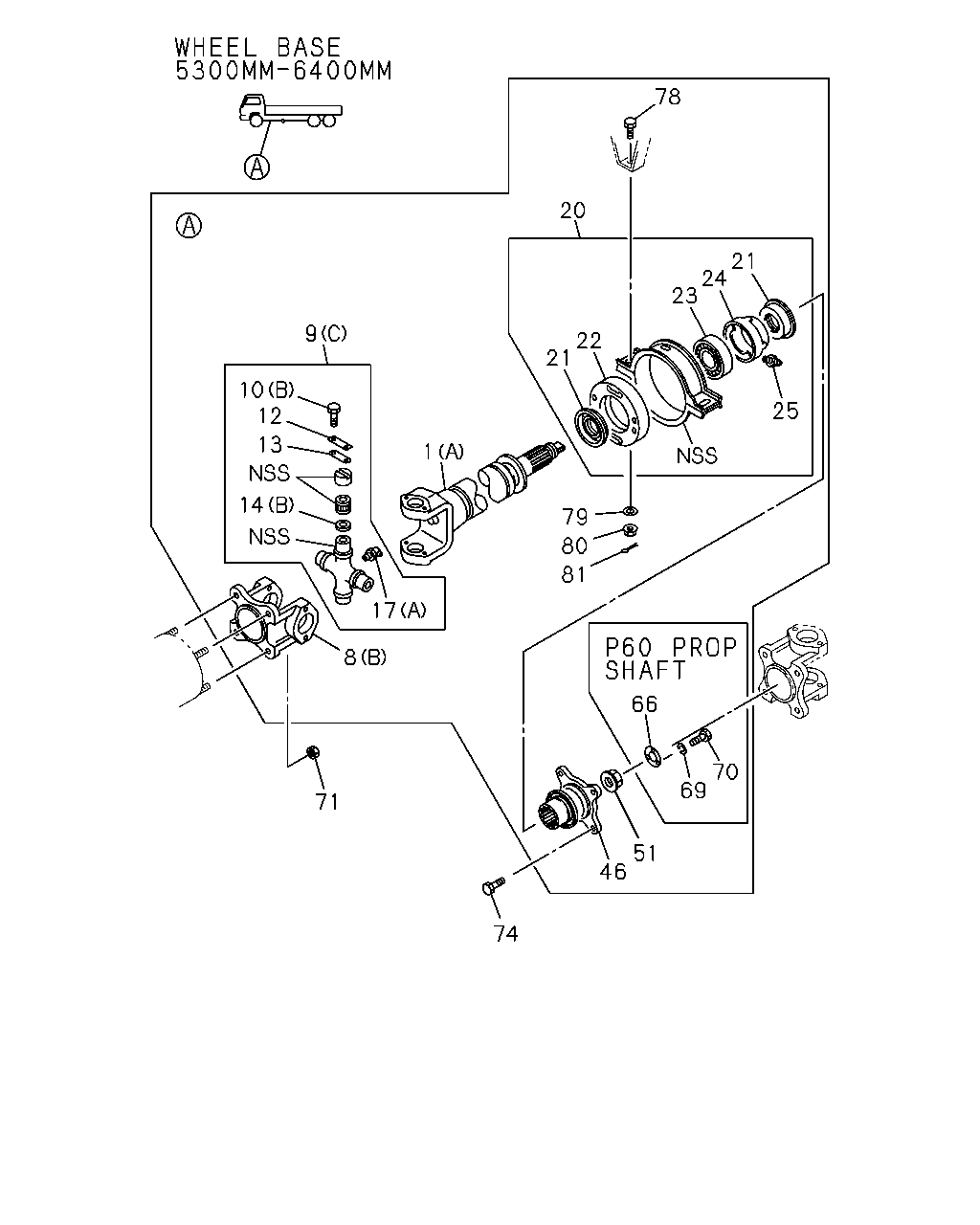

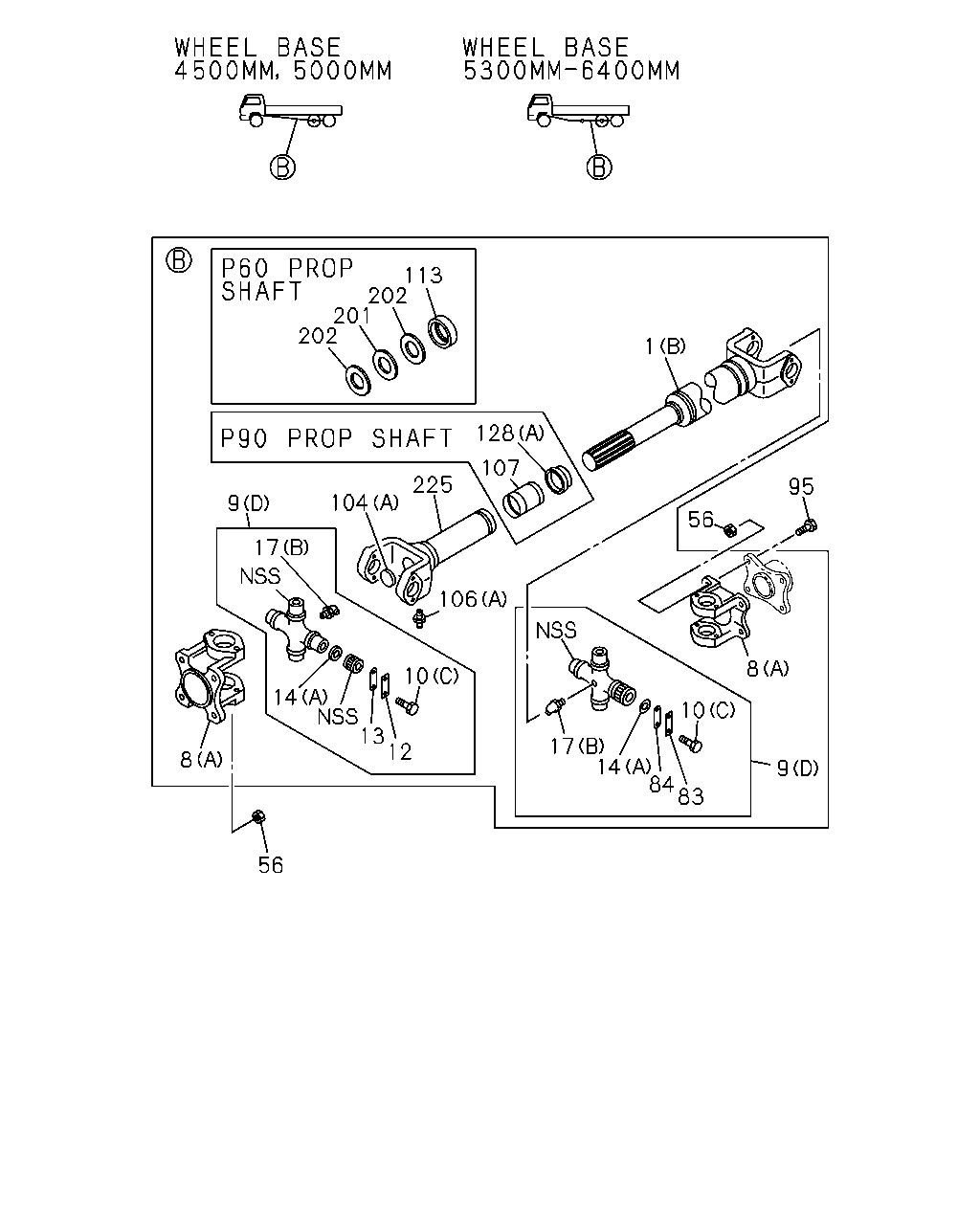

8 95 9 56 1 128 102 106 9 17 10 12 104 56 8 8 71 81 80 79 17 12 10 15 20 78 21 1 22 23 24 21 74 61 51 46 25 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=748	1-37123-242-0	01	1	9002-9306	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=851	1-37123-251-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (D) L=1049	1-37123-077-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002	1-37123-662-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=957	1-37117-362-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=739	1-37117-586-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=727	1-37117-294-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=852	1-37151-177-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838	1-37123-075-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724	1-37117-606-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> (D) L=609	1-37117-633-0	01	1	9105-9306	●
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> (D) L=579	1-37123-164-0	01	1	9105-9306	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1169	1-37123-731-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (D) L=929	1-37117-608-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=887	1-37117-591-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=837	1-37117-592-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874	1-37123-165-0	01	1	9002-9306	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=612	1-37117-587-0	01	1	9002-9306	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=727	1-37117-294-0	01	1	9307-9512	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=727	1-37117-294-0	01	1	9601-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644	1-37117-607-0	01	1	9002-9306	●	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1258	1-37123-222-0	01	1	9002-9306		●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1356	1-37123-193-0	01	1	9307-		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1379	1-37123-653-0	01	1	9205-9306		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1507	1-37123-496-0	01	1	9410-		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1324	1-37123-676-0	01	1	9205-9306		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1457	1-37141-062-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1249	1-37117-588-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1369	1-37123-724-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2> (B) L=1232	1-37117-590-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2> (B) L=1339	1-37123-721-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MIXER TRUCK<RA2> MAF6 M/T<X9V> (B) L=1139	1-37117-589-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MIXER TRUCK<RA2> MAF6 M/T<X9V> (B) L=1259	1-37123-723-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1232	1-37117-590-0	01	1	9601-		●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=681	1-37123-255-0	01	1	9002-9306			●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=781	1-37123-262-0	01	1	9307-			●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=642	1-37123-564-0	01	1	9002-9306			●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1128	1-37123-722-0	01	1	9307-			●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (A) L=1015	1-37116-850-0	01	1	9002-			●	●	●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=918	1-37117-631-0	01	1	9502-			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> (A) L=1178	1-37117-341-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG5 M/T<X9N> (A) L=1277	1-37123-484-0	01	1	9002-9306			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1128	1-37117-569-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) MJA6 M/T<X9S>,MAF6 M/T<X9V> P90 PROP SHAFT<C5T> (A) L=1023	1-37117-576-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (A) L=1133	1-37123-514-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=913	1-37117-577-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1138	1-37117-409-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1028	1-37117-410-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=971	1-37123-231-0	01	1	9002-9306				●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1071	1-37123-224-0	01	1	9307-				●
1	SHAFT; PROP 10PD1 STD ENG(40L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> (C) L=1229	1-37117-598-0	01	1	9002-				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909	1-37131-210-1	01	1	9002-9306				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942	1-37123-468-0	01	1	9002-9306				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1009	1-37117-343-2	01	1	9107-9201				●
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681	1-37117-025-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927	1-37123-565-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044	1-37117-016-0	01	1	9002-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1057	1-37123-657-0	01	1	9307-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RA1TC ENG(19L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964	1-37117-026-0	01	1	9002-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) P115 PROP SHAFT<C5X> (D) L=898.9	1-37131-216-1	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=1090	1-37123-659-0	01	1	9307-				●
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> (C) L=918	1-37117-631-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> (C) L=888	1-37117-599-0	01	1	9002-9306				●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1516	1-37123-195-0	01	1	9002-9306					●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=1477	1-37123-566-0	01	1	9002-9306					●
1	SHAFT; PROP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1607	1-37123-708-0	01	1	9307-					●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> (B) L=689	1-37123-370-1	01	1	9307-						●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M> (A)	1-37211-040-0	02	1	9002-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (A)	1-37211-050-1	02	1	9002-	●	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37211-047-2	02	1	9002-	●	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M> (B)	1-37211-040-0	01	1	9002-			●	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37211-050-1	01	1	9002-			●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (D)	1-37211-047-2	01	1	9002-				●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C)	1-37300-056-0	AR	1	9002-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-074-0	AR	1	9002-9009	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-079-0	AR	1	9307-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (C),(D)	1-37300-082-0	AR	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37300-062-0	AR	1	9002-	●	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C),(D)	1-37300-086-0	AR	1	9307-			●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (D)	1-37300-085-0	AR	1	9002-			●	●	●	●
10	BOLT; UJT (A) M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20	9-09802-702-0	16	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (C)	1-37359-001-0	16	1	9307-	●	●		●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20	9-09802-702-0	08	1	9002-			●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (B)	1-37359-001-0	08	1	9307-				●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-006-1	04	1	9002-	●	●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-006-1	04	1	9002-		●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-007-0	04	1	9002-	●	●	●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-007-0	04	1	9002-		●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	08	1	9307-	●	●		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	04	1	9307-				●
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	9002-9009	●	●	●	●	●	●
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-	●	●	●	●	●	●
15	UNIVERSAL CENTER P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	04	1	9307-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9306			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW	9-09031-210-0	01	1	9307-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	02	1	9307-9501				●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT<C2M>	1-37510-093-3	01	1	9002-			●	●	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T>	1-37510-094-3	01	1	9002-			●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT<C5X>	1-37510-101-0	01	1	9002-				●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT<C2M> D=120	1-09625-126-0	02	1	9002-			●	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> D=120	1-09625-127-0	02	1	9002-			●	●	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT<C5X> OD=114	1-09625-222-1	02	1	9002-				●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT<C2M>	1-37516-047-2	01	1	9002-			●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	9002-			●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT<C5X>	1-37516-056-0	01	1	9002-				●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT<C2M>	9-00090-292-0	01	1	9002-			●	●	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	9002-			●	●	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT<C5X>	1-09800-210-0	01	1	9002-				●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT<C2M>	1-37529-039-0	01	1	9002-			●	●	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-041-0	01	1	9002-			●	●	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT<C5X>	1-37529-067-0	01	1	9002-				●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	9002-			●	●	●	●
42	RING; SNAP,CTR BRG P115 PROP SHAFT<C5X>	1-09587-085-0	01	1	9002-				●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M>	1-37240-081-1	01	1	9002-9306			●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M>	1-37245-051-0	01	1	9307-9408			●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M>	1-37245-283-1	01	1	9409-			●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-052-0	01	1	9002-9408			●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-271-1	01	1	9409-			●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT<C5X>	1-37240-088-1	01	1	9002-				●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT<C2M> M33	1-09449-001-0	01	1	9002-			●	●	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39	1-09440-035-0	01	1	9002-			●	●	●	●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT<C5X> M45	1-09449-057-1	01	1	9002-				●
56	NUT; YOKE P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-	●	●	●	●	●	●
56	NUT; YOKE P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-			●	●	●	●
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-	●	●		●
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-				●
61	PIN; SPLIT P115 PROP SHAFT<C5X>	9-08108-080-0	01	1	9002-				●
71	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-	●	●		●
71	NUT; YOKE P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-			●	●	●	●
74	BOLT; YOKE,TRANS FULLER M/T<X9B> P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-	●	●		●
74	BOLT; YOKE,TRANS P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-				●
74	BOLT; YOKE,TRANS P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9002-			●	●	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	9002-			●	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-0	02	1	9002-			●	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	9002-			●	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	9002-			●	●	●	●
95	BOLT; YOKE,FINAL P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9002-	●	●	●	●	●	●
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-	●	●		●
102	YOKE; TRANSFER TO AXLE P115 PROP SHAFT<C5X>	1-37240-086-0	01	1	9002-	●	●
102	YOKE; TRANSFER TO AXLE 6RB1 STD ENG(07L) P115 PROP SHAFT<C5X>	1-37240-086-0	01	1	9002-				●
102	YOKE; TRANSFER TO AXLE 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X>	1-37240-087-0	01	1	9002-				●
104	PLUG; SLEEVE YOKE P60 PROP SHAFT<C2M> (A)	9-09860-507-0	01	1	9002-	●	●	●	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (A)	1-37248-011-0	01	1	9109-	●	●		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37248-010-0	01	1	9109-	●	●		●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-016-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-013-0	01	1	9002-	●	●		●

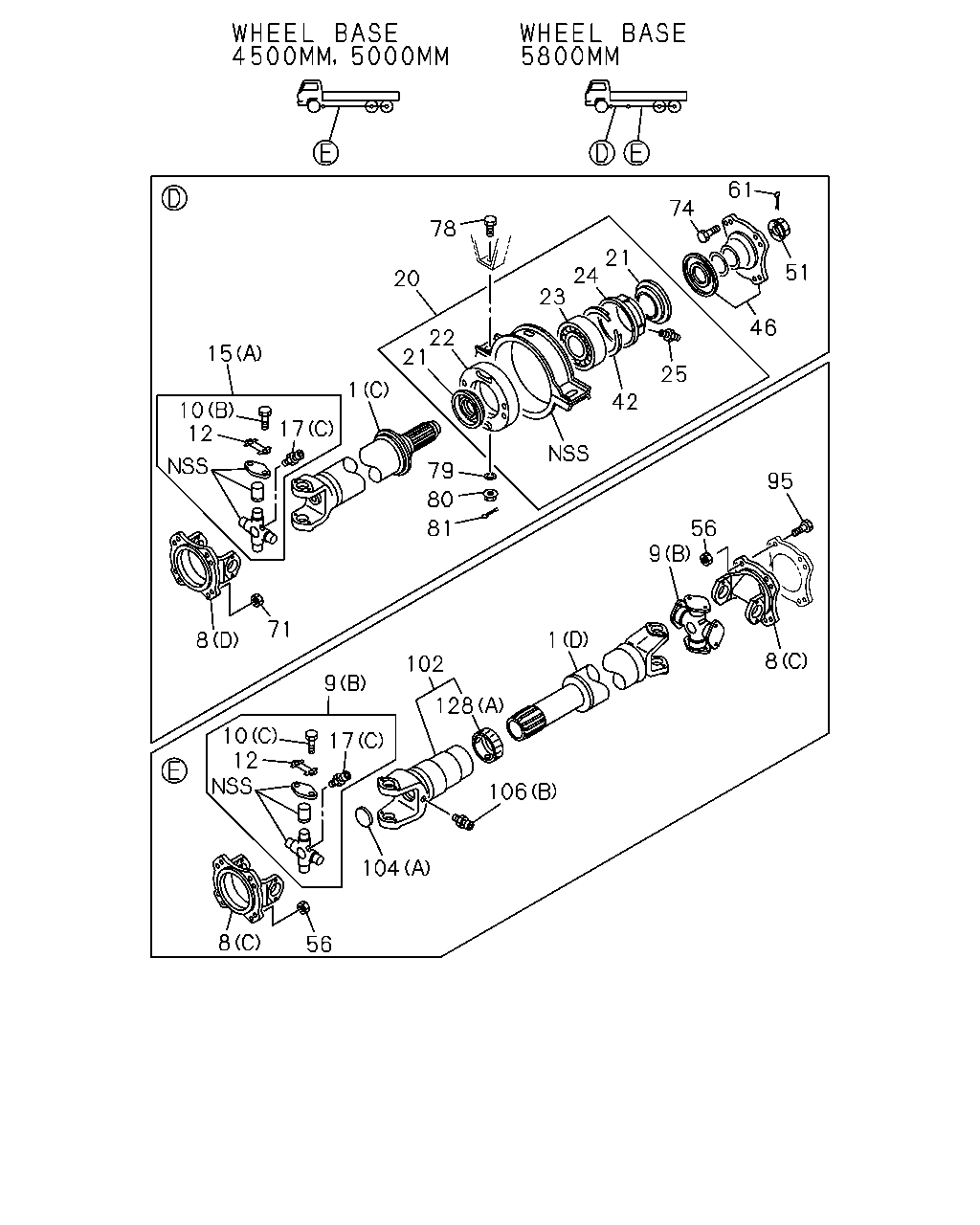

83 84 14 17 10 9 8 56 95 1 128 107 225 104 9 106 10 12 13 14 56 8 17 202 201 202 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=748	1-37123-242-0	01	1	9002-9306	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=851	1-37123-251-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (D) L=1049	1-37123-077-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002	1-37123-662-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=957	1-37117-362-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=739	1-37117-586-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=727	1-37117-294-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=852	1-37151-177-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838	1-37123-075-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724	1-37117-606-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> (D) L=609	1-37117-633-0	01	1	9105-9306	●
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> (D) L=579	1-37123-164-0	01	1	9105-9306	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1169	1-37123-731-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (D) L=929	1-37117-608-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=887	1-37117-591-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=837	1-37117-592-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874	1-37123-165-0	01	1	9002-9306	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=612	1-37117-587-0	01	1	9002-9306	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=727	1-37117-294-0	01	1	9307-9512	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=727	1-37117-294-0	01	1	9601-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644	1-37117-607-0	01	1	9002-9306	●	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1258	1-37123-222-0	01	1	9002-9306		●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1356	1-37123-193-0	01	1	9307-		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1379	1-37123-653-0	01	1	9205-9306		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1507	1-37123-496-0	01	1	9410-		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1324	1-37123-676-0	01	1	9205-9306		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1457	1-37141-062-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1249	1-37117-588-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1369	1-37123-724-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2> (B) L=1232	1-37117-590-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2> (B) L=1339	1-37123-721-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MIXER TRUCK<RA2> MAF6 M/T<X9V> (B) L=1139	1-37117-589-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MIXER TRUCK<RA2> MAF6 M/T<X9V> (B) L=1259	1-37123-723-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1232	1-37117-590-0	01	1	9601-		●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=681	1-37123-255-0	01	1	9002-9306			●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=781	1-37123-262-0	01	1	9307-			●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=642	1-37123-564-0	01	1	9002-9306			●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1128	1-37123-722-0	01	1	9307-			●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (A) L=1015	1-37116-850-0	01	1	9002-			●	●	●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=918	1-37117-631-0	01	1	9502-			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> (A) L=1178	1-37117-341-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG5 M/T<X9N> (A) L=1277	1-37123-484-0	01	1	9002-9306			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1128	1-37117-569-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) MJA6 M/T<X9S>,MAF6 M/T<X9V> P90 PROP SHAFT<C5T> (A) L=1023	1-37117-576-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (A) L=1133	1-37123-514-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=913	1-37117-577-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1138	1-37117-409-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1028	1-37117-410-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=971	1-37123-231-0	01	1	9002-9306				●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1071	1-37123-224-0	01	1	9307-				●
1	SHAFT; PROP 10PD1 STD ENG(40L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> (C) L=1229	1-37117-598-0	01	1	9002-				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909	1-37131-210-1	01	1	9002-9306				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942	1-37123-468-0	01	1	9002-9306				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1009	1-37117-343-2	01	1	9107-9201				●
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681	1-37117-025-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927	1-37123-565-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044	1-37117-016-0	01	1	9002-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1057	1-37123-657-0	01	1	9307-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RA1TC ENG(19L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964	1-37117-026-0	01	1	9002-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) P115 PROP SHAFT<C5X> (D) L=898.9	1-37131-216-1	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=1090	1-37123-659-0	01	1	9307-				●
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> (C) L=918	1-37117-631-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> (C) L=888	1-37117-599-0	01	1	9002-9306				●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1516	1-37123-195-0	01	1	9002-9306					●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=1477	1-37123-566-0	01	1	9002-9306					●
1	SHAFT; PROP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1607	1-37123-708-0	01	1	9307-					●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> (B) L=689	1-37123-370-1	01	1	9307-						●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M> (A)	1-37211-040-0	02	1	9002-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (A)	1-37211-050-1	02	1	9002-	●	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37211-047-2	02	1	9002-	●	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M> (B)	1-37211-040-0	01	1	9002-			●	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37211-050-1	01	1	9002-			●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (D)	1-37211-047-2	01	1	9002-				●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C)	1-37300-056-0	AR	1	9002-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-074-0	AR	1	9002-9009	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-079-0	AR	1	9307-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (C),(D)	1-37300-082-0	AR	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37300-062-0	AR	1	9002-	●	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C),(D)	1-37300-086-0	AR	1	9307-			●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (D)	1-37300-085-0	AR	1	9002-			●	●	●	●
10	BOLT; UJT (A) M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20	9-09802-702-0	16	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (C)	1-37359-001-0	16	1	9307-	●	●		●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20	9-09802-702-0	08	1	9002-			●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (B)	1-37359-001-0	08	1	9307-				●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-006-1	04	1	9002-	●	●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-006-1	04	1	9002-		●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-007-0	04	1	9002-	●	●	●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-007-0	04	1	9002-		●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	08	1	9307-	●	●		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	04	1	9307-				●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	1-37355-011-0	04	1	9002-	●	●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	1-37355-011-0	04	1	9002-			●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-9512	●	●	●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-9512			●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9601-	●	●	●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9601-		●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (A)	9-37352-023-0	08	1	9002-	●	●	●	●	●
14	COVER; DUST,SPIDER (C)	1-37319-004-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (B)	9-37352-023-0	04	1	9002-			●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-130-0	04	1	9002-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	04	1	9307-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9306			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW	9-09031-210-0	01	1	9307-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	02	1	9307-9501				●
56	NUT; YOKE P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-	●	●	●	●	●	●
56	NUT; YOKE P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-			●	●	●	●
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-	●	●		●
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-				●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-007-0	04	1	9002-	●	●	●	●	●
83	PLATE; LK,UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-006-1	04	1	9002-	●	●	●	●	●	●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT<C2M>	1-37355-011-0	04	1	9002-	●	●	●	●	●
84	COVER; UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-	●	●	●	●	●	●
95	BOLT; YOKE,FINAL P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9002-	●	●	●	●	●	●
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-	●	●		●
104	PLUG; SLEEVE YOKE P60 PROP SHAFT<C2M> (A)	9-09860-507-0	01	1	9002-	●	●	●	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (A)	1-37248-011-0	01	1	9109-	●	●		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37248-010-0	01	1	9109-	●	●		●
107	COVER; RET,SLEEVE P90 PROP SHAFT<C5T>	1-37249-039-1	01	1	9002-	●	●	●	●	●	●
113	RETAINER; OIL SEAL,SLEEVE P60 PROP SHAFT<C2M>	9-37248-013-0	01	1	9002-	●	●	●	●	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-016-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-013-0	01	1	9002-	●	●		●
201	RING; FELT,SLEEVE P60 PROP SHAFT<C2M>	9-09922-121-0	01	1	9002-	●	●	●	●	●
202	RING; FELT SEAL,SLEEVE P60 PROP SHAFT<C2M>	9-37249-105-0	02	1	9002-	●	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT<C2M>	1-37241-024-0	01	1	9002-9106	●	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT<C2M>	1-37241-100-0	01	1	9107-	●	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37241-090-1	01	1	9002-9106	●	●	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37241-097-0	01	1	9107-	●	●	●	●	●	●

74 51 46 69 70 66 71 8 17 81 80 79 1 14 13 12 10 9 78 20 21 22 23 24 21 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=748	1-37123-242-0	01	1	9002-9306	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=851	1-37123-251-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (D) L=1049	1-37123-077-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002	1-37123-662-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=957	1-37117-362-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=739	1-37117-586-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=727	1-37117-294-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=852	1-37151-177-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838	1-37123-075-0	01	1	9307-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724	1-37117-606-0	01	1	9002-9306	●
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> (D) L=609	1-37117-633-0	01	1	9105-9306	●
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> (D) L=579	1-37123-164-0	01	1	9105-9306	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1169	1-37123-731-0	01	1	9307-	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (D) L=929	1-37117-608-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=887	1-37117-591-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=837	1-37117-592-0	01	1	9002-9306	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874	1-37123-165-0	01	1	9002-9306	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=612	1-37117-587-0	01	1	9002-9306	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=727	1-37117-294-0	01	1	9307-9512	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=727	1-37117-294-0	01	1	9601-	●
1	SHAFT; PROP 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644	1-37117-607-0	01	1	9002-9306	●	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1258	1-37123-222-0	01	1	9002-9306		●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1356	1-37123-193-0	01	1	9307-		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1379	1-37123-653-0	01	1	9205-9306		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1507	1-37123-496-0	01	1	9410-		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1324	1-37123-676-0	01	1	9205-9306		●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1457	1-37141-062-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1249	1-37117-588-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (B) L=1369	1-37123-724-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2> (B) L=1232	1-37117-590-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2> (B) L=1339	1-37123-721-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MIXER TRUCK<RA2> MAF6 M/T<X9V> (B) L=1139	1-37117-589-0	01	1	9002-9306		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MIXER TRUCK<RA2> MAF6 M/T<X9V> (B) L=1259	1-37123-723-0	01	1	9307-		●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1232	1-37117-590-0	01	1	9601-		●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=681	1-37123-255-0	01	1	9002-9306			●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=781	1-37123-262-0	01	1	9307-			●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=642	1-37123-564-0	01	1	9002-9306			●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1128	1-37123-722-0	01	1	9307-			●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (A) L=1015	1-37116-850-0	01	1	9002-			●	●	●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=918	1-37117-631-0	01	1	9502-			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> (A) L=1178	1-37117-341-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MAG5 M/T<X9N> (A) L=1277	1-37123-484-0	01	1	9002-9306			●	●	●	●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1128	1-37117-569-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) MJA6 M/T<X9S>,MAF6 M/T<X9V> P90 PROP SHAFT<C5T> (A) L=1023	1-37117-576-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MAF5 M/T<X9P> (A) L=1133	1-37123-514-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=913	1-37117-577-0	01	1	9002-			●	●	●	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1138	1-37117-409-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1028	1-37117-410-0	01	1	9307-			●	●	●	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=971	1-37123-231-0	01	1	9002-9306				●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1071	1-37123-224-0	01	1	9307-				●
1	SHAFT; PROP 10PD1 STD ENG(40L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> (C) L=1229	1-37117-598-0	01	1	9002-				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909	1-37131-210-1	01	1	9002-9306				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942	1-37123-468-0	01	1	9002-9306				●
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1009	1-37117-343-2	01	1	9107-9201				●
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681	1-37117-025-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927	1-37123-565-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044	1-37117-016-0	01	1	9002-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1057	1-37123-657-0	01	1	9307-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RA1TC ENG(19L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964	1-37117-026-0	01	1	9002-				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) P115 PROP SHAFT<C5X> (D) L=898.9	1-37131-216-1	01	1	9002-9306				●
1	SHAFT; PROP 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=1090	1-37123-659-0	01	1	9307-				●
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> (C) L=918	1-37117-631-0	01	1	9002-9306				●
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> (C) L=888	1-37117-599-0	01	1	9002-9306				●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1516	1-37123-195-0	01	1	9002-9306					●
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=1477	1-37123-566-0	01	1	9002-9306					●
1	SHAFT; PROP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=1607	1-37123-708-0	01	1	9307-					●
1	SHAFT; PROP 8PD1 STD ENG(38L) P90 PROP SHAFT<C5T> (B) L=689	1-37123-370-1	01	1	9307-						●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M> (A)	1-37211-040-0	02	1	9002-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (A)	1-37211-050-1	02	1	9002-	●	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37211-047-2	02	1	9002-	●	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M> (B)	1-37211-040-0	01	1	9002-			●	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37211-050-1	01	1	9002-			●	●	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (D)	1-37211-047-2	01	1	9002-				●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C)	1-37300-056-0	AR	1	9002-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-074-0	AR	1	9002-9009	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-079-0	AR	1	9307-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (C),(D)	1-37300-082-0	AR	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37300-062-0	AR	1	9002-	●	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C),(D)	1-37300-086-0	AR	1	9307-			●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (D)	1-37300-085-0	AR	1	9002-			●	●	●	●
10	BOLT; UJT (A) M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20	9-09802-702-0	16	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (C)	1-37359-001-0	16	1	9307-	●	●		●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20	9-09802-702-0	08	1	9002-			●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (B)	1-37359-001-0	08	1	9307-				●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-006-1	04	1	9002-	●	●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	9-37356-006-1	04	1	9002-		●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-007-0	04	1	9002-	●	●	●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-007-0	04	1	9002-		●	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	08	1	9307-	●	●		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	04	1	9307-				●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	1-37355-011-0	04	1	9002-	●	●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M>	1-37355-011-0	04	1	9002-			●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-9512	●	●	●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-9512			●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9601-	●	●	●	●	●	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9601-		●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (A)	9-37352-023-0	08	1	9002-	●	●	●	●	●
14	COVER; DUST,SPIDER (C)	1-37319-004-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (B)	9-37352-023-0	04	1	9002-			●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-130-0	04	1	9002-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	04	1	9307-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9306			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW	9-09031-210-0	01	1	9307-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	02	1	9307-9501				●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT<C2M>	1-37510-093-3	01	1	9002-			●	●	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T>	1-37510-094-3	01	1	9002-			●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT<C5X>	1-37510-101-0	01	1	9002-				●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT<C2M> D=120	1-09625-126-0	02	1	9002-			●	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> D=120	1-09625-127-0	02	1	9002-			●	●	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT<C5X> OD=114	1-09625-222-1	02	1	9002-				●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT<C2M>	1-37516-047-2	01	1	9002-			●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	9002-			●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT<C5X>	1-37516-056-0	01	1	9002-				●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT<C2M>	9-00090-292-0	01	1	9002-			●	●	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	9002-			●	●	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT<C5X>	1-09800-210-0	01	1	9002-				●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT<C2M>	1-37529-039-0	01	1	9002-			●	●	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-041-0	01	1	9002-			●	●	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT<C5X>	1-37529-067-0	01	1	9002-				●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	9002-			●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M>	1-37240-081-1	01	1	9002-9306			●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M>	1-37245-051-0	01	1	9307-9408			●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M>	1-37245-283-1	01	1	9409-			●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-052-0	01	1	9002-9408			●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-271-1	01	1	9409-			●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT<C5X>	1-37240-088-1	01	1	9002-				●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT<C2M> M33	1-09449-001-0	01	1	9002-			●	●	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39	1-09440-035-0	01	1	9002-			●	●	●	●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT<C5X> M45	1-09449-057-1	01	1	9002-				●
66	WASHER P60 PROP SHAFT<C2M>	1-09509-001-0	01	1	9002-			●	●	●
69	WASHER; LK,SPLINED P60 PROP SHAFT<C2M> ID=6.1	9-09150-606-0	03	1	9002-			●	●	●
70	SCREW; FLANGE,SPLINED P60 PROP SHAFT<C2M> M6X18	9-03460-618-0	03	1	9002-			●	●	●
71	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-	●	●		●
71	NUT; YOKE P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-			●	●	●	●
74	BOLT; YOKE,TRANS FULLER M/T<X9B> P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-	●	●		●
74	BOLT; YOKE,TRANS P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-				●
74	BOLT; YOKE,TRANS P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9002-			●	●	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	9002-			●	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-0	02	1	9002-			●	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	9002-			●	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	9002-			●	●	●	●

57 96 17 14 15 106 128 4 104 170 169 58 10 11 17 14 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	SHAFT; PROP L=348	1-37171-058-0	01	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C)	1-37300-056-0	AR	1	9002-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-074-0	AR	1	9002-9009	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-079-0	AR	1	9307-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (C),(D)	1-37300-082-0	AR	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37300-062-0	AR	1	9002-	●	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C),(D)	1-37300-086-0	AR	1	9307-			●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (D)	1-37300-085-0	AR	1	9002-			●	●	●	●
10	BOLT; UJT (A) M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20	9-09802-702-0	16	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (C)	1-37359-001-0	16	1	9307-	●	●		●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20	9-09802-702-0	08	1	9002-			●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (B)	1-37359-001-0	08	1	9307-				●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (A)	9-37352-023-0	08	1	9002-	●	●	●	●	●
14	COVER; DUST,SPIDER (C)	1-37319-004-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (B)	9-37352-023-0	04	1	9002-			●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-130-0	04	1	9002-			●	●	●	●
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	9002-9009	●	●	●	●	●	●
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-	●	●	●	●	●	●
15	UNIVERSAL CENTER P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	04	1	9307-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9306			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW	9-09031-210-0	01	1	9307-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	02	1	9307-9501				●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	9002-	●	●	●	●	●	●
58	FLANGE; SPLINED L=264	1-37245-157-1	01	1	9002-	●	●	●	●	●	●
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P60 PROP SHAFT<C2M> (A)	9-09860-507-0	01	1	9002-	●	●	●	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (A)	1-37248-011-0	01	1	9109-	●	●		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37248-010-0	01	1	9109-	●	●		●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-016-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-013-0	01	1	9002-	●	●		●
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	9002-	●	●	●	●	●	●

14 17 4 9 11 10 58 170 169 104 128 106 15 14 17 57 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	SHAFT; PROP L=348	1-37171-058-0	01	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C)	1-37300-056-0	AR	1	9002-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-074-0	AR	1	9002-9009	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-079-0	AR	1	9307-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (C),(D)	1-37300-082-0	AR	1	9002-	●	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37300-062-0	AR	1	9002-	●	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> (C),(D)	1-37300-086-0	AR	1	9307-			●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (D)	1-37300-085-0	AR	1	9002-			●	●	●	●
10	BOLT; UJT (A) M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20	9-09802-702-0	16	1	9002-	●	●	●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (C)	1-37359-001-0	16	1	9307-	●	●		●
10	BOLT; UJT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20	9-09802-702-0	08	1	9002-			●	●	●	●
10	BOLT; UJT P115 PROP SHAFT<C5X> (B)	1-37359-001-0	08	1	9307-				●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (A)	9-37352-023-0	08	1	9002-	●	●	●	●	●
14	COVER; DUST,SPIDER (C)	1-37319-004-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	08	1	9002-	●	●	●	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> (B)	9-37352-023-0	04	1	9002-			●	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-130-0	04	1	9002-			●	●	●	●
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	9002-9009	●	●	●	●	●	●
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-	●	●	●	●	●	●
15	UNIVERSAL CENTER P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	04	1	9307-	●	●		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9306			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW	9-09031-210-0	01	1	9307-			●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X> (C)	1-37319-005-0	02	1	9307-9501				●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	9002-	●	●	●	●	●	●
58	FLANGE; SPLINED L=264	1-37245-157-1	01	1	9002-	●	●	●	●	●	●
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P60 PROP SHAFT<C2M> (A)	9-09860-507-0	01	1	9002-	●	●	●	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	9002-	●	●	●	●	●	●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (A)	1-37248-011-0	01	1	9109-	●	●		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37248-010-0	01	1	9109-	●	●		●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-016-0	01	1	9002-	●	●	●	●	●	●
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-013-0	01	1	9002-	●	●		●
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	9002-	●	●	●	●	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	9002-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
