0-30 — WATER PUMP AND CORROSION RESISTOR (#28469) — 108 parça

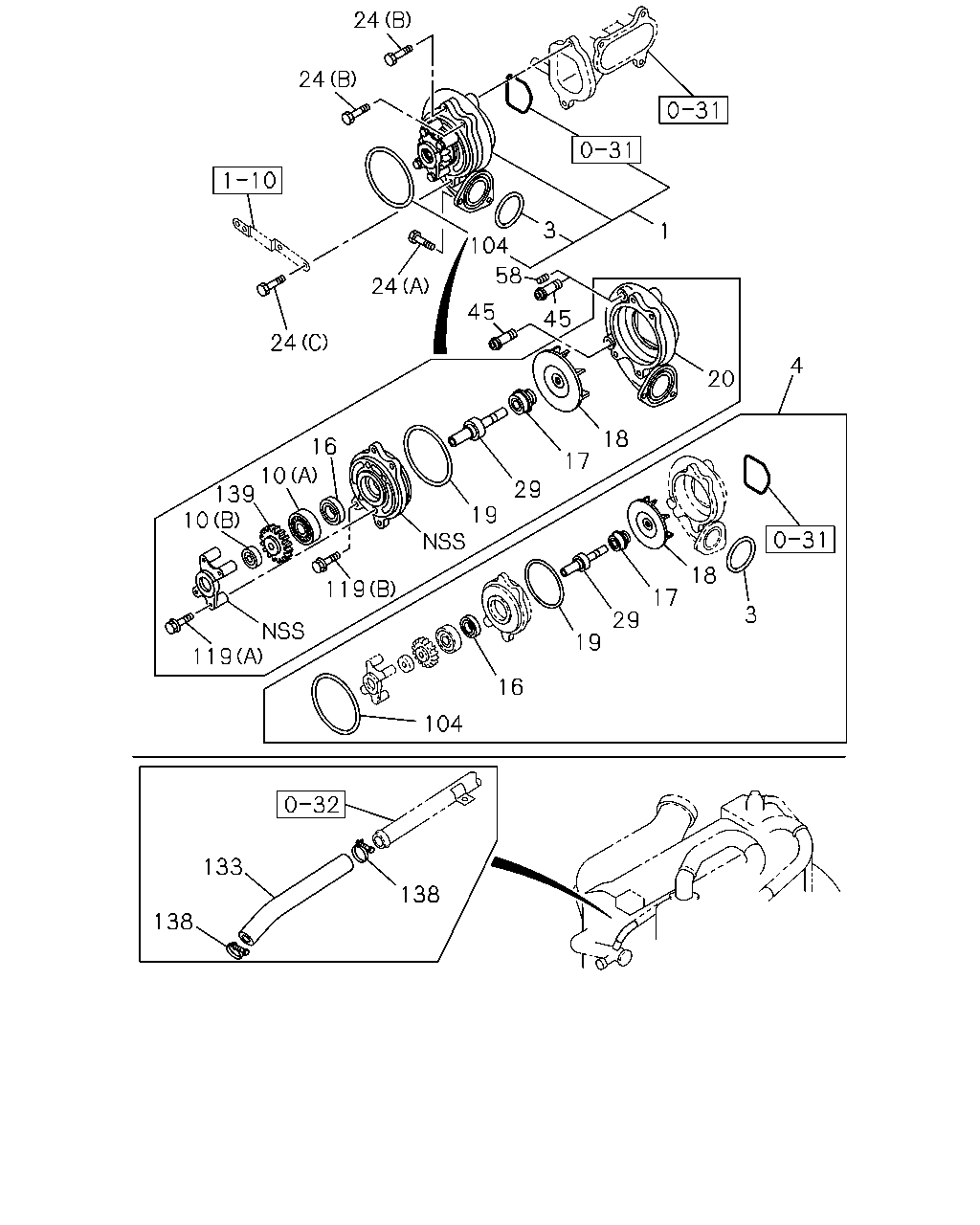

çizim 77822
24 24 3 1 104 58 24 45 45 24 4 20 18 16 17 10 139 10 29 19 18 119 17 3 29 19 119 16 104 133 138 138
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-13650-057-2 01 1 0105-0108 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-056-3 01 1 0109-0303 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-171-0 01 1 0304-0409 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97606-250-2 01 1 0410-0603 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97615-906-0 01 1 0604- ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-084-1 01 1 0105-0107 ●
1 PUMP ASM; WATER,W/GASKET
EXC. EURO3 SPECIFICATION<NJX> 		1-13650-084-1 01 1 0108-0108 ●
1 PUMP ASM; WATER,W/GASKET
EXC. EURO3 SPECIFICATION<NJX> 		1-13650-069-3 01 1 0109-0303 ●
1 PUMP ASM; WATER,W/GASKET
EURO3 SPECIFICATION<NJX> 		1-13650-151-0 01 1 0107-0108 ●
1 PUMP ASM; WATER,W/GASKET
EURO3 SPECIFICATION<NJX> 		1-13650-088-1 01 1 0109-0202 ●
1 PUMP ASM; WATER,W/GASKET
EURO3 SPECIFICATION<NJX> 		1-13650-162-0 01 1 0203-0303 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-170-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET 8-97606-249-2 01 1 0410-0603 ●
1 PUMP ASM; WATER,W/GASKET 8-97615-905-0 01 1 0604- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0105- ● ● ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 0105-0412 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-921-0 01 1 0501-0603 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-072-0 01 1 0604- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-879-0 01 1 0105-0412 ●
4 REPAIR KIT; WATER PUMP 1-87812-922-0 01 1 0501-0603 ●
4 REPAIR KIT; WATER PUMP 1-87813-077-0 01 1 0604- ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0105-0105 ● ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0106-0106 ● ●
10 BEARING; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-09800-252-0 01 1 0106-0106 ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0107- ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0105-0105 ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0106-0106 ● ●
10 BEARING; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-09800-253-0 01 1 0106-0106 ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0107- ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0105-0105 ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0106-0106 ● ●
16 SEAL; OIL,WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-09625-551-0 01 1 0106-0106 ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0107- ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0105-0105 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0106-0106 ● ●
17 SEAL UNIT; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> 		8-94392-090-0 01 1 0106-0106 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0107- ● ● ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 0105-0603 ● ●
18 IMPELLER; WATER PUMP 8-97608-970-0 01 1 0604- ● ●
18 IMPELLER; WATER PUMP 1-13621-060-0 01 1 0105-0603 ●
18 IMPELLER; WATER PUMP 8-97608-969-0 01 1 0604- ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0105-0105 ● ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0106-0106 ● ●
19 GASKET; COVER TO BODY
EXC. EURO3 SPECIFICATION<NJX> 		1-09623-587-0 01 1 0106-0106 ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0107-0501 ● ● ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 0502- ● ● ●
20 COVER; WATER PUMP 1-13612-041-1 01 1 0105-0105 ● ● ●
20 COVER; WATER PUMP 1-13612-041-1 01 1 0106-0108 ● ●
20 COVER; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-13612-041-1 01 1 0106-0108 ●
20 COVER; WATER PUMP 1-13612-038-1 01 1 0109-0303 ● ●
20 COVER; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-13612-038-1 01 1 0109-0303 ●
20 COVER; WATER PUMP
EURO3 SPECIFICATION<NJX> 		1-13612-052-0 01 1 0107-0108 ●
20 COVER; WATER PUMP
EURO3 SPECIFICATION<NJX> 		1-13612-043-2 01 1 0109-0303 ●
20 COVER; WATER PUMP 1-13612-055-1 01 1 0304-0603 ● ● ●
20 COVER; WATER PUMP 8-97611-134-0 01 1 0604- ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0105-0512 ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0105-0105 ● ●
24 BOLT; WATER PUMP
EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0105-0105 ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0106-0304 ● ●
24 BOLT; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> (B) M10X90 FLANGE 		0-28181-090-0 02 1 0106-0304 ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 0105-0105 ● ●
24 BOLT; WATER PUMP
EURO2 SPECIFICATION<THN> (C) M10X95 FLANGE 		8-94397-027-1 02 1 0105-0105 ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 0106-0304 ● ●
24 BOLT; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> (C) M10X95 FLANGE 		8-94397-027-1 02 1 0106-0304 ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 0305- ● ● ●
24 BOLT; WATER PUMP
EURO3 SPECIFICATION<NJX> (B),(C) M10X90 FLANGE 		0-28181-090-0 04 1 0107-0304 ●
24 BOLT; WATER PUMP
(B),(C) M10X90 FLANGE 		0-28181-090-0 02 1 0305-0512 ● ● ●
24 BOLT; WATER PUMP
(B),(C) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0105-0105 ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0106-0106 ● ●
29 SHAFT; WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-13631-078-1 01 1 0106-0106 ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0107- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0105-0105 ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0106- ● ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. EURO3 SPECIFICATION<NJX> PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0106- ●
45 JOINT; HTR HOSE,WATER PUMP
EURO3 SPECIFICATION<NJX> 		8-94119-532-0 02 1 0107-0303 ●
45 JOINT; HTR HOSE,WATER PUMP
EURO3 SPECIFICATION<NJX> PT3/8 & OD=18.3 L=47 		9-09903-631-0 02 1 0304- ●
58 PLUG; HTR
EURO3 SPECIFICATION<NJX> PT3/8 		5-09605-005-0 01 1 0604- ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 01 1 0304-0603 ● ●
58 PLUG; HTR
EXC. EURO3 SPECIFICATION<NJX> PT3/8 		5-09605-005-0 01 1 0304-0603 ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 02 1 0604- ● ●
58 PLUG; HTR
EXC. EURO3 SPECIFICATION<NJX> PT3/8 		5-09605-005-0 02 1 0604- ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0105- ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0105-0105 ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0106-0106 ● ●
119 BOLT; PUMP COVER
EXC. EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE 		0-28080-840-0 04 1 0106-0106 ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0107-0512 ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 0601- ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0105-0105 ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0106-0303 ● ●
119 BOLT; PUMP COVER
EXC. EURO3 SPECIFICATION<NJX> (B) M10X20 		0-23801-020-0 01 1 0106-0303 ●
119 BOLT; PUMP COVER
EURO3 SPECIFICATION<NJX> (B) M10X20 FLANGE 		0-28181-020-0 01 1 0107-0303 ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0304-0512 ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0105-0105 ● ●
133 HOSE; RUBBER,WATER PIPE
EURO2 SPECIFICATION<THN> L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0105-0105 ●
133 HOSE; RUBBER,WATER PIPE
L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0106- ● ●
133 HOSE; RUBBER,WATER PIPE
EXC. EURO3 SPECIFICATION<NJX> L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0106- ●
133 HOSE; RUBBER,WATER PIPE
EURO3 SPECIFICATION<NJX> L=100 L=270 		0-03230-270-0 01 1 0107-0206 ●
133 HOSE; RUBBER,WATER PIPE
EURO3 SPECIFICATION<NJX> L=100 SERVICED BY L=3000 		0-03580-300-0 01 1 0207- ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0105- ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0105-0105 ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0106-0106 ● ●
139 GEAR; WATER PUMP,DRIVE
EXC. EURO3 SPECIFICATION<NJX> 		1-13641-168-0 01 1 0106-0106 ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0107-0202 ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-216-0 01 1 0203-0409 ● ● ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-0 01 1 0410- ● ● ●
