0-11 — CYLINDER HEAD (#28459) — 96 parça

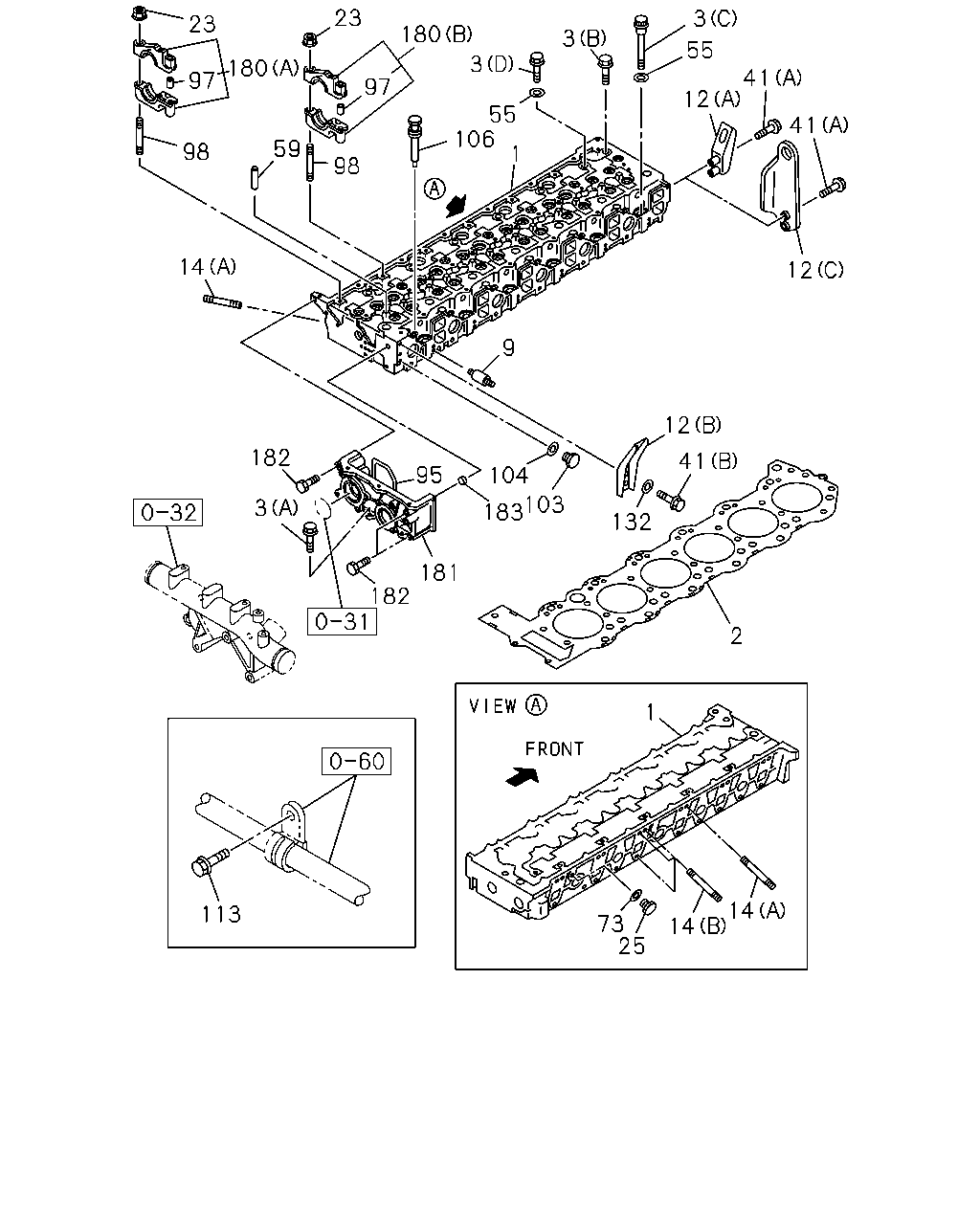

çizim 21189
23 3 23 180 3 55 3 180 41 97 97 12 55 106 41 59 98 1 98 14 12 9 12 182 41 95 104 103 183 3 132 181 182 2 1 14 14 113 73 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-902-5 01 1 0105- ●
1 HEAD ASM; CYL 1-11110-896-8 01 1 0105- ●
1 HEAD ASM; CYL 1-11110-861-9 01 1 0105-0302 ●
1 HEAD ASM; CYL 1-11110-946-3 01 1 0303- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-2 01 1 0105- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-3 01 1 0105- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 0105-0512 ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28151-035-0 02 1 0601- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 0105-0512 ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0105- ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0105- ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 0105- ● ● ●
12 HANGER; ENG,RR
(A) 		1-11777-263-0 01 1 0202- ● ●
12 HANGER; ENG,RR
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) 		1-11777-263-0 01 1 0202- ●
12 HANGER; ENG,RR
ENGINE REAR PTO HEAVY DUTY<NJU> (A) 		1-11777-257-0 01 1 0107-0107 ●
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> (A) 		1-11777-257-0 01 1 0108-0211 ●
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> (C) 		1-11777-272-0 01 1 0212- ●
12 HANGER; ENG,RR
(A) 		1-11777-149-2 02 1 0105-0201 ● ●
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> (A) 		1-11777-264-0 01 1 0202- ●
12 HANGER; ENG,RR
(B) 		1-11777-216-1 01 1 0105- ● ●
12 HANGER; ENG,RR
(B) 		1-11777-217-0 01 1 0105- ●
12 HANGER; ENG,RR
(A) 		1-11777-239-1 01 1 0105-0106 ●
12 HANGER; ENG,RR
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) 		1-11777-239-1 01 1 0107-0201 ●
12 HANGER; ENG,RR
(A) 		1-11777-239-1 01 1 0202- ● ●
12 HANGER; ENG,RR
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) 		1-11777-239-1 01 1 0202- ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 0105- ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 0105- ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0105- ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 0105- ● ●
41 BOLT; ENG HANGER
(A) M12X120 FLANGE 		0-28186-212-0 01 1 0202-0512 ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X120 FLANGE 		0-28186-212-0 01 1 0202-0512 ●
41 BOLT; ENG HANGER
(A) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ●
41 BOLT; ENG HANGER
(A) M14X120 FLANGE 		0-28986-412-0 01 1 0202-0512 ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M14X120 FLANGE 		0-28986-412-0 01 1 0202-0512 ●
41 BOLT; ENG HANGER
(A) M14X120 FLANGE 		0-28956-412-0 01 1 0601- ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M14X120 FLANGE 		0-28956-412-0 01 1 0601- ●
41 BOLT; ENG HANGER
ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X37 		8-94440-908-0 02 1 0107-0107 ●
41 BOLT; ENG HANGER
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X37 		8-94440-908-0 02 1 0108- ●
41 BOLT; ENG HANGER
(B) M12X25 FLANGE 		0-28191-225-0 02 1 0105-0512 ● ● ●
41 BOLT; ENG HANGER
(B) M12X25 FLANGE 		0-28161-225-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(A) M12X50 FLANGE 		0-28191-250-0 04 1 0105-0201 ● ●
41 BOLT; ENG HANGER
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X120 FLANGE 		0-28186-212-0 02 1 0202-0512 ●
41 BOLT; ENG HANGER
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X120 FLANGE 		0-28156-212-0 02 1 0601- ●
41 BOLT; ENG HANGER
(A) M12X30 FLANGE 		0-28191-230-0 02 1 0105-0106 ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X30 FLANGE 		0-28191-230-0 02 1 0107-0201 ●
41 BOLT; ENG HANGER
(A) M12X30 FLANGE 		0-28191-230-0 02 1 0202-0512 ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X30 FLANGE 		0-28191-230-0 02 1 0202-0512 ●
41 BOLT; ENG HANGER
(A) M12X30 FLANGE 		0-28161-230-0 02 1 0601- ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (A) M12X30 FLANGE 		0-28161-230-0 02 1 0601- ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 0105- ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 0105-0407 ● ● ●
59 GUIDE; BRIDGE 8-97378-021-0 12 1 0408- ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0105- ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0105- ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0105- ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0105- ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 0105- ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105- ● ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0105- ● ● ●
113 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512 ●
113 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
132 WASHER; PL,ENG HANGER
ENGINE REAR PTO HEAVY DUTY<NJU> ID=12.5 OD=26 		9-09164-612-0 02 1 0107-0107 ●
132 WASHER; PL,ENG HANGER
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO HEAVY DUTY<NJU> ID=12.5 OD=26 		9-09164-612-0 02 1 0108- ●
180 BRACKET SET; CAM,CYL HD
(A) 		1-12516-148-1 01 1 0105-0504 ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-1 01 1 0505- ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		1-12516-152-1 06 1 0105-0504 ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		8-97608-791-1 06 1 0505- ● ● ●
181 CASE; HEAD GEAR 1-11310-058-1 01 1 0105-0107 ● ● ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0108- ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0105- ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0105- ● ● ●

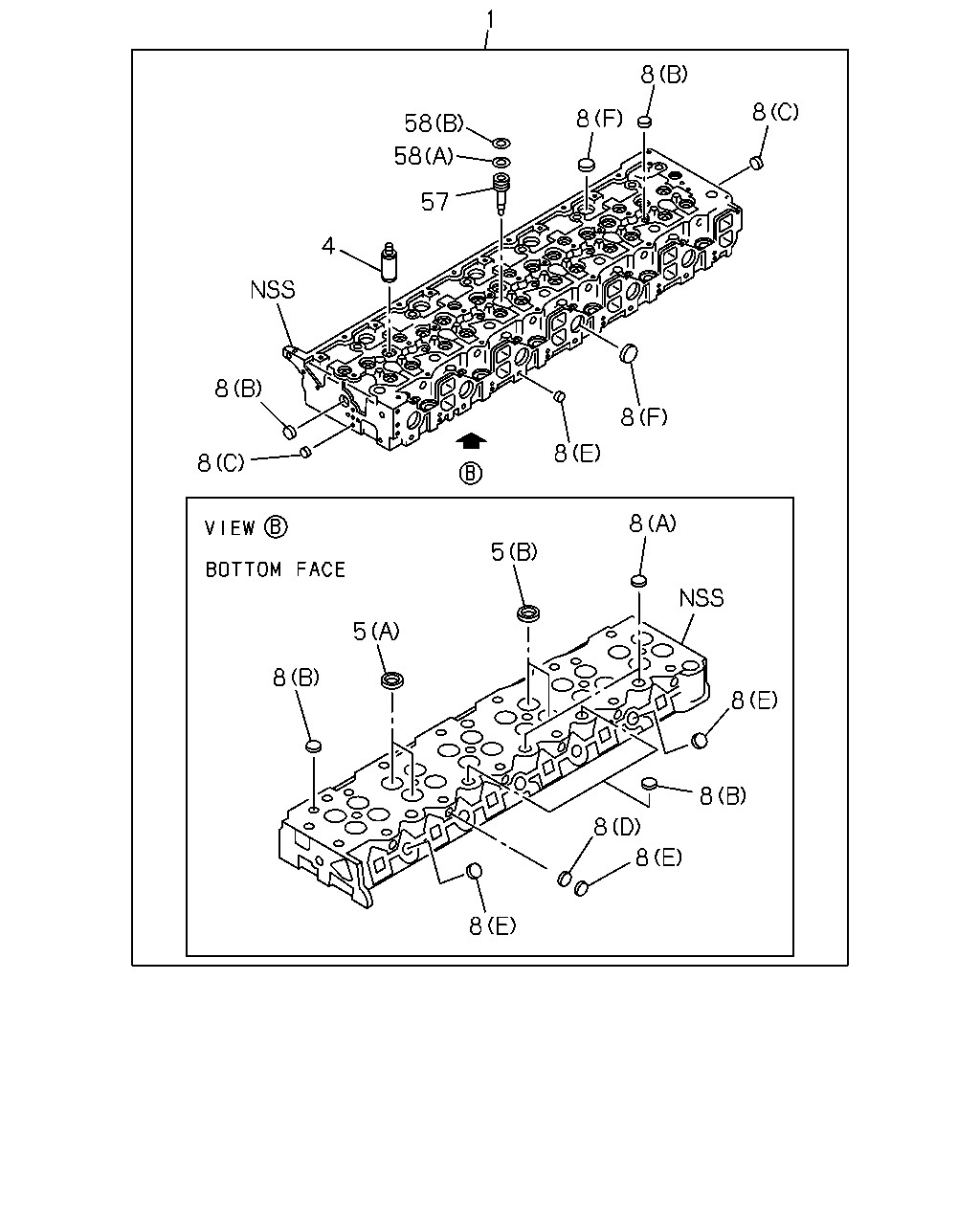

çizim 79284
1 8 8 8 58 58 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-902-5 01 1 0105- ●
1 HEAD ASM; CYL 1-11110-896-8 01 1 0105- ●
1 HEAD ASM; CYL 1-11110-861-9 01 1 0105-0302 ●
1 HEAD ASM; CYL 1-11110-946-3 01 1 0303- ●
4 GUIDE; VLV 1-11721-012-0 24 1 0105- ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-076-0 12 1 0105- ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-111-0 12 1 0105- ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-0 12 1 0105- ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-0 12 1 0105- ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-077-0 12 1 0105- ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-112-0 12 1 0105- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 03 1 0105- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 0105- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 02 1 0105- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 0105- ● ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 0105- ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 0105- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 02 1 0105- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 10 1 0105- ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-058-0 06 1 0105-0303 ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-067-0 06 1 0304- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK 		8-97233-126-0 06 1 0105- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED 		8-97233-127-0 06 1 0105- ● ● ●
