9-01 — TOOLS (#28456) — 159 parça

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	WRENCH; 24	9-85111-377-0	01	1	0106-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	0106-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	0106-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	0106-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	0106-	●	●
115	PLIER	5-85171-001-0	01	1	0106-0212	●	●
115	PLIER	5-85171-002-0	01	1	0301-	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0106-	●	●
193	JACK ASM 15TON	1-85510-019-1	01	1	0106-	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	0106-	●	●
237	BAG; TOOL	8-97130-902-0	01	1	0106-	●	●

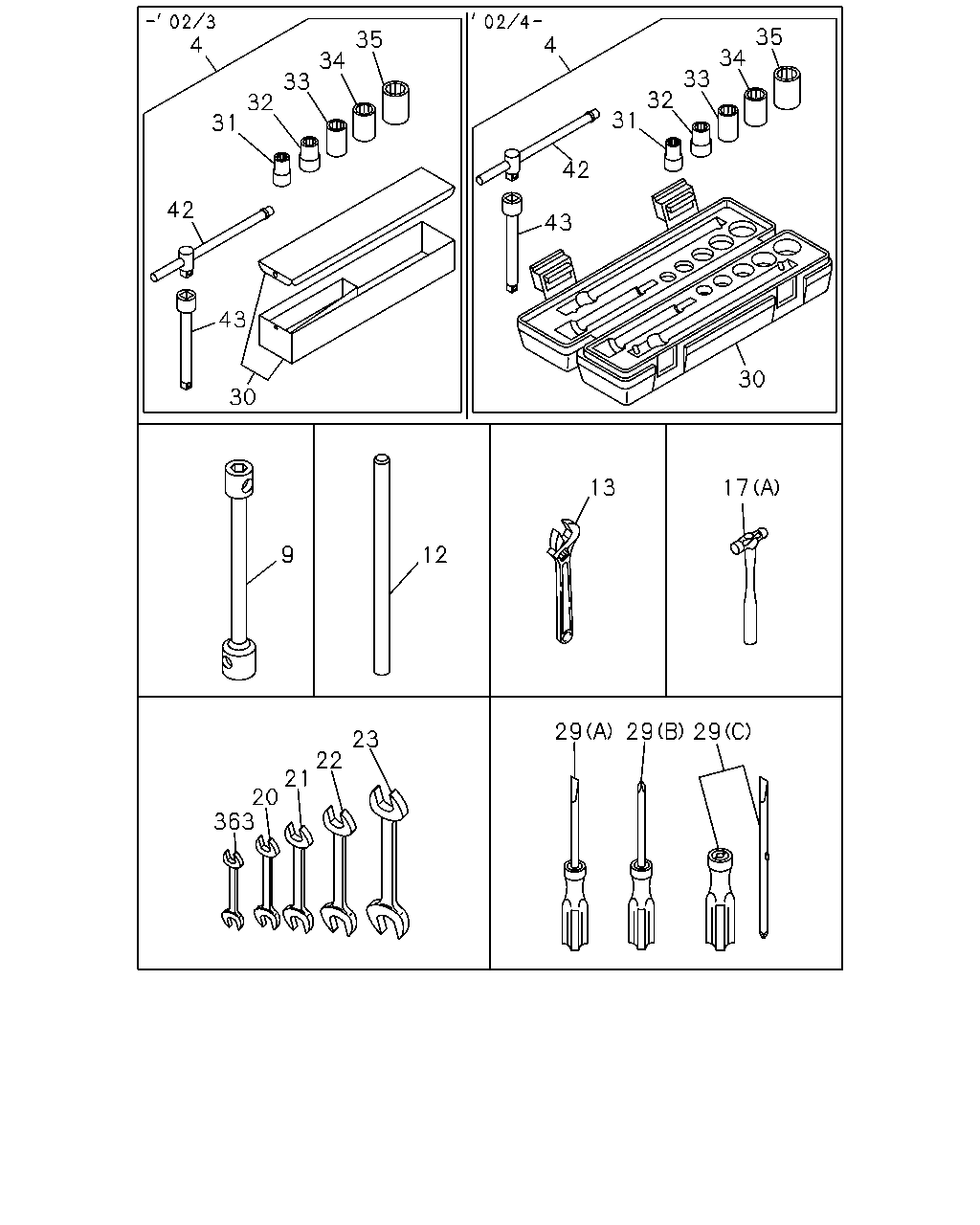

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	0106-0203	●	●
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-	●	●
9	WRENCH; WHEEL PIN WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 41X21 L=440	1-85113-015-1	01	1	0106-0204	●	●
9	WRENCH; WHEEL PIN WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 41X21 L=440	1-85113-015-1	01	1	0205-	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 33X30 L=450	1-85111-033-1	01	1	0106-0204	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 33X30 L=450	1-85111-033-1	01	1	0205-	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 33X30 L=450 33X30 L=450	1-85111-033-1	01	1	0205-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0106-	●	●
13	WRENCH; MONKEY	1-85117-002-1	01	1	0106-	●	●
17	HAMMER (B)	1-85220-021-0	01	1	0106-	●	●
17	HAMMER (A)	9-85121-406-0	01	1	0106-	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0106-	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0106-	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0106-	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0106-	●	●
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0106-	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0106-	●	●
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0106-	●	●
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	0106-0203	●	●
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-	●	●
31	WRENCH; 12	9-09590-012-0	01	1	0106-0203	●	●
31	WRENCH; 12	1-85000-495-0	01	1	0204-	●	●
32	WRENCH; 14	9-09590-014-0	01	1	0106-0203	●	●
32	WRENCH; 14	1-85000-496-0	01	1	0204-	●	●
33	WRENCH; 17	9-09590-017-0	01	1	0106-0203	●	●
33	WRENCH; 17	1-85000-497-0	01	1	0204-	●	●
34	WRENCH; 19	9-09590-019-0	01	1	0106-0203	●	●
34	WRENCH; 19	1-85000-498-0	01	1	0204-	●	●
35	WRENCH; 22	9-09590-022-0	01	1	0106-0203	●	●
35	WRENCH; 22	1-85000-499-0	01	1	0204-	●	●
42	HANDLE; SLIDING	9-09590-512-0	01	1	0106-0203	●	●
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-	●	●
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	0106-0203	●	●
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-	●	●
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0106-	●	●

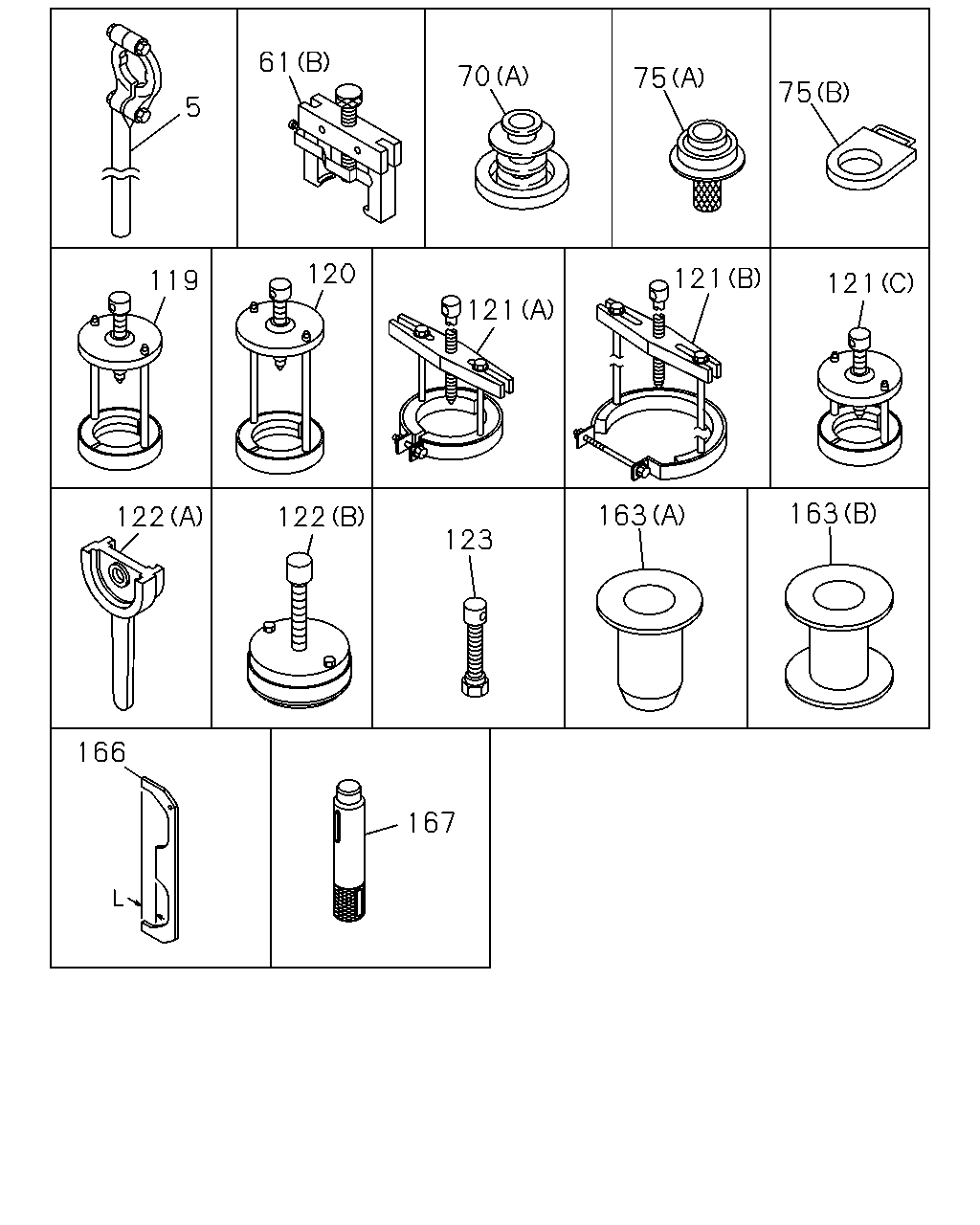

61 70 75 75 5 120 121 119 121 121 163 163 122 122 123 166 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	0106-	●
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	0106-	●
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	0106-	●	●
70	TOOL; SETTING,OIL SEAL (A)	1-85221-172-0	01	1	0106-	●
70	TOOL; SETTING,OIL SEAL (B) FOR OIL SEAL	1-85220-051-0	01	1	0106-	●	●
70	TOOL; SETTING,OIL SEAL (B) FOR OIL THROWER	1-85220-053-0	01	1	0106-	●	●
75	TOOL; SETTING,OIL SEAL (A)	1-85221-168-0	01	1	0106-	●
75	TOOL; SETTING,OIL SEAL (B)	1-85221-169-0	01	1	0106-	●
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	0106-	●	●
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	0106-	●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0106-	●	●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0106-	●
121	PULLER ASM; COUNTER REAR (A) OD=162	1-85210-068-0	01	1	0106-	●
121	PULLER ASM; COUNTER REAR (A) OD=146	1-85210-074-0	01	1	0106-	●
121	PULLER ASM; COUNTER REAR (C)	9-85210-185-0	01	1	0106-	●
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	0106-	●	●
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	0106-	●
122	PULLER ASM; COUNTER FRT (B)	1-85210-010-0	01	1	0106-	●
122	PULLER ASM; COUNTER FRT (A)	9-85210-129-1	01	1	0106-	●	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	0106-	●	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	0106-	●
163	TOOL; SETTING (A) L=195	1-85221-162-1	01	1	0106-	●	●
163	TOOL; SETTING (A) L=195	1-85221-162-1	01	1	0106-	●
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	0106-	●	●
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	0106-	●
166	ALIGNER; CLU RELEASE LEVER L=550 H=17.5	1-85253-010-0	01	1	0106-	●	●
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0106-	●	●

82 86 87 88 90 89 99 93 106 191 329 133 114 218 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	PULLER ASM; CR/SHF GEAR	9-85211-139-0	01	1	0106-	●	●
86	REPLACER; FLYWHEEL	1-85230-006-0	01	1	0106-	●	●
87	TOOL; PISTON	1-85220-082-0	01	1	0106-	●	●
88	TOOL; CONNROD BUSHING	1-85220-002-0	01	1	0106-	●	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	0106-	●	●
90	PULLER; INJ PUMP BRG	1-85210-039-0	01	1	0106-	●	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0106-	●	●
99	WRENCH; CYL HD BOLT	1-85115-013-0	01	1	0106-	●	●
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0106-	●	●
114	WRENCH; INJ PUMP	1-85220-027-0	01	1	0106-	●	●
133	WRENCH; NUT STARTER	1-85221-030-0	02	1	0106-	●	●
191	ADAPTER	1-85317-002-0	01	1	0106-	●	●
218	PLUG	1-15629-043-0	01	1	0106-	●	●
219	GASKET	9-09720-555-0	01	1	0106-	●	●
329	PULLER ASM; SLINGER ID=124	1-85220-052-0	01	1	0106-	●	●

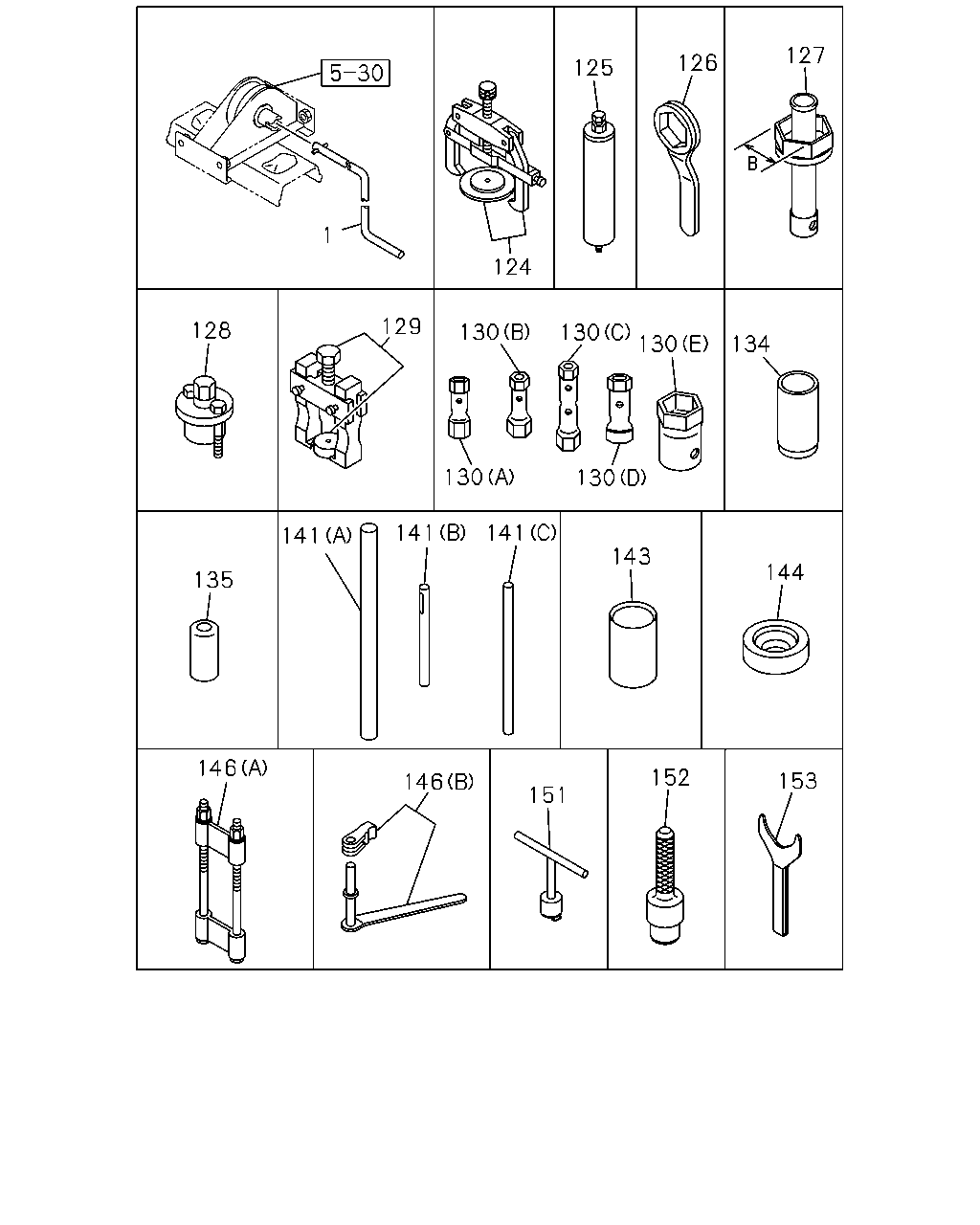

127 126 125 1 124 129 128 130 130 130 134 130 130 141 141 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0106-	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0106-		●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0106-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0106-	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0106-	●	●
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	0106-	●	●
127	WRENCH ASM; HUB BRG NUT REARWARD REAR B=105	9-85113-509-0	01	1	0106-	●	●
127	WRENCH ASM; HUB BRG NUT FORWARD REAR	9-85113-524-0	01	1	0106-	●	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0106-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0106-	●	●
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0106-	●	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0106-	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0106-	●	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0106-	●	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0106-	●	●
134	SETTING TOOL; OUTPUT BRG	1-85220-003-0	01	1	0106-	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0106-	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0106-	●	●
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0106-	●	●
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0106-	●	●
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0106-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0106-	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0106-	●	●
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	0106-	●	●
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0106-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	0106-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0106-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0106-	●	●

50 47 51 17 49 63 57 61 54 70 73 81 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HAMMER (B)	1-85220-021-0	01	1	0106-	●	●
17	HAMMER (A)	9-85121-406-0	01	1	0106-	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP	1-85220-018-0	01	1	0106-	●	●
49	REPLACER ASM; VALVE	1-85235-001-0	01	1	0106-	●	●
50	REPLACER; NOZZLE HOLDER L=500	1-85230-007-0	01	1	0106-	●	●
51	PULLER ASM; WATER PUMP	1-85210-028-0	01	1	0106-	●	●
54	PULLER; THERMOSTAT SEAL	1-85210-029-0	01	1	0106-	●	●
57	TOOL; SETTING CRANK GEAR OD=175	1-85221-028-0	01	1	0106-	●	●
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	0106-	●
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	0106-	●	●
63	PULLER; NOZZLE SLEEVE	1-85210-026-0	01	1	0106-	●	●
70	TOOL; SETTING,OIL SEAL (A)	1-85221-172-0	01	1	0106-	●
70	TOOL; SETTING,OIL SEAL (B) FOR OIL SEAL	1-85220-051-0	01	1	0106-	●	●
70	TOOL; SETTING,OIL SEAL (B) FOR OIL THROWER	1-85220-053-0	01	1	0106-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0106-	●	●
74	TOOL; SETTING,INJ PUMP BRG (A)	1-85220-019-0	01	1	0106-	●	●
74	TOOL; SETTING,INJ PUMP BRG (B)	1-85220-020-1	01	1	0106-	●	●
81	PULLER; BRG CAP	1-85210-015-0	01	1	0106-	●	●

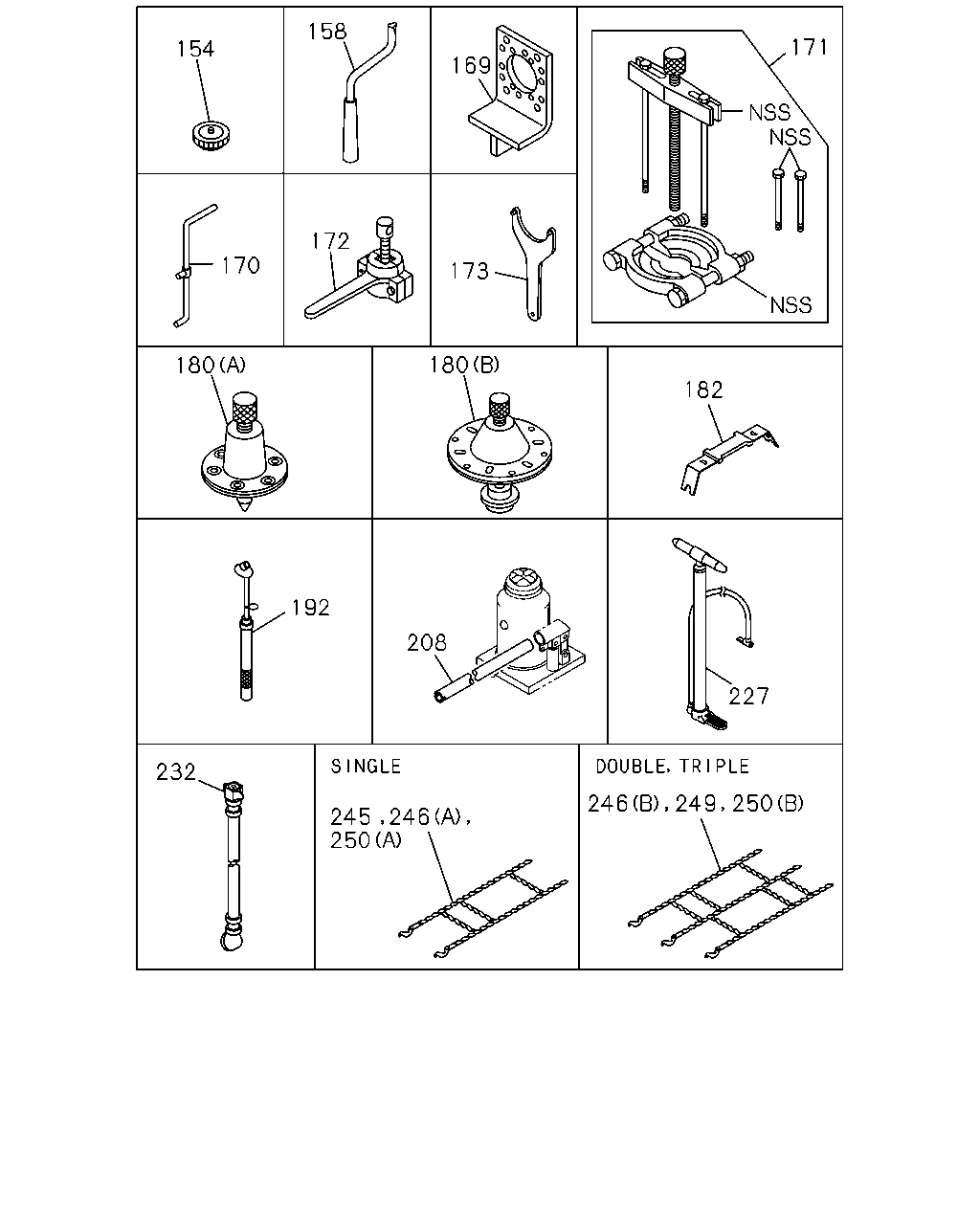

158 169 171 154 172 170 173 180 180 182 192 208 227 232 250 245 246 246 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0106-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0106-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0106-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0106-	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0106-	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0106-	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0106-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0106-	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0106-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0106-	●
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	0106-	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0106-	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0106-	●	●
182	REMOVER ASM	1-85239-008-0	01	1	0106-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0106-	●	●
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0106-	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0106-	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0106-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0106-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0106-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0106-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0106-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0106-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0106-	●	●
